User Manual for Tascam US-2x2 2-Channel USB Audio Interface Click to enlarge the picture
Contents of the user manual for the Tascam US-2x2 2-Channel USB Audio Interface
- Product category: Audio Interfaces & Systems Tascam
- Brand: Tascam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tascam Audio Interfaces & Systems
 |
User manual for the Tascam US-2x2 2-Channel USB Audio Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tascam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tascam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tascam product will considerably shorten its lifespan!
|

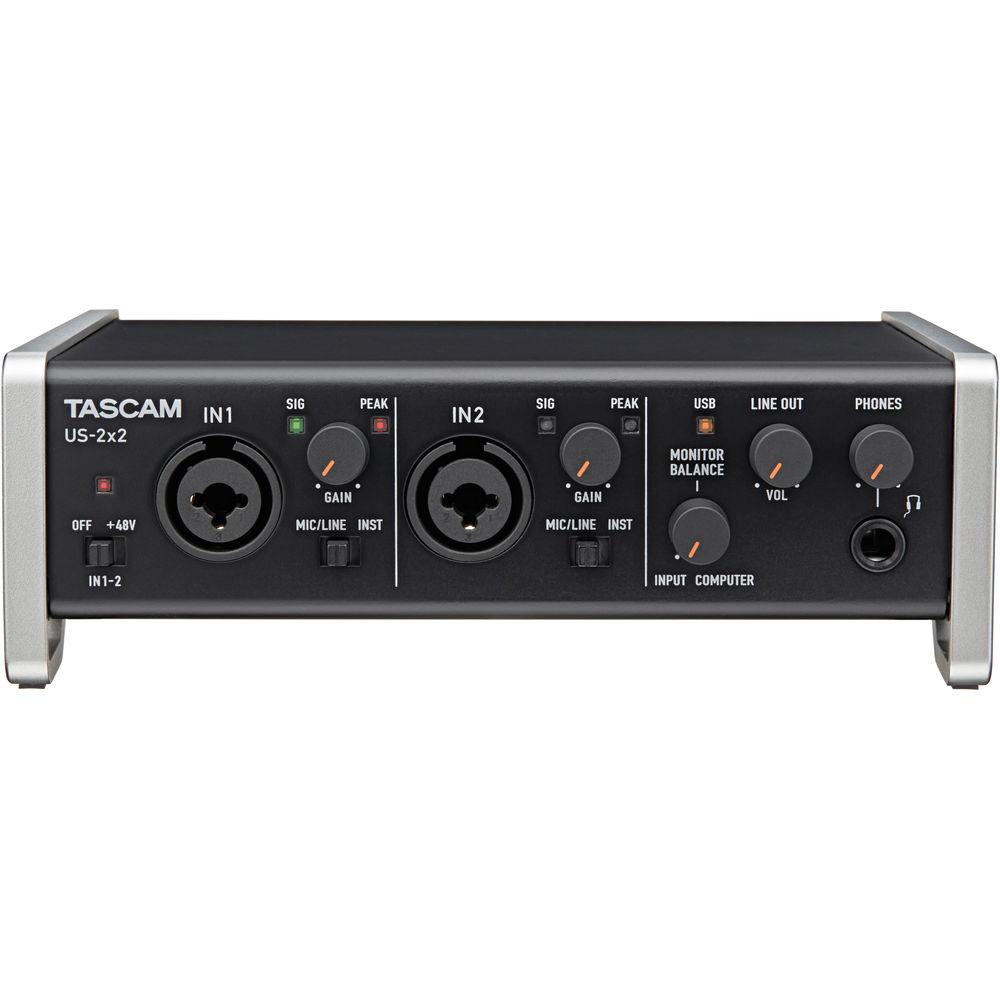

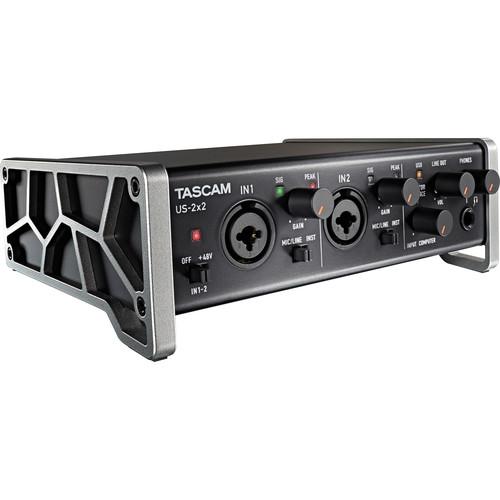

Product description The Tascam US-2x2 is a 2-channel USB audio interface designed for audio capture and reproduction at up to 24-bit/96 kHz resolution for musicians, vocalists, and producers in home and project studios, and mobile recording rigs. It features two Ultra-HDDA low-noise mic preamps fed by XLR-1/4" combo jacks and NE5532 op-amps in the input and output sections. Its angled aluminum design enables easy visibility when placed on a desk or table. Separate level knobs are provided for the two 1/4" balanced line outputs and the single 1/4" stereo headphone jack. Rear-panel MIDI ports allow simple hook-up of your MIDI controller, keyboard, or synthesizer. Power the US-2x2 via USB connection to your compatible Mac, Windows, or iOS device or via an AC adapter (available separately). Use your favorite DAW or download the supplied copy of Cubase LE and explore it. - Mic/instrument/line inputs with up to 57 dB of gain
- 2-in/2-out USB 2.0 interface with up to 24-bit/96 kHz resolution
- XLR-1/4" combination input jacks with selectable phantom power
- Separate volume controls for line and headphone outputs
- USB Audio Compliant 2.0 drivers for iOS compatibility
- Independent line out and headphone level controls

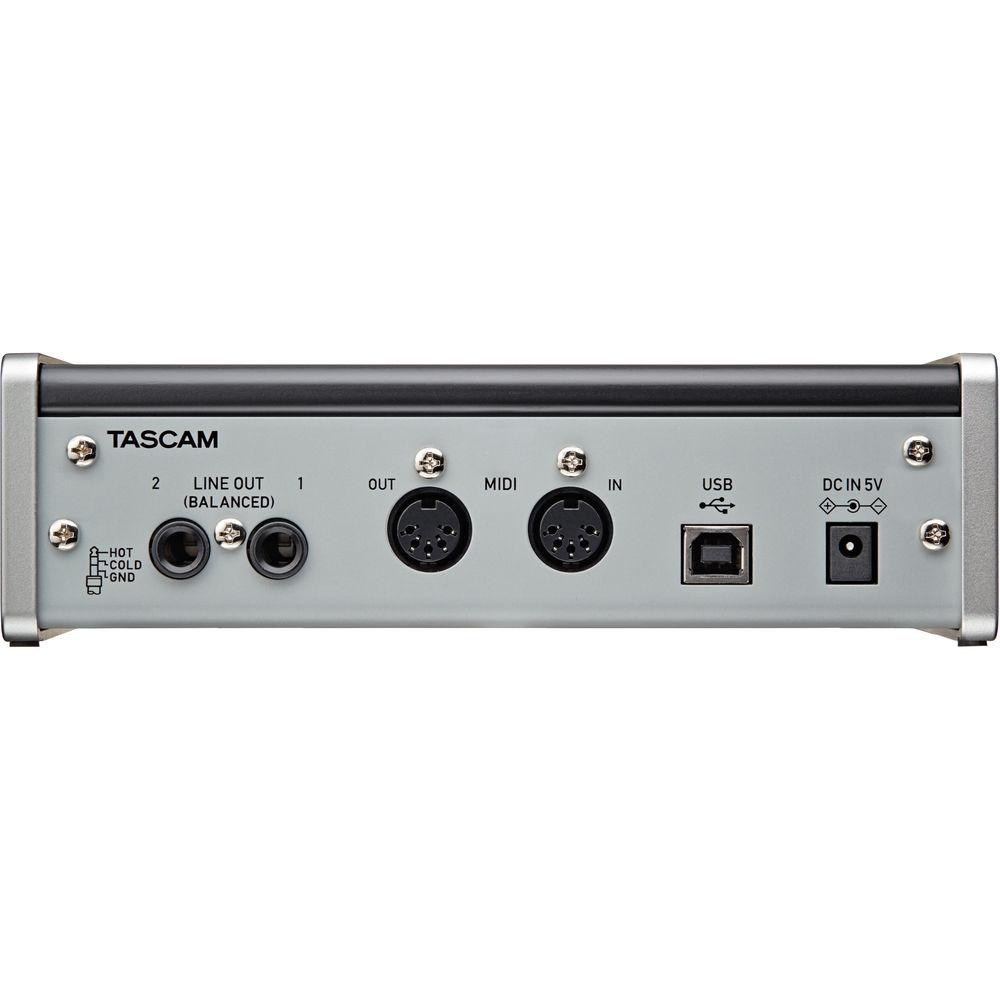

- MIDI input and output jacks
- Aluminum body with angled design for better desktop visibility
- Includes Cubase LE cross-platform compatible DAW
UPC: 043774031009 In the Box Tascam US-2x2 2-Channel USB Audio Interface USB Cable Limited 1-Year Warranty User Manual PDF 6.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Tascam US-2x2 2-Channel USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTascam US-2X2 Specs | | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | | | Host Connection | 1 x USB Type-B (USB 2.0) | | Analog I/O | 2 x Combo XLR / 1/4" Input
2 x 1/4" (6.3 mm) TRS Balanced Line Output
1 x 1/4" (6.3 mm) TRS Unbalanced Headphone Output | | Digital I/O | None | | MIDI I/O | 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out | | | | Frequency Response | Headphone Outputs:
20 Hz to 20 kHz
