User Manual for Tasco 12x25 Off-Shore Binocular Click to enlarge the picture
Contents of the user manual for the Tasco 12x25 Off-Shore Binocular
- Product category: Binoculars Tasco
- Brand: Tasco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tasco Binoculars
 |
User manual for the Tasco 12x25 Off-Shore Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tasco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tasco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tasco product will considerably shorten its lifespan!
|

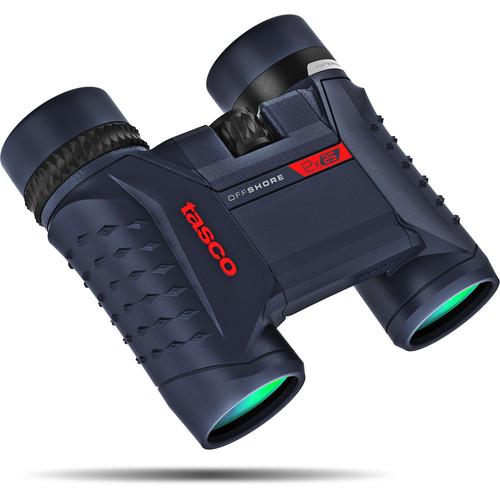

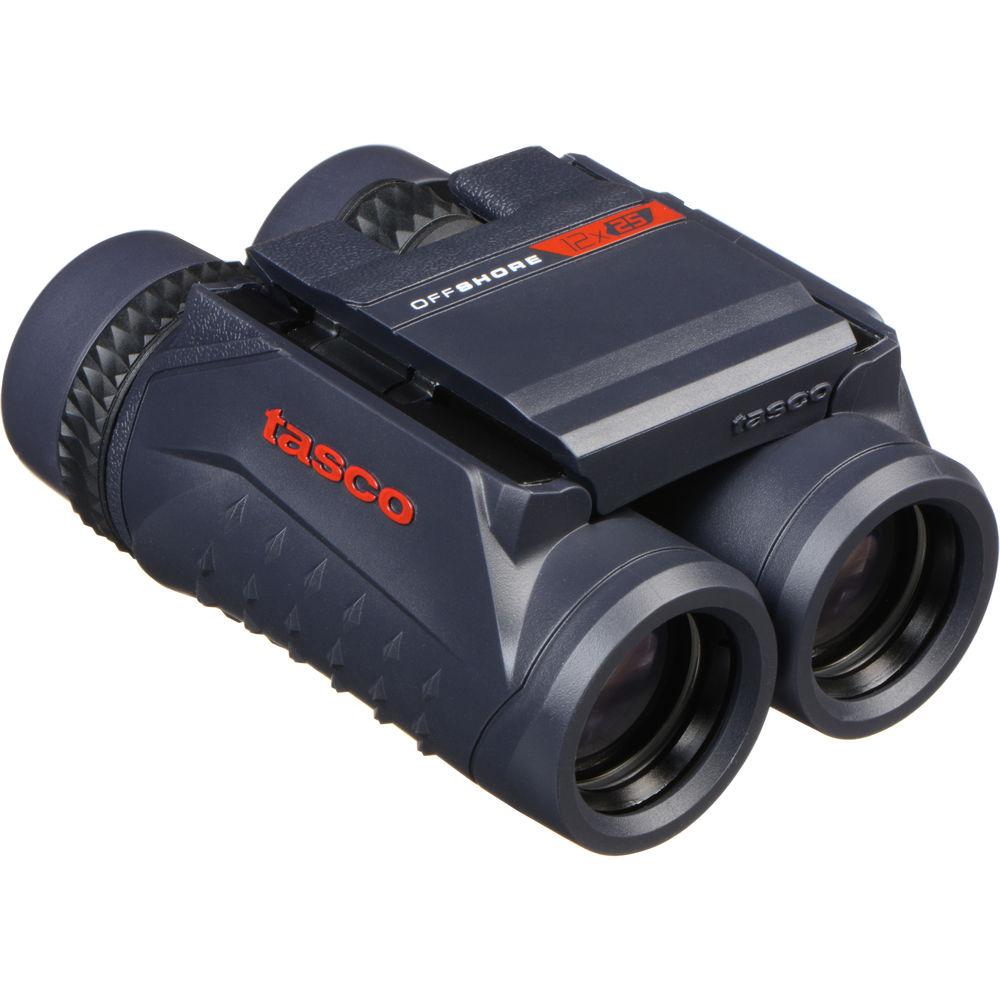

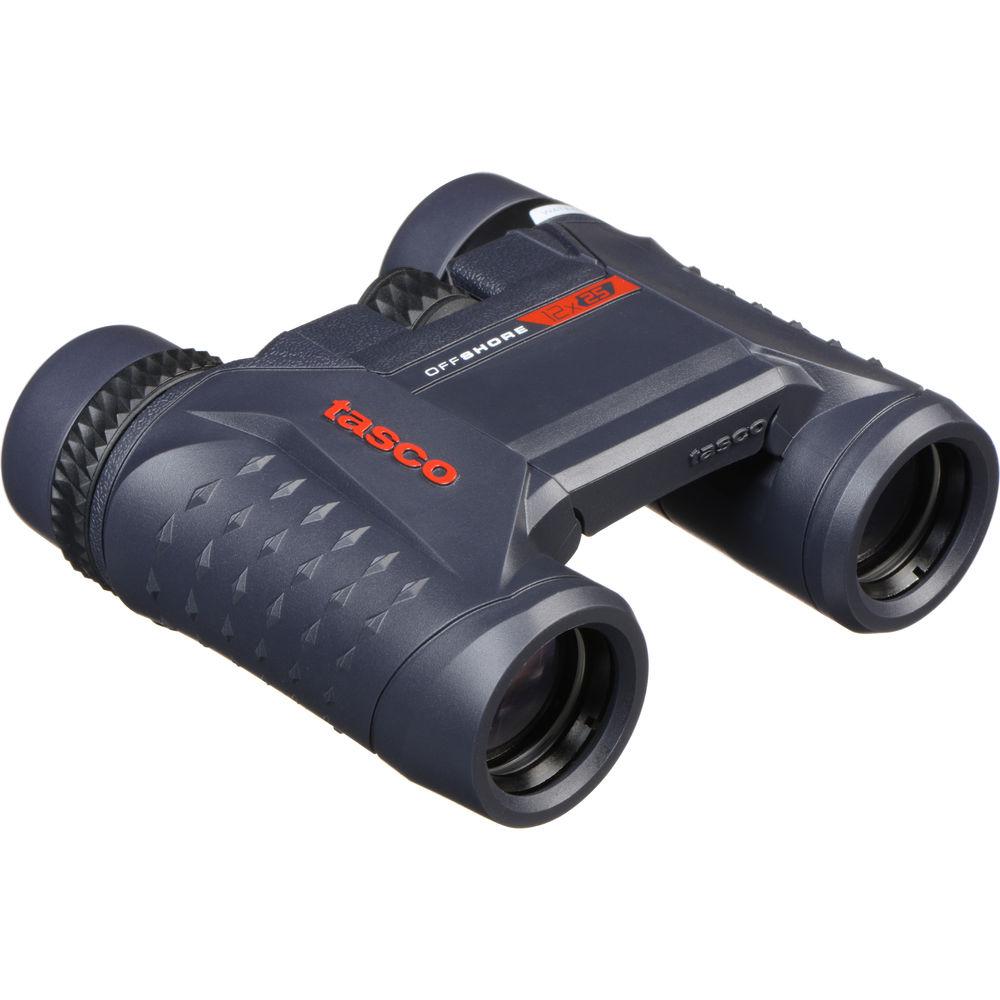

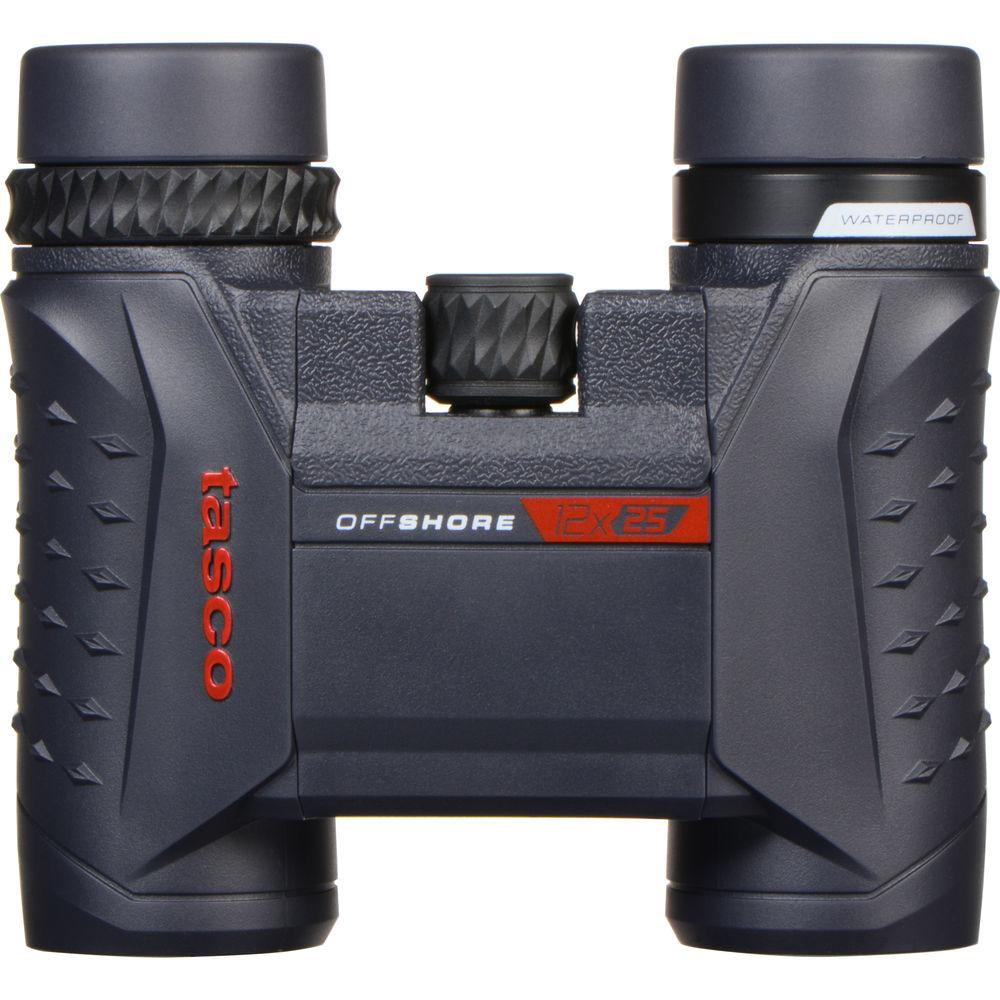

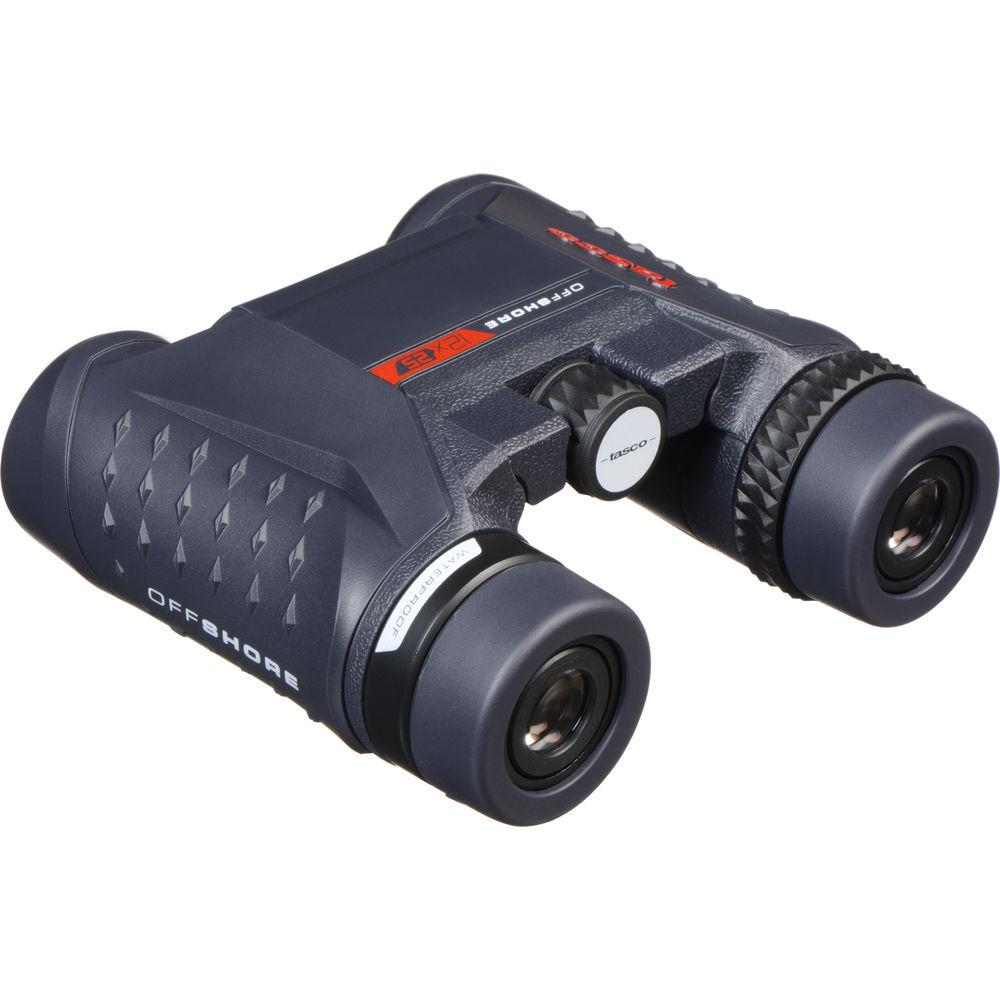

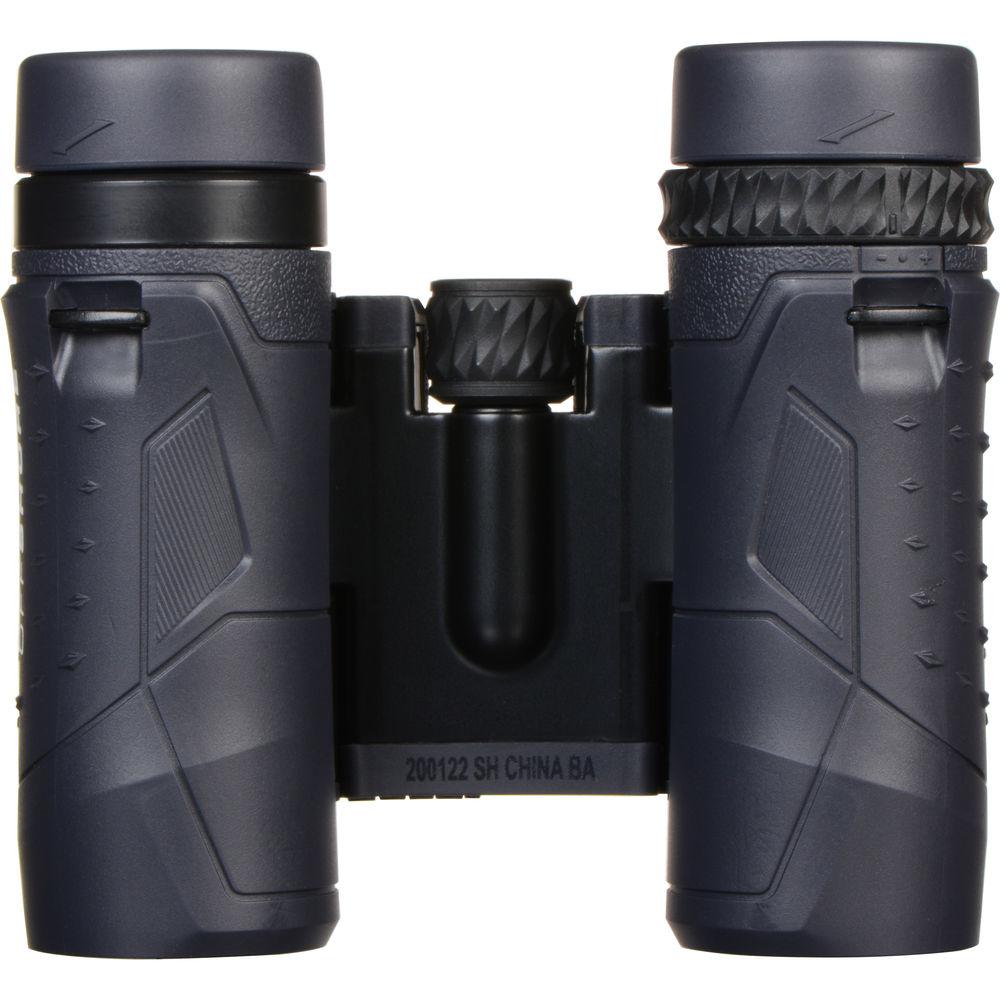

Product description The B&H Binocular Buying Guide Read More Powerful, compact, and rugged, the blue Tasco 12x25 Off-Shore Binocular is an ideal companion for any outdoor adventure. The high magnification brings distant objects up-close to make detailed observations, while its wide apparent angle of view helps to offset the appearance of visible hand-shake often associated with high-power optics. Multi-coated optics help boost image brightness to balance the dimming that can happen in high-power/small-objective binoculars, and limits glare when glassing on or near the water.The binocular is wrapped in a textured rubber armor that protects it from impacts and drops, but provides a slip-resistant grip in cold or wet conditions. To withstand rain or water spray, the optical tubes are nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature changes. This version of the Off-Shore features a dual-hinge bridge design that allows the optical tubes to fold and tuck under the bridge for a compact form factor that, when coupled with the light 10-ounce weight, ensures an easy fit in most packs or pockets without adding inconvenient bulk. - Optical Performance
-
- 12x magnification
- 25mm objective lenses
- Compact roof prism optical path
- Multi-coated optics reduce glare while increasing light transmission, image brightness, color rendition and contrast
- Wide 62° apparent angle of view
- 273' field of view at 1000 yards
- Use and Handling
-
- Closed-bridge/dual-hinge configuration
- Textured center focusing wheel
- Right eye dioptric correction
- Fold-down rubber eyecups
- 6.8mm eye relief
- 2.1mm exit pupil
- Construction Details
-
- Nitrogen-filled, O-ring sealed to be waterproof and resistant to internal fogging when moving between extreme temperature changes
- Protective blue rubber armoring provides a slip-resistant grip in cold or wet conditions
- Textured palm pads provide additional grip security and strength
- Lightweight: 10 ounces
UPC: 046162000335 In the Box Tasco 12x25 Off-Shore Binocular (Blue) Neck Strap Carrying Case Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Tasco 12x25 Off-Shore Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTasco 200122 Specs | Prism Type | Roof | | Magnification | 12 x | | Objective Lens Diameter | 25 mm | | Angle of View | 5.2° (Actual) | | Field of View | 273.0' @ 1000 yd / 91.0 m @ 1000 m | | Minimum Focus Distance | 19.5' / 5.9 m | | Exit Pupil Diameter | 2.1 mm | | Eye Relief | 6.8 mm | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 4.3 x 4.1" / 10.9 x 10.4 cm | | Weight | 10.0 oz / 284 g | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 4.9 x 4.0 x 2.8" |
