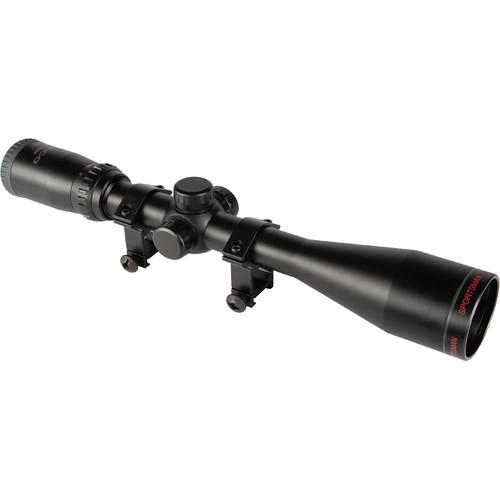

User Manual for Tasco 3-9x50 Sportsman Riflescope Click to enlarge the picture
Contents of the user manual for the Tasco 3-9x50 Sportsman Riflescope
- Product category: Riflescopes Tasco
- Brand: Tasco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tasco Riflescopes
|
User manual for the Tasco 3-9x50 Sportsman Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tasco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tasco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tasco product will considerably shorten its lifespan!
|
Product description Tasco built the 3-9x50 Sportsman Riflescope with a low magnification range for mid-range use, with a large anti-reflection fully coated 50mm objective that extends its usability from the pre-dawn hours through past dusk.Its utilitarian 30/30 duplex crosshair reticle presents an easy-to-see aiming point with thick outer posts and thin center hairs. This stripped-down reticle allows clear views without obstruction, which makes it ideal for scanning the landscape for targets.A 1/4 MOA impact point correction gets you on target faster and easier, with capped windage and elevation turrets providing 15 MOA of travel per rotation to adjust for distance, holdover/under, and wind for further shot accuracy. The Sportsman's one-piece 1" maintube scope is made of a lightweight and durable aluminum alloy treated with a scratch-resistant low-reflectivity matte-black anodized finish and sealed to be waterproof as well as fogproof. Two included scope rings provide easy mounting with the appropriate clearance for the objective lens. UPC: 046162000564 In the Box Tasco 3-9x50 Sportsman Riflescope (30/30 Reticle) 2 x Scope Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tasco 3-9x50 Sportsman Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTasco T3950 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 33' @ 100 yd / 11 m @ 100 m
9x: 10' @ 100 yd / 3.3 m @ 100 m | | Exit Pupil Diameter | 3x: 10.5 mm
9x: 5.5 mm | | Eye Relief | 3.5" / 8.9 cm | | | | Reticle Type | 30/30 Reticle | | Illumination | Non-Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 13.5" / 34.3 cm | | Weight | 16.8 oz / 476 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Tasco 3-9x50 Sportsman Riflescope
| Subject: recetear | | Date: 20.07.2022 01:27:54 | Name: jose de jesus garcia montoya | | esta mira cuenta con la posibilidad de recetear o volver a poner a cero la perilla de elevacion y deriba | | Post reply |
