User Manual for Tasco 7x35 Focus Free Binocular Click to enlarge the picture
Contents of the user manual for the Tasco 7x35 Focus Free Binocular
- Product category: Binoculars Tasco
- Brand: Tasco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tasco Binoculars
 |
User manual for the Tasco 7x35 Focus Free Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tasco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tasco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tasco product will considerably shorten its lifespan!
|

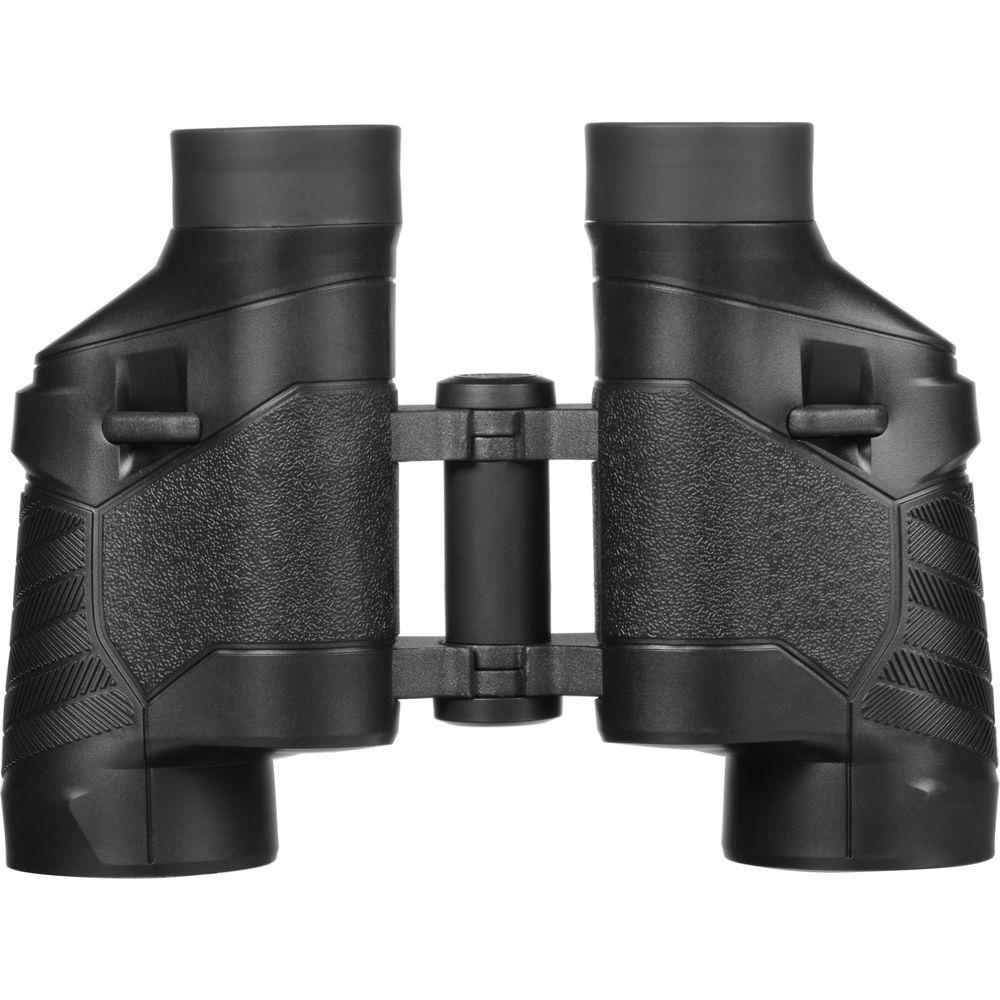

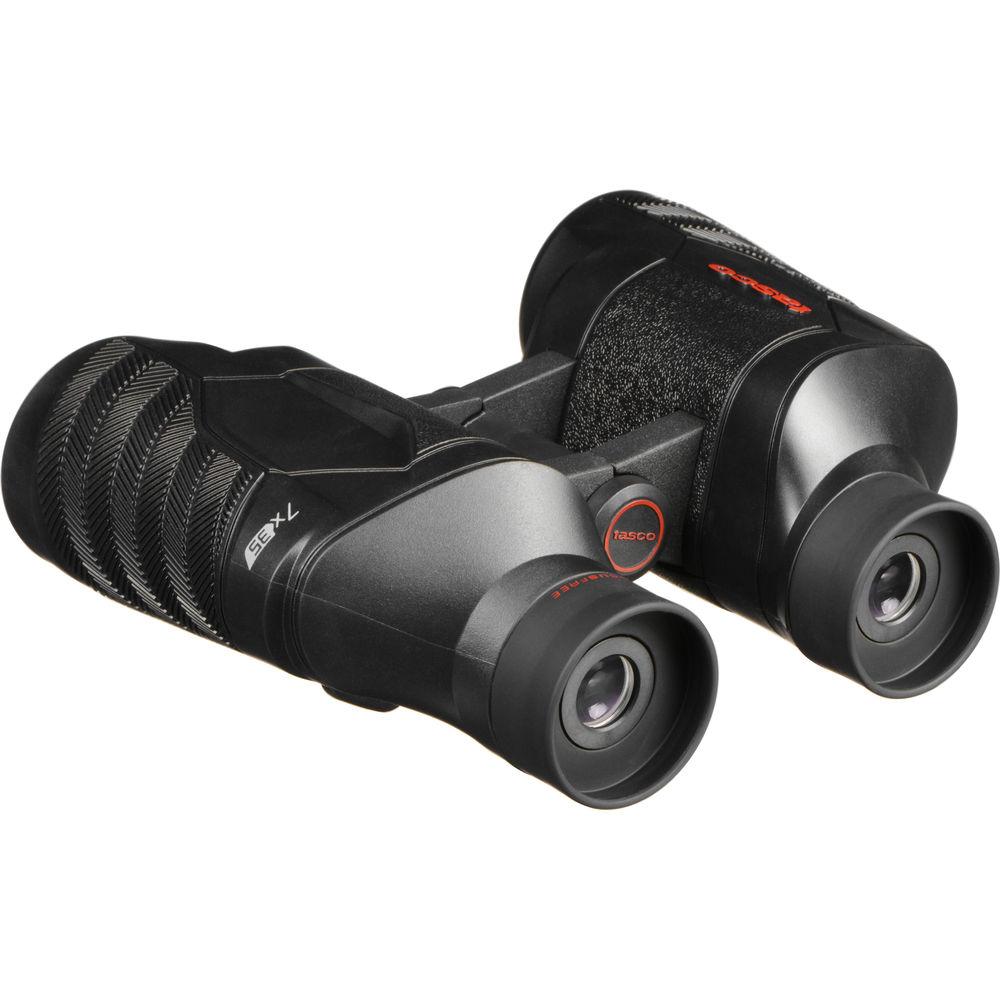

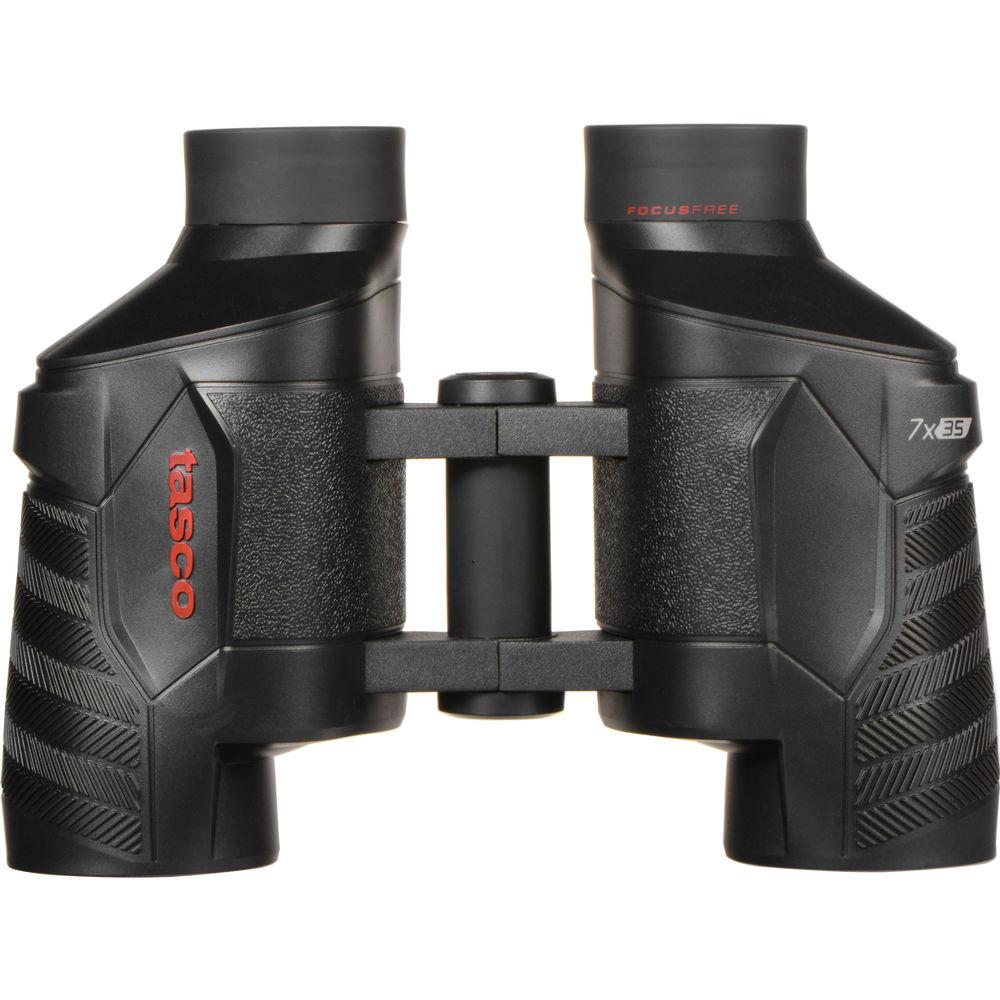

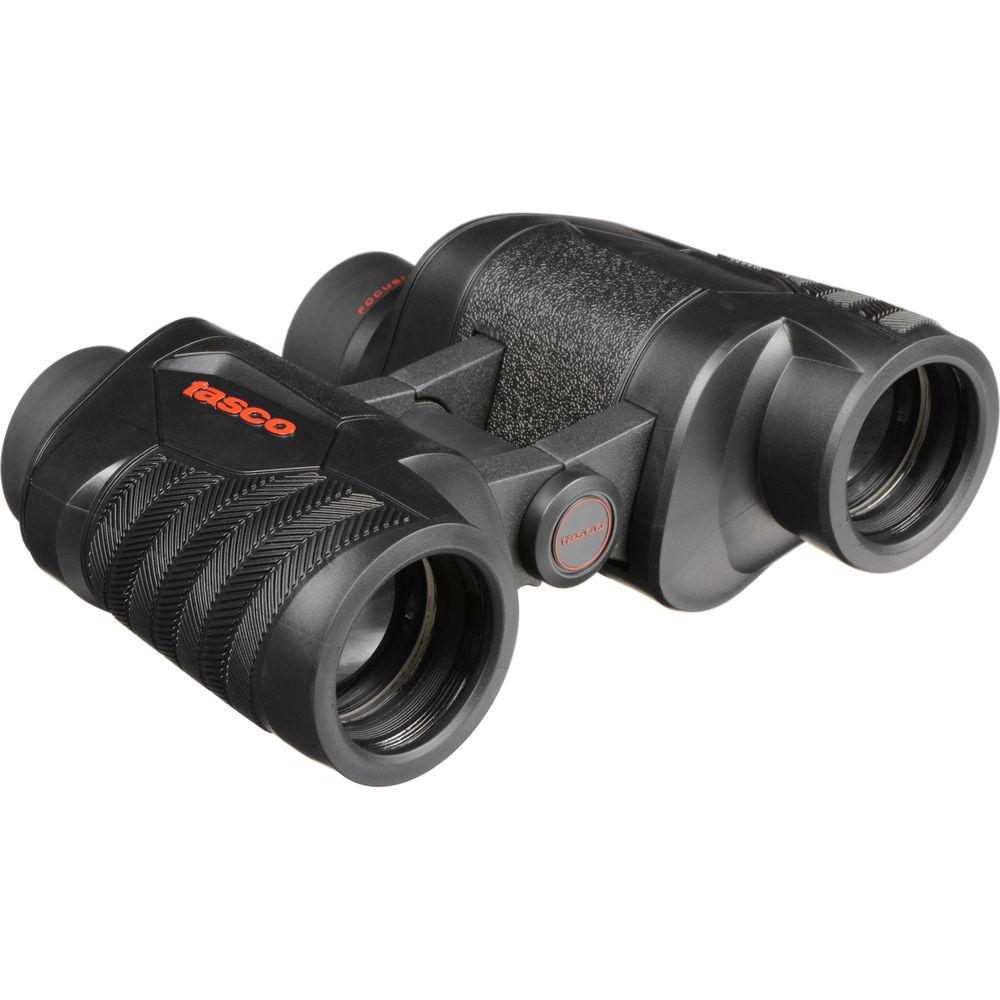

Product description The B&H Binocular Buying Guide Read More The Tasco 7x35 Focus Free Binocular combines the convenience of focus-free usage, with a wide field of view and the rich depth of field Porro prisms are known for, to produce an optic that gives users an immersive observational experience. Anti-reflection fully coated optics help boost image brightness, and the eyecups seal against your eye socket to block peripheral light from causing glare and interfering with your observational experience. The housing is wrapped in a rubber armor that protects it from impacts while providing slip-resistant handling. Raised textured palm pads further improve grip strength and stability. For long-duration glassing sessions or to eliminate arm-fatigue, the binocular can be tripod mounted with an optional adapter. - Optical Performance
-
- 7x magnification
- 35mm objective lenses
- Traditional Porro prism light path
- Fully-coated optics reduce improve light transmission, image brightness, color rendition, and contrast
- Wide 65° apparent angle of view
- 488' field of view at 1000 yards
- Use and Handling
-
- Focus-free design with no minimum focus distance
- Fold-down eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter
- 12mm eye relief
- Comfortable 5mm exit pupil
- Construction Details
-
- Rubber armor protects binocular from impacts while providing a slip-resistant grip
- Textured palm-pads improves grip strength and stability
- Lightweight: 20 ounces
UPC: 046162007365 In the Box Tasco 7x35 Focus Free Binocular (Black) Neck Strap Carrying Case Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Tasco 7x35 Focus Free Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTasco 100736 Specs | Prism Type | Porro | | Magnification | 7 x | | Objective Lens Diameter | 35 mm | | Angle of View | 9.3° (Actual) | | Field of View | 488.2' @ 1000 yd / 162.7 m @ 1000 m | | Minimum Focus Distance | None | | Exit Pupil Diameter | 5 mm | | Eye Relief | 12.0 mm | | Focus Type | Focus-Free | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 7.0 x 5.3" / 17.8 x 13.5 cm | | Weight | 20.0 oz / 567 g | | | | Package Weight | 1.945 lb | | Box Dimensions (LxWxH) | 7.65 x 7.05 x 3.15" |
