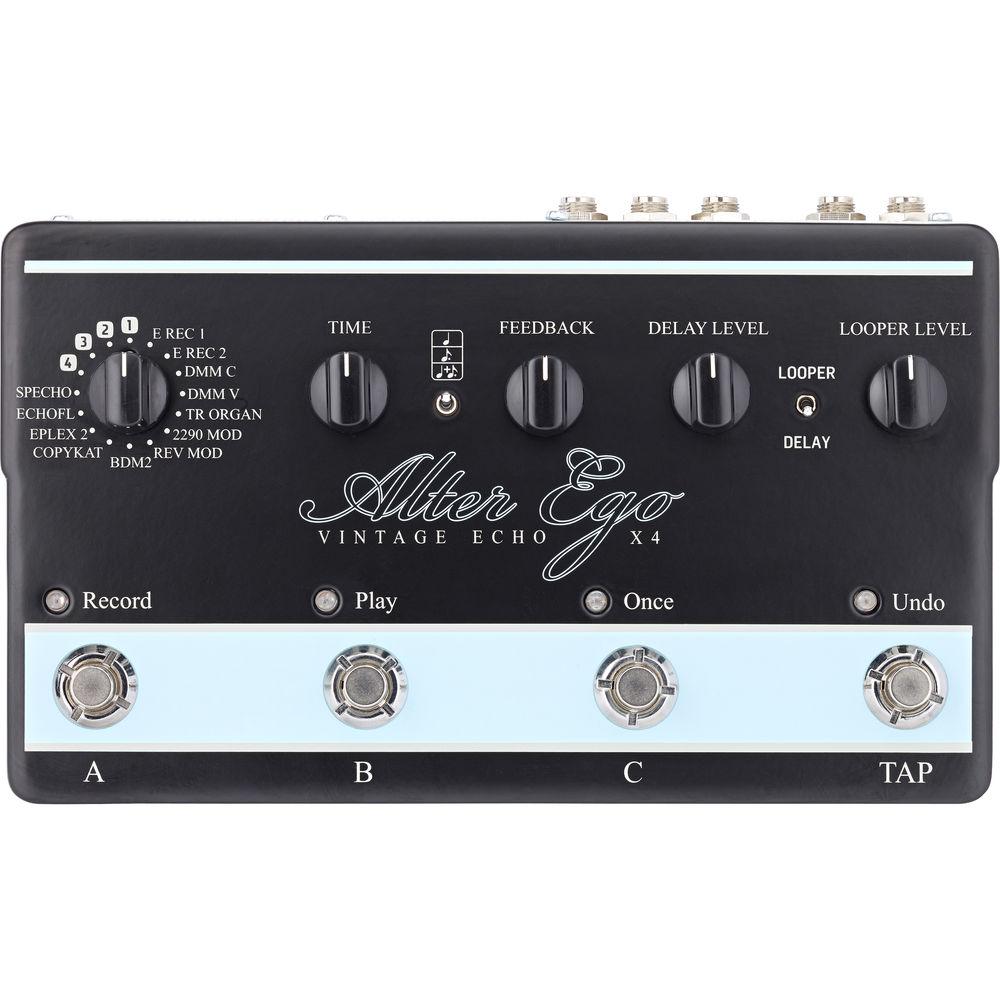

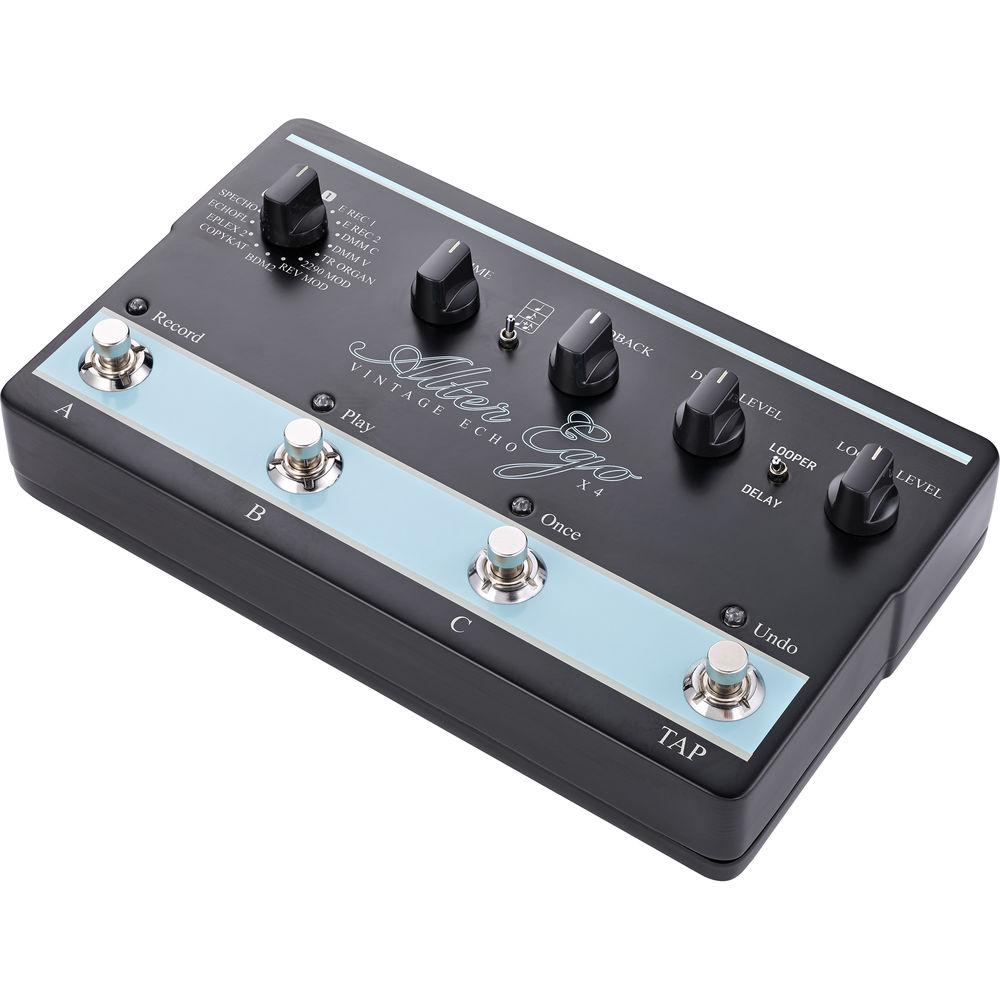

User Manual for TC Electronic Alter Ego X4 Vintage Echo Looper Pedal Click to enlarge the picture
Contents of the user manual for the TC Electronic Alter Ego X4 Vintage
- Product category: Effects Pedals TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Effects Pedals
 |
User manual for the TC Electronic Alter Ego X4 Vintage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|
Product description Merging two popular products, the Flashback X4 Delay and the original Alter Ego Delay, the Alter Ego X4 from TC Electronic packs twelve different vintage delay emulations into one stompbox enclosure. Sporting the ability to switch between three different delays, this pedal also allows you control over feedback and delay levels, as well as a tap tempo option to boot. Two 1/4" input jacks and two 1/4" output jacks automatically sense mono or stereo signals, giving you opportunities to create some seriously spacey delays, should that be your preference. Or you can keep it simple with models of the classics, such as adding an Echoplex to your sound at whim.
DIP switches provide you a choice between true or buffered bypass, while MIDI-in and MIDI-thru ports make syncing to host tempos or integrating this unit into your rack a cinch. Its mini-USB port allows you to stay current with TC Electronic's updates, as well as the ability to download and store presets from a software editor, TonePrint, included with the pedal. Additionally, this pedal functions as a looper, allowing you to record 40 seconds worth of material to play on top of, even providing an undo button should you wish to scrap a layer. - TonePrint Software
- Via the TonePrint App, utilize artist presets or construct your own in the editor; then download them into the Ego X4—or "beam" their sonic signature from your phone straight into your guitar's pickup
- Classic and Modern Echoes
- Emulations of units such as the Binson Echorec, Roland Space Echo, Echoplex, TC Electronic 2290, and more
- Delay and Looper in One
- Toggle between looper and delay functionality with the flick of a switch
In the Box TC Electronic Alter Ego X4 Vintage Echo / Looper Pedal 9 VDC Power Supply USB Cable 2 x Rubber Feet Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic Alter Ego X4 Vintage Echo Looper Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic 960811005 Specs | Control Knobs | ECHO SELECTOR
TIME
FEEDBACK
DELAY LEVEL
LOOPER LEVEL | | Footswitch | Delay Mode - Preset A
- Preset B
- Preset C
- Tap
Looper Mode | | Switches | Subdivision selector

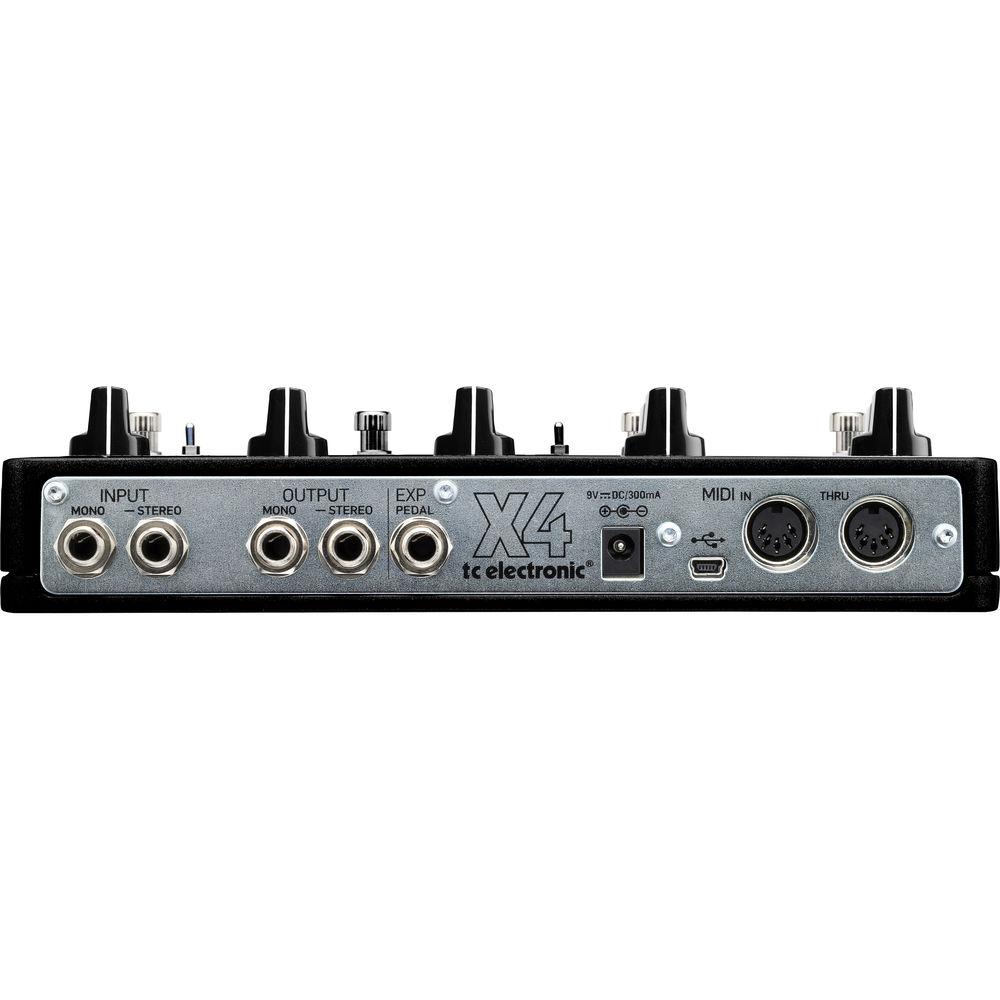

Looper/Delay | | Bypass | True bypass (buffered bypass optional) | | Circuitry | Analog dry-through | | Input/Output Connections | Inputs: 2x 1/4" jacks - mono/TS with automatic mono/stereo sensing
Expression Pedal Input: 1x 1/4" jack
Outputs: 2x 1/4" jacks - mono/TS with automatic mono/stereo sensing | | Impedance | Input: 1 MOhm
Output: 100 Ohms | | MIDI In/Thru | 2x 5-pin DIN connectors | | USB Port | Mini-USB for uploading and editing custom TonePrints and for software updates | | Power Input | 9 VDC, center negative >300 mA (power supply included) | | Dimensions (W x D x H) | 9.3 x 5.7 x 2.2" / 235 x 145 x 57 mm | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 12.2 x 6.1 x 3.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
