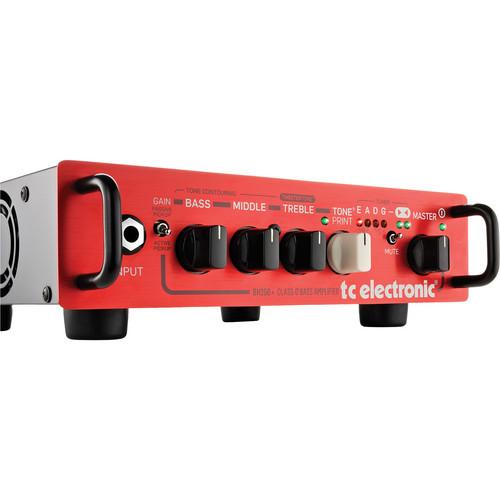

User Manual for TC Electronic BH250 Bass Head Click to enlarge the picture
Contents of the user manual for the TC Electronic BH250 Bass Head
- Product category: Bass Amplifiers TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Bass Amplifiers
 |
User manual for the TC Electronic BH250 Bass Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|

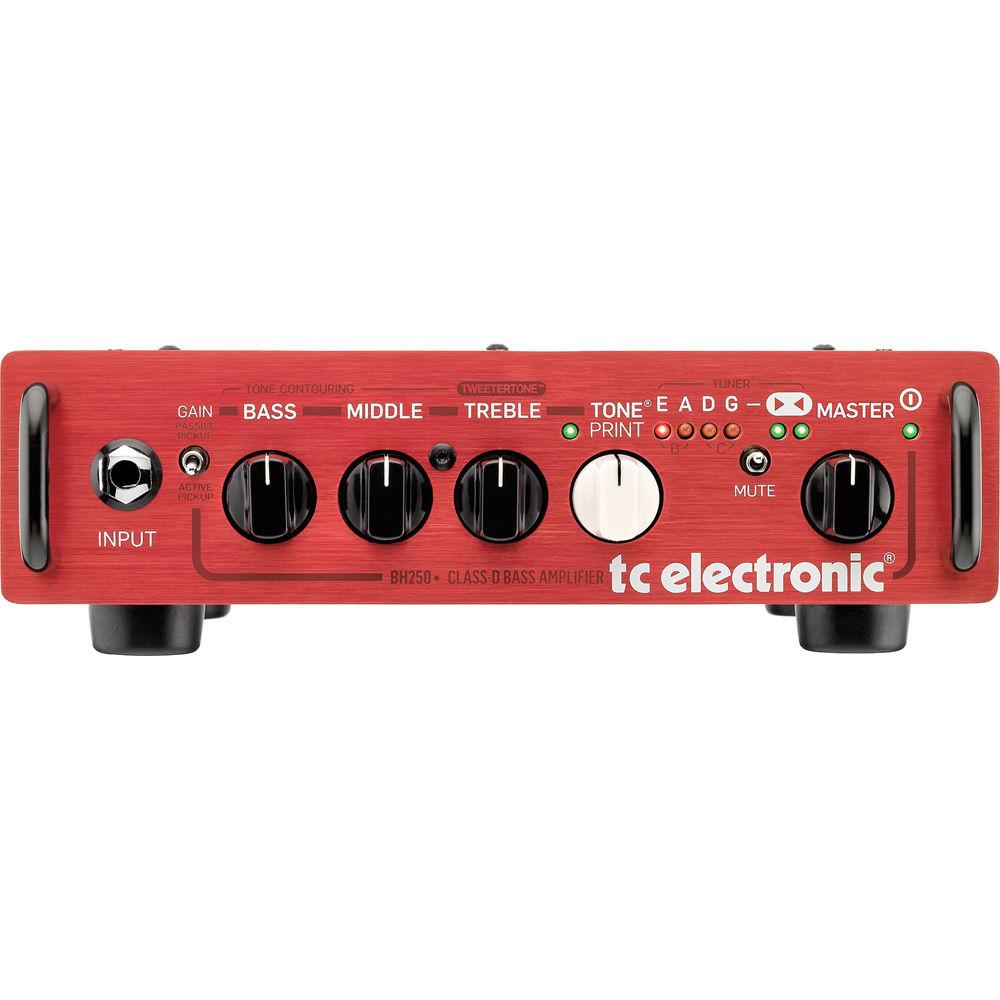

Product description The TC Electronic BH250 Bass Head is a 250 Watt bass amplifier designed with a variety of tonal options and downloadable effects via TC Electronic's TonePrint program. Using the included USB cable, you can download and install a variety of effects tailored for the BH250 not only by TC Electronic but from a list of professional bassists. The TonePrint control on the front panel works as a blend knob, increasing or decreasing the amount of the given installed effect. The BH250's tone controls allow it to cut and boost at different frequencies on each of its bass, middle, and treble control knobs.

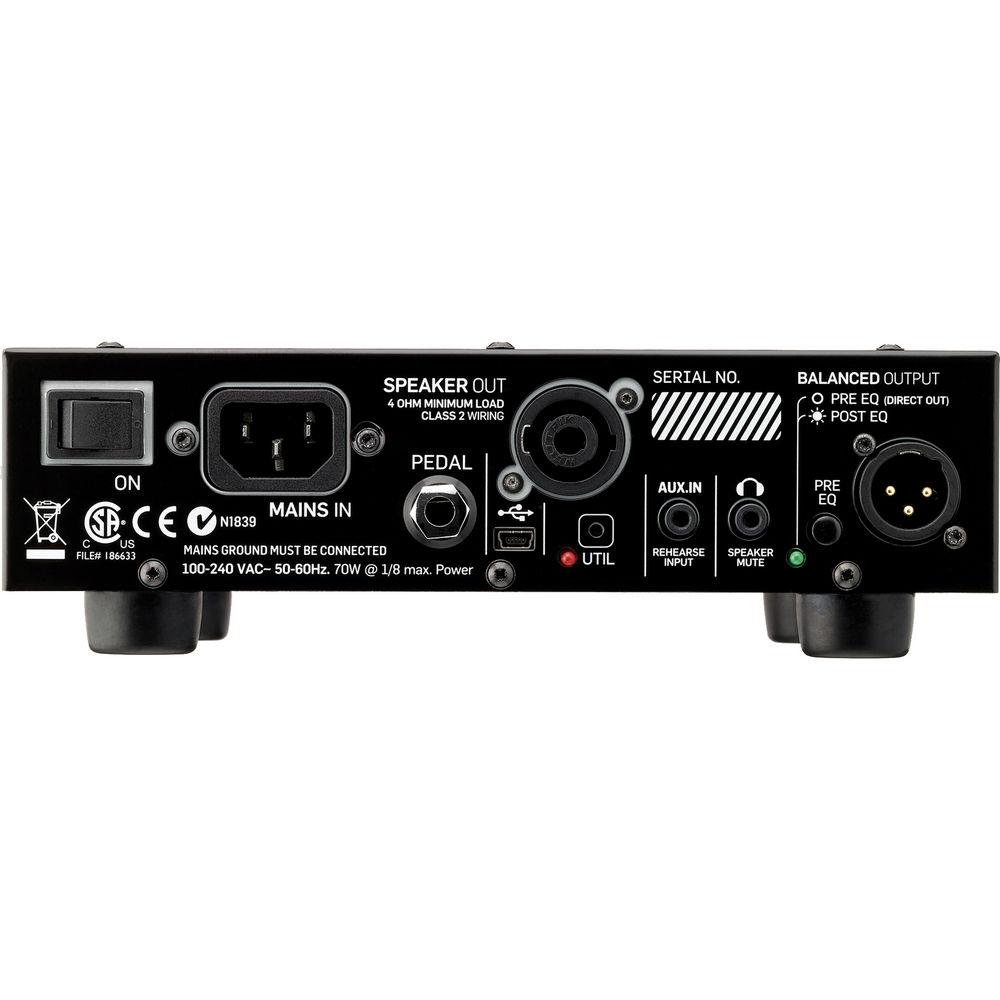

The BH250 provides a few different output options, including a balanced XLR for going direct to a PA system or recording console as well as a Speakon output for powering a speaker cabinet. The 1/8" headphone jack allows you to play without having to use a speaker cabinet or PA. Its lightweight, 4 lb body and built in 4, 5, and 6 string bass tuner were designed with portability in mind for the gigging musician. - Downloadable TonePrint effects include chorus, flanger, vibrato, sub'n' up, octaver, SpectraComp, bass drive or custom patched from bassists Nathan East (Eric Clapton, Fourplay, Toto), Charles Cave (White Lies), Michael Shuman (Queens of the Stoneage), Gail Ann Dorsey (Lenny Kravitz, David Bowie, Seal), Mark King (Level 42), Roscoe Beck (Leonard Cohen, Robben Ford) and others
- Intelligently Contoured Tone Controls allow you to cut and boost at different frequencies, tailored specifically for bass, such as bass cut: 80Hz, bass boost: 100Hz, mid cut: 500Hz, mid boost: 800Hz, treble cut: 1800Hz, treble boost: 3150Hz
- Active or passive pick up switch customizes the input to your bass
- 1/8" auxiliary input allows you to use a consumer playback device as a source for rehearsing
- MUTE button allows for silent tuning
UPC: 748252171740 In the Box TC Electronic BH250 Bass Head Power Cable Mini Jack to Mini Jack Cable (For Aux In) USB Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic BH250 Bass Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic BH250 Specs | Inputs | 1x 1/4" jack
1x 1/8" auxiliary in jack
1x 1/4" pedal input jack | | Input Impedance | 500 kΩ / 100 pF | | Gain Range | -96 to 36 dB | | Tone Control | Bass: 80 Hz @ -24 to 0 dB; 100 Hz @ 0 to 15 dB
Mid: 500Hz @ -24 to 0 dB; 800 Hz @ 0 to 15 dB & 0 to -12 dB
Treble: center frequency: 1800 Hz @ -24 to 0dB; 5000 Hz @ 0 to 15 dB | | Tuner | Bass tuner | | Tuning Range | B0 (31 Hz) to G4 (392 Hz) | | Mute | Mutes speaker out, phones out, balanced out | | HP Out Impedance | 40 to 600 Ω | | Mains Supply | 100 to 240 V~ 50/60Hz (70 W @ 1/8 of maximum output) | | Power Module | 250 W (500 W instantaneous peak @ minimum load) | | Speaker Output | 1x Neutrik Speakon | | Balanced Output | 1x XLR, selectable pre or post pre-amp
2 dBu maximum output
Optimal load impedance: 600 Ω | | Auxiliary Input | 1/8" jack input | | Humidity | Maximum 90%, non-condensing | | Finish | Brushed and anodized aluminum front plate; metal chassis | | Dimension L x W x H | 8.7 x 2.5 x 9.1" (220 x 63 x 231 mm) | | Weight | 4 lb (2 kg) | | | | Package Weight | 5.85 lb | | Box Dimensions (LxWxH) | 14.2 x 11.4 x 4.9" |
