User Manual for TC Electronic BH800 Bass Amplifier with TonePrint and Tuner Click to enlarge the picture
Contents of the user manual for the TC Electronic BH800 Bass Amplifier with
- Product category: Bass Amplifiers TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Bass Amplifiers
 |
User manual for the TC Electronic BH800 Bass Amplifier with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|

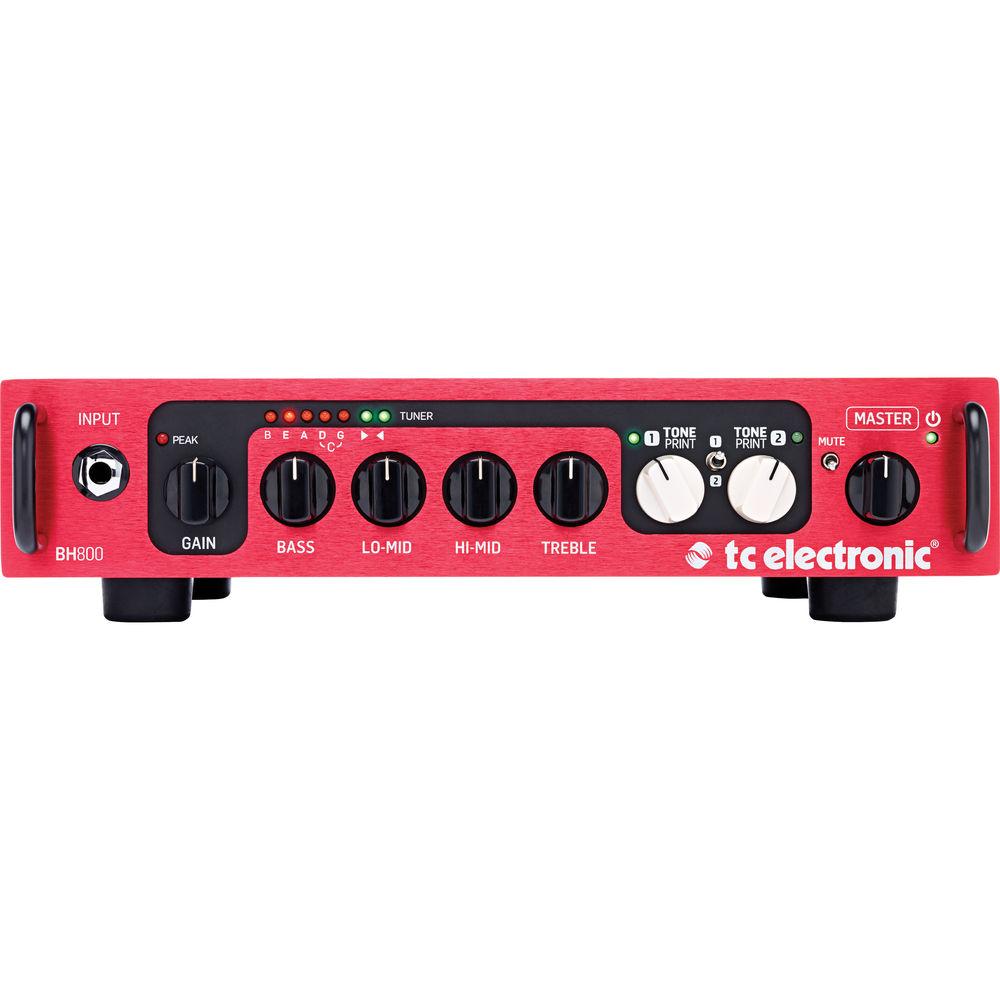

Product description The BH800 Bass Amplifier with TonePrint and Tuner from TC Electronic is a 800W bass amplifier designed with a variety of tonal options and downloadable effects via TC Electronic's TonePrint program. Using the included USB cable, you can download a variety of effects compiled from a list of professional bassists. This bass amp can store two independent Tone-Prints, each with an independent slot switch and control knob. The BH800's on-board tuner is on as long as the amp is connected to a power supply, and its frequency response can support up to six string basses. The EQ section is designed to cut and boost at different frequencies for precise tonal shaping.

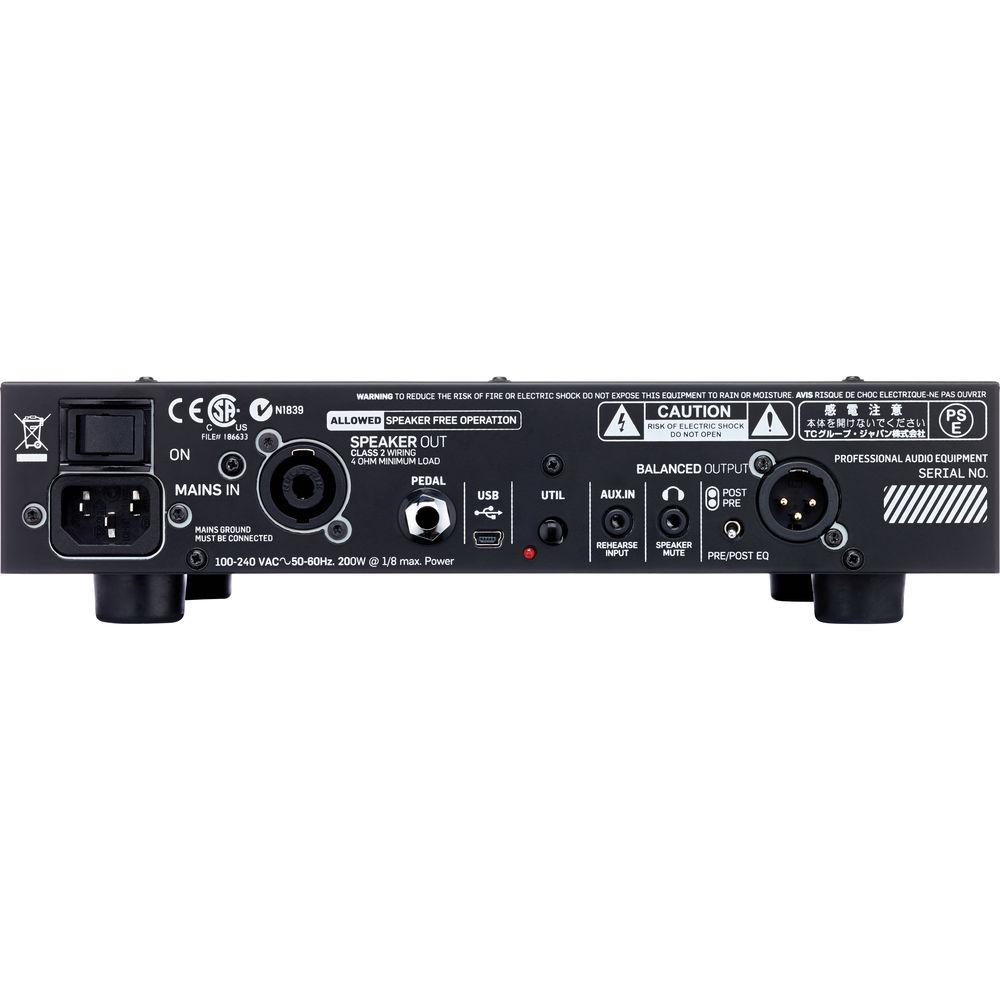

The BH800 features a few different output options including a balanced XLR for going direct to a PA system or recording console as well as a Speakon output for powering a speaker cabinet. The 1/8" headphone jack allows you to play without having to use a speaker cabinet or PA. You can also connect a Switch-3 remote control footswitch (not included) to control the TonePrints and mute the amplifier. In the Box TC Electronic BH800 Bass Amplifier with TonePrint and Tuner USB Cable Mini Jack to Mini Jack Cable (For Aux In) Power Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic BH800 Bass Amplifier with TonePrint and Tuner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic 990911011 Specs | Inputs | 1 x 1/4" phone jack
1 x 1/8" headphone jack | | Input Impedance | 500 kOhms, 100 pF | | Gain Range | -96 to 41 dB | | Gain Control | Bass: 50 Hz @ -24 to 0 dB, 80 Hz @ 0 to +24 dB
Low Mids: 200 Hz @ -24 to 0 dB, 160 Hz @ 0 to +24 dB
High Mids: 630 Hz @ -24 to 0 dB, 800 Hz @ 0 to +24 dB
Treble: 1800 Hz @ -24 to 0 dB, 4000 Hz @ 0 to +24 dB | | TonePrint | 0 to 10 embedded parameters for TonePrints | | Tuner | Bass tuner always on | | Tuning Range | B0 (30.87 Hz) to C4 (523.25 Hz) | | Mute | Mutes speaker output, phones output, and balanced output | | HP Out Impedance | 32 to 600 Ohms | | Outputs | 1 x XLR, balanced
1 x SpeakON connector | | Maximum Output Gain | +2 dB | | Balanced Output | Optimal Load Impedance: 600 Ohms | | Humidity (Non-condensing) | Up to 90% | | Finish | Brushed and anodized aluminum front plate, metal chassis | | Power Rating | 800 W | | Power Supply | 100 to 240 VAC at 50 / 60 Hz (200 W @ 1/8 of maximum output) | | Dimensions | 11.0 x 9.5 x 2.2" (279 x 241 x 55 mm) | | Weight | 6.6 lb (3.0 kg) | | | | Package Weight | 8.55 lb | | Box Dimensions (LxWxH) | 15.9 x 14.4 x 6.7" |
