User Manual for TC Electronic Clarity M - Desktop Audio Meter Click to enlarge the picture
Contents of the user manual for the TC Electronic Clarity M - Desktop
- Product category: Metering TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Metering
 |
User manual for the TC Electronic Clarity M - Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|

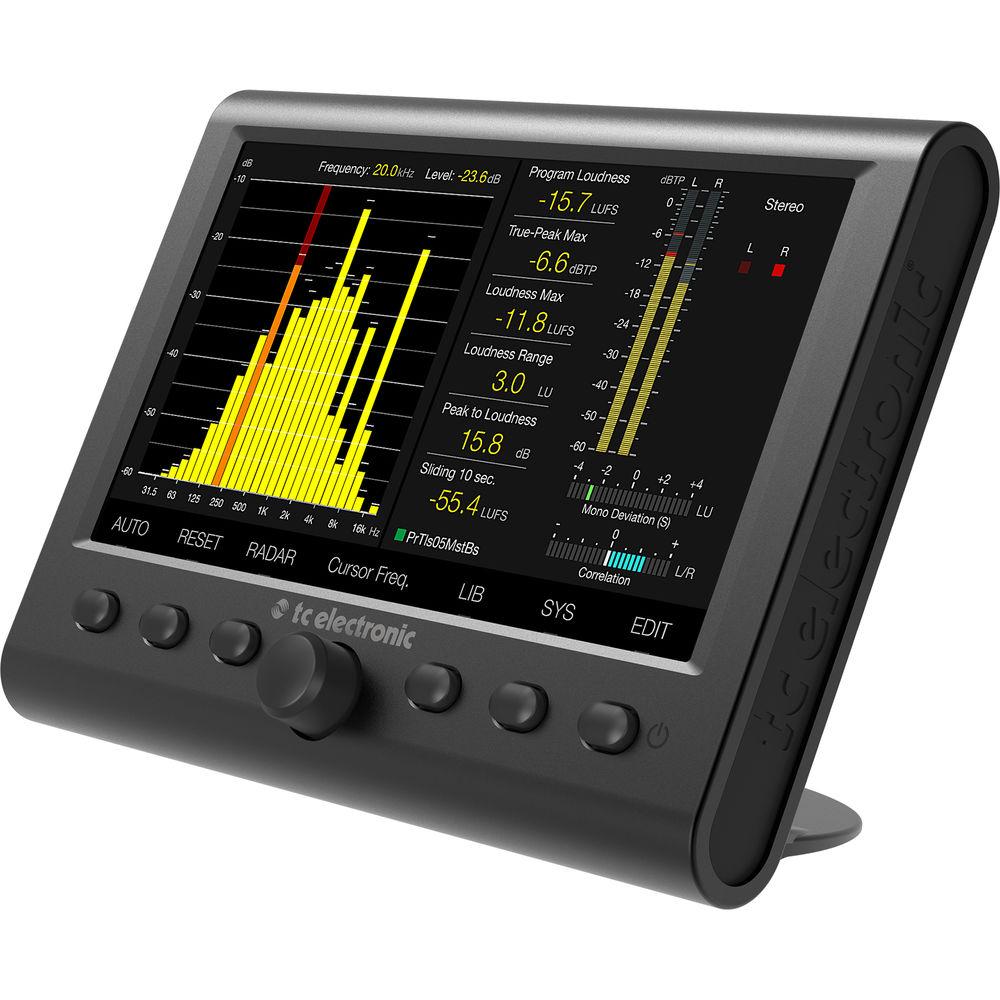

Product description The Clarity M from tc electronic provides precise visual metering that helps make crucial mix and mastering decisions during audio production, mixing, mastering, or sound for picture post production. The seven-inch high-resolution display can show a quick overview, or the ever-important fine points at a glance. Aside from standalone operation, the unit supports plug-in metering via all modern plug-in standards, allowing a user to work with any preferred DAW.

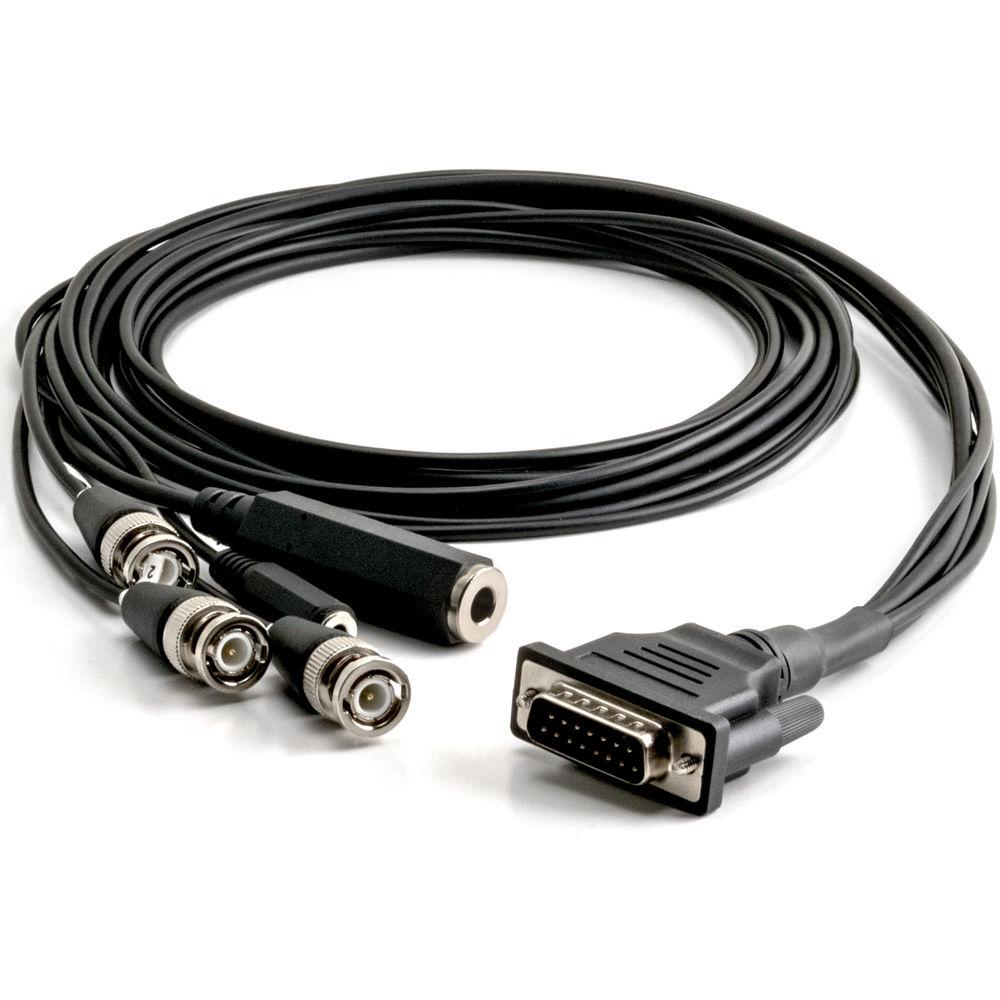

Digital connectivity via the included custom breakout cable hosts six channels of unbalanced AES3 digital audio, connecting the meter to an external mixing desk, console, or audio interface for broadcast-grade 5.1 metering. Also available is a stereo optical input that can connect to an audio interface through TOSLink for maximum flexibility. The breakout cable allows for hooking up a two-button footswitch for easy resetting of the meter, as well as for triggering play and pause. - Professional stereo and 5.1 audio meter for mixing, mastering and post production
- Compliant with all major broadcast standards including ITU BS.1770-4, ATSC A/85, EBU R128, TR-B32 and OP-59
- State-of-the-art True-Peak Meter identifies clipping in DACs, CODECs and downstream filters
- 7" high resolution LCD display for precision metering in all studio environments
- Six input channels of unbalanced AES3 digital audio on 75-Ohm BNC connectors for broadcast-grade 5.1 metering
- Downmix compliance meter based on the company's industry-standard loudness measurement algorithms

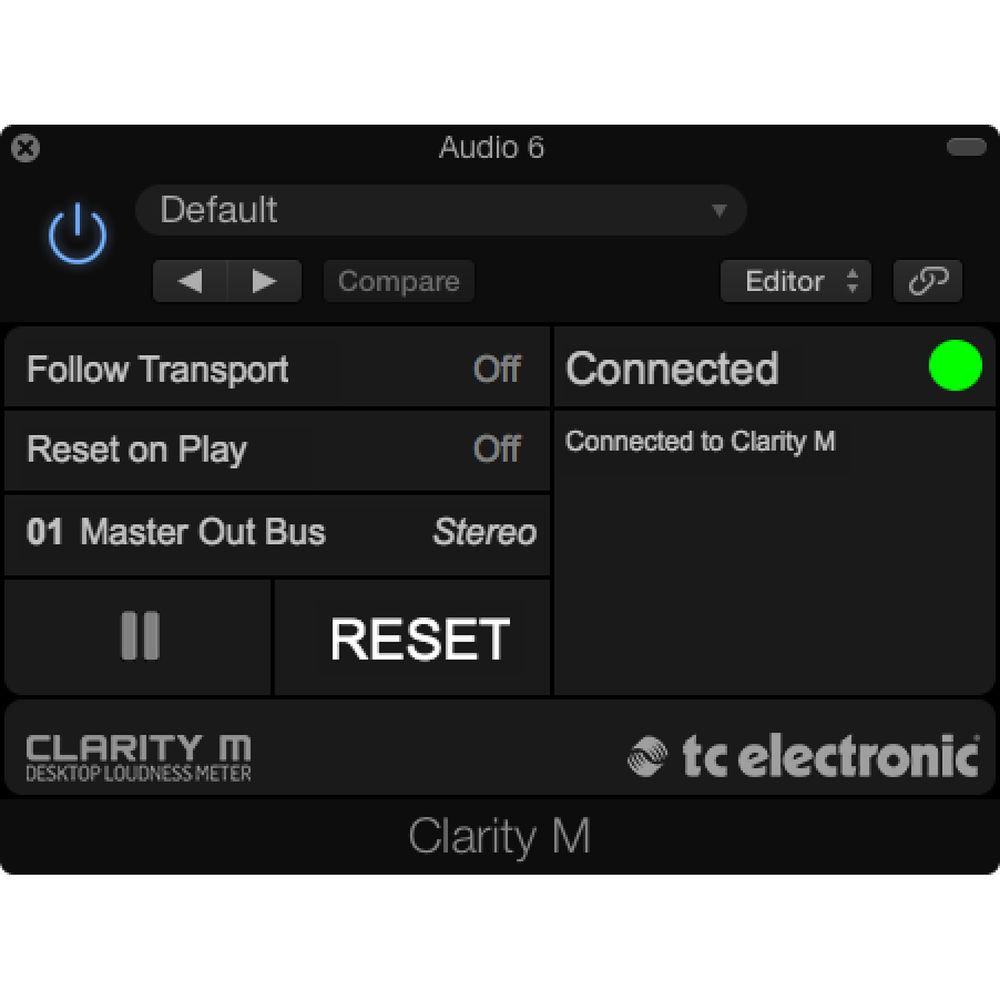

- USB connection for hassle-free AAX Native, Audio Units, and VST plug-in metering

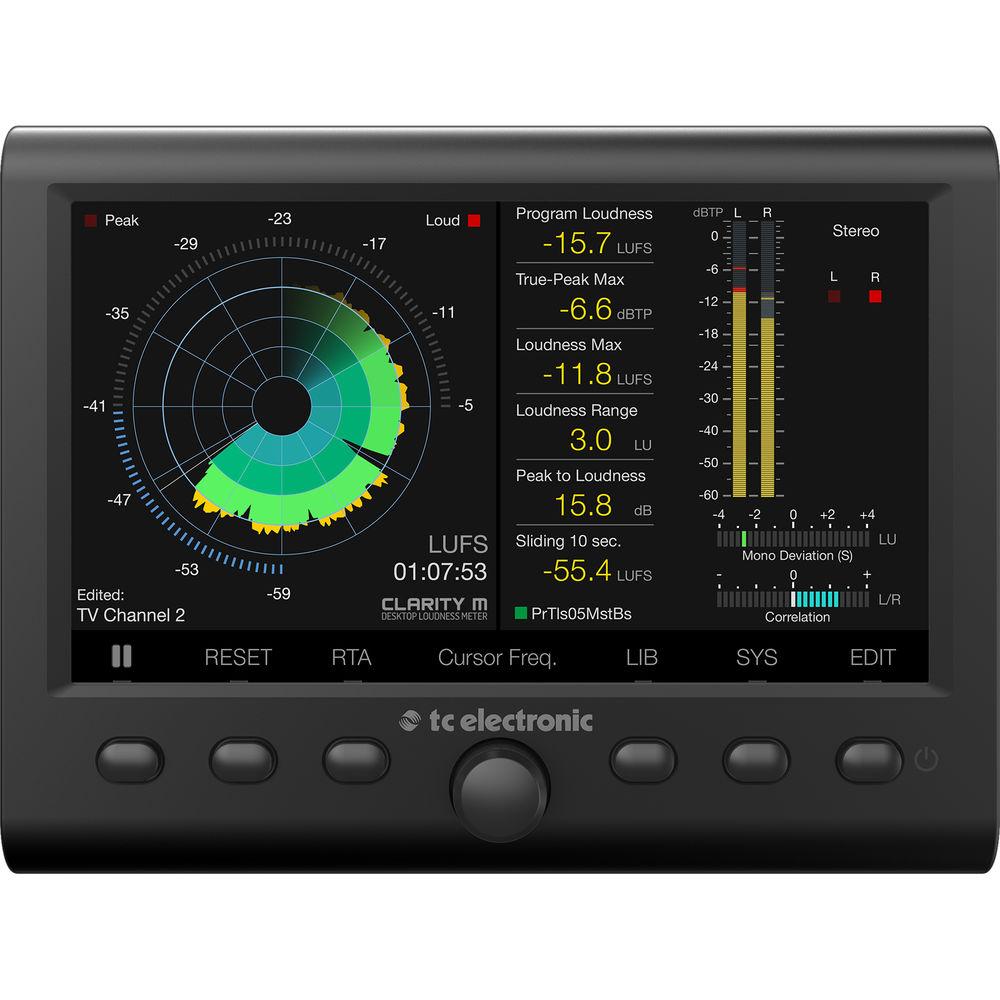

- LM6 Loudness Radar Meter provides all essential loudness monitoring information on a single screen

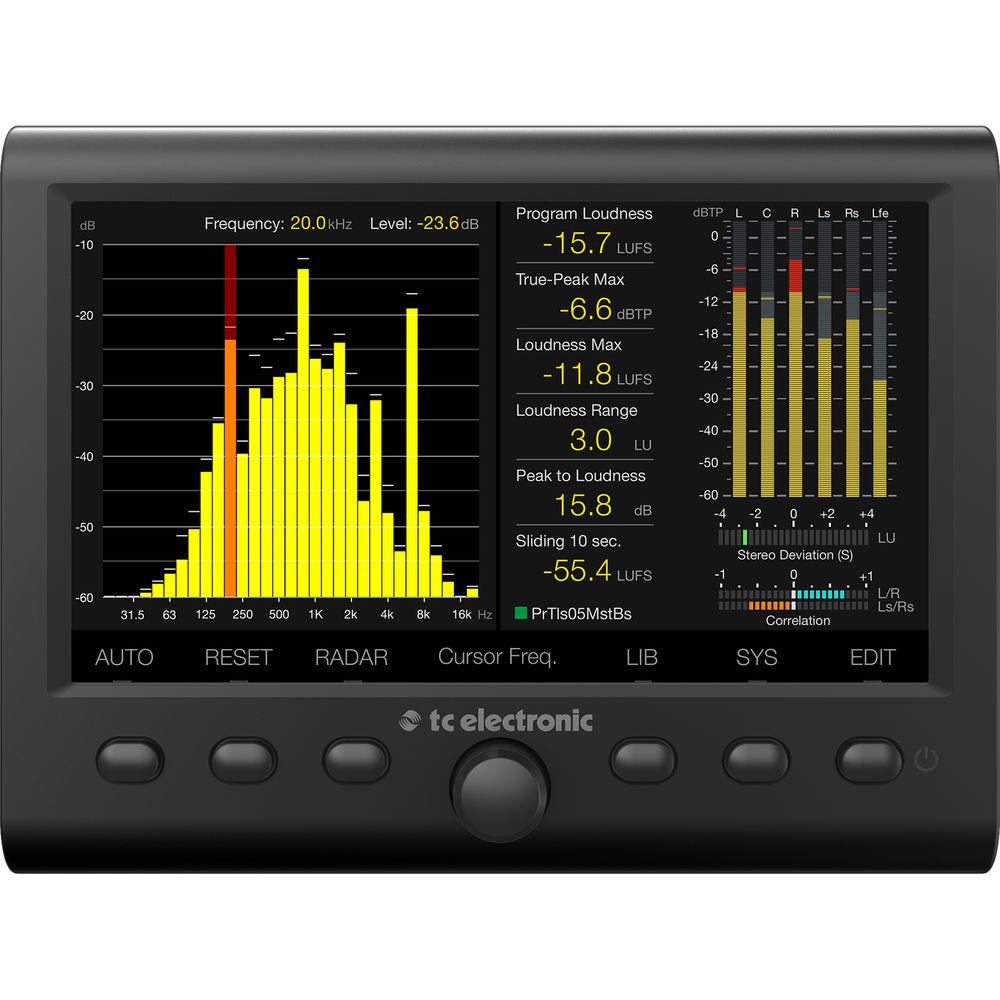

- High accuracy real time analyzer with 1/3 octave resolution and individual band zoom
- Multiple hardware mounting options available
UPC: 748252171047 In the Box TC Electronic Clarity M - Desktop Audio Meter External Universal Power Supply DB15 Cable Assembly BNC Female to RCA Male Adapter 3.3' USB Cable (Type-A Female to micro-B Male) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic Clarity M - Desktop Audio Meter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic CLARITY M Specs | Connectors | Digital

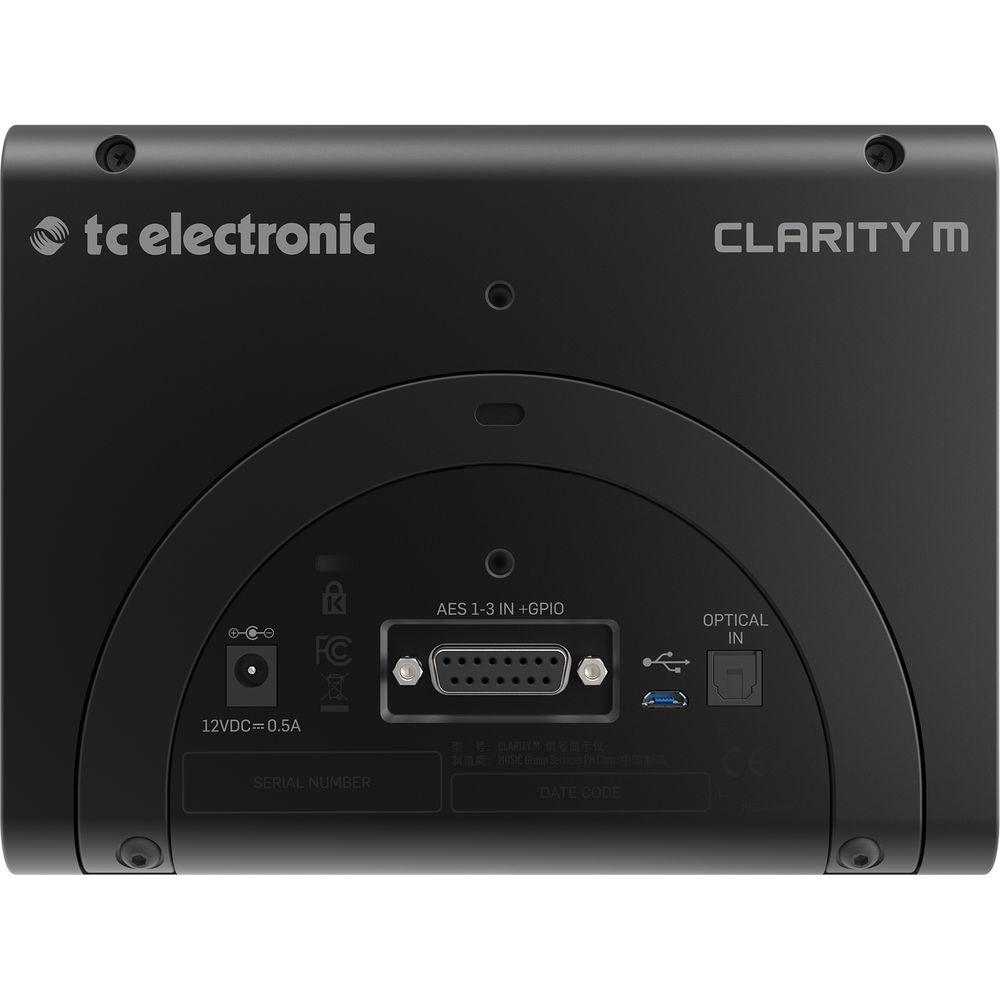

3 x BNC AES3id, S/PDIF via DB-15
1 x TOSLink, EIAJ optical
GPIO
2 external switch inputs, 1 relay output (100 mA maximum, optically isolated)
1 x 1/8" TS female (GPO) via DB-15
1 x 1/4" TRS female (2x GPI) via DB-15
USB
USB 2.0 (Micro type B) | | Compliance | ITU BS.1770-4
ATSC A/85
EBU R128
TR-B32
OP-59 | | Sample Rates | Physical I/O
44.1 kHz
48 kHz
Plug-In Mode
44.1 kHz
48 kHz
96 kHz | | Display | 7" TFT (color)
800 x 480 pixels | | Controls | 1 x Rotary encoder
6 x Selection buttons | | Power Requirements | 110 to 240 VAC, 50/60 Hz for included 12 VDC, 0.5 A external power supply | | Mac System Requirements | Clarity M Plug-In
OS X 10.9 (Mavericks) or above
Pro Tools 10 or above, or a VST/Audio Units compatible host | | Windows System Requirements | Clarity M Plug-In
Windows 7 or above
Pro Tools 10 or above, or a VST compatible host | | Plug-In Compatibility | AAX Native 32/64-bit, Audio Units (Mac only), VST 2.4, VST3 | | Dimensions (WxHxD) | 7.2 x 5.5 x 1" (182 x 140 x 25 mm) | | Weight | 1.9 lb (0.85 kg) excluding cable | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 9.1 x 9.1 x 3.3" |
