User Manual for TC Electronic CLARITY M STEREO - Desktop Audio Meter for Stereo Applications Click to enlarge the picture
Contents of the user manual for the TC Electronic CLARITY M STEREO -
- Product category: Metering TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Metering
 |
User manual for the TC Electronic CLARITY M STEREO - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|

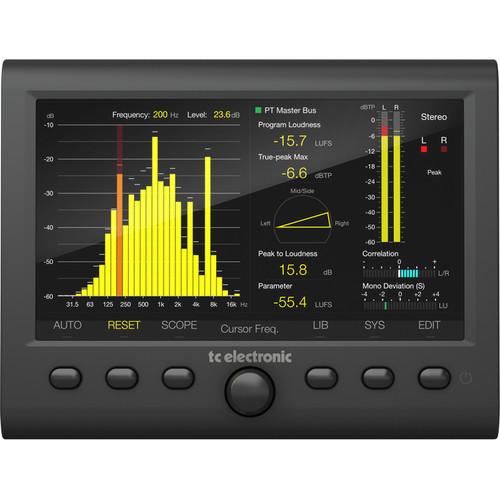

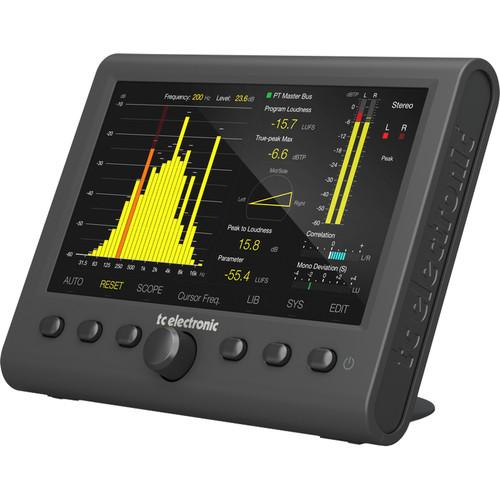

Product description TC Electronic's CLARITY M STEREO provides precise visual metering that helps you make crucial decisions during audio production, mixing, and mastering, and also works in stereo post-production applications. The 7" high-resolution display can show a quick overview or the important fine points at a glance. Aside from standalone operation, the unit supports plug-in metering via all modern plug-in standards, allowing a user to work with any preferred DAW.Digital connectivity via the included custom breakout cable hosts two channels of unbalanced AES3 digital audio, connecting the meter to an external mixing desk, console, or audio interface for broadcast-grade metering. Also available is a stereo optical input that can connect to an audio interface through TOSLINK for maximum flexibility. One of the breakout cables allows you to hook up a two-button footswitch and easily reset the meter, as well as for triggering play and pause. - Professional stereo meter for mixing, mastering, and post production
- Compliant with all major broadcast standards including ITU BS.1770-4, ATSC A/85, EBU R128, TR-B32, and OP-59
- Scalable True-Peak Meter identifies clipping in DACs, CODECs, and downstream filters
- 7" high-resolution LCD display for precision metering in all studio environments
- Two input channels of unbalanced, 96 kHz AES3 digital audio on 75-Ohm BNC connectors for broadcast-grade metering
- Downmix deviation meter for determining the quality of your mix in stereo or mono fold-down
- Correlation meter for identifying phasing issues and other anomalies
- USB connection for hassle-free connection with AAX Native, Audio Units, and VST plug-in metering
- LM6 Loudness Radar Meter provides all essential loudness monitoring information on a single screen
- High-accuracy real-time analyzer with 1/3 octave resolution and individual band zoom
- Vector scope to help you identify important stereo balance and phase issues in your mix
- Balance-O-Meter for judging left/right balance at a glance
- Multiple hardware mounting options available
UPC: 653341318237 In the Box TC Electronic CLARITY M STEREO - Desktop Audio Meter for Stereo Applications AC Adapter Hex Key (2.5mm) DB15 Cable Assembly BNC Female to RMC Male / BNC Female to XLR Female Adapter 3.3' USB Cable (Type-A Female to Micro Type-B Male) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic CLARITY M STEREO - Desktop Audio Meter for Stereo Applications in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

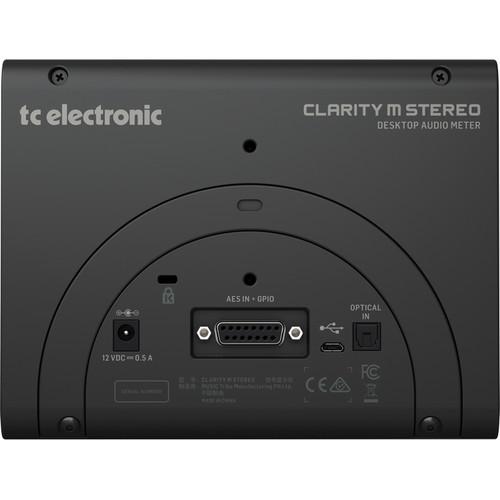

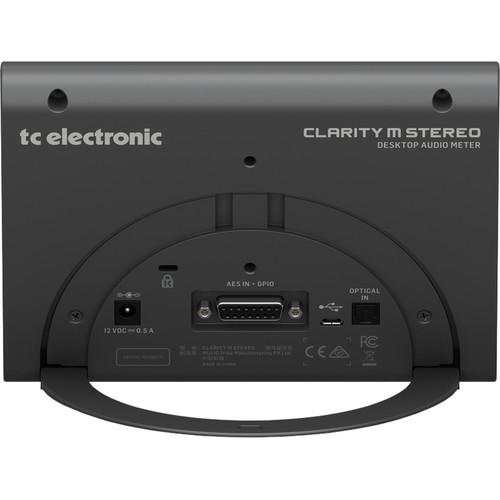

Technical parametersTC Electronic CLARITY M STEREO Specs | Connectors | Digital
1 x BNC AES3id, S/PDIF via DB-15
1 x TOSLINK, EIAJ Optical
GPIO
2 External Switch Inputs, 1 Relay Output (100 mA Maximum, Optically Isolated)
1 x 3.5 mm TS female (GPO) via DB-15
1 x 1/4" TRS female (2x GPI) via DB-15
USB
USB 2.0 (Micro Type-B) | | Compliance | ITU BS.1770-4
ATSC A/85
EBU R128
TR-B32
OP-59 | | Sample Rates | 44.1, 48, 88.2, and 96 kHz (Standalone and Plug-In Mode) | | Display | 7" TFT (color)
800 x 480 pixels | | Controls | 1 x Rotary Encoder
6 x Selection Buttons | | Power Consumption | 12 VDC, 0.5 A | | Plug-In Compatibility | AAX Native, Audio Units (Mac Only), and VST | | Dimensions (WxHxD) | 7.2 x 5.5 x 1" / 182 x 140 x 25 mm | | Weight | 2.6 lb / 1.2 kg | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 9.8 x 9.7 x 7.0" |
