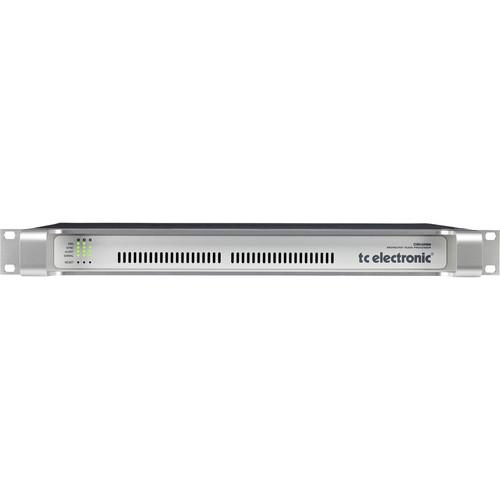

User Manual for TC Electronic DB6 AES Unbalanced Broadcast Audio Processor with Intelligent Loudness Management Click to enlarge the picture
Contents of the user manual for the TC Electronic DB6 AES Unbalanced Broadcast
- Product category: Broadcast Processors TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Broadcast Processors
|
User manual for the TC Electronic DB6 AES Unbalanced Broadcast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|
Product description The TC Electronic DB6 AES Unbalanced is a broadcast transmission audio processor that provides a complete and intelligent loudness management solution to help broadcasters with their loudness responsibilities. It employs a one-step process that preserves the details of your audio, while allowing you to stay compliant with broadcast standards and legislation at all times. The DB6 AES Unbalanced is designed for TV broadcasters who prefer to pass only the audio signal through their loudness management system rather than their entire SDI signal. It offers a total of sixteen physical channels of unbalanced AES I/O on BNC connectors, with the first eight channels active by default. Should you need to use additional channels, a license for activating channels 9-16 is available separately. The proprietary DICE core digital I/O engine features JET technology, which helps reduce incoming jitter to a near-unmeasurable level. Audio sync locks quickly for glitch- and artifact-free transmission, while the Freewheel "safety belt" function keeps the unit running at the "last good sync source rate" when the source is lost. Audio loudness is measured at the input as well as the output of the DB6. In between, the LoudnessWizard algorithm handles everything regarding loudness including automatic format detection, automatic up- and down-conversion, automatic loudness correction, true peak limiting, lip-sync delay with look-ahead capability, all in one single process and for a multitude of broadcast platforms. The unit comes with ready-to-use presets based on international standards. The LM6 loudness radar meter provides an easy way to read loudness with a complete overview. Loudness history is displayed by the radar and momentary loudness is displayed by the outer ring. True peak level is displayed on the right side. Program loudness, range values, or other parameters of your choice are shown at the bottom. You also get 24/7 measurement and logging of key stats for future evaluations and documentation. The DB6 AES Unbalanced features a full, dual-redundancy setup with dual fans, dual fuses, and dual power connectors, which you can use with independent power sources. In case of an emergency, the relay bypass ensures that your content is not compromised. The unit is housed in a high-density, 1 RU enclosure to help you save space in your equipment room. Included are two power cords and a USB memory stick with TC Icon software and DB6 software. One-Step Loudness Management - Professional broadcast transmission audio processor with automatic intelligent loudness management, ideal for the local TV broadcaster or a TV production truck
- Helps stay compliant with broadcast standards and legislation at all times, without sacrificing audio quality
- Plug-and-play functionality with powerful LoudnessWizard algorithm
- Deliver for a multitude of platforms and codecs
- Process, measure, and log up to sixteen audio channels
- Accepts mono, stereo, and 5.1 surround and can simultaneously deliver high-quality audio to SDTV, HDTV, and mobile platforms
- Comes with ready-to-use presets based on international standards
- 1 RU, high-density design saves space in equipment room
- Designed and engineered in Denmark
AES Unbalanced I/O - For routing only your audio signal through an insert point instead of passing your entire SDI signal through a loudness management system
- Unbalanced, 24-bit AES/EBU I/O with eight BNC input connectors and eight BNC output connectors (one pair per connector)
- Comes fully loaded with 16 channels of AES I/O, but by default only the first 8 channels are active
- A license is available separately for activating channels 9 to 16
- Proprietary DICE core digital I/O engine with JET technology reduces incoming jitter to a near-unmeasurable level
- Audio sync locks quickly with glitch- and artifact-free transmission
- Freewheel "safety belt" keeps unit running at the "last good sync source rate" when the source is lost
Loudness Wizard Algorithm -
- Powerful one-step LoudnessWizard process makes it easy to achieve your loudness-handling requirements
- Automatic loudness correction
- Automatic up-conversion
- Automatic down-mix
- Look-ahead lip-sync delay
- True-peak limiting
- Handling of normalized and non-normalized Content
Ultimate Compliance -
- Compliant with all major broadcast standards
- ITU-R BS.1770-3
- EBU R128
- ATSC A/85
- ARIB TR-B32
- FreeTV OP-59
- Supported by TC Electronic to remain compliant with current and future releases of major broadcast standards
LM6 Loudness Radar Meter -
- LM6 loudness radar meter gives you a complete loudness landscape overview at a glance
- Loudness history, momentary loudness, true-peak level, program loudness, loudness range in a single view
- Mono, stereo, and 5.1 surround
- 24/7 logging: monitor and log audio loudness input and post-processing output, and create a ready-made history of broadcast for evaluation and documentation purposes
Dual Redundancy -
- Offers robust redundancy and reliability needed for mission-critical live applications
- Dual power supplies
- Dual fuses
- Dual low-noise fans
- Complete relay bypass for live stream
Control Interface -
- Connect to a computer (controller) running TC Icon software via an Ethernet port
- Second Ethernet port allows for daisy-chaining multiple 3G transmission cards
3G Transmission Card -
- Processes up to sixteen 24-bit AES/EBU, AES3-id audio channels
- Holds two multichannel processors
- Runs two LoudnessWizard algorithms simultaneously
- Runs two LoudnessWizard 2 algorithms simultaneously
- Runs two LM6 loudness radar meters simultaneously
In the Box TC Electronic DB6 AES Unbalanced Broadcast Audio Processor with Intelligent Loudness Management 2 x Power Cables USB Memory Stick with TC Icon Software and DB6 Software Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic DB6 AES Unbalanced Broadcast Audio Processor with Intelligent Loudness Management in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic DB-6 Specs | | | Frame Configuration | 1 x Built-in 3G transmission card | | Front Indicators | Status for: PSU 1, PSU 2, Sync, Alert, Signal | | Mains Voltage | 100-240 VAC, 50/60 Hz (auto-select) | | Power Supply | Dual power supply redundancy | | Fan | Dual fan redundancy | | Environment Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -22 to 167°F / -30 to 70°C | | Humidity | Maximum 90%, non-condensing | | Finish | Natural-color anodized aluminum face plate
Plated steel chassis | | Compliance | EN 55103-1 and EN 55103-2
FCC part 15 class B
CIS-PR 22 class B | | Safety Certification | IEC 60065, EN 60065, UL 6500, CSA E65 | | Dimensions | 19 x 1.75 x 13.2" / 483 x 44 x 334 mm
1 RU | | Weight | 9.5 lb / 4.3 kg | | | | Number of Processors | 2 x LoudnessWizard processors (stereo or 5.1) | | Meters | 2 x LM2/LM6 Loudness Radar Meters (stereo or 5.1) | | Audio Channels Processed | 8 in, 8 out
16 in, 16 out (optional, with license available separately) | | Audio Format Configuration | 2, 5.1, 2+2, 5.1+2, 2+5.1, 5.1+5.1 | | Audio Processing Delay | 0.15 ms | | Adjustable Online Delay | 0 to 10 second per audio channel | | Delay Resolution | 32-bit | | Frequency Response DIO | DC to 23.9 kHz
