User Manual for TC Electronic FANGS Metal Distortion Pedal for Electric Guitar Click to enlarge the picture
Contents of the user manual for the TC Electronic FANGS Metal Distortion Pedal
- Product category: Effects Pedals TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Effects Pedals
 |
User manual for the TC Electronic FANGS Metal Distortion Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|

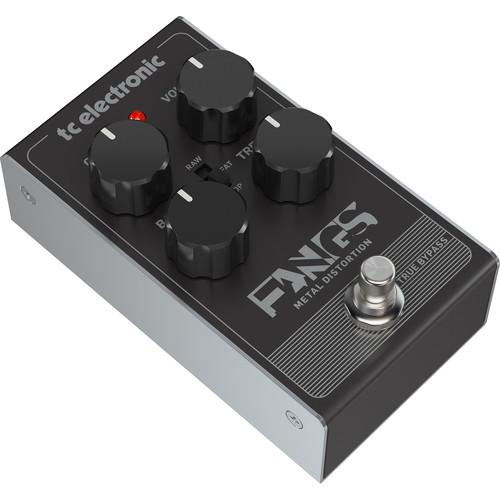

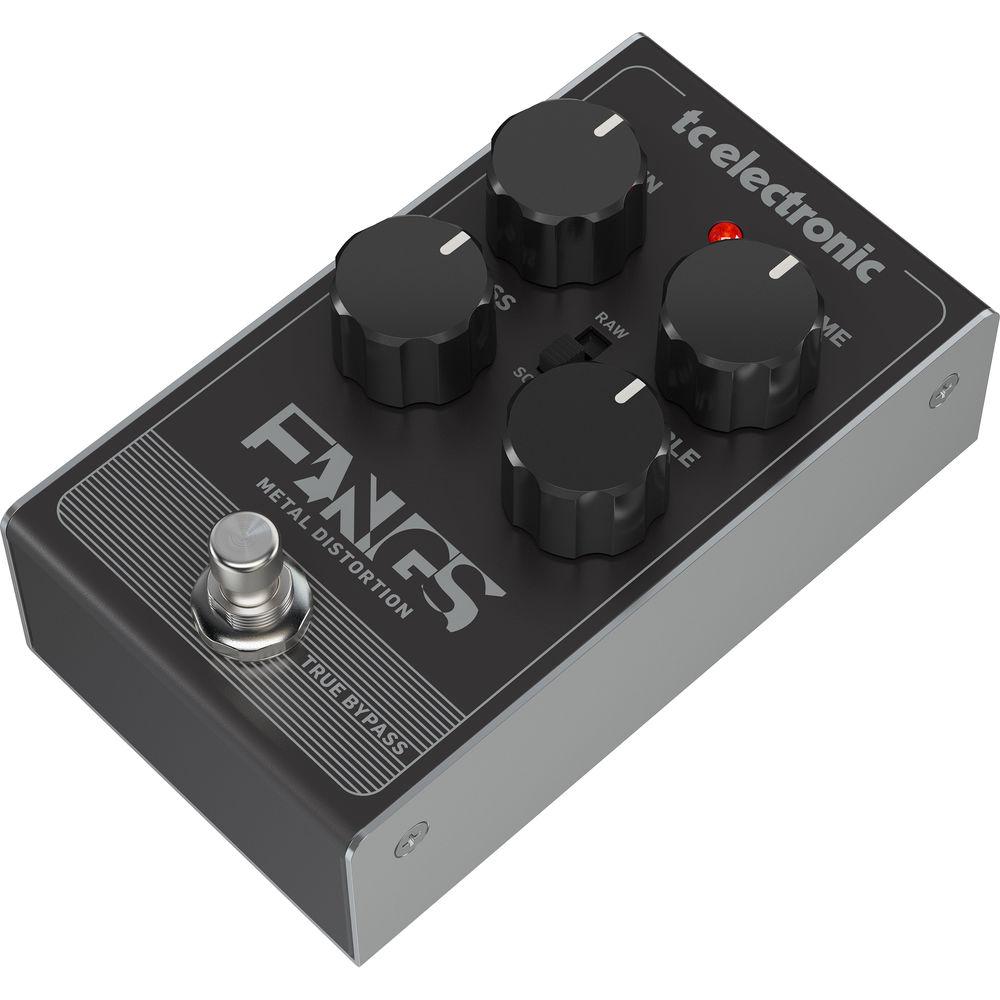

Product description Designed for electric guitar players in the metal genres, the TC Electronic FANGS Metal Distortion is a distortion pedal that provides heaps of gain for thick, searing riffs. This pedal can be used for tight, chugging rhythm parts, or screaming leads alike.

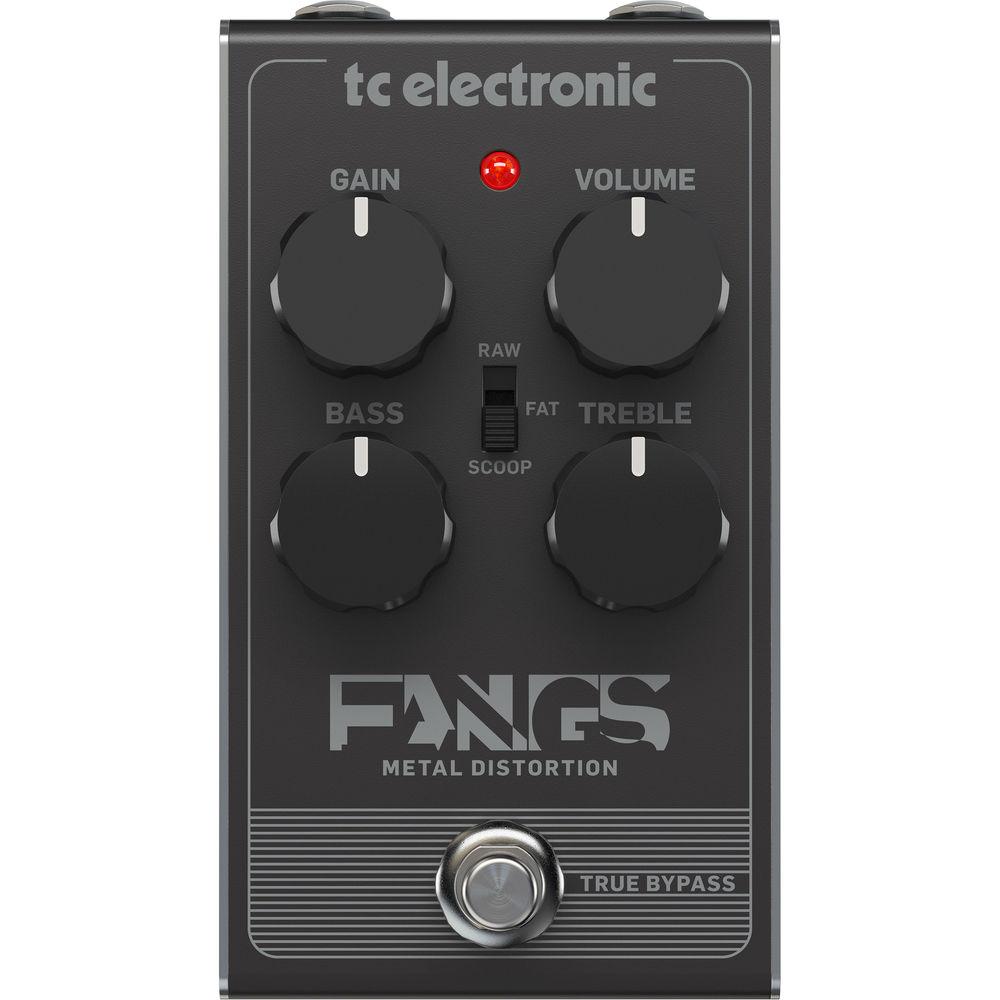

Four knobs are provided for controlling the pedal: Gain, Volume, Bass, and Treble. Gain controls the amount of distortion, while Volume dictates your overall output level. Bass and Treble shape your low and high end respectively. You change the timbre of the midrange by means of a three-position toggle switch.
FANGS can be powered with a 9V battery or a 9V DC 100mA power supply, both of which are available separately. The pedal utilizes all-analog circuitry and offers a true bypass footswitch, so your signal remains pristine and unaffected when the pedal is disengaged. The FANGS also sports a rugged metal frame, so it can stand up to the rigors of the road. - Controls Explained
-
- Gain knob: adjusts the amount of distortion
- Volume knob: adjusts the output level when the pedal is in operation
- Raw/Fat/Scoop switch: 3-position switch to select the midrange contour
- Bass knob: adjusts the low frequencies
- Treble knob: adjusts the high frequencies
- Key Features at a Glance
-
- Thick, high-gain distortion
- Tight tracking response
- 3-position midrange control
- True bypass to preserve signal integrity
- Durable metal chassis
In the Box TC Electronic FANGS Metal Distortion Pedal for Electric Guitar Limited 1-Year Warranty (Extendable to 3 Years upon Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic FANGS Metal Distortion Pedal for Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

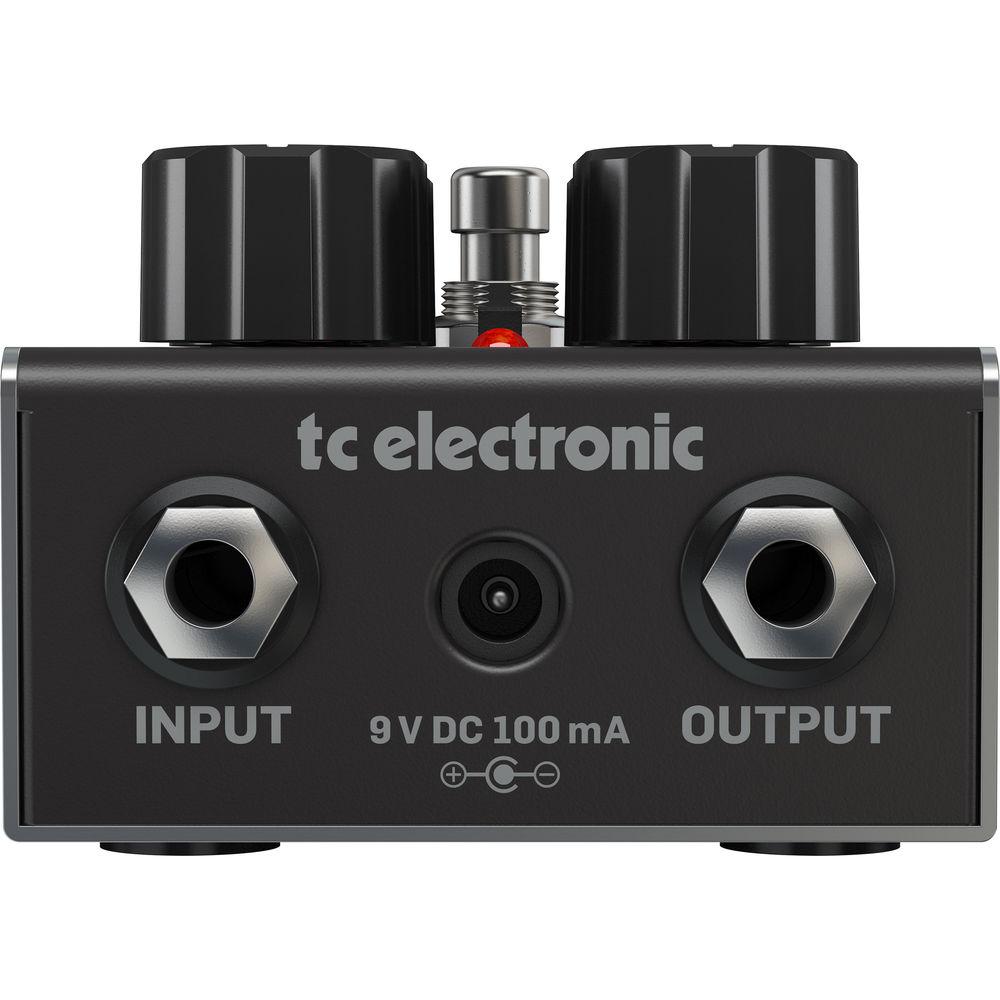

Technical parametersTC Electronic FANGSMETALDISTORTION Specs | Audio Connections | 1 x 1/4" TS Instrument Input, Phone Type
1 x 1/4" TS Instrument Output, Phone Type | | Controls | Gain Knob
Volume Knob
Bass Knob
Treble Knob
Midrange Position Switch
Bypass/Engage Footswitch | | Impedance | Input: >400 kOhms
Output: 1 kOhm | | Power Input | Standard 9 VDC, Center Negative, >100 mA | | Battery | Internal 9 V Battery Connector | | Current Consumption | <15 mA | | Dimensions (H x W x D) | 2.3 x 2.9 x 5.2" / 58.0 x 74.0 x 132.0 mm | | Weight | 1.1 lb / 0.5 kg |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to TC Electronic FANGS Metal Distortion Pedal for Electric Guitar
| Subject: Change batery | | Date: 25.02.2021 10:32:31 | Name: Brett McNear | | How do you get into this thing to change the battery? I couldn't work out how to download the manual. Why is it saying to upload it? I need to download it? Anyway I don't need the manual if I can just change the freaking battery. | | Post reply |
