User Manual for TC Electronic Flashback 2 Delay Pedal for Electric Guitar Click to enlarge the picture
Contents of the user manual for the TC Electronic Flashback 2 Delay Pedal
- Product category: Effects Pedals TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Effects Pedals
 |
User manual for the TC Electronic Flashback 2 Delay Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|

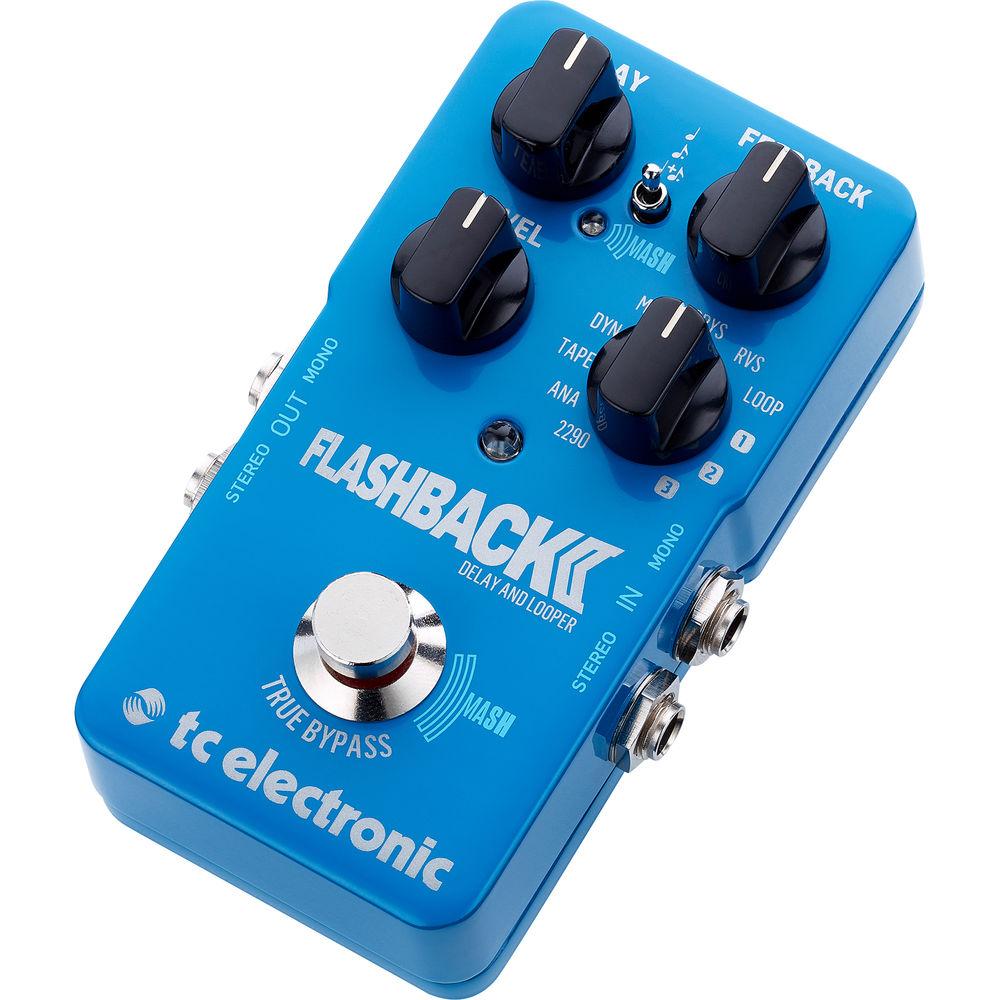

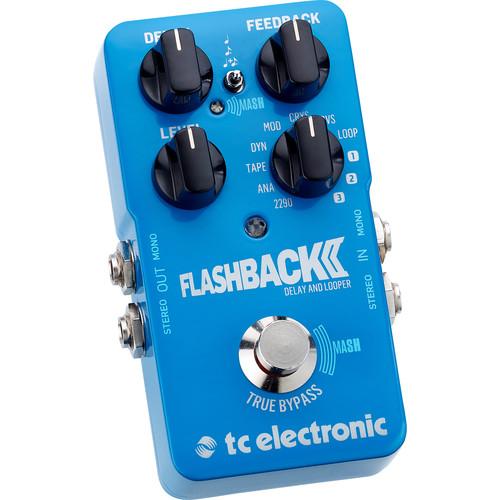

Product description The Flashback 2 Delay from TC Electronic is a pedal intended for use with electric guitar. It provides multiple delay types, all accessible from one enclosure. With this pedal, you can generate pristine digital delays, delays modeled on analog circuitry, emulated tape echoes, and many effects you’ve never quite heard before. In fact, compatibility with the TonePrint editor allows you to create your own unique delays and store them in the pedal.The Flashback 2 offers stereo I/O for multiple amp setups, or for use with instruments boasting stereo outputs. There are controls for delay level, delay time, subdivision, and feedback. A built-in phrase looper gives you either 40 seconds in mono or 20 seconds in stereo for recording material on the fly. A buffered-bypass option and kill-dry mode are accessible through internal DIP switches.In addition to its true-bypass and tap-tempo functions, the footswitch sports an expression technology TC Electronic called MASH, which obviates the need for an external pedal, letting you manipulate various assignable parameters by simply applying more pressure to the footswitch. This pedal can run using a 9V battery or by means of a power adapter, available separately. - More about MASH
- MASH reacts to the amount of pressure you put on the switch. The harder you press, the more intense the effect. The MASH control is assignable to three parameters at once via the TonePrint editor. For each delay preset, MASH will control a different parameter and let you exert expression control without necessitating an extra pedal, or requiring you to bend over and throw your back out in the pursuit of twisting knobs. For example, you can assign MASH to raise the delay time as you press down, subtly increase the delay feedback into full-blown self-oscillation, or to add/deepen chorus modulation for out-of-tune flutters.

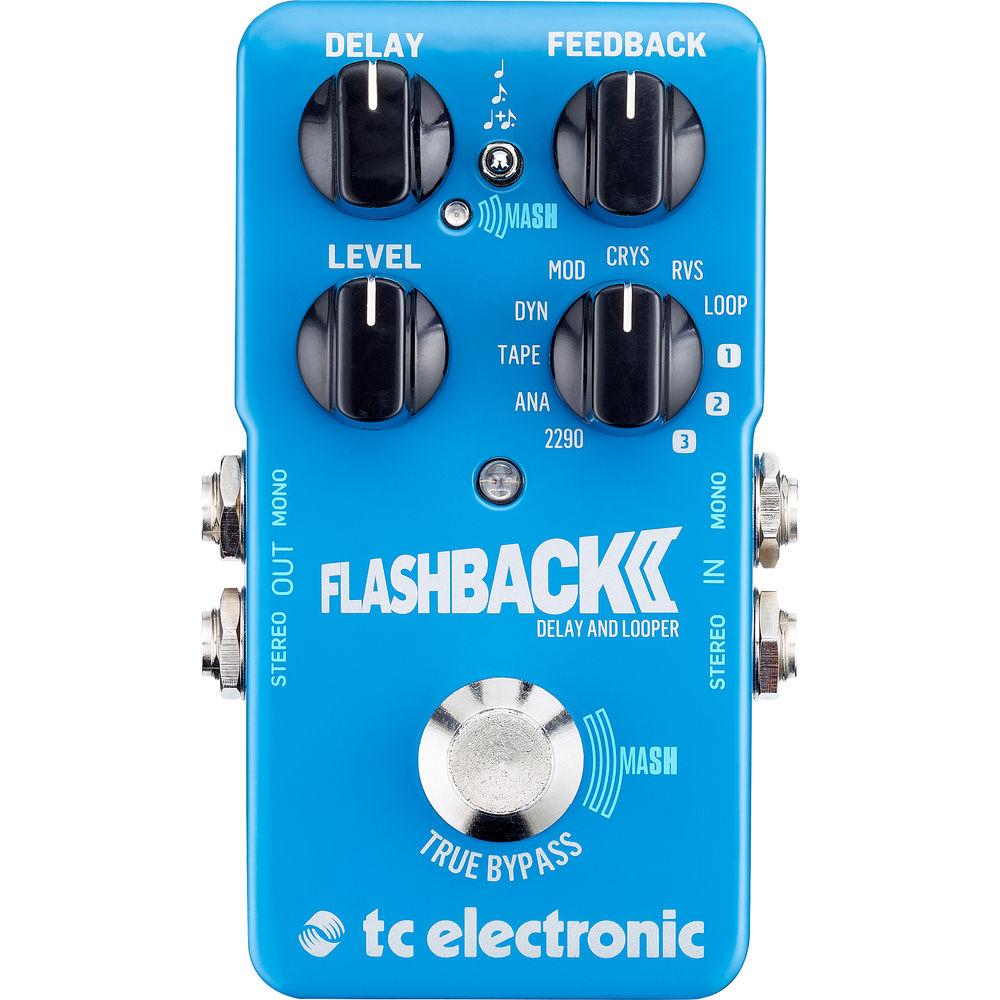

- Controls and Indicators at a Glance
- DELAY Knob: Use this knob to adjust the time of the delay. Most delay types have a range of 20 to 7000 ms.SUBDIVISION Switch: This switch determines the note intervals that the delay repetitions are based on. The options are quarter note, dotted eighth, and quarter note plus dotted eighth.FEEDBACK Knob: Use the Feedback knob to determine the number of delay repeats.MASH LED: This will light up when the MASH function is engaged by pressing down firmly on the footswitch. The LED gets brighter as the footswitch receives more pressure, indicating a more intense triggering of the parameter that is assigned to this function.LEVEL Knob: This knob adjusts the volume level of the delay repeats. The direct, unprocessed signal is always passed through at the original (unity) level. The Level knob only controls how prominently the delay repeats are mixed with the dry signal.DELAY TYPE Selector: Select the type of delay or TonePrint with this knob.
- Delay Types
- 2290: This is based on TC Electronic’s prized 2290 Dynamic Digital Delay.ANALOG: This type models a vintage analog transistor bucket-brigade delay. With every repeat, you get more of that old-school “fade to gray” vibe.TAPE: This algorithm meticulously replicates aspects of authentic tape delay, including the pitch shifting that occurs when the delay time is altered.DYNAMIC: This is a replica of the Dynamic Delay initially introduced in the TC 2290. The delay’s output level is actively altered by the dynamics of the input level. While playing, the delay level is attenuated, and in between phrases, the delay level is increased. This allows you to play with a relatively large amount of delay without muddying fast riffs.MODULATED Take the 2290’s pristine sound, send it through three emulated chorus pedals. If you’re into the sound of The Edge, this might work for you.CRYSTALS: The Crystals effect pitch shifts the echoes up an octave through each delay loop. This setting pairs nicely with MASH control.REVERSE: This is an emulation of a classic effect made famous by guitar legends such as Jimi Hendrix.LOOPER: Set the Delay Type selector to LOOP to use the built-in audio looper. You get 40 seconds in mono, or 20 seconds in mono, as well as the ability to layer overdubs.TONEPRINT: Select one of the 3 TonePrint settings to access a default setting or a custom TonePrint preset.
In the Box TC Electronic Flashback 2 Delay Pedal for Electric Guitar Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic Flashback 2 Delay Pedal for Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic Flashback 2 Specs | I/O | 2 x 1/4" Instrument inputs, phone type
1 x 1/4" Instrument outputs, phone type | | Bypass | True bypass, buffered bypass optional | | Impedance | Input: 1 MOhm
Output: 100 Ohms | | Power Input | Standard 9 VDC, center negative | | Current Draw | >300 mA | | Battery | 9 V | | USB Port | Mini-USB connector for firmware updates | | Dimensions (H x W x D) | 3.7 x 1.9 x 1.9" / 93 x 48 x 48 mm | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 5.1 x 3.5 x 2.9" |
Rating20% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to TC Electronic Flashback 2 Delay Pedal for Electric Guitar
| Subject: set mash button to extend number of repeats | | Date: 08.12.2021 05:38:10 | Name: Tony l Fornes | | how would you set the mash button to extend the number of repeats | | Post reply |
