User Manual for TC Electronic Flashback Triple Delay Pedal Click to enlarge the picture
Contents of the user manual for the TC Electronic Flashback Triple Delay Pedal
- Product category: Effects Pedals TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Effects Pedals
 |
User manual for the TC Electronic Flashback Triple Delay Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|

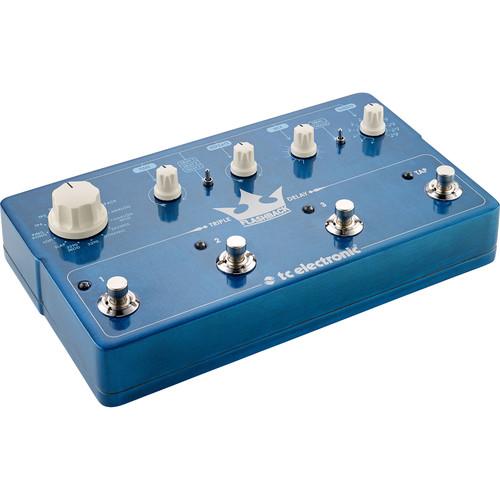

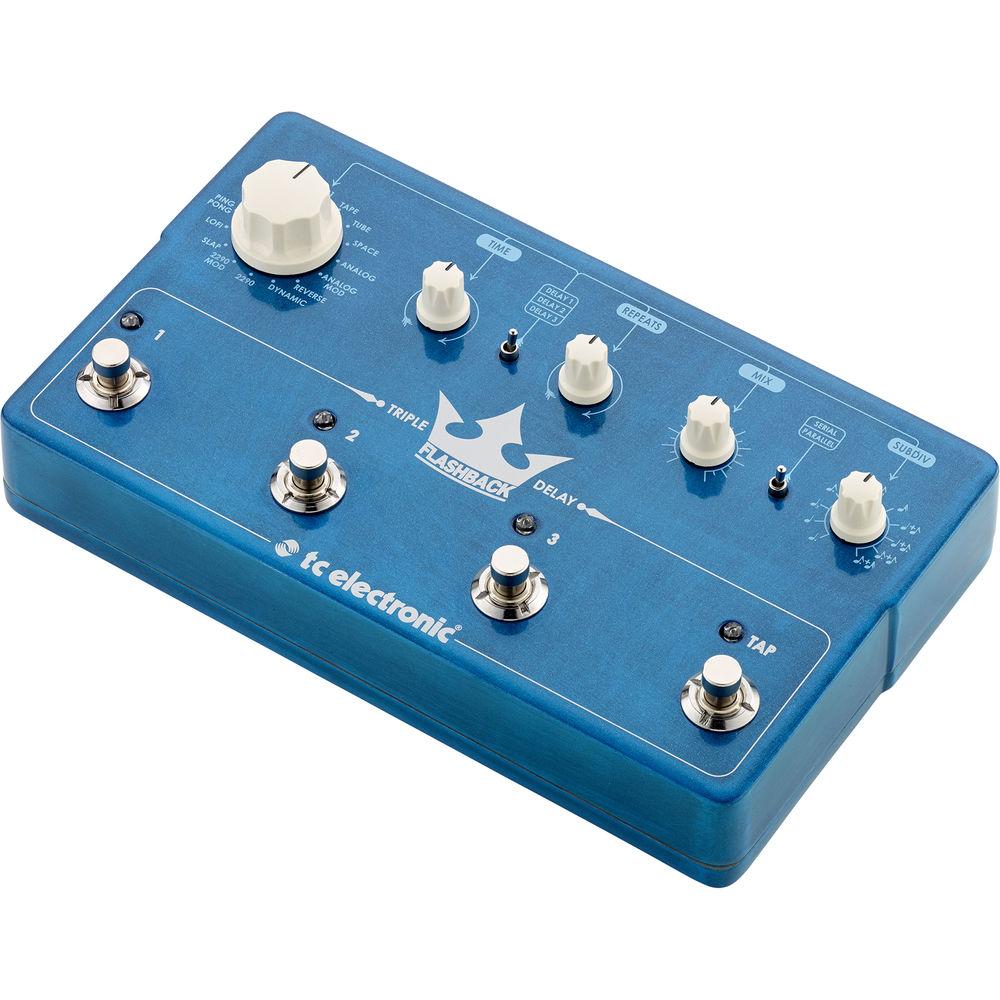

Product description Designed to put multiple delays at the feet of guitar players, the Flashback Triple Delay from TC Electronic is a foot pedal with three separate delay engines. 16 different delay types are available to you, as is the choice to run this pedal in parallel or series; if you'd like one delay to feed into another, that option is just a switch away.
Onboard controls regulate feedback, mix level, and subdivisions. You can also utilize the tap tempo switch to set the delay time to your specific needs, or the built-in MIDI I/O to sync the pedal to other MIDI-controlled units. To make sure your analog tone stays pristine and ultimately true to itself, the pedal offers an analog-dry-through signal path, with either true or buffered bypass at your command; the choice is yours.
As with other TC Electronic pedals, the Triple Flashback Delay is TonePrint-Enabled, giving you four TonePrint slots in which you can store the presets of your favorite artists—or your own custom-engineered settings—for instant recall. You can communicate TonePrints to the pedal via the on-board mini-USB port, or beam them over your Android or iOS device. A 9 VDC power supply is included with the pedal. Key Features at a Glance - 3 independent delay engines
- 11 different subdivisions
- Toggle between having your delays in series or in parallel
- TonePrint- and beam-enabled
- True Bypass (optional buffered)
- Stereo I/O, stereo-sensing
- 9 VDC power supply included
Features in Depth - Types of Delay
-
- Tape
- Tube
- Space
- Analog
- Analog w/mod
- Reverse
- Dynamic
- 2290
- 2290 w/mod
- Slap
- Lofi
- Ping Pong
- Delay Toggle Switch
- The Delay toggle-switch lets you control and setup the three delay engines separately for sonic flexibility
- Series/Parallel Switch
- Switch between having your delays in series or parallel, for lush sonic soundscapes or defined syncopated echoes; with three independent delays acting in accordance with your parallel or series desires, the possibilities for creativity are multitudinous
- Tap Tempo Switch
- Instantly sync up your delays with your band's tempo, the ideas in your head or whatever else is guiding you without taking your hands of the guitar or bending over the pedal; Simply tap the tempo with your foot to dictate a desired tempo
- Mix Knob
- Set the level of your delay with this knob
- Rhythmic Subdivisions
- Select different subdivision types for each delay, ranging from quarter notes to triplets, and all the way to several kinds of dual delays
- TonePrint Slots
- Flashback Triple Delay is equipped with four TonePrint slots, allowing you to load your favorite signature delay effects as developed by artists on the TonePrint roster; you can also beam TonePrints into the pedal via your smartphone
- "Rewire" Controls via TonePrint
- the knob assignments on this pedal do have default parameters; however, using the TonePrint Editor, you can reassign all knobs so they control one or several parameters of your choice
- Assignable Control via the Expression Pedal Input
- Plugging in an expression pedal (available separately) you can choose to control either the delay time, the feedback, or the delay level of your sounds
- Delay Spill-Over Control via Bypass Selection
- The pedal has two bypass modes: True, and Buffered; in addition to other variables, True Bypass will cease delays immediately upon instantiation, whereas selecting Buffered Bypass will cause delays to naturally fade out over time when the switch is pressed
- MIDI Clock Sync
- Via the 5-Pin DIN MIDI I/O, the pedal allows for MIDI clock sync, so you can adjust delay times to your exact needs
- Stereo I/O
- With four 1/4" jacks, the pedal allows stereo operation, so you can choose to effect truly wild and stereophonic delays, if that is your preference
In the Box TC Electronic Flashback Triple Delay Pedal 9 VDC Power Supply Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic Flashback Triple Delay Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic 960910005 Specs | Bypass | True bypass (Buffered bypass optional) | | Circuitry | Analog dry-through | | Input Connectors | Instruments: 2 x 1/4" TS jacks - mono with automatic mono/stereo sensing
Expression pedal: 1 x 1/4" jack | | Input Impedance | 1 MOhm | | Output Connectors | 2 x 1/4" TS jacks - mono with automatic mono/stereo sensing | | Output Impedance | 100 Ohms | | MIDI Connectors | 2 x 5-Pin DIN connectors, in and thru | | USB Port | Mini-USB | | Power Input | Standard 9 VDC, center negative | | Current Consumption | > 300 mA | | Power Supply | Included | | Dimensions (W x D x H) | 9.3 x 5.7 x 2.2" / 23.5 x 14.5 x 5.7 cm | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 12.1 x 6.1 x 3.2" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
