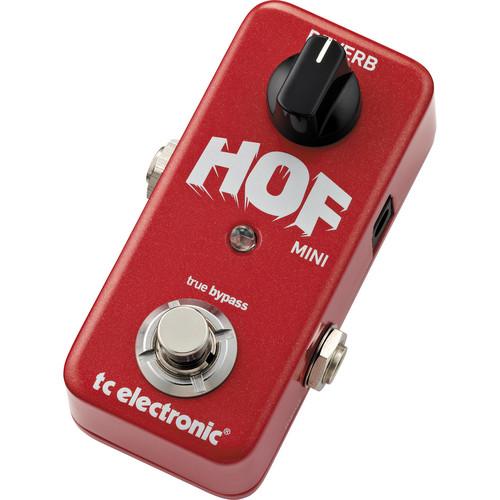

User Manual for TC Electronic Hall of Fame Mini Reverb Pedal with TonePrint Click to enlarge the picture
Contents of the user manual for the TC Electronic Hall of Fame Mini
- Product category: Effects Pedals TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Effects Pedals
|
User manual for the TC Electronic Hall of Fame Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|
Product description The TC Electronic Hall of Fame Mini is a small-footprint reverb pedal with TonePrint technology, designed to save space on even the most cramped pedalboards without compromising functionality. The pedal features reverb level control, an effect on/off footswitch with true bypass, and optimized headroom for tonal integrity. In addition to the default hall reverb, there are up to ten different reverb types accessible via TonePrint, including spring, room, plate, church, modulated, Lo-Fi, tile, ambient, and gated.
TonePrints are custom presets that can be edited and uploaded onto the pedal. Using the free TonePrint Editor software, available for Mac, Windows, and iPad, allows for preset editing, modulation of parameters not accessible from the on-board controls, and knob-control customization. Simply connect your pedal to your device via the USB mini-B port, install the free software, and begin editing.
You can also use this pedal with the free TonePrint App, available for Android and iPhone. Besides your user-made presets, there is a library of artist presets available, accessible even without an internet connection. To transfer a TonePrint to your pedal, simply hold your smartphone near your instrument's pickups, and the TonePrint will be 'beamed' to your pedal. Note: This product has no battery compartment and runs only via an external power supply (available separately). - Features
-
- On/off footswitch and reverb level control knob
- Pre-loaded with TC's hall reverb
- True bypass, optimized headroom, and analog dry-through signal circuitry for tonal clarity and integrity
- TonePrint enabled – edit and upload presets, adjust deeper parameters, and change what the knob controls
- Access to 10 different reverb algorithms via TonePrint, and more
- Works with guitar and line level/FX loop signals
- Rubber feet for non-hook & loop fastener pedalboard mounting
In the Box TC Electronic Hall of Fame Mini Reverb Pedal with TonePrint 2 x Rubber Feet TC Electronic Sticker Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic Hall of Fame Mini Reverb Pedal with TonePrint in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic 960803001 Specs | Controls | Reverb Level Knob
On/Off Footswitch | | LED Indicator | Status | | Input / Output Connectors | Input: 1/4" TS jack (6.35 mm)
Output: 1/4" TS jack (6.35 mm) | | Impedance | Input: 1 MOhm
Output: 100 Ohms | | USB Port | USB Mini-B Port | | Power Supply Requirements | Voltage and Current: 9 VDC, 100 mA or more
Connector: 5.5 / 2.1 mm barrel-type, center-negative
Battery Operation: No | | Circuitry | Analog dry-through signal | | Dimensions (W x D x H) | 1.9 x 1.9 x 3.7" (48.0 x 48.0 x 93.0 mm) | | Weight | 0.50 lb (0.22 kg) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 3.9 x 2.6 x 2.0" |
