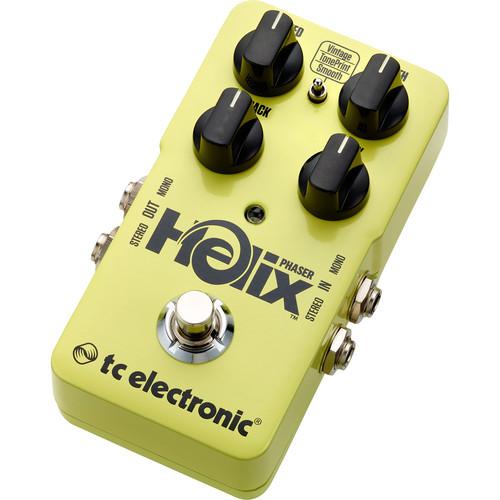

User Manual for TC Electronic Helix Phaser Pedal Click to enlarge the picture
Contents of the user manual for the TC Electronic Helix Phaser Pedal
- Product category: Effects Pedals TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Effects Pedals
|
User manual for the TC Electronic Helix Phaser Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|
Product description The TC Electronic Helix Phaser Pedal enables you to dial in a versatile assortment of effects, ranging from vintage-sounding swirls to big and bold sweeps, or subtle textured tones. To expand the pedal's tonal palette, the Helix Phaser supports TC's free TonePrints app for Android and iOS, which allows easy access to signature TonePrints created by your favorite guitar and bass players, as well as to create your own custom sounds. With true bypass circuitry, when the effect is bypassed, it is really off and has zero influence on your tone, resulting in optimum clarity and zero loss of high end. In addition, an analog dry-through feature lets your dry, unprocessed sound pass without ever converting it to digital, keeping your original tone pure and without any latency. The Helix Phaser features a compact design with stereo input and output. The pedal can be powered using a 9V battery or a standard 9 VDC power supply. - Features True Bypass and optional Buffered Bypass modes
- SPEED knob to determine the modulation frequency
- DEPTH knob to control the intensity of the phaser effect
- FEEDBACK knob to control the amount of the signal fed back to the input of the phaser. Increasing feedback will emphasize frequencies between the characteristic phasing notches, resulting in a more pronounced and resonant phaser effect.
- MIX knob to control the level of the phaser effect
- Phaser type toggle to choose the type of phaser you want to use – VINTAGE, SMOOTH or TONEPRINT
- VINTAGE setting creates a somewhat gritty and swooshy phaser effect
- SMOOTH setting creates a mellow, less pronounced phaser effect
- Set the Phaser type selector to TONEPRINT to use TonePrints
- Mini-B USB port for connecting the pedal to a computer for loading TonePrints into the pedal or create your own TonePrint using TonePrint Editor
In the Box TC Electronic Helix Phaser Pedal USB Cable (Type A to Mini-A) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic Helix Phaser Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic 960820001 Specs | Bypass | True Bypass | | Circuitry | Analog dry-through | | Input Connector | 2 x Standard 1/4" jacks (mono/TS with automatic mono/stereo sensing) | | Output Connector | 2 x Standard 1/4" jacks (mono/TS with automatic mono/stereo sensing) | | Power Input | Standard 9 VDC, center negative >100 mA (power supply not included) | | Power and Battery Options | Standard 9 V (battery not included) | | Input Impedance | 1 MOhms | | Output Impedance | 100 Ohms | | USB Port | Mini USB connector for uploading and editing custom TonePrints, and for software updates | | Dimensions (H x W x D) | 5.12 x 3.54 x 2.76" (130 x 89.9 x 70.1 mm) | | Weight | 0.88 lb (0.4 kg) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
