User Manual for TC Electronic JUNE-60 Analog Chorus Pedal Click to enlarge the picture
Contents of the user manual for the TC Electronic JUNE-60 Analog Chorus Pedal
- Product category: Effects Pedals TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Effects Pedals
 |
User manual for the TC Electronic JUNE-60 Analog Chorus Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|
Product description - JUNE-60 Chorus - Official Product Video

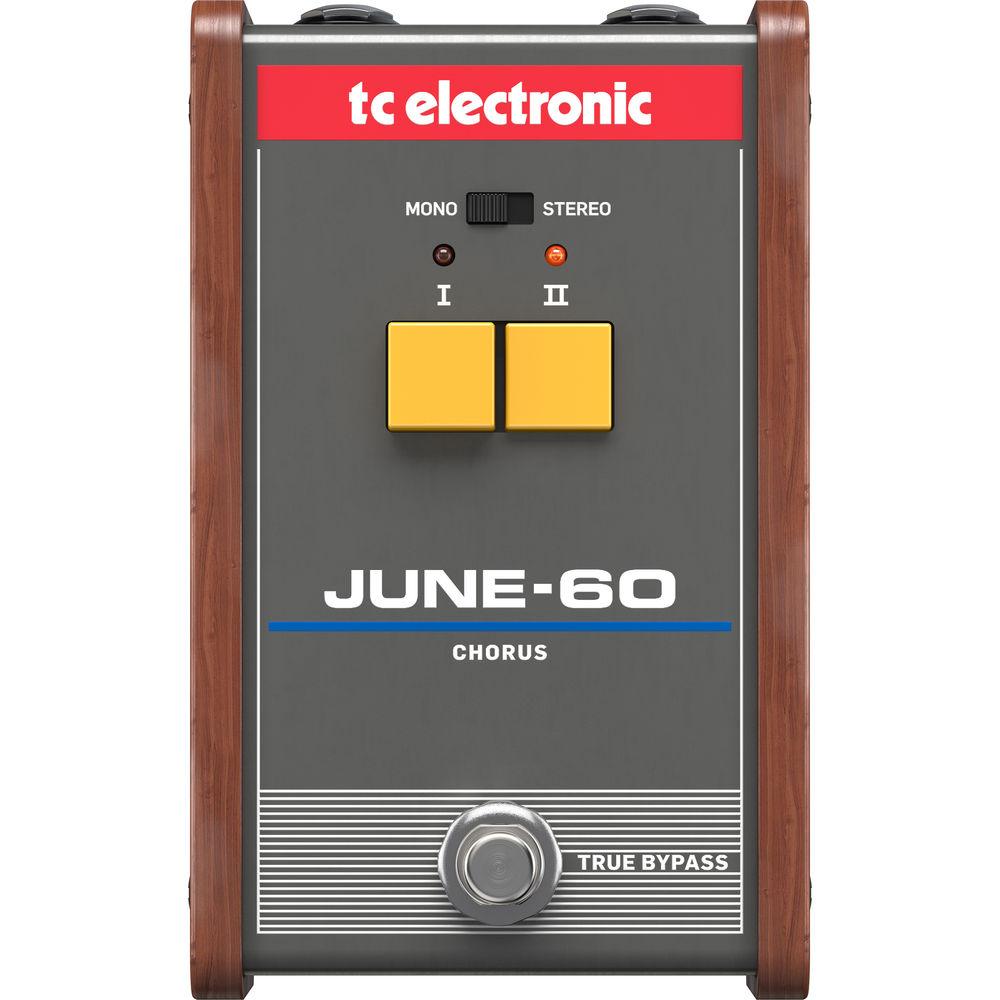

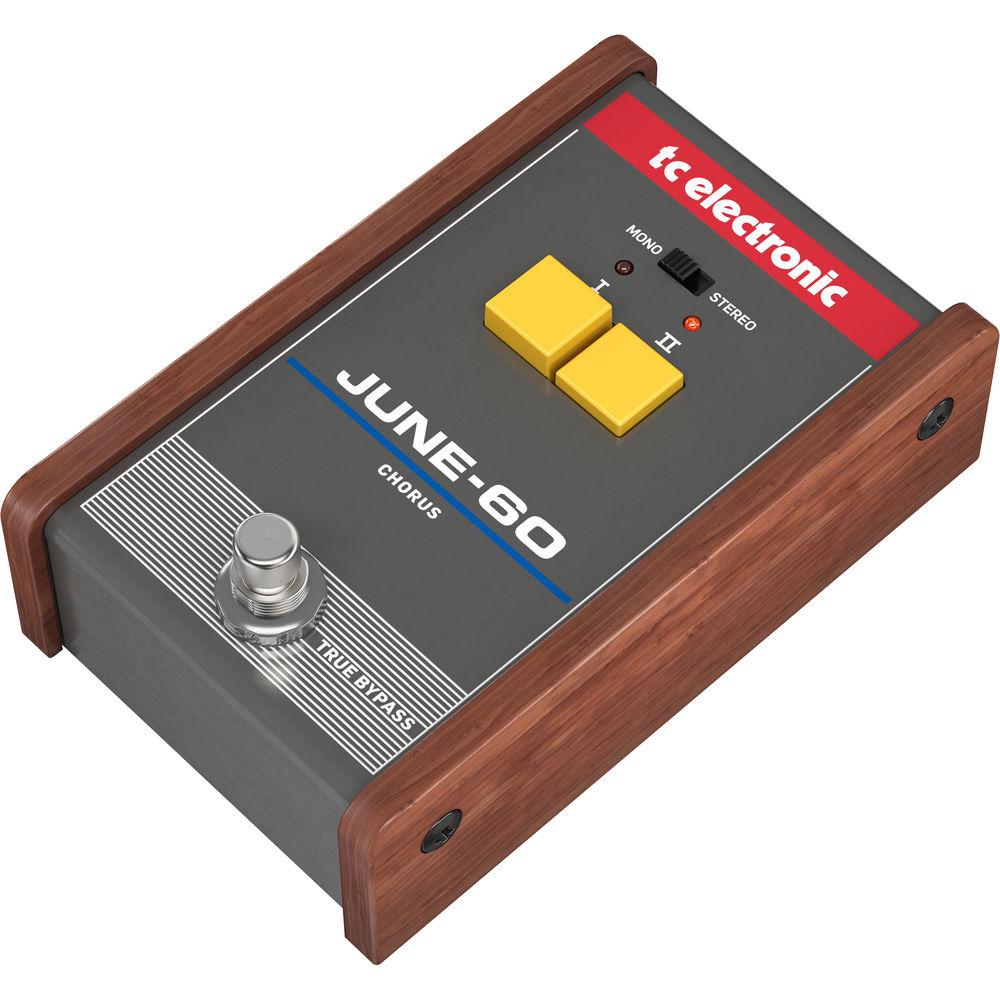

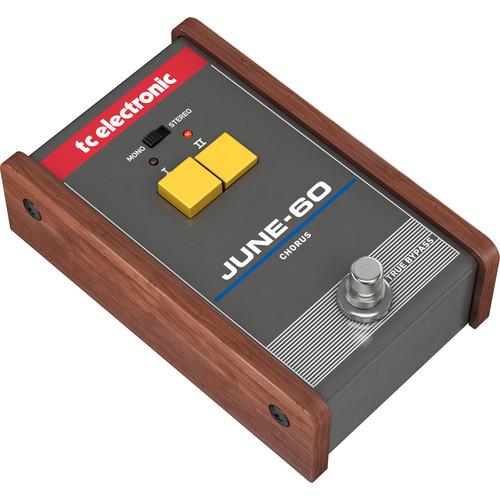

Designed for electric guitarists, the TC Electronic JUNE-60 is a chorus pedal that recreates a classic chorus sound, namely the circuit found in the famous Juno-60 synthesizer. This is an all-analog chorus pedal that runs on a bucket-brigade delay (BBD) circuit for an authentic 1980s tone.
You'll notice the lack of knobs. Instead, you're given two buttons to switch between two different modes. Mode I gives you a slow, rich chorus, while Mode II is faster and more wobbly. You can also press both buttons at the same time and approximate something similar to a rotary speaker.

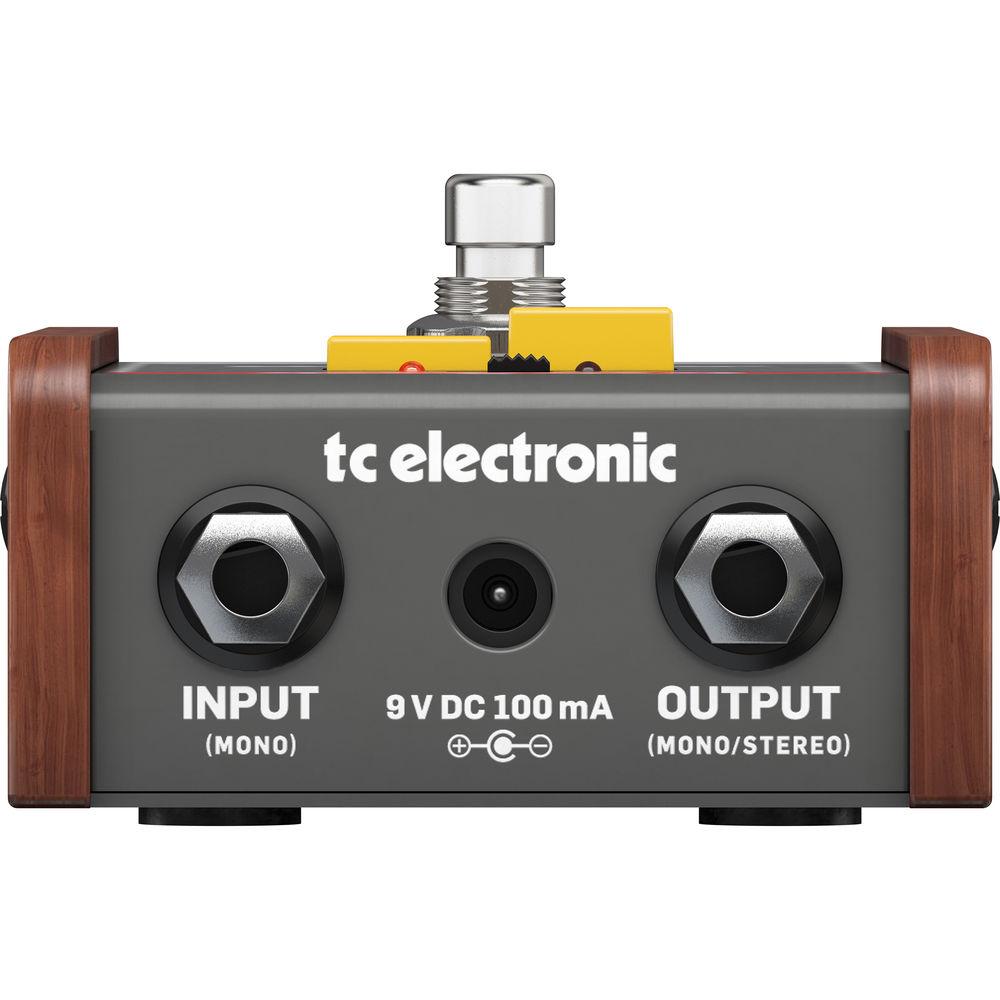

The pedal sports a 1/4" TS instrument input and a 1/4" TS/TRS output. You can plug a TS cable straight into an amplifier for mono operation. Or, using a TRS y-cable at the output jack, you can route the sound into two amplifiers, switch the pedal into Stereo mode, and achieve a true stereo chorus effect.
The JUNE-60 can be powered with a 9V battery or a PSU-SB DC power supply, both of which are available separately. The pedal utilizes a true-bypass footswitch, so that your signal remains pristine and unaffected when it's disengaged. The JUNE-60 also has a rugged metal frame so that it can stand up to the rigors of the road. In the Box TC Electronic JUNE-60 Analog Chorus Pedal Limited 1-Year Warranty (Extendable to 3 Years upon Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic JUNE-60 Analog Chorus Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic JUNE60CHORUS Specs | Audio Connections | 1 x 1/4" TS Instrument Input, Phone Type
1 x 1/4" TS Mono or TRS Stereo Output, Phone Type | | Controls | Mode I Button
Mode II Button
Mono/Stereo Switch
Bypass/Engage Footswitch | | Impedance | Input: 350 kOhms
Output: 1 kOhm | | Power Input | Standard 9 VDC, Center Negative, >100 mA | | Battery | Internal 9 V Battery Connector | | Current Consumption | 45 mA | | Dimensions (H x W x D) | 2.2 x 3.4 x 5.4" / 56 x 86 x 137 mm | | Weight | 1.1 lb / 0.5 kg |
