User Manual for TC Electronic Loudness Pilot 2XSDI Broadcast Audio Processor Click to enlarge the picture
Contents of the user manual for the TC Electronic Loudness Pilot 2XSDI Broadcast
- Product category: Broadcast Processors TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Broadcast Processors
|
User manual for the TC Electronic Loudness Pilot 2XSDI Broadcast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|

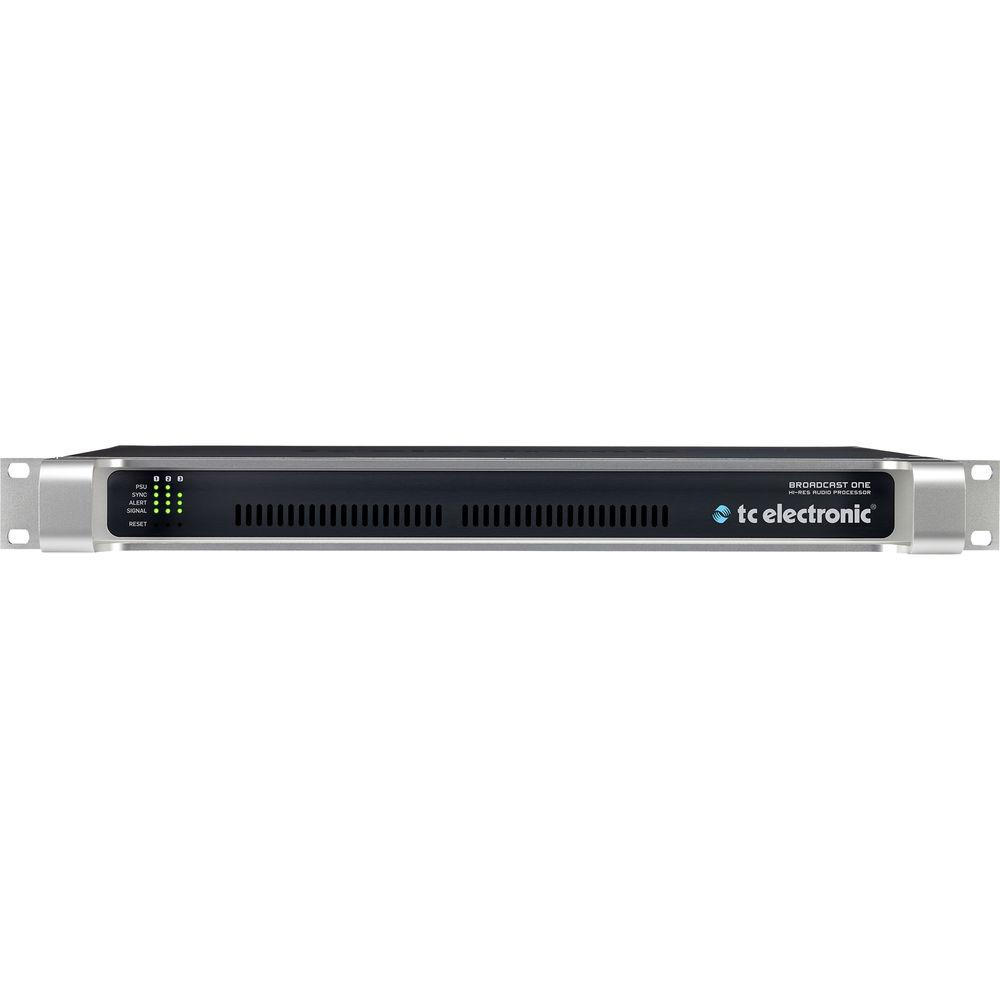

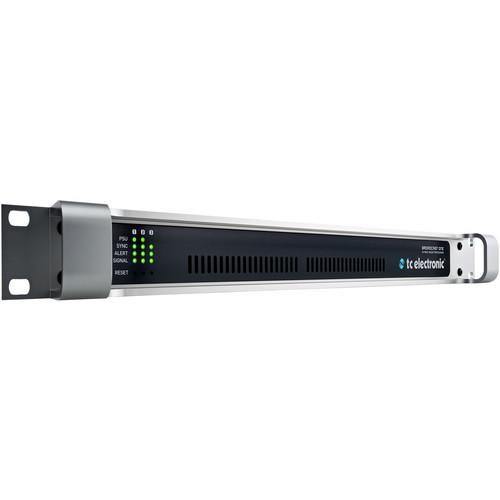

Product description The TC Electronic Loudness Pilot 2XSDI is a broadcast transmission audio processor that provides dual-stereo and dual-mono loudness management to help broadcasters with their loudness responsibilities for TV, radio, and mobile applications. It employs a high-resolution ALC2 loudness control algorithm, which delivers high-quality audio with ultra-low latency, while allowing you to stay compliant with broadcast standards and legislation at all times. The Loudness Pilot 2XSDI comes with two 3G transmission cards, giving you the ability to process two SDI streams with sixteen audio channels, right out of the box. The unit is expandable with one 3G transmission card (available separately), increasing the number of simultaneous SDI streams to three and ideal for any station that needs to process multiple streams simultaneously. Audio loudness is measured at the input as well as the output of the Loudness Pilot. In between, the high-resolution ALC2 algorithm handles everything regarding loudness including automatic loudness correction, true-peak limiting, lip-sync delay with look-ahead capability, all in one single process and for a multitude of broadcast platforms. The unit comes with ready-to-use presets based on international standards. Each single 3G transmission card can run two ALC2 algorithms, allowing loudness processing for two TV channels or two languages simultaneously. It also provides loudness control for multiple platforms simultaneously, delivering for both HDTV and mobile applications in real time. The auto input switching function enables seamless fallback to a secondary source when the primary source is unavailable, and can switch over to a broadcast emergency channel when audio is detected on it. The Loudness Pilot 2XSDI features a full, dual-redundancy setup with dual fans, dual fuses, and dual power connectors, which you can use with independent power sources. In case of an emergency, the relay bypass passes your stream directly from input to output, ensuring a non-stop performance. This fit-for-purpose unit offers the option to add optional TC Electronic software processors including aNorm adaptive normalization loudness processing, SDI Metadata control, and the LM2 Loudness Radar meter, which gives you a complete loudness landscape overview at a glance. The Loudness Pilot is housed in a compact, 1 RU enclosure to help you save space in your equipment room. Included are two power cords and a USB memory stick with the TC Icon Software and Loudness Pilot Software for Mac and Windows. Note: Operating Loudness Pilot requires a TC Icon remote (available separately) or a computer running the included TC Icon software for Mac and Windows. Loudness Processing for TV, Radio, and Mobile - Professional broadcast transmission audio processor for TV stations that need hassle-free mono and stereo audio loudness management
- Ideal for the local TV broadcaster or a TV production truck
- Helps stay compliant with broadcast standards and legislation at all times, without sacrificing audio quality
- Comes with two 3G transmission cards to handle two SD/HD/3G SDI streams
- Supports SDI standards up to 3G: 2.97 Mb/s, 1080p, 3D (2 x 1080i)
- Expandable for any station that needs to process multiple streams simultaneously; add one additional 3G transmission card, increasing the number of simultaneous SDI streams to three
- 1 RU design saves space in equipment room
- Comes with ready-to-use presets based on international standards
- Designed and engineered in Denmark
ALC2 Loudness Processing - Key Features
-
- ALC2 is the "heart and soul" of Loudness Pilot
- High-resolution, low-latency loudness control algorithm
- Corrects substantially when needed, subtly when appropriate, and leaves your audio untouched when it is already normalized
- Automatic loudness correction
- Look-ahead lip-sync delay
- True-peak limiting
- Auto Input Switching
-
- Dual-language switching: Auto input switching enables seamless fallback switching to language B if language A is not available
- Emergency switching: Set up Loudness Pilot to automatically switch to an emergency channel, if there is audio present on that channel
Dual Redundancy -
- Offers robust redundancy and reliability needed for mission-critical live applications
- Dual power supplies for independent power sources
- Dual fuses
- Dual low-noise fans
Relay Bypass - Complete relay bypass passes your stream directly from input to output for non-stop performance no matter what happens
Dual Language/Dual TV Channel Correction - Loudness Pilot is a dual stereo and dual mono processor, allowing loudness processing of two TV channels or two languages simultaneously
Multiplatform Transmission -
- Dual-stereo infrastructure allows loudness processing for multiple platforms simultaneously
- Deliver for HDTV and mobile applications in real time
Control Interface - TCP/IP Ethernet Control
-
- Remote Control over Ethernet from Windows or Mac computer (controller) running TC Icon software
- Second Ethernet port allows for daisy-chaining multiple 3G transmission cards
- Automatic Input Detection, GPI, or Metadata
-
- Loudness Pilot is based the company's DB6 platform and gives you the same extensive GPI control options
- Detects the incoming signal channel format automatically
- GPI metadata allow you to tailor remote control to your station’s demands
Compliance -
- Compliant with all major broadcast standards
- ITU-R BS.1770-3
- EBU R128
- ATSC A/85
- ARIB TR-B32
- FreeTV OP-59
- Supported by TC Electronic to remain compliant with current and future releases of major broadcast standards

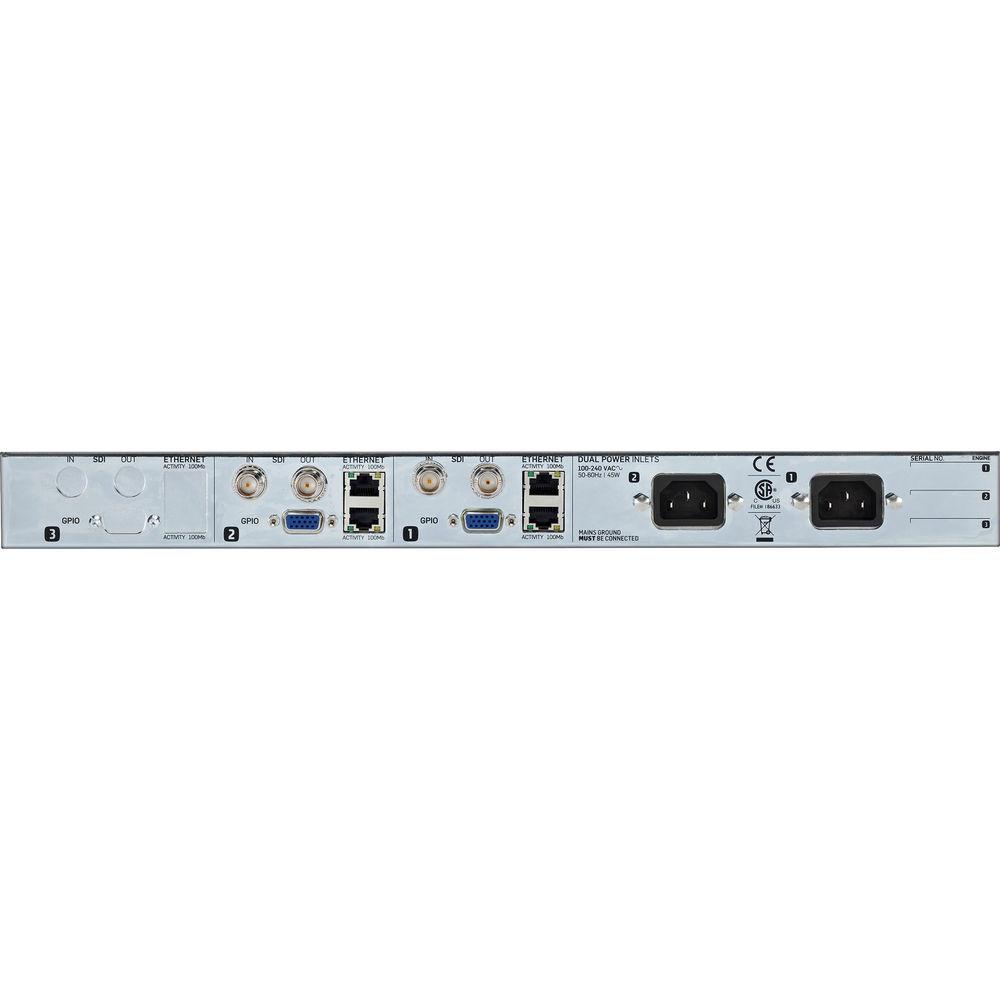

3G Transmission Card -
- Each card processes one SD/HD/3G SDI audio stream with eight audio channels I/O
- Holds two multichannel processors
- Runs two ALC2 algorithms simultaneously
- Runs two LM2 Loudness Radar Meters (available separately)
Optional TC Electronic Software Processors (Licenses Available Separately) - LM2 Loudness Radar Meter
-
- Optional LM2 Radar Meter gives you a complete loudness landscape overview at a glance for each TV channel or language
- Measures loudness at the input stage as well as the output stage of Loudness Pilot
- Measure loudness history, momentary loudness, true-peak level, program loudness, and loudness range
- 24/7 logging function generates a text file which you can use to document adherence to a specific broadcast standard
- aNorm Loudness Processing
-
- Optional aNorm adaptive normalization loudness processing automatically applies the minimum dynamic audio processing required to keep you safely within the boundaries of international loudness standards and legislation, while providing high-quality sound
- SDI Metadata
-
- Optional SDI Metadata license provides extensive remote control option via SDI
In the Box TC Electronic Loudness Pilot 2XSDI Broadcast Audio Processor 2 x 3G Transmission Cards 2 x Power Cables USB Memory Stick with TC Icon Software and Loudness Pilot Software Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic Loudness Pilot 2XSDI Broadcast Audio Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic Loudness Pilot Specs | Frame Configuration | Comes with two 3G transmission card Capable of holding one to three 3G transmission cards (additional cards available separately) | Front Indicators | Status for: PSU 1, PSU 2, Sync, Alert, Signal | Mains Voltage | 100-240 VAC, 50/60 Hz (auto-select) | Power Supply | Dual power supply redundancy | Fan | Dual fan redundancy | Environment Operating Temperature | 32 to 122°F / 0 to 50°C | Storage Temperature | -22 to 167°F / -30 to 70°C | Humidity | Maximum 90%, non-condensing | Finish | Anodized aluminum face plate Plated steel chassis | Compliance | EN 55103-1 and EN 55103-2 FCC part 15 class B CIS-PR 22 class B | Safety Certification | IEC 60065, EN 60065, UL 6500, CSA E65 | Dimensions | 19 x 1.75 x 13.2" / 483 x 44 x 334 mm 1 RU | Weight | Not specified by manufacturer | | Number of Processors | 2 x multichannel processors | Audio Channels Processed | 8 in, 8 out | Audio Format Configuration | Stereo, mono, dual-mono, dual-stereo | Audio Processing Delay | 0.15 ms | Adjustable Online Delay | 0 to 10 second per audio channel | Delay Resolution | 32-bit | Frequency Response DIO | DC to 23.9 kHz
