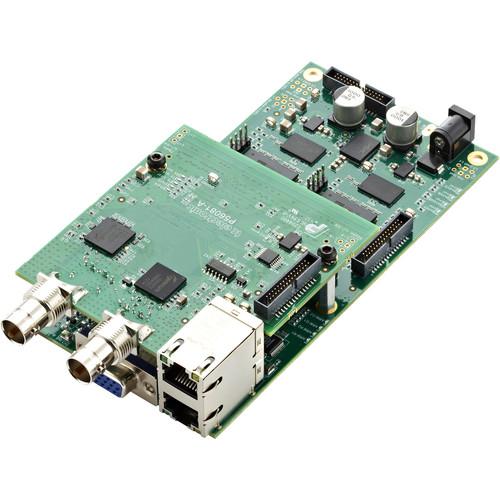

Product description The TC Electronic Loudness Pilot 3G SDI Card Retrofit is used to add one additional SD/HD/3G SDI stream to the Loudness Pilot SDI broadcast audio processor. It allows you to process eight audio channels I/O in various stereo and mono configurations, and at resolutions up to 32-bit / 48 kHz. The card holds two multichannel processors and is capable of running two ALC2 algorithms simultaneously and two LM2 loudness radar meters simultaneously. The Loudness Pilot 3G SDI Card Retrofit features a set of SDI I/O on two BNC connectors and a remote control GPIO port with a D-Sub connector. Two Ethernet ports allow you to connect the card to a computer and to daisy-chain multiple 3G transmission cards. - Key Features
-
- Process one SD/HD/3G SDI stream with eight audio channels I/O
- Holds two multichannel processors
- Runs two LoudnessWizard algorithms simultaneously
- Runs two LoudnessWizard 2 algorithms simultaneously
- Runs two LM6 loudness radar meters simultaneously
- 2, 5.1, 2+2, 5.1+2, 2+5.1, 5.1+5.1 audio format configuration
- 32-bit / 48 kHz audio resolution
- Connect to a computer (controller) running TC Icon software via Ethernet port
- Second Ethernet port allows for daisy-chaining multiple 3G transmission cards
- GPIO port with D-Sub connector to control various DB6 features remotely
In the Box TC Electronic Loudness Pilot 3G SDI Card Retrofit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic Loudness Pilot 3G SDI Card Retrofit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic Loudness Pilot Specs | Number of Processors | 2 x Multichannel processors | | Audio Channels Processed | 8 in, 8 out | | Audio Format Configuration | Stereo, mono, dual-mono, dual-stereo | | Audio Processing Delay | 0.15 ms | | Adjustable Online Delay | 0 to 10 second per audio channel | | Delay Resolution | 32-bit | | Frequency Response DIO | DC to 23.9 kHz
