Product description The TC Electronic Loudness Pilot AES3id Unbalanced is a broadcast transmission audio processor that provides dual-stereo and dual-mono loudness management to help broadcasters with their loudness responsibilities for TV, radio, and mobile applications. It employs a high-resolution ALC2 loudness control algorithm, which delivers high-quality audio with ultra-low latency, while allowing you to stay compliant with broadcast standards and legislation at all times. The Loudness Pilot AES3id Unbalanced is designed for TV broadcasters who prefer to pass only the audio signal through their loudness management system rather than their entire SDI signal. It offers a total of sixteen physical channels of unbalanced AES I/O on BNC connectors, with the first eight channels active by default. Should you need to use additional channels, a license for activating channels 9-16 is available separately. The proprietary DICE core digital I/O engine features JET technology, which helps reduce incoming jitter to a near-unmeasurable level. Audio sync locks quickly for glitch- and artifact-free transmission, while the Freewheel "safety belt" function keeps the unit running at the "last good sync source rate" when the source is lost. Audio loudness is measured at the input as well as the output of the Loudness Pilot. In between, the high-resolution ALC2 algorithm handles everything regarding loudness including automatic loudness correction, true-peak limiting, lip-sync delay with look-ahead capability, all in one single process and for a multitude of broadcast platforms. The unit comes with ready-to-use presets based on international standards. The built-in 3G transmission card can run two ALC2 algorithms, allowing loudness processing for two TV channels or two languages simultaneously. It also provides loudness control for multiple platforms simultaneously, delivering for both HDTV and mobile applications in real time. The auto input switching function enables seamless fallback to a secondary source when the primary source is unavailable, and can switch over to a broadcast emergency channel when audio is detected on it. The Loudness Pilot AES3id Unbalanced features a full, dual-redundancy setup with dual fans, dual fuses, and dual power connectors, which you can use with independent power sources. In case of an emergency, the relay bypass passes your stream directly from input to output, ensuring a non-stop performance. This fit-for-purpose unit offers the option to add optional TC Electronic software processors including aNorm adaptive normalization loudness processing and the LM2 Loudness Radar meter, which gives you a complete loudness landscape overview at a glance. The Loudness Pilot is housed in a compact, 1 RU enclosure to help you save space in your equipment room. Included are two power cords and a USB memory stick with the TC Icon Software and Loudness Pilot Software for Mac and Windows. Note: Operating Loudness Pilot requires a TC Icon remote (available separately) or a computer running the included TC Icon software for Mac and Windows. Loudness Processing for TV, Radio, and Mobile - Professional broadcast transmission audio processor for TV stations that need hassle-free mono and stereo audio loudness management
- Ideal for the local TV broadcaster or a TV production truck
- Helps stay compliant with broadcast standards and legislation at all times, without sacrificing audio quality
- Comes with one built-in 3G transmission card to process up to 16 balanced audio channels
- Supports 24-bit AES/EBU, AES3id audio formats
- 1 RU design saves space in equipment room
- Comes with ready-to-use presets based on international standards
- Designed and engineered in Denmark
AES3id Unbalanced I/O - For routing only your audio signal through an insert point instead of passing your entire SDI signal through a loudness management system

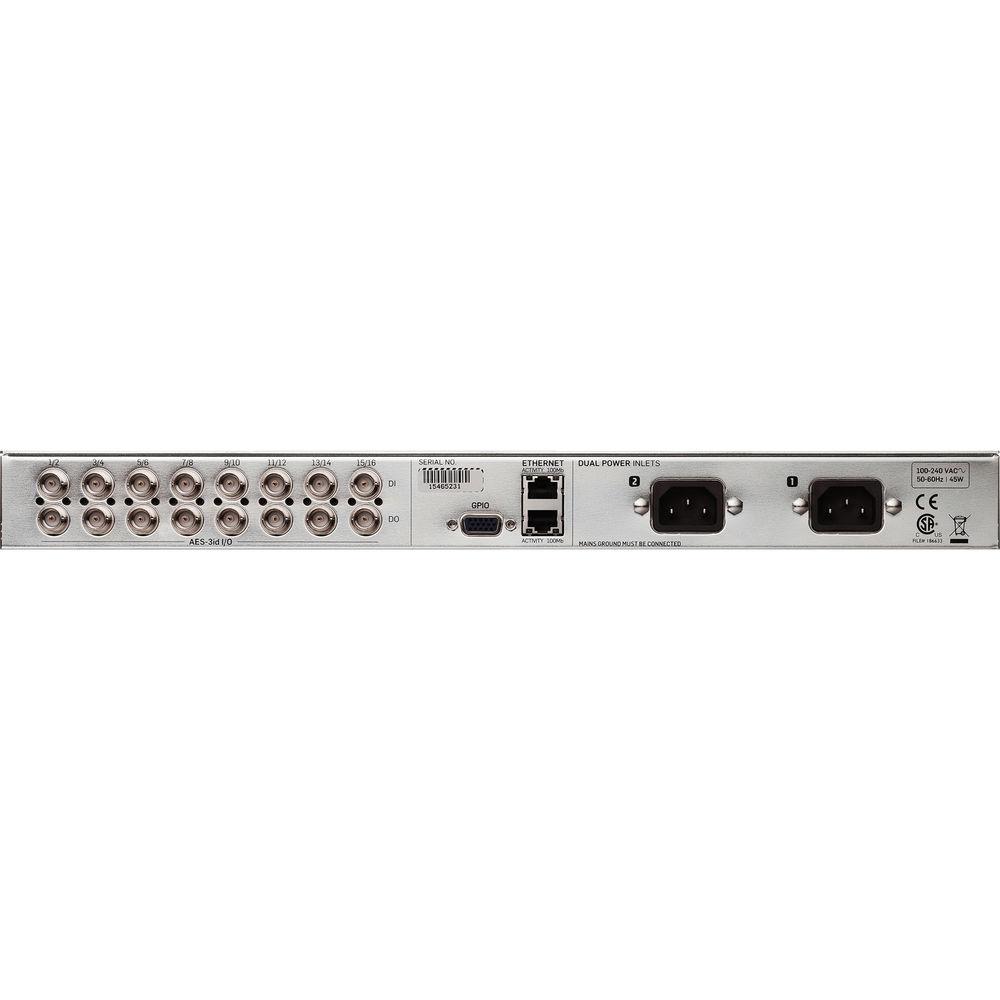

- Unbalanced, 24-bit AES/EBU I/O with eight BNC input connectors and eight BNC output connectors (one pair per connector)
- Comes fully loaded with 16 channels of AES I/O, but by default only the first 8 channels are active
- A license is available separately for activating channels 9 to 16
- Proprietary DICE core digital I/O engine with JET technology reduces incoming jitter to a near-unmeasurable level
- Audio sync locks quickly with glitch- and artifact-free transmission
- Freewheel "safety belt" keeps unit running at the "last good sync source rate" when the source is lost

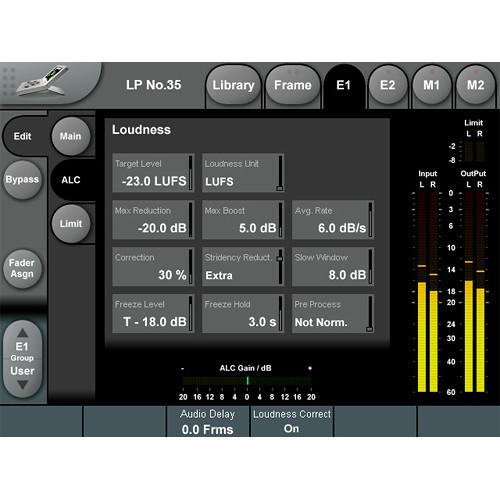

ALC2 Loudness Processing - Key Features
-
- ALC2 is the "heart and soul" of Loudness Pilot
- High-resolution, low-latency loudness control algorithm
- Corrects substantially when needed, subtly when appropriate, and leaves your audio untouched when it is already normalized
- Automatic loudness correction
- Look-ahead lip-sync delay

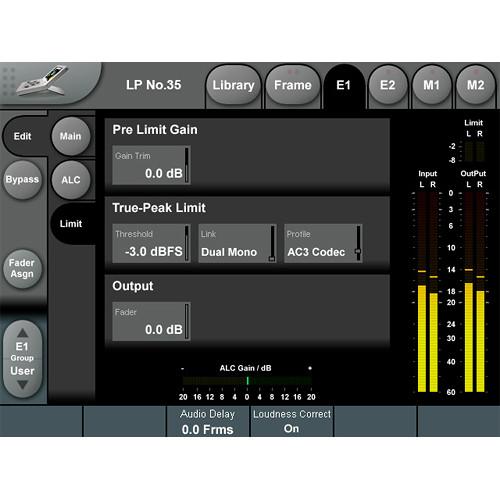

- True-peak limiting
- Auto Input Switching
-
- Dual-language switching: Auto input switching enables seamless fallback switching to language B if language A is not available
- Emergency switching: Set up Loudness Pilot to automatically switch to an emergency channel, if there is audio present on that channel
Dual Redundancy -
- Offers robust redundancy and reliability needed for mission-critical live applications
- Dual power supplies for independent power sources
- Dual fuses
- Dual low-noise fans
Relay Bypass - Complete relay bypass passes your stream directly from input to output for non-stop performance no matter what happens
Dual Language/Dual TV Channel Correction - Loudness Pilot is a dual stereo and dual mono processor, allowing loudness processing of two TV channels or two languages simultaneously
Multiplatform Transmission -
- Dual-stereo infrastructure allows loudness processing for multiple platforms simultaneously
- Deliver for HDTV and mobile applications in real time
Control Interface - TCP/IP Ethernet Control
-
- Remote Control over Ethernet from Windows or Mac computer (controller) running TC Icon software
- Second Ethernet port allows for daisy-chaining multiple 3G transmission cards
- Automatic Input Detection, GPI, or Metadata
-
- Loudness Pilot is based the company's DB6 platform and gives you the same extensive GPI control options
- Detects the incoming signal channel format automatically
- GPI metadata allow you to tailor remote control to your station’s demands
Compliance -
- Compliant with all major broadcast standards
- ITU-R BS.1770-3
- EBU R128
- ATSC A/85
- ARIB TR-B32
- FreeTV OP-59
- Supported by TC Electronic to remain compliant with current and future releases of major broadcast standards
3G Transmission Card -
- Processes up to sixteen 24-bit AES/EBU, AES3id audio channels
- Holds two multichannel processors
- Runs two ALC2 algorithms simultaneously
- Runs two LM2 Loudness Radar Meters (available separately)
Optional TC Electronic Software Processors (Licenses Available Separately) - LM2 Loudness Radar Meter
-
- Optional LM2 Radar Meter gives you a complete loudness landscape overview at a glance for each TV channel or language
- Measures loudness at the input stage as well as the output stage of Loudness Pilot
- Measure loudness history, momentary loudness, true-peak level, program loudness, and loudness range
- 24/7 logging function generates a text file which you can use to document adherence to a specific broadcast standard
- aNorm Loudness Processing
-
- Optional aNorm adaptive normalization loudness processing automatically applies the minimum dynamic audio processing required to keep you safely within the boundaries of international loudness standards and legislation, while providing high-quality sound
In the Box TC Electronic Loudness Pilot AES3id Unbalanced Broadcast Audio Processor 2 x Power Cables USB Memory Stick with TC Icon Software and Loudness Pilot Software Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic Loudness Pilot AES3id Unbalanced Broadcast Audio Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic Loudness Pilot Specs | Frame Configuration | 1 x Built-in 3G transmission card | Front Indicators | Status for: PSU 1, PSU 2, Sync, Alert, Signal | Mains Voltage | 100-240 VAC, 50/60 Hz (auto-select) | Power Supply | Dual power supply redundancy | Fan | Dual fan redundancy | Environment Operating Temperature | 32 to 122°F / 0 to 50°C | Storage Temperature | -22 to 167°F / -30 to 70°C | Humidity | Maximum 90%, non-condensing | Finish | Anodized aluminum face plate Plated steel chassis | Compliance | EN 55103-1 and EN 55103-2 FCC part 15 class B CIS-PR 22 class B | Safety Certification | IEC 60065, EN 60065, UL 6500, CSA E65 | Dimensions | 19 x 1.75 x 13.2" / 483 x 44 x 334 mm 1 RU | Weight | Not specified by manufacturer | | Number of Processors | 2 x Multichannel processors | Audio Channels Processed | 8 in, 8 out 16 in, 16 out (optional, with license available separately) | Audio Format Configuration | Stereo, mono, dual-mono, dual-stereo | Audio Processing Delay | 0.15 ms | Adjustable Online Delay | 0 to 10 second per audio channel | Delay Resolution | 32-bit | Frequency Response DIO | DC to 23.9 kHz
