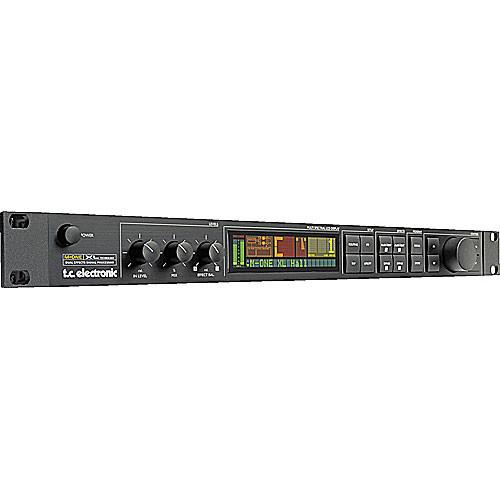

User Manual for TC Electronic M-ONE - XL Dual Engine Reverb Effects Processor with XLR Connectors and S PDIF Digital I O Click to enlarge the picture
Contents of the user manual for the TC Electronic M-ONE - XL Dual
- Product category: Effects Processors TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Effects Processors
 |
User manual for the TC Electronic M-ONE - XL Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|
Product description The M-ONE is a dual engine multi-effects processor, focusing mainly on high quality reverbs. It can be used for a number of purposes due to flexible routing of the two engines and the more than 20 algorithms. For example, one could select dual Input routing plus two reverbs, and have them independently accessed by two separate auxiliary sends. Or the M-ONE can be set to place a compressor in front of a delay by selecting serial routing. The delay time can then be entered by taping on the TAP key on the front panel of the unit. A routing lock function can be selected to avoid routing changes while changing presets. Most of the reverbs in the M-ONE contain two different parts, the reflections and the tail. The reflections, or early reflections, simulate the first reflections that are heard. In real life, this is the part of a reverb that defines the size and character of the room. The other part of the reverb is known as the reverb tail or the diffused field. These reflections are so complex and disordered that one can no longer determine the actual direction of the original source. In conjunction, the two parts create the natural sound of an environment. However in real life the balance between these two parts of a reverb may vary quite a bit, so controls are provided that allow the user to change the level, color and duration or size of the two. XLR balanced inputs and outputs are provided, with 24-bit A/D and D/A converters, as well as S/PDIF digital input and output. - XL Reverb Technology
- XL Reverbs feature new and improved spatial perspectives, across the entire range of reverb algorithms
- The high resolution early reflections found in other high-end TC reverbs and newly improved diffused field technology specific to the M*One XL, ensure a natural and clear reverb
- Flexibility
- The ability to run two greatsounding reverbs or other quality effects simultaneously without compromising sound
- Additional effects accessible from the front panel
- True 24-bit resolution A/D and D/A converters and true 24-bit RAM memory
- Balanced analog input and output on 1/4" connectors
- Large backlit LCD displays multiple related parameters at once for easy programming and operation
In the Box TC Electronic M-ONE - XL Dual Engine Reverb Effects Processor with XLR Connectors and S/PDIF Digital I/O Power Cord One Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic M-ONE - XL Dual Engine Reverb Effects Processor with XLR Connectors and S PDIF Digital I O in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

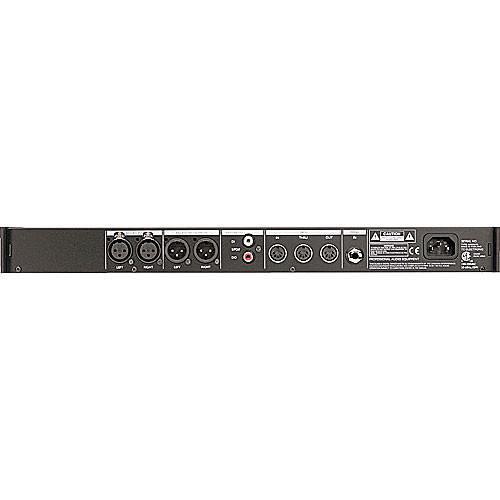

Technical parametersTC Electronic M-One XL Specs | Effects Type | Reverb (with multi-effects) | | Channels | 2 | | Effect Variations | 9 | | Presets | 200 | | User Memory | 100 | | Inputs | 2 x XLR
S/PDIF on RCA coaxial | | Output | 2 x XLR
S/PDIF on RCA coaxial | | AD/DA Conversion | 24-bit, 128x oversampling, 44.1/48kHz sampling rate | | MIDI | In, Out, Thru | | External Storage | Sys-Ex | | Display | Custom LCD | | Frequency Response | 20Hz to 20kHz | | Dynamic Range | A/D: 100dB
D/A: 104dB | | Noise | Not specified by manufacturer | | Dimensions | 1U rack, 8 1/4" deep | | Weight | 4.1 lbs | | Specialties | A footswitch input (pedal not included) can act as a bypass control | | | | Package Weight | 6.45 lb | | Box Dimensions (LxWxH) | 22.3 x 11.3 x 4.7" |
