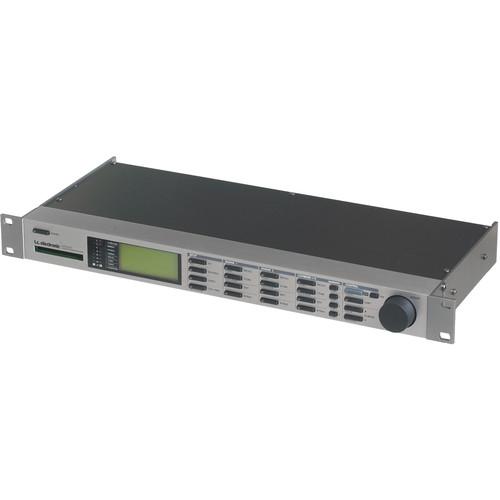

User Manual for TC Electronic M3000 - Dual Engine Digital Multi-Effects Processor with Balanced Analog I O, AES EBU, S PDIF and Toslink Digital I O Click to enlarge the picture
Contents of the user manual for the TC Electronic M3000 - Dual Engine
- Product category: Effects Processors TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Effects Processors
|
User manual for the TC Electronic M3000 - Dual Engine contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|
Product description The M3000 is a multi-effects processor that houses two separate effect engines. The true dual engine configuration allows the user to run two full-blown effects simultaneously on two individual effects sends. Aside from being used in this manner, they can also work together in a number of combined configurations. The outputs of the two engines are mixed down to a common stereo output. The reverb algorithms in the M3000 are built around VSS3 (Virtual Space Simulator) technology, which delivers a perfectly smooth tail with detailed early reflections. By employing a large number of directional taps, between 40 and 100, VSS3 is capable of simulating the sonic signature of actual rooms with greater precision. Additionally the unit provides a broad palette of quality effects, with access to a wide array of pitch shifting, delays, chorus, dynamics and more. Another unique feature is Dynamic Morphing. This function enables the user to apply a chorus effect, for example, to a vocal track at low volume levels, while at higher levels the effect is morphed into flanging, giving the signal a totally new dynamic dimension. The rate of morphing is user selectable. In addition to balanced audio input and outputs, the M3000 provides AES/EBU and S/PDIF I/O's, and a handy feature called the Wizard. The Wizard is a tool that helps the user find the right preset for particular program material, by selecting from three sets of criteria (vocal, reverb and soft for example) within the Wizard display. The unit then provides a number of presets that meet those criteria. A tap tempo function is ideal for matching the delay time to the tempo of a tune. Hitting the tap key to the tempo of the source material will set the delay time of the M3000 to match the beat. The tap tempo function can also set the parameter for reverb decay, chorus, flanger, phaser or tremolo speed. - 600 factory presets, including delay, reverb, ambience, pitch, dynamics, EQ and more
- True stereo Twin Engine processing with six different routings available, including serial, parallel and dual input
- Dynamic Morphing and Patch Glide with adjustable glide times
- Wizard Help
- Menu assist user in preset choices on an easy to read scrolling bit-mapped display
- Insert Loop
- Tap tempo and MIDI tempo delay presets. Tap tempo button and footswitch jack for inputing tempo
- True 24-bit resolution A/D and D/A converters
- Balanced analog input and output on XLR connectors
- Large backlit LCD displays multiple related parameters at once for easy programming and operation
In the Box TC Electronic M3000 - Dual Engine Digital Multi-Effects Processor with Balanced Analog I/O, AES/EBU, S/PDIF and Toslink Digital I/O Power Cord One Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic M3000 - Dual Engine Digital Multi-Effects Processor with Balanced Analog I O, AES EBU, S PDIF and Toslink Digital I O in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic M3000 Specs | Effects Type | Multi-effects | | Channels | 2 | | Effect Variations | 15 | | Presets | 300 | | User Memory | 300 | | Inputs | 2 x XLR analog
1 x XLR AES/EBU digital
1 x RCA coaxial S/PDIF digital
1 x Toslink (S/PDIF and ADAT) digital
1 x RCA coaxial Wordclock In | | Output | 2 x XLR analog
1 x XLR AES/EBU digital
1 x RCA coaxial S/PDIF digital
1 x Toslink (S/PDIF and ADAT) digital | | AD/DA Conversion | 24-bit, 128x oversampling, 44.1/48kHz sampling rate | | MIDI | In, Out, Thru | | External Storage | PCMCIA 68 pin, type 1 card | | Display | Custom LCD | | Frequency Response | 10Hz to 20kHz | | Dynamic Range | A/D: 103dB
D/A: 100dB | | Noise | Not specified by manufacturer | | Dimensions | 1U rack, 8 1/4" deep | | Weight | 5.2 lbs | | Specialties | Universal power supply (auto-select) | | | | Package Weight | 7.42 lb | | Box Dimensions (LxWxH) | 22.25 x 11.15 x 4.75" |
