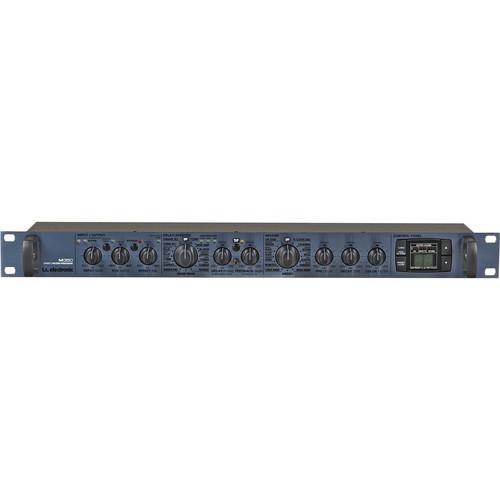

User Manual for TC Electronic M350 Dual-Engine Multi-Effects and Reverb Processor Click to enlarge the picture
Contents of the user manual for the TC Electronic M350 Dual-Engine Multi-Effects and
- Product category: Effects Processors TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Effects Processors
 |
User manual for the TC Electronic M350 Dual-Engine Multi-Effects and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|
Product description The M350 from TC Electronic is a user-friendly dual-engine rack processor equally suited for live and studio applications. The unit combines 15 professional-quality reverbs with 15 multi-purpose effects including delay, modulation, compression, and de-essing. The front-panel interface is optimized for quick and easy operation in a live performance situation.The high-quality AD/DA converters offer full transparency to the TC reverbs and effects. Additional features include an easy-to-read preset display, tap tempo, MIDI input and output control, MIDI clock tempo sync, and a global bypass. The M350 features 5 direct access parameters for quick and easy handling of parameter changes. The M350 utilizes a built-in universal power supply and ships with a standard IEC power cord. -
- 15 True stereo reverbs
- 15 Multi-effects
- 5 Seconds of delay
- 256 Multi-effect/reverb presets + 99 user preset locations, a total of 355 presets
- Universal internal power supply - no wall wart
- Dual send/return and serial-style setups
- Auto-sensing 24-bit S/PDIF digital I/O, 44.1 to 48 kHz
- Tap tempo
In the Box TC Electronic M350 - Dual-Engine Multi-Effects and Reverb Processor IEC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic M350 Dual-Engine Multi-Effects and Reverb Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic M350 Specs | | | Connector | RCA Phono (S/PDIF) | | Formats | S/PDIF (24-bit), EIAJ CP-340, IEC 958 | | Sampling Rates | 44.1 kHz (48 kHz only @ Digital Input) | | Processing Delay | 0.08 ms @ 48 kHz | | Frequency Response | Digital I/O: DC to 23.9 kHz ± 0.01 dB @ 48 kHz | | | | Input & Output | Input Connector: 1/4" / 6.35 mm phone jack balanced, mono sense
Output Connector: 1/4" / 6.35 mm phone jack balanced | | Input Impedances | Balanced: 21 kOhms
Unbalanced: 13 kOhms | | Output Impedances | Balanced: 40 ohms
Unbalanced: 20 ohms | | Input Level | Maximum: +24 dBu
Minimum: 0 dBu | | Output Level | +14 dBu | | Sensitivity | Input Sensitivity Range @ 12 dB Headroom: -12 to +12 dBu | | A/D and D/A Conversion | A to D Conversion: 24-bit, 128 x oversampling bitstream
A to D Delay: 0.70 ms / 0.65 ms @ 44.1 kHz / 48 kHz
D to A Conversion: 24-bit, 128 x oversampling bitstream
D to A Delay: 0.68 ms / 0.63 ms @ 44.1 kHz / 48 kHz | | Dynamic Range | Input: <-92 db, 22 hz to khz, typical
Output:<-105 dB typical, 22 Hz to 22 kHz, typical | | THD | Input: <-90 db (0.0032 %) @ 1 khz, -1 dbfs (typical)
Output:<-97 dB (0.0014 %) @ 1 kHz, +13 dBu (typical) | | Frequency Response | Input: 20 Hz to 20 kHz +0/-0.1 dB
Output: 20 Hz to 20 kHz +0/-0.5 dB | | Crosstalk | Input: <-100 db, 20 hz to khz (typical)
Output: <-100 dB, 20 Hz to 20 kHz (typical) | | | | EMC Compatibility | EN 55103-1 and EN 55103-2
FCC part 15, Class B, CISPR 22, Class B | | | | Safety Certification | IEC 65, EN 60065, UL6500 and CSA E60065
CSA FILE #LR108093 | | | | Temperature | Operating Temperature: 32 to 122°F / 0 to 50°C
Storage Temperature: -22 to 167°F / -30 to 75°C
Humidity: Max. 90% non-condensing | | | | Control Interface | MIDI: In/Out: 5-pin DIN
Pedal: 1/4" / 6.35 mm phone jack | | | | Display | 2 x 7-segment + LEDs | | Finish | Anodized aluminum front
Plated and painted steel chassis | | Power | Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)
Power Consumption: <15 W | | Dimensions (W x H x D) | 19.0 x 1.8 x 4.2" / 48.3 x 4.4 x 10.7 cm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 22.5 x 8.5 x 4.5" |
