User Manual for TC Electronic POLYTUNE 2 MINI Polyphonic Tuner Pedal for Electric Guitar Click to enlarge the picture
Contents of the user manual for the TC Electronic POLYTUNE 2 MINI Polyphonic
- Product category: Tuners TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Tuners
 |
User manual for the TC Electronic POLYTUNE 2 MINI Polyphonic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|

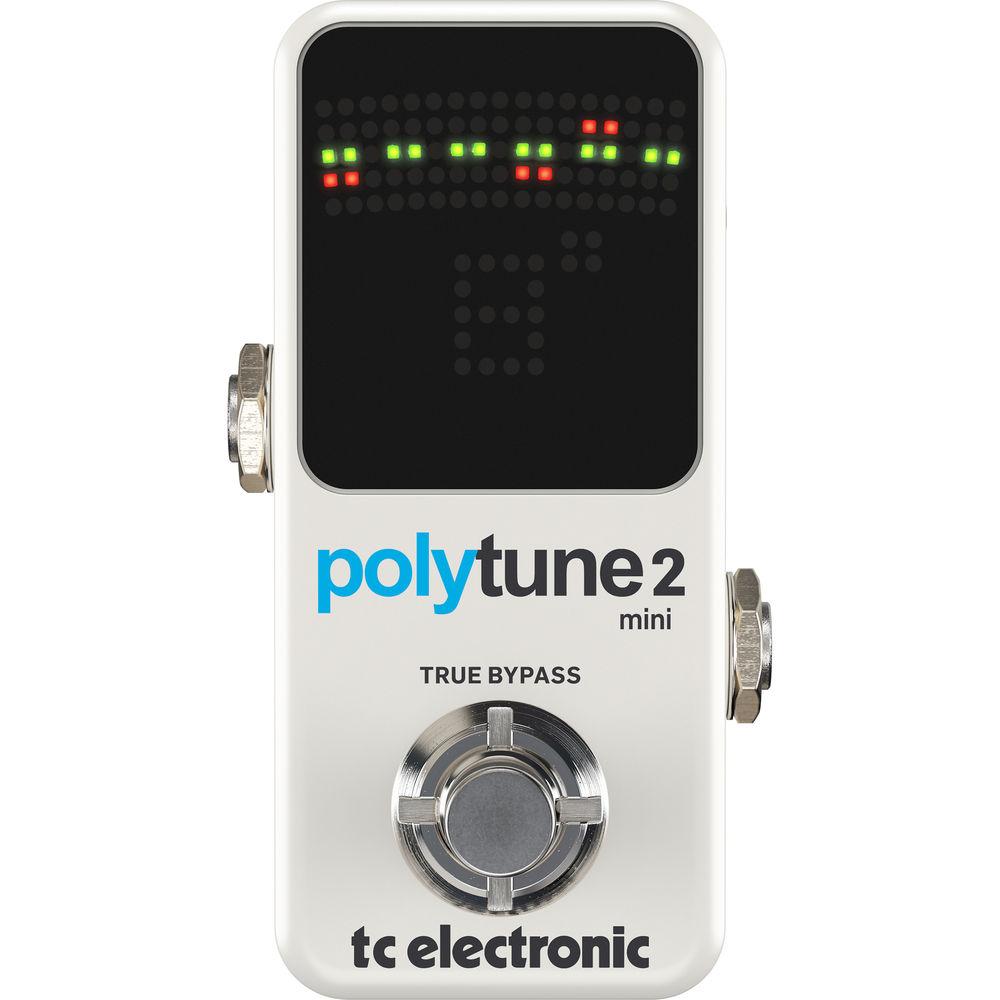

Product description Designed for guitar players, the TC Electronic POLYTUNE 2 MINI is a tuning pedal. It offers polyphonic tuning, which means you can strum all the strings at the same time, look down at the display, track the tuning of each individual note, and tune much faster. It does this all while taking minimal space on your pedalboard, so you can save room for more traditionally exciting stompboxes.
The pedal makes use of 109 ultra-bright LEDs that ensure visibility on darkened, foggy stages. You can set these LEDs to work in Needle Mode, which gives you a column of five LEDs, or Strobe Mode, which is a more conventional display.
With the POLYTUNE2 MINI, you'll get a tuning accuracy of ±0.1 cents, which is pretty fine. No need to manually switch between modes: the pedal senses monophonic or polyphonic information automatically.
If you're using alternate tunings, you can set the pedal accordingly. Drop D, capo, and other modes are all available. The pedal operates with true bypass circuitry so it won't affect your tone when it's engaged or bypassed. It requires a separately available 9 VDC power adapter to operate. - Polyphonic Mode
- The POLYTUNE 2 MINI allows you to play all your instrument's strings simultaneously when tuning. POLYTUNE 2 MINI will detect which strings need to be tuned and indicate those strings in its display. This allows you to tune your instrument much faster. You can strum your instrument, and POLYTUNE 2 MINI will analyze and display the tunings of all strings.
- Key Features at a Glance
-
- Compact tuner with polyphonic, chromatic, and strobe tuning for fast and accurate tuning
- Super-bright 109-LED display and an ambient light detector
- Instant and clear readout in all viewing conditions
- Easily fits on most pedalboards
- Polyphonic tuning allows you to tune all your strings at once
- Lightning-fast chromatic tuner offers ±0.5 cent accuracy
- Ultra-precise strobe tuner gives you ±0.1 cent accuracy for ultimate tuning performance
- Tuner magnet feature slows the needle when you get close to the target pitch, making it easy to tune up fast
- Automatically switches between polyphonic and monophonic tuning modes based on how many strings you play
- True bypass and silent tuning footswitch provides clarity, mitigating high-end loss when the pedal is off
- Internal memory retains preferences even after power down, so you only have to set things once
- Flat, Drop D and capo settings for total tuning flexibility
In the Box TC Electronic POLYTUNE 2 MINI Polyphonic Tuner Pedal for Electric Guitar Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic POLYTUNE 2 MINI Polyphonic Tuner Pedal for Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic Polytune 2 Mini Specs | Audio Connections | 1 x 1/4" TS Instrument Input, Phone Type
1 x 1/4" TS Instrument Output, Phone Type | | Tuning Range | A0 (27.5 Hz) to C8 (4186 Hz) | | Tuning Accuracy |
