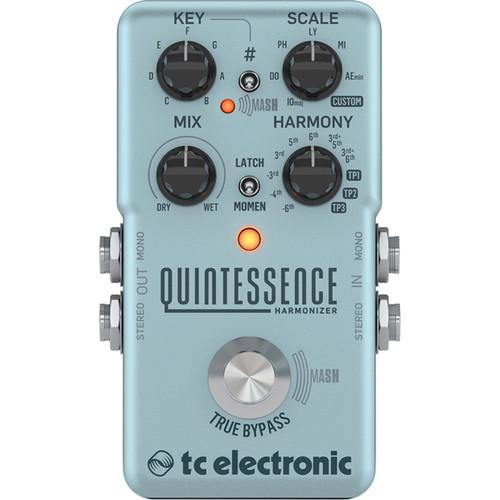

User Manual for TC Electronic Quintessence Dual-Voiced Harmony Pedal with MASH Technology Click to enlarge the picture
Contents of the user manual for the TC Electronic Quintessence Dual-Voiced Harmony Pedal
- Product category: Effects Pedals TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Effects Pedals
 |
User manual for the TC Electronic Quintessence Dual-Voiced Harmony Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|
Product description Designed for electric guitar players, the TC Electronic Quintessence is a dual-voiced harmony pedal that can give you one or two tracking harmonies in every key. With its stereo I/O and bevy of controls, the pedal is suitable for creating anything from hard-rock dual riffs, Queen-style harmony guitars, screeching metal leads, and more. In fact, with the MASH technology that TC Electronic has bestowed upon the pedal—essentially turning the footswitch into a pressure-sensitive pitch-bender in its default state—the stompbox will suit Americana and country contexts as well.This being a TC Electronic guitar pedal, the Quintessence also features TonePrint technology, with three TonePrint slots for importing custom-designed harmonies by means of the free TonePrint editor. You can beam these TonePrints into the pedal with your phone, or import them over USB.The Quintessence’s bypass switch can be set to either true or buffered, giving you the choice to keep your bypassed tone pristine or to lend the signal a bit of a boost to better handle long cable runs and multiple pedal setups. The pedal can be powered by 9V batteries or a 9V power supplies, available separately. For a full rundown on the pedal’s controls and features, please peruse the features section. - MASH Footswitch
- Quintessence features a MASH footswitch, giving you an expressive tool without taking up any extra pedalboard real estate. By default the MASH footswitch has been assigned to bend your harmonized note up to the next interval within the scale. However, within TonePrint mode, you can assign MASH to control just about any aspect of the pedal, including custom scale steps-both above and below the original harmony.
This not only makes the Quintessence more versatile (as you can switch between two different intervals mid-song without having to fiddle with knobs), it also lets you do fluid pedal steel bends, making the pedal suitable for country, Americana, and roots rock. - Custom Scales
- If you don't feel like playing within one of the seven preset diatonic modes commonly used, the Custom scale mode lets you load in whichever flavor of tonality you want your harmonies to follow.When Quintessence is not in TonePrint mode, the Custom mode is set for Locrian. Using the three TonePrint slots however, you can set the pedal to a variety of different custom scales. Major pentatonic, harmonic minor, and more are available to you.
- 3 TonePrint Slots
- 3 TonePrint slots are on hand, allowing you to customize your own harmonies with one or two extra voices on top of your dry signal in any harmony you want.The free TonePrint editor gives you access to a wealth of tweakable parameters to ensure you achieve your desired harmonies.
- Controls at a Glance
- Key Knob: Set the dial to the key of the song.Scale Knob: Choose any of the seven diatonic modes for standard harmonies. The Custom setting gives you the seldom-utilized Locrian mode, except when TonePrint mode is selected on the Harmony knob.Mix Knob: This adjusts the mix between the dry and wet signals. In the middle, both signals are at unity gain. Turning left keeps the dry signal at unity while lowering the wet signal, while twisting the knob to the right lowers the dry signal and maintains the wet signal at unity.Harmony Knob: The first six settings add a single voice in harmony to your dry signal, while the seventh and eighth settings add dual voices to your original signal. After that, you’re in the land of TonePrints.# Switch: This switch pitches your selected key up one semitone.Latch/Momentary Toggle Switch: When in Latch mode, the footswitch acts like your run-of-the-mill footswitch. Press and release, and you’ll find the pedal is on until you press and release again. In Momentary mode, the pedal is only enaged for as long as your foot sits on the switch. As soon as you release it, the effect turns off.MASH Footswitch: The bypass footswitch is pressure sensitive in both Latch and Momentary mode, effectively acting as an expression pedal without the hassle of an actual expression pedal. Lean harder on the footswitch, and you’ll engage in the MASH effects described above.MASH LED: The MASH LED indicates the intensity of the effect controlled by MASH. Putting pressure on the footswitch will make the MASH LED brighter, while lifting your foot off the pedal will make it dimmer.
- Mash Presets
- Default harmonies: In these positions, MASH bends the harmony note up to the next interval in the scale. For example, MASH while the Harmony knob is on the 3rd up setting, the harmonized 3rd will bend up to the 4th of the scale. In positions 7 and 8, MASH bends both voices up to the next interval.TonePrint 1: The first TonePrint is for evoking pedal-steel slides. A 3rd and a 4th is offered in harmony, but the 3rd is lowered by one interval as you MASH, while the 4th stays in place. Setting the Scale knob to Custom puts you in pentatonic major.TonePrint 2: This one is a bit avant-garde. The harmony is a 4th and a 7th. MASH bends both harmonies up an interval, which essentially lands you in a power chord. The Custom scale setting takes you to the very dissonant super-locrian mode.TonePrint 3: The last TonePrint is a bit different. The harmony is a 3rd and a 5th, but they are delayed individually, resulting in an arpeggio for every note you play. MASH to take up the harmonies an octave for some haunting effects. The Custom scale mode sets this TonePrint in a harmonic minor.
In the Box TC Electronic Quintessence Dual-Voiced Harmony Pedal with MASH Technology Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic Quintessence Dual-Voiced Harmony Pedal with MASH Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic Quintessence Harmonizer Specs | Controls | Key knob
Scale knob
Mix knob
Harmony knob
# switch
Latch/momentary switch
Bypass/engage footswitch | | I/O | 2 x 1/4" TS inputs, unbalanced, phone type
2 x 1/4" TS outputs, unbalanced, phone type (automatic mono/stereo sensing) | | Impedance | Input: 1 MOhm

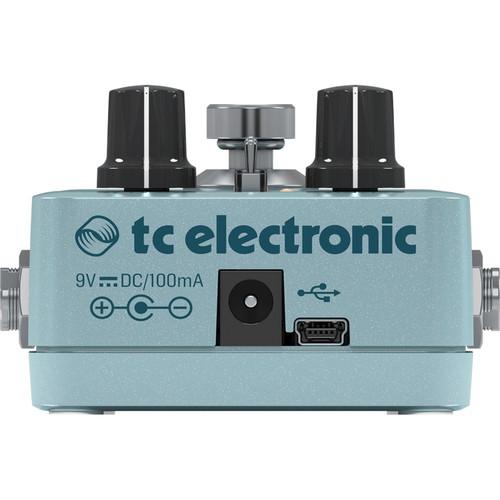

Output: 100 Ohms | | Bypass | True or buffered bypass circuitry | | USB Port | Mini-USB connector for firmware updates | | Power Input | Standard 9 VDC, center negative, >300 mA (power supply available separately) | | Battery | 9 V battery (available separately) | | Dimensions (H x W x D) | 2.8 x 4.8 x 2.0" / 72 x 122 x 50 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.94 lb | | Box Dimensions (LxWxH) | 5.05 x 3.5 x 3.0" |
