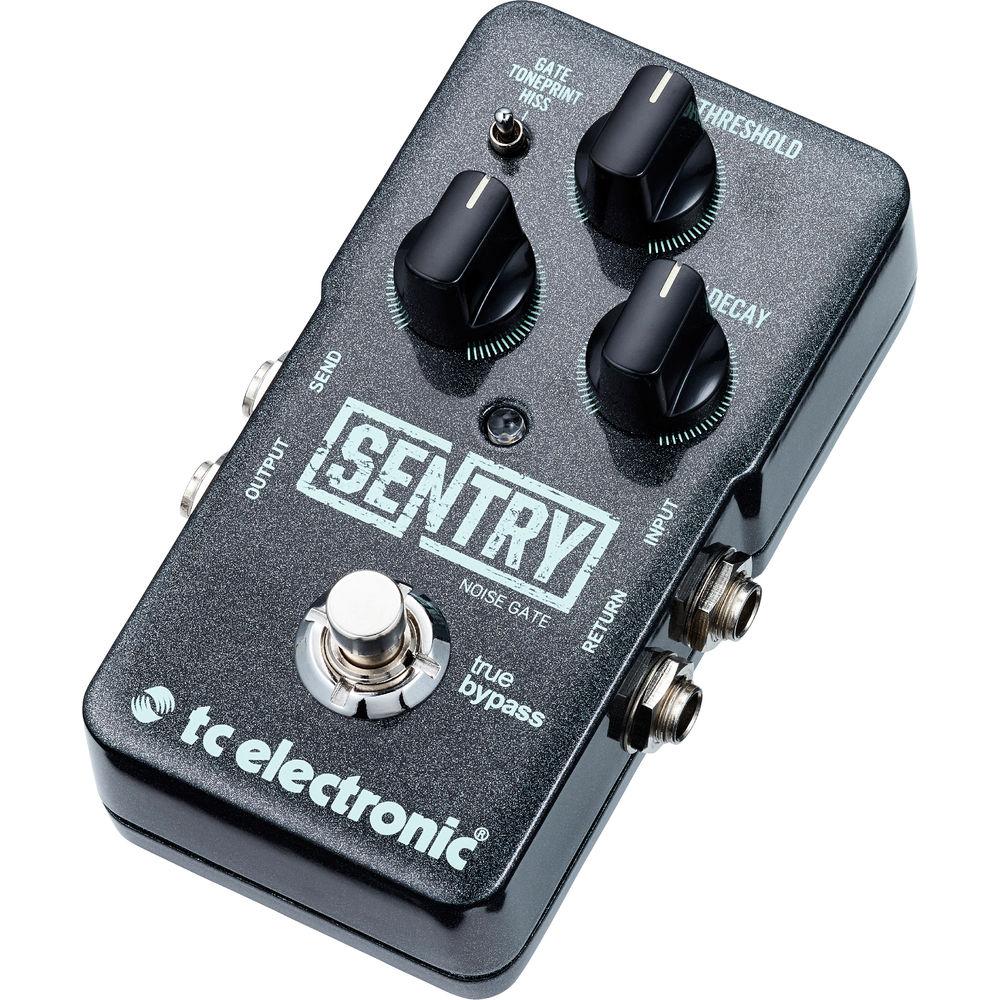

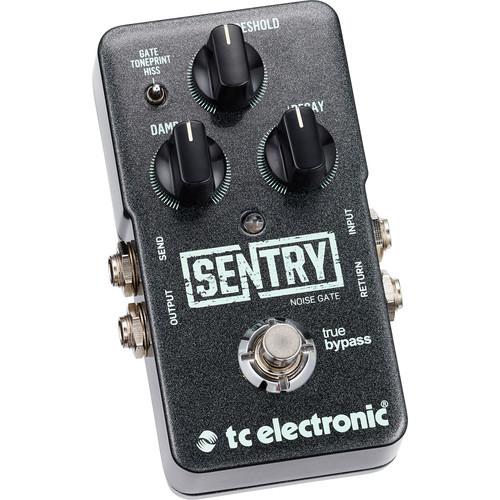

Product description The Sentry Noise Gate from TC Electronic is a pedal designed to remove unwanted noise from electric guitar signals, giving you several distinct ways of doing so. First off, this pedal houses multiband technology which allows you to carve out the specific frequencies you'd wish to gate from your signal whenever you cease playing. If you prefer a classic gate to clamp down on your signal once your playing has stopped, the Sentry features a Hard-Gate mode, which can be used for an immediate cut. Finally, the pedal is TonePrint enabled, meaning you can reshape how the gate responds from a free, downloadable app and instantiate those parameters via USB. This app carries presets voiced by well-regarded musicians as well.

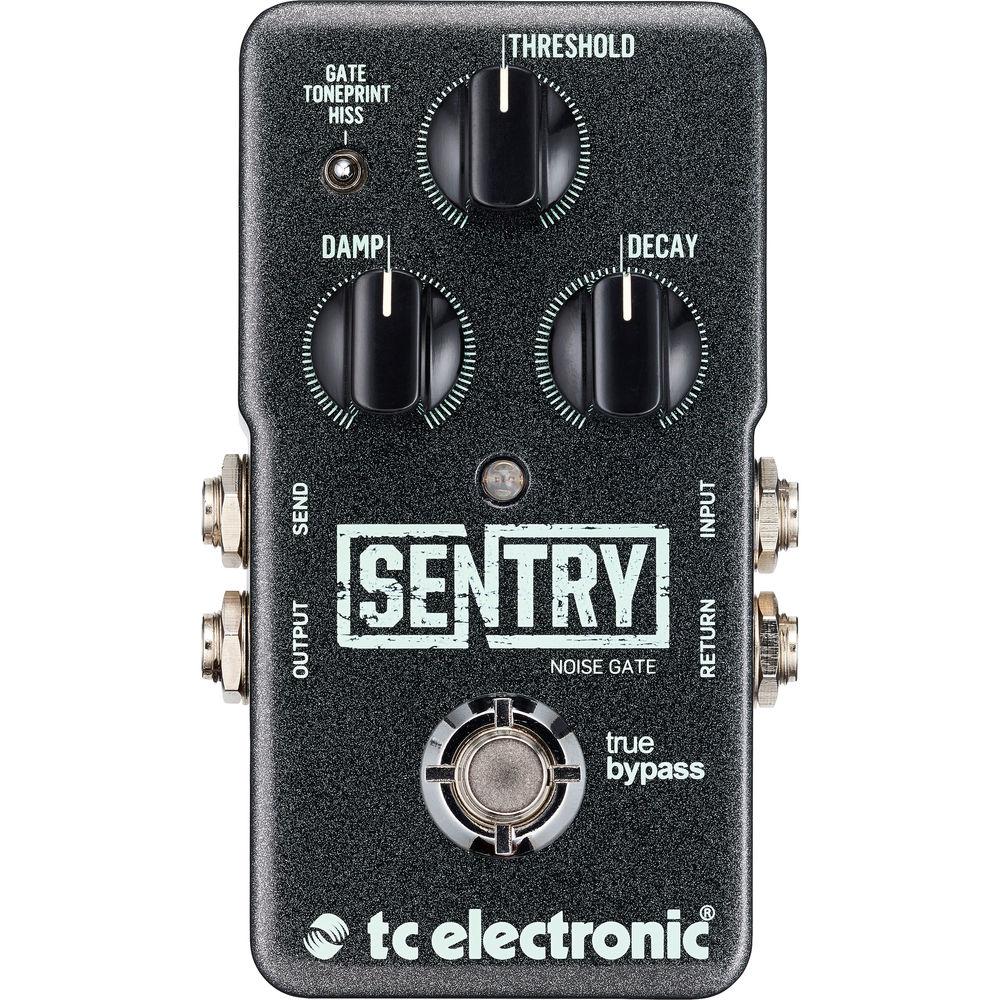

For controls, this pedal gives you a Damp knob to adjust the volume level your signal will drop to once the gate is engaged, a Threshold knob for setting the level at which the gate takes hold, and a Decay knob for controlling how long the gate stays open. A mini-toggle switch allows you to alternate between the Multiband gate, the Hard-Gate, and the TonePrint-enabled preset. A send and return loop allows you to activate the gate with external audio; for instance, patch your noisy pedals through this gate to better tune the pedal toward sounds that needs to be reduced, or loop in the signal of an external instrument to instantiate creative ducking effects. This pedal also features a bypass switch which can be changed from True to Buffered settings by means of an internal DIP switch. This Pedal is Designed to Work with the Free TonePrint App - TonePrint App Features
-
- Build your own custom presets, or use presets tuned by famous musicians
- Editor offers complete control over all effect parameters and effect behavior
- Customize knob function and knob range to individual taste
- Audition your presets in real time, tweak as need be, and immediately hear results
- Compatible with Windows and Mac platforms
In the Box TC Electronic Sentry Multiband Noise Gate Pedal USB Cable (Type A to Mini-B) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic Sentry Multiband Noise Gate Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic 960815001 Specs | Controls and Indicators | Threshold knob
Damp knob
Decay knob
2 x LED indicators
Bypass footswitch | | Bypass Switch | True bypass (buffered bypass optional via internal DIP switch) | | I/O | 1 x 1/4" mono instrument jack, output
1 x 1/4" mono instrument jack, input
1 x 1/4" mono instrument jack, send
1 x 1/4" mono instrument jack, return | | Impedance | Input: 1 MOhm
Output: 100 Ohms | | USB | Mini-USB connector for uploading and editing custom TonePrints and for software updates | | Impedance | Input: 1 MOhm
Output: 100 Ohms | | Power Input | Standard 9 VDC, center negative > 100 mA (power supply available separately) | | Dimensions (W x D x H) | 1.9 x 1.9 x 3.7" / 48 x 48 x 93 mm | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 5.1 x 3.4 x 2.9" |
