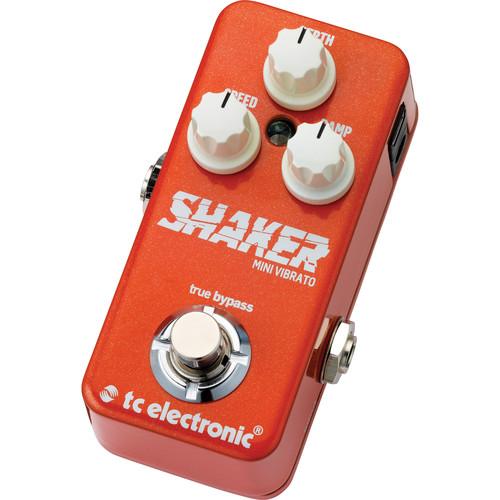

User Manual for TC Electronic Shaker Mini Vibrato Pedal Click to enlarge the picture
Contents of the user manual for the TC Electronic Shaker Mini Vibrato Pedal
- Product category: Effects Pedals TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Effects Pedals
|
User manual for the TC Electronic Shaker Mini Vibrato Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|
Product description The Shaker Mini Vibrato Pedal from TC Electronic features two different types of settings: a classic true pitch vibrato with an on/off switch, and latch mode setting, where the effect is only active when you press and hold the switch, allowing for subtle vibrato and faux whammy bar effects. By using true bypass circuitry, when the effect is bypassed, it has no influence on your tone, resulting in optimum clarity with no loss of high end. In addition, the Shaker Mini Vibrato allows your dry, unprocessed sound to pass without converting it to digital, thus keeping the original tone pure and without any latency. Furthermore, the Shaker Mini Vibrato is TonePrint enabled, so using the free TonePrint app, you get full control over all effect behavior, knob ranges, and everything in between to create your signature TC sound or use sounds developed by well-known guitarists such as Steve Vai, John Petrucci, Paul Gilbert, Guthrie Govan, and many others. - Pick Your Shake Flavor
- The Shaker Mini Vibrato features two different settings: a classic true pitch vibrato with a standard on/off switch, and a latch mode setting, where the effect is only active when you press and hold the switch, allowing for subtle vibrato and faux whammy bar effects
- True Bypass and Analog Dry-Through
- When the effect is bypassed, it is really off and has zero influence on your tone, resulting in optimum clarity and zero loss of high end. In addition, the Shaker Mini Vibrato features analog dry-through, which lets your dry, unprocessed sound pass without converting it to digital, thus keeping your original tone pure and without any latency
- TonePrints
- Create your own signature pedal, tweaked specifically to your liking via the free TonePrint app for iPhone and Android (available from the App Store or Google Play) that allows you to beam new TonePrints right into your effect pedal. The TonePrint Editor gives you full control over all effect behavior, knob ranges, and everything in between so you can create your signature TC sound
- True to Tone
- With optimized headroom, True Bypass and even Kill-Dry on/off via the TonePrint Editor, the Shaker Mini Vibrato offers optimal tonal integrity and zero loss of tone. The dry sound is always passed through the pedal unharmed due to its Analog Dry-Through design
- Small Form Factor
- Jammed with a broad range of sounds in a compact package, the Shaker Mini Vibrato takes up only a minimal amount of valuable real estate on your pedalboard
In the Box TC Electronic Shaker Mini Vibrato Pedal Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic Shaker Mini Vibrato Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic 960809001 Specs | Bypass | Mode: True bypass | | Signal | Circuitry: Analog dry-through | | Input Connector | Standard 1/4" jack (mono/TS) | | Output Connector | Standard 1/4" jack (mono/TS) | | USB Port | Mini USB connector for uploading and editing custom TonePrints and for software updates | | Input Impedance | 1 MOhm | | Output Impedance | 100 Ohms | | Power Input | Standard 9 VDC, center negative >100 mA (power supply available separately) | | Dimensions (W x D x H) | 1.9 x 1.9 x 3.7" (4.8 x 4.8 x 9.3 cm) |
