User Manual for TC Electronic SPECTRADRIVE Bass Preamp and Drive Pedal with TubeDrive and TonePrints Click to enlarge the picture
Contents of the user manual for the TC Electronic SPECTRADRIVE Bass Preamp and
- Product category: Effects Pedals TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Effects Pedals
 |
User manual for the TC Electronic SPECTRADRIVE Bass Preamp and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|

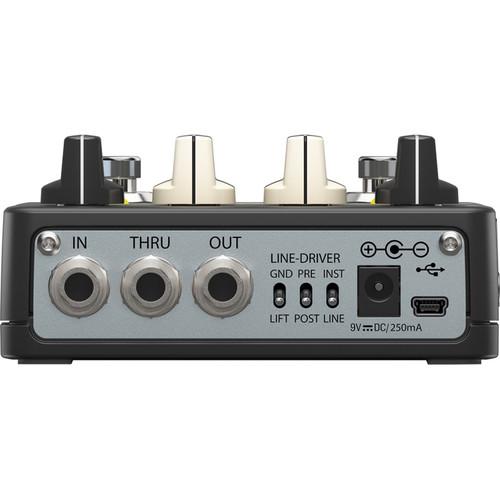

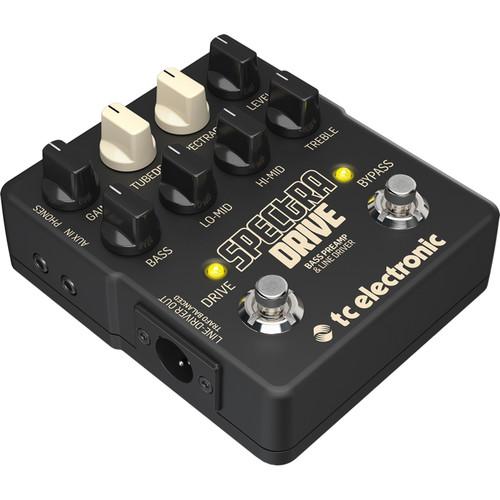

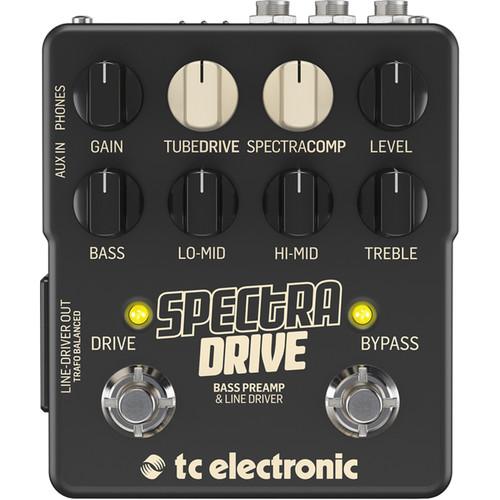

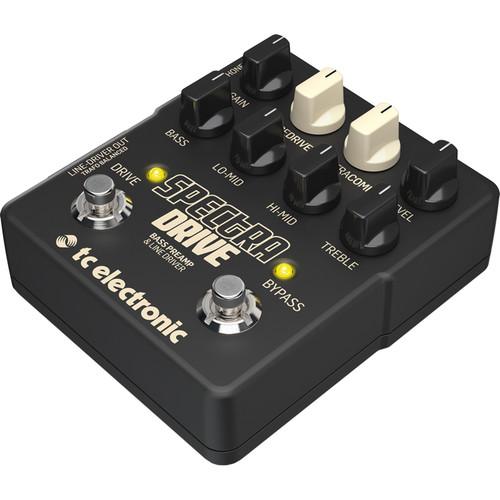

Product description The SPECTRADRIVE Bass Preamp and Drive Pedal from TC Electronics is a bass preamp and line driver that features built-in TonePrint-customizable SpectraComp compression and distortion, as well as a studio-grade DI output. It can be used in several environments by bass players to deliver the warm sound and feel of a tube amp for live stage, theater, and studio applications.The SPECTRADRIVE is built with a 1/4" input, thru, and output jack and has eight rotary knobs on the front for Gain, TubeDrive, SpectraComp, Level, Bass, Lo-Mid, Hi-Mid, and Treble settings. There are two foot switches: one is for bypass, and the other is for the effect. Other features include 3 toggle switches for Pre/Post EQ, Ground/Lift and Instrument/Line level, while the parallel outputs make it a breeze to send your dry bass tone to your amp or a separate tuner.Furthermore, the Bass Preamp and Drive Pedal's balanced DI feeds all the tone-saturated goodness of your SPECTRADRIVE directly to the house system. This pedal doubles as a practice amp too. Just plug in your headphones and you are ready to play. - High-quality bass preamp ported directly from TC's line of bass amps gives you tonal options for practice, live, and studio performance
- TubeDrive with TonePrint technology emulates preamplifier and power amplifier tube stages, offering you everything from subtle drive to full-on distortion
- SpectraComp control with TonePrint technology provides a variety of ultra-transparent and highly musical multiband compression profiles to cut through any mix
- Intelligent EQ stack dedicated to bass has four simple control dials to give you simple and impressive tone-shaping
- Balanced DI with pre/post switch allows direct connection to mixing consoles or recording equipment
- Analog buffering from the Bonafide Buffer pedal prevents signal distortion from long cable runs
- Auxiliary rehearsal input for playback through speaker or headphones
- Parallel outputs for tuning or sending clean signal to your amp and mixer
- Studio-quality headphone amplifier with speaker emulation for personal practice and silent rehearsals
- Simple, easy-to-use controls let you focus on playing
In the Box TC Electronic SPECTRADRIVE Bass Preamp and Drive Pedal with TubeDrive and TonePrints Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic SPECTRADRIVE Bass Preamp and Drive Pedal with TubeDrive and TonePrints in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic Spectradrive Bas Specs | Bypass | Buffered bypass | | Input Connector | 1/4" / 6.3 mm TS unbalanced, mono | | Impedance | >1 MOhms | | AUX Input | 1/8" / 3.5 mm mini-jack TRS, stereo | | Output / Thru Connectors | 2 x 1/4" / 6.3 mm TS, unbalanced, mono | | Impedance | <200 Ohms | | Line | Driver: 3-pin XLR, transformer-balanced low impedance | | Headphones Output | 1/8" / 3.5 mm mini-jack TRS, stereo | | Power Input | 9 VDC, center negative, >250 mA | | USB Port | Mini USB connector for firmware updates | | Dimensions (H x W x D) | 2.1 x 4.4 x 5.3" / 5.3 x 11.2 x 13.5 cm | | Weight | 1.3 lb / 0.6 kg | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 8.0 x 6.0 x 3.5" |
