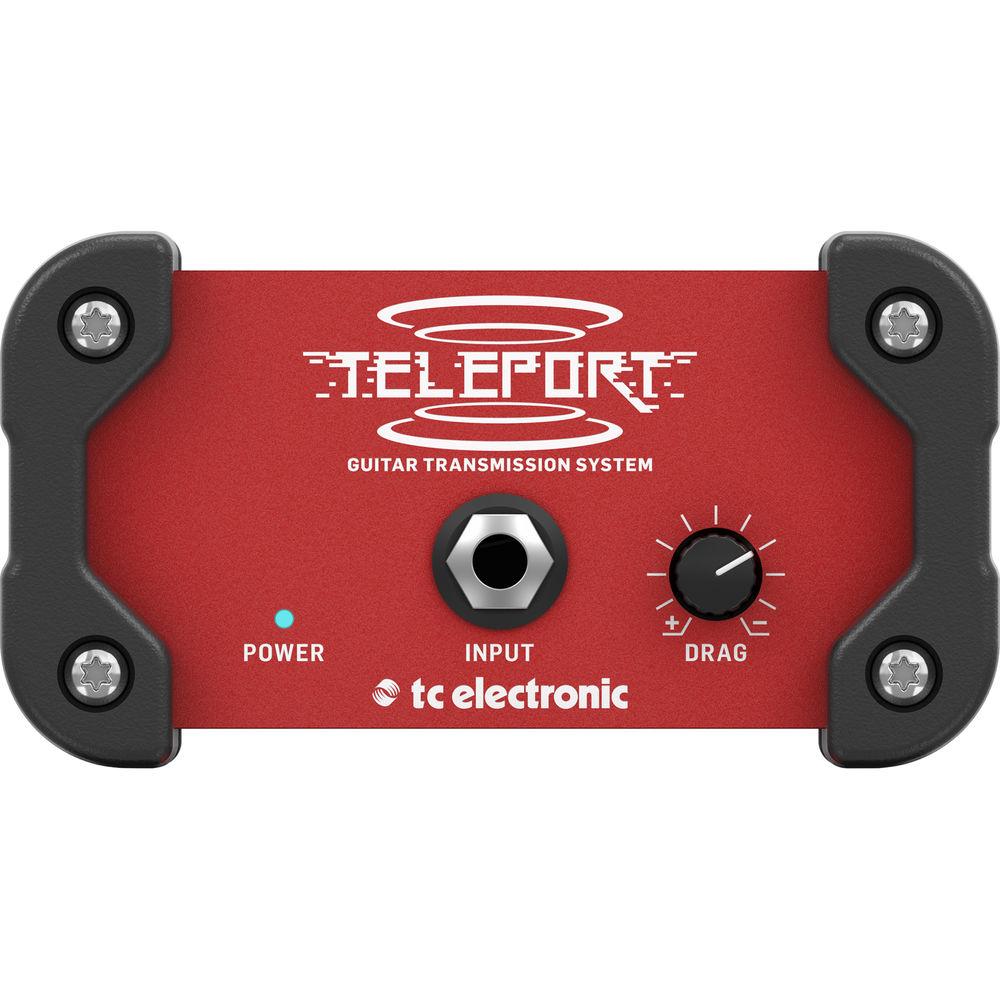

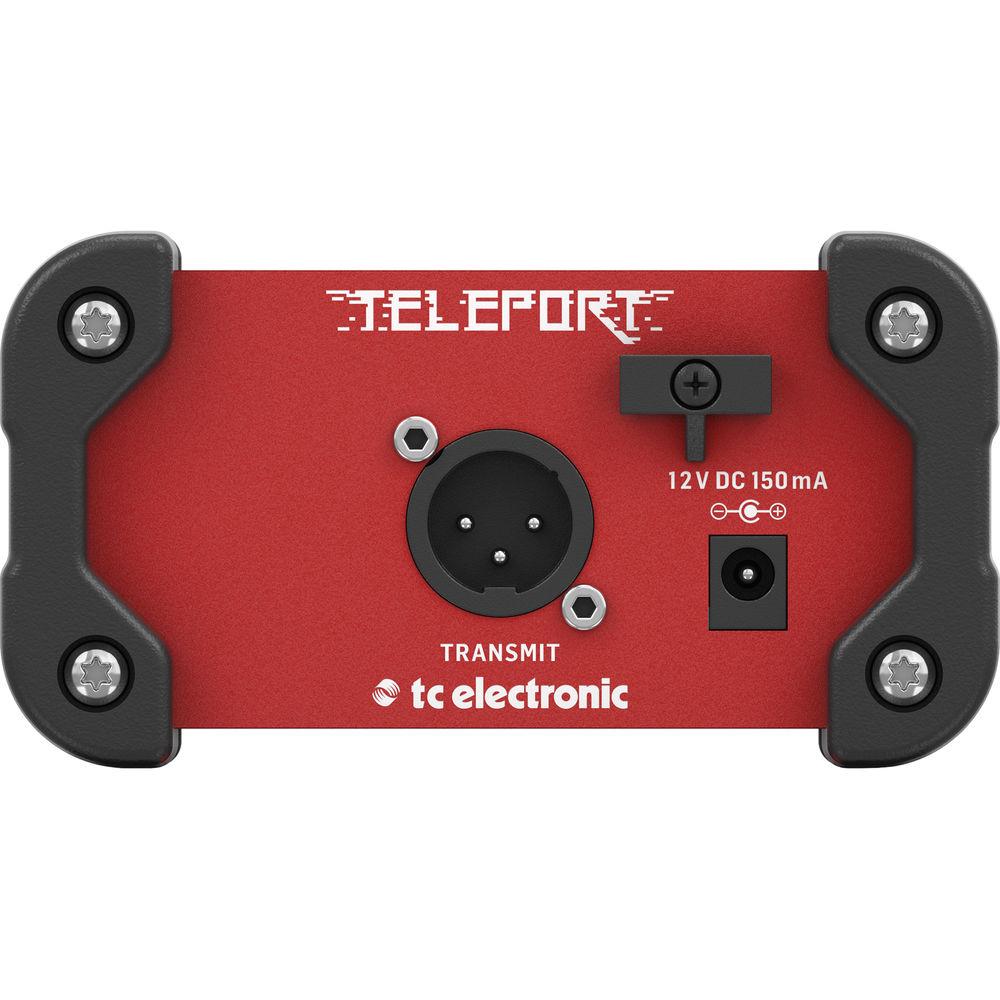

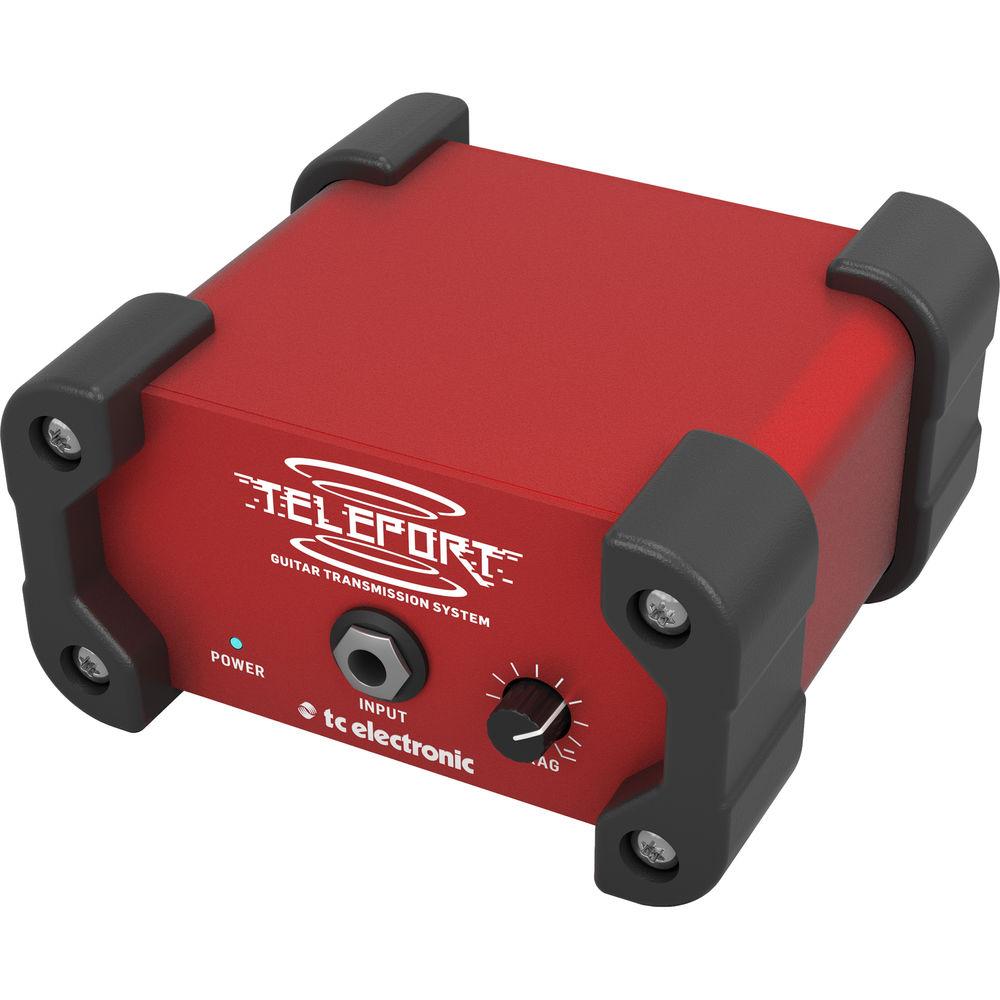

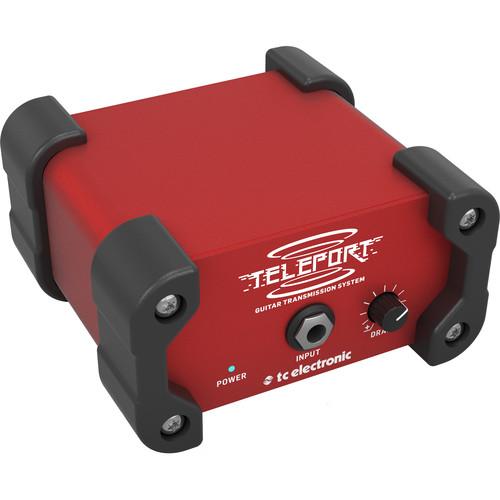

User Manual for TC Electronic TELEPORT GLT Active Guitar Signal Transmitter Click to enlarge the picture
Contents of the user manual for the TC Electronic TELEPORT GLT Active Guitar
- Product category: Guitar Wireless TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Guitar Wireless
 |
User manual for the TC Electronic TELEPORT GLT Active Guitar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|
Product description Part of the TELEPORT Active Guitar Signal Long Cable Run System, the TC Electronic TELEPORT GLT converts a guitar’s output to a balanced, low-impedance signal, which is better suited for long cable runs. The box itself takes your 1/4" input and converts it to an XLR connection, giving you the ability to use up 300’ of cable with no signal degradation before reaching the endpoint in the corresponding GLR. This makes the unit quite suitable for preserving sonic integrity across large stages, where ropes of unbalanced 1/4" cable can quickly suck the life out of your guitar’s tone and introduce radio-frequency interference.The GLT boasts a high-headroom design and sports a variable pickup load compensator. This adjustable impedance selector lets you dial in the appropriate match for your chosen guitar. Thanks to its rugged, transformer-isolated design, this extruded-aluminum box buffers the signal, offers a balanced cable run, and matched impedance without any guesswork on your part. The XLR jacks are supplied by Neutrik, lending even more quality to the design. This part of the TELEPORT system relies on a 12 VDC power supply, which is included with the device. - Key Features at a Glance
-
- Guitar-signal transmitter drives long cable runs when paired with GLR
- Drives your guitar signal up to 300’ / 100m without signal loss
- High-headroom design preserves sound quality
- Variable pickup load compensation for natural sound
- High-impedance 1/4” guitar jack
- Neutrik XLR jack preserves integrity
- Transformer-isolated design ensures electrical separation
- Low-noise design
- Aluminum extrusion casing with protective silicone rubber corners
- Compact and rugged design
UPC: 653341312235 In the Box TC Electronic TELEPORT GLT Active Guitar Signal Transmitter Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic TELEPORT GLT Active Guitar Signal Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic Teleport GT Specs | Input Connector | 1/4" TS, unbalanced, phone type | | Input Impedance | 22 kOhms to > 1 MOhm, adjustable | | Maximum Input Level | +10 dBu at 1 kHz | | Output Connector | XLR male, balanced | | Output Impedance | 2 kOhms | | Maximum Output Level | +10 dBu at 1 kHz | | Frequency Response | 10 Hz to 26 kHz (±3 dB) | | THD+N | 0.05% at 1 kHz, 0 dBu | | Signal to Noise Ratio | 90 dB at 1 kHz, 0 dBu | | Power Requirement | 12 VDC, 150 mA | | Dimensions (H x W x D) | 2.5 x 4.6 x 4.4" / 64 x 118 x 112 mm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 1.29 lb | | Box Dimensions (LxWxH) | 8.05 x 6.5 x 4.15" |
