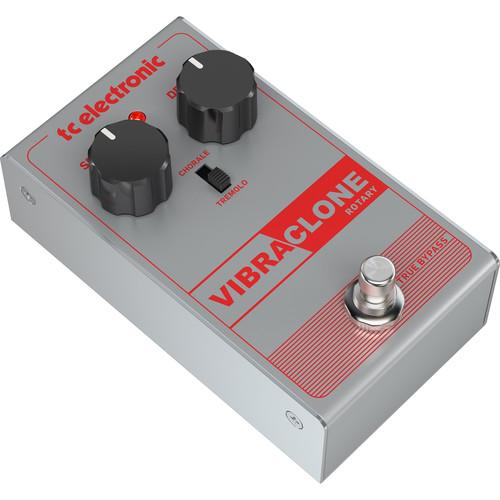

User Manual for TC Electronic VIBRACLONE Rotating Speaker Emulator Pedal for Electric Guitars Click to enlarge the picture
Contents of the user manual for the TC Electronic VIBRACLONE Rotating Speaker Emulator
- Product category: Effects Pedals TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Effects Pedals
 |
User manual for the TC Electronic VIBRACLONE Rotating Speaker Emulator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|

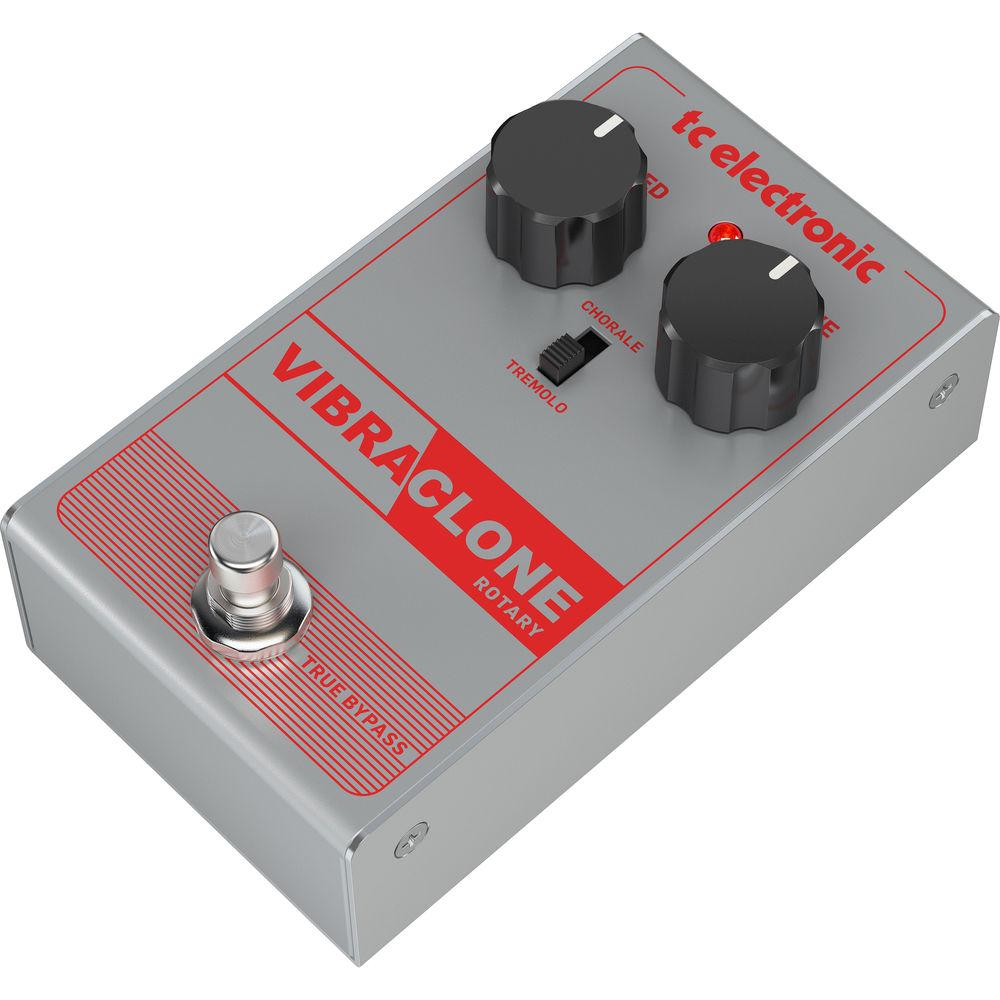

Product description The TC Electronic VIBRACLONE is a rotary emulator pedal for electric guitar. Its all-analog design is a recreation of the classic Vibratone Rotating Speaker pedal. When you want the vintage sound of a guitar piped through the rotary speaker normally reserved for a B3 organ, this pedal will fit the bill.

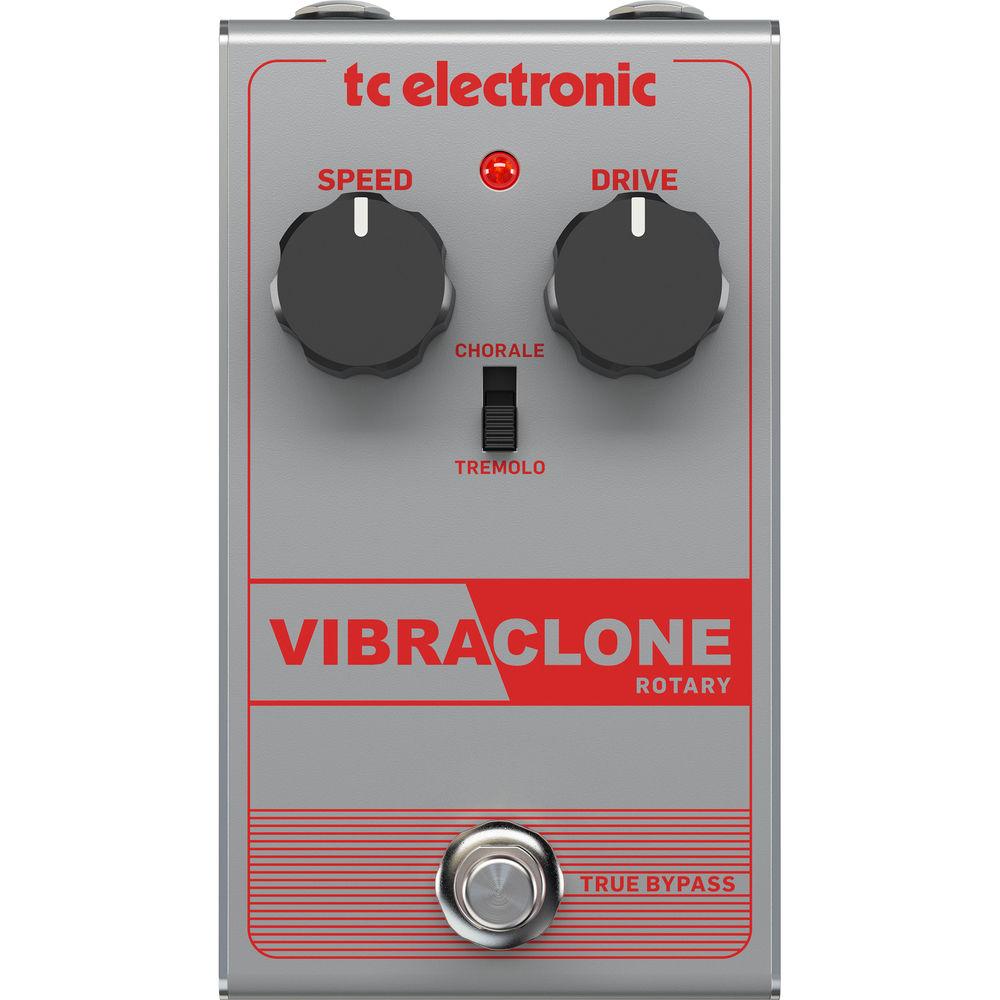

Two knobs are provided for easy control. Speed controls the rate of the effect, while Drive adjusts the amount of added saturation and grit. The Chorale/Tremolo switch changes the range of the Speed knob. Chorale emulates more of a slow, rotating speaker, while Tremolo provides a more fast and whirling sound. When you flip this switch during playing, the effect will gradually shift between the two extremes, a startling effect reminiscent of a vintage rotary cabinet.
The VIBRACLONE can be powered with a 9V battery or a PSU-SB DC power supply, both of which are available separately. The pedal utilizes a true bypass footswitch, so that your signal remains pristine and unaffected when it's disengaged. The VIBRACLONE also has a rugged metal frame so that it can stand up to the rigors of the road. In the Box TC Electronic VIBRACLONE Rotating Speaker Emulator Pedal for Electric Guitars Limited 1-Year Warranty (Extendable to 3 Years upon Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic VIBRACLONE Rotating Speaker Emulator Pedal for Electric Guitars in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

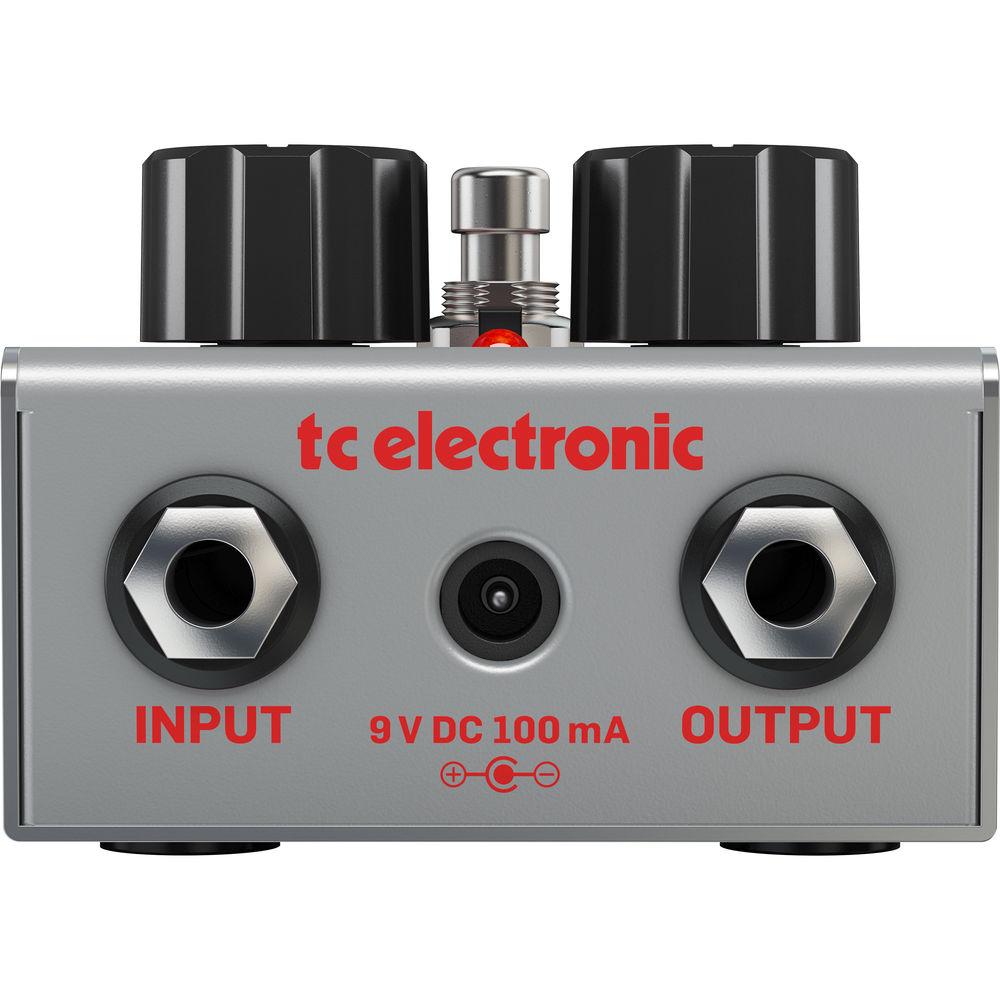

Technical parametersTC Electronic VIBRACLONEROTARY Specs | Audio Connections | 1 x 1/4" TS Instrument Input, Phone Type
1 x 1/4" TS Instrument Output, Phone Type | | Controls | Speed Knob
Drive Knob
Chorale/Tremolo Switch
Bypass/Engage Footswitch | | Impedance | Input: 470 kOhms
Output: 1 kOhm | | Power Input | Standard 9 VDC, Center Negative, >100 mA | | Battery | Internal 9 V Battery Connector | | Current Consumption | 90 mA | | Dimensions (H x W x D) | 2.3 x 2.9 x 5.2" / 58 x 74 x 132 mm | | Weight | 1.1 lb / 0.5 kg |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
