User Manual for TC Electronic VoiceLive Play Electric Vocal and Guitar Effects Processor Click to enlarge the picture
Contents of the user manual for the TC Electronic VoiceLive Play Electric Vocal
- Product category: Vocal Processors TC Electronic
- Brand: TC Electronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC Electronic Vocal Processors
 |
User manual for the TC Electronic VoiceLive Play Electric Vocal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC Electronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC Electronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC Electronic product will considerably shorten its lifespan!
|

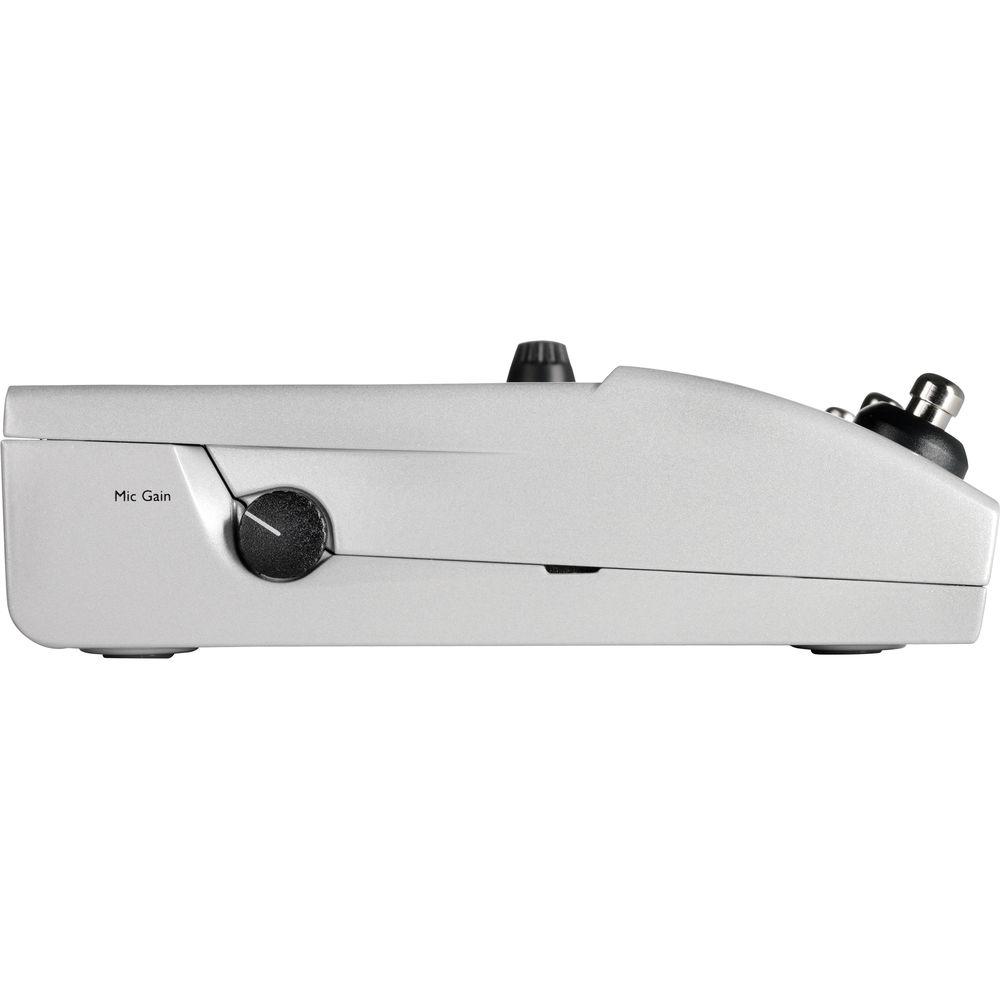

Product description Providing vocal effects, harmonies, and pitch correction alongside guitar effects and amplifier emulations all in one pedal, the VoiceLive Play Electric Vocal and Guitar Effects Processor from TC Electronic can be used by vocalists and guitarist for practicing, live gigs, and studio recording. It features over 200 song and artist inspired presets to get you started, making use of the 10 built-in effects and 12 guitar amp emulations, including one dedicated for acoustics. Its GENRE button allows you to check out presets set to certain musical styles, while the HIT button allows you to stack effects to build custom sounds based around the included effects. - Guitar Tone with No Amp Required
- Plug your electric or acoustic guitar into guitar effects, including Distortions, Flange, Chorus, Delay, Reverb, EQ and more. The guitar effects in VoiceLive Play Electric are ported from TC Electronic's Hall of Fame Reverb and FlashBack Delay as well as new algorithms from TC Electronic and TC-Helicon.
Additionally, VoiceLive Play Electric features 10 Amp Tones plus a special acoustic guitar setting. The amps are inspired by famous tones from Fender, Mesa, and Marshall. They range from Clean to Insane distortion characteristics with user variable Drive amounts. All feature editable 3-band tone, compression, and speaker emulation controls.- Acoustic - direct and clean to be sent to the PA
- Clean - Fender Twin
- Comp - Fender Twin with compression
- Comp Atk - Fender Twin with Bright switch on and compression
- BF Combo - Overdriven Fender '65 Deluxe
- Bright - Overdriven Modern Fender
- Crunch 1 - Marshall Plexi
- Crunch 2 - Hiwatt
- Crunch 3 - Marshall Plexi
- BF Combo - Overdriven Fender '65 Deluxe
- Honk - Vintage combo
- Insane - Mesa Rectifier
- Pick A Genre, Any Genre
- The GENRE button allows you to easily browse hundreds of presets. Choose a style that suits you and VoiceLive Play Electric will list the presets that fit your preference
- Make it a HIT
- HIT is a performance-inspired feature for building intensity into any vocal performance. Every preset has an effect that you can build upon by pressing the HIT button, which adds additional effects on top. For example, you could start with a simple reverb and then "HIT it" to add harmonies or a raw megaphone effect for emphasis - excellent for making choruses stand out
- Harmonies and Correction
- Don't worry about key, VoiceLive Play Electric listens to the guitar input to set key automatically. You get the perfect sounding harmonies and pitch correction
- Loop Around
- The VLOOP performance looper allows you to create a complete performance while turning effects on and off. You can loop your vocals, guitar or both at the same time
- Sing Along with Vocal Cancel
- Singing along is a great way of practicing and performing. Plug in your MP3 player via the AUX In connector and use the Vocal Cancel feature to make your voice stand out over the vocals on the original track. You can also record and play back your singing using the USB connection to your computer
- Practice Makes Perfect
- Dedicated PRACTICE mode that analyzes your performance in real-time, helping you spot your strengths as well as focus on the areas that might need attention
- Room Sense
- Embedded stereo RoomSense mics can control your harmonies from instruments nearby, replace the cabled mic for headphone practice or add ambience to your headphone mix
- Adaptive Tone
- TC-Helicon's adaptive tone technology intelligently controls Shape EQ and Dynamics (compression & de-ess) to provide the perfect tonal balance and add smooth dynamic control to fit in any mix. Best of all it's easy - just set and forget. An adaptive gate can also be added to help suppress feedback and reduce bleed
- Add MP-75 or Switch-3 for additional control of performance, effects and looping.
- Complete vocal path including Tone, Harmony, HardTune, Reverb, Double and more.
- Get perfect harmonies using Auto Key Detection from guitar
- Plug in and practice with your MP3 player, or stream tracks and record over USB—includes a vocal cancel function
- Compatible with the MP-75 Modern Performance Vocal Microphone with Mic Control
- Global adaptive EQ, compression, de-ess, gate & pitch correction
- 2 Voices of NaturalPlay harmonies, and 2 voices of humanized doubling
- VLOOP performance looper with undo/redo for vocal and guitar path
- RoomSense microphones for Auto Key, monitoring and practicing
- Override the key manually using the footswitches or the Effects menu.
- Navigate over 200 presets by genre and mark Favorites
- Practice function with intelligent pitch display tracks and singing stats
- Simple effects customizing with styles and icons
- Low-noise mic-preamp with Mic Control
- Stereo XLR outputs or dual mono for separate guitar and vocal outputs
- Aux input for connecting an MP3 player
- USB for audio streaming and connection to VoiceSupport
- MIDI in for keyboard controlled harmonies
- Optional Switch-3 and MP-75 for more performance control
In the Box TC Electronic VoiceLive Play Electric Vocal and Guitar Effects Processor Power Supply USB Cable TC- Helicon Sticker Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC Electronic VoiceLive Play Electric Vocal and Guitar Effects Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC Electronic 996363005 Specs | | | Effects | µMod
Delay
Reverb
Harmony
Double
Transducer
Tone
HardTune & Correction
Guitar FX & Tuner
VLOOP | | Control | 200+ Song & Artist Inspired Presets
Preset Up/Down and HIT Footswitch
Graphics LCD Display
Bump-Protected Mic Level
Dual-Colour Backlit Buttons
Dedicated Effect Block On/Offs | | Construction | Dual die-cast clamshell design
Acrylic Lens
Punch-cut Metal connection panel
Rubberized footings
Backlit Graphic LCD Display | | | | Connector | Balanced: Mic: XLR
Guitar: 1/4" / 6.3 mm phone jack
Aux: 1/8" / 3.5 mm stereo mini jack | | Impedance | Balanced Mic: 2.14 kOhms
Unbalanced Mic: 1.07 kOhms
Guitar: 1 MOhm | | Input Level | Mic: -42 dBu to +13 dBu @ 0 dBFS
Guitar: 12 dB @ 0 dBFS
Aux: +2 dB | | EIN | Maximum Mic Gain Rg @ 150 Ohms: -127 dBu | | S/N Ratio | Mic: > 104 dB
Guitar: > 115 dB | | Phantom Power | +48 V (on/off via Setup menu) | | A/D Conversion | 24-bit, 128x oversampling bitstream, 110 dB SNR A-weighted | | | | D/A Conversion | 24-bit, 128x oversampling bitstream, 115 dB SNR A-weighted | | Connectors | Balanced: XLR
Guitar Thru: 1/4" / 6.3 mm TRS | | Output Impedance | Balanced: 80 Ohms
Unbalanced: 40 Ohms | | Output Level | XLR: 0 dBFS +2 dB | | Dynamic Range | > 109 dB, 20 Hz to 20 kHz | | Frequency Response | 20 Hz to 20 kHz, +0.30/-0 dB | | Headphone Output | 1/8" / 3.5 mm mini stereo jack | | Guitar Output | Guitar Thru: Buffered: 1/4" TRS pseudo-balanced, Unbalanced: 270 Ohms, Balanced 540 Ohms | | | | External Power Supply | Mains Voltage Input: 100 to 240 VAC, 50 to 60 Hz (auto-select) | | Maximum Output | 12 VDC, 0.4 A | | Power Consumption | < 14 W | | | | Operating Temperature | 32 to 122° F / 0 to 50° C | | Storage Temperature | -22 to 167° F / -30 to 70° C | | Humidity | Maximum 90% non-condensing | | | | USB | USB-B (Preset Management, Firmware Updates, MIDI and audio I/O) | | Pedals | 1/4" / 6.3 mm TRS phone jack | | MIDI In | 5-pin DIN | | | | Dimensions (H x W x D) | 1.8 x 7.9 x 6.1" / 45 x 200 x 156 mm | | Weight | 2.2 lb / 1 kg | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 10.9 x 6.5 x 3.2" |
