User Manual for TC-Helicon BLENDER Portable 12x8 Stereo Mixer and USB Interface Click to enlarge the picture
Contents of the user manual for the TC-Helicon BLENDER Portable 12x8 Stereo Mixer
- Product category: Analog Recording Mixers TC-Helicon
- Brand: TC-Helicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC-Helicon Analog Recording Mixers
 |
User manual for the TC-Helicon BLENDER Portable 12x8 Stereo Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC-Helicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC-Helicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC-Helicon product will considerably shorten its lifespan!
|

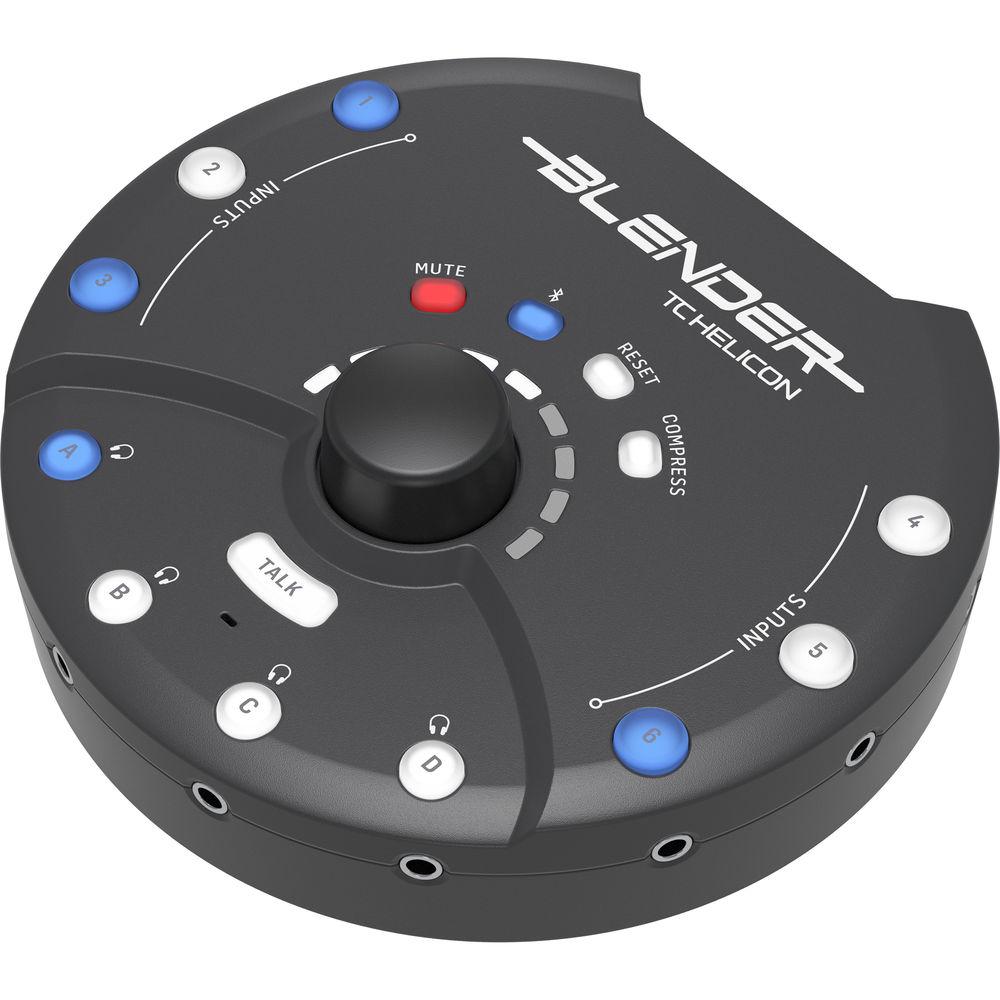

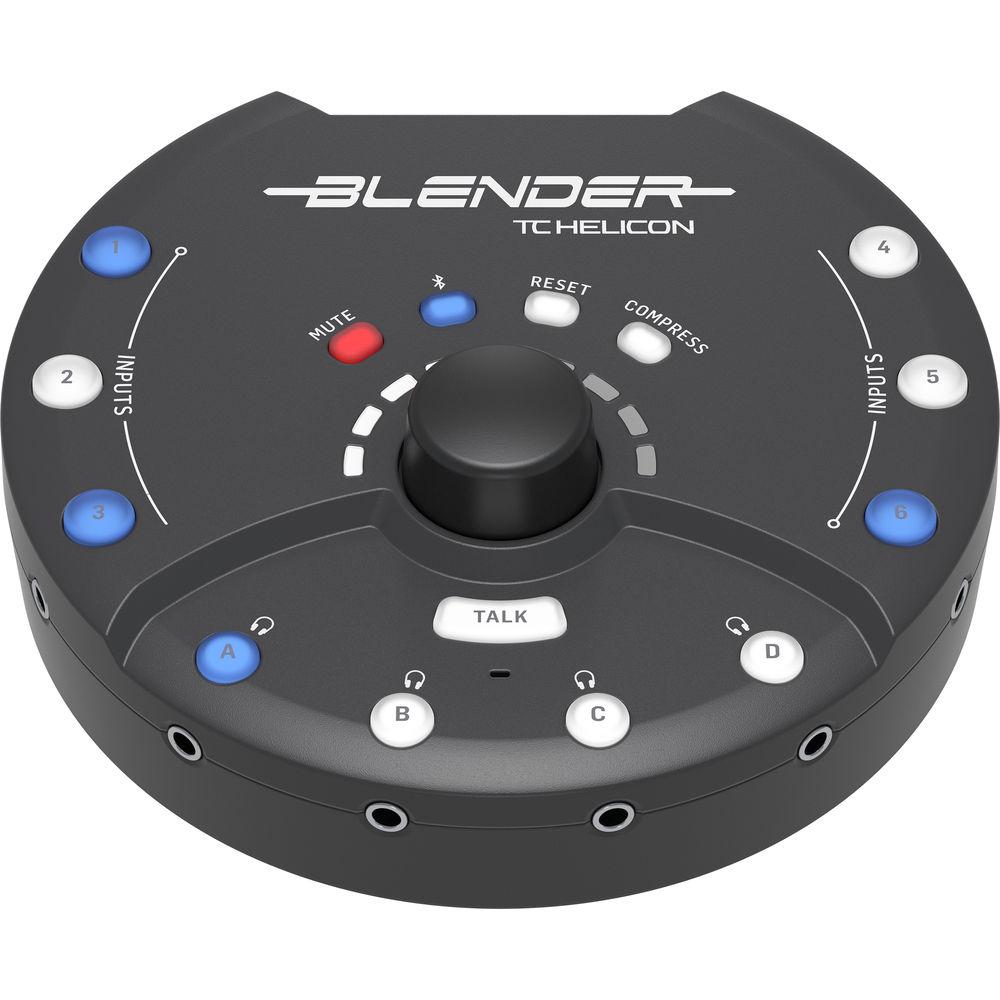

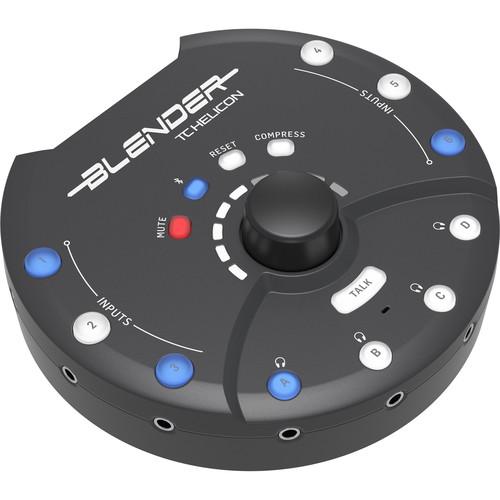

Product description The TC Helicon BLENDER is a portable 12-input, 8-output mixer and audio interface. It's designed to blend the inputs of six stereo devices, be they tablets, phones, synths, drum machines, laptops, hardware samplers, or indeed, any device with a line/headphone output.
The BLENDER sports inputs for six stereo analog sources. You'll also note the four independently controlled stereo headphone outputs. A key feature of the BLENDER is the ability to create personalized mixes for each output, meaning each member of a musical group hooked up to the unit can hear their own custom mix.
A Bluetooth connection allows you to control the BLENDER over your phone or tablet. With the free, corresponding iOS/Android app, you can personalize the monitor mix for each musician without having to leapfrog over cables and such.
With a built-in omnidirectional microphone, you can communicate easily with your bandmates, even though you're all wearing headphones. Multi-track recording is available over USB at sample rates of 192 kHz, which lets you capture high-quality stereo recordings. A power supply is included with the BLENDER, though it can be operated with batteries. - Key Features at a Glance
-
- 6 stereo inputs for mixing devices like tablets, phones, synthesizers, drum machines, laptops and samplers
- High-resolution 192 kHz digital stereo signal output via USB for recording with mobile devices or computers
- Multitrack recording of each individual input allows you to take your mixes to the next level in post-production
- 4 independently controlled stereo headphone outputs for creating personalized listening experiences
- Save custom control maps and spend less time setting up and more time jamming with your favorite gear
- Built-in omnidirectional talk mic allows for communication to other collaborators over the mix
- On-board compression smooths and shapes your sound into a more polished professional mix
- Power supply included or use with batteries
- Rugged, roadworthy construction
- Free mobile app lets you adjust your individual monitor mix right from your tablet or phone

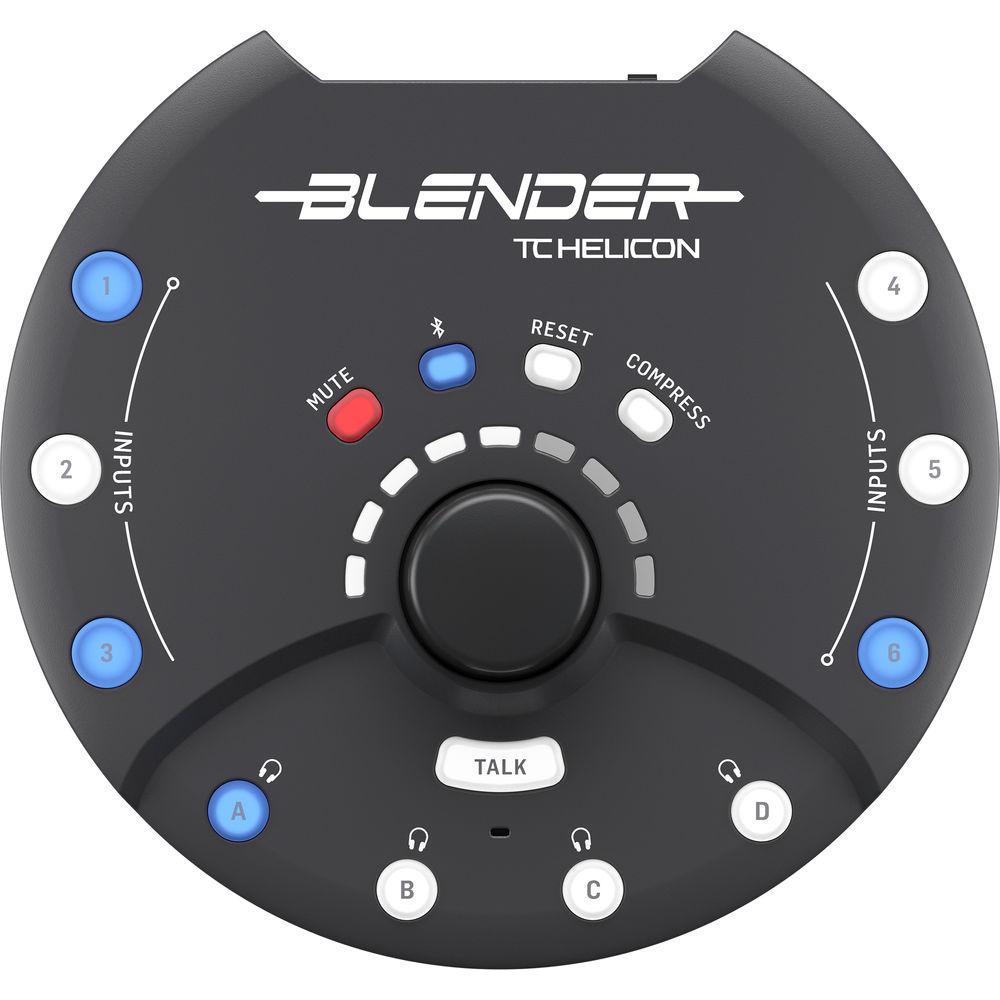

- Controls at a Glance
-
- Mute: Press this button to mute the outputs.
- Bluetooth: Press this button to make the Blender discoverable by Android and iOS devices for use with the control app.
- Center Knob: Adjusts the level of the currently selected item.
- Compress: Press this button to compress and boost the average level for inputs routed to the currently selected output; compression can be engaged and adjusted separately for each output.
- Talk: Pressing this activates the onboard microphone, allowing some room to be mixed into the outputs. While the Talk button flashes, the level can be adjusted for the currently selected output. If another input or output button is pressed, the talk button remains lit red, though it loses the focus of the center knob control. Select another output channel, then disengage and re-engage Talk so that it flashes again, enabling the level for that output to be adjusted.
- Reset: Hold this button for 3 seconds to reset the device to factory default settings.
In the Box TC-Helicon BLENDER Portable 12x8 Stereo Mixer and USB Interface USB Cable Power Supply Limited 1-Year Warranty (Extendable to 3 Years upon Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the TC-Helicon BLENDER Portable 12x8 Stereo Mixer and USB Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC-Helicon Blender Specs | Inputs | 6 x 1/8" / 3.5 mm TRS, Stereo Unbalanced | | Input Impedance | 10 kOhms | | Maximum Input Level | 8 dBu | | Outputs | 4 x 1/8" / 3.5 mm TRS, Stereo Unbalanced | | Impedance | 16 Ohms | | Maximum Output Level | 27 mW | | USB Connection | Type-B, Mini | | USB Audio In/Out | 12 In, 2 Out | | Bit Depth / Sample Rate | 24-Bit / 48 kHz | | Bluetooth | Frequency Range: 2402 to 2480 MHz
Channel Number: 79x, 2 MHz Spacing

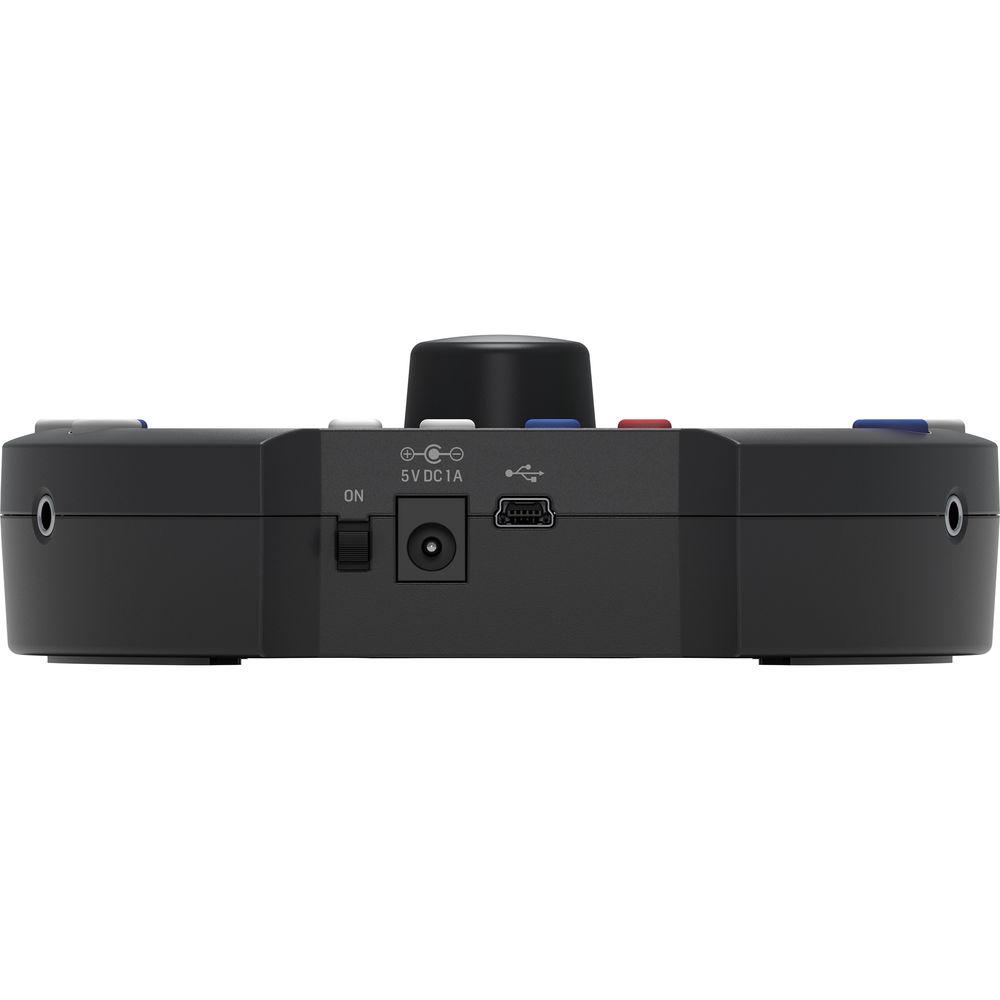

Output Power: 8 dBm | | Bluetooth Version | 4.1 BLE, Compatible with 4.0 or Later | | Power | Power Adapter: 5 VDC, 1 A
Battery Power: 4 x Batteries (Available Separately) | | Dimensions (H x W x D) | 1.7 x 5.2 x 4.9" / 43.0 x 132.0 x 124.0 mm | | Weight | 0.8 lb / 0.4 kg | | | | Package Weight | 1.195 lb | | Box Dimensions (LxWxH) | 10.3 x 6.7 x 2.7" |
