Product description

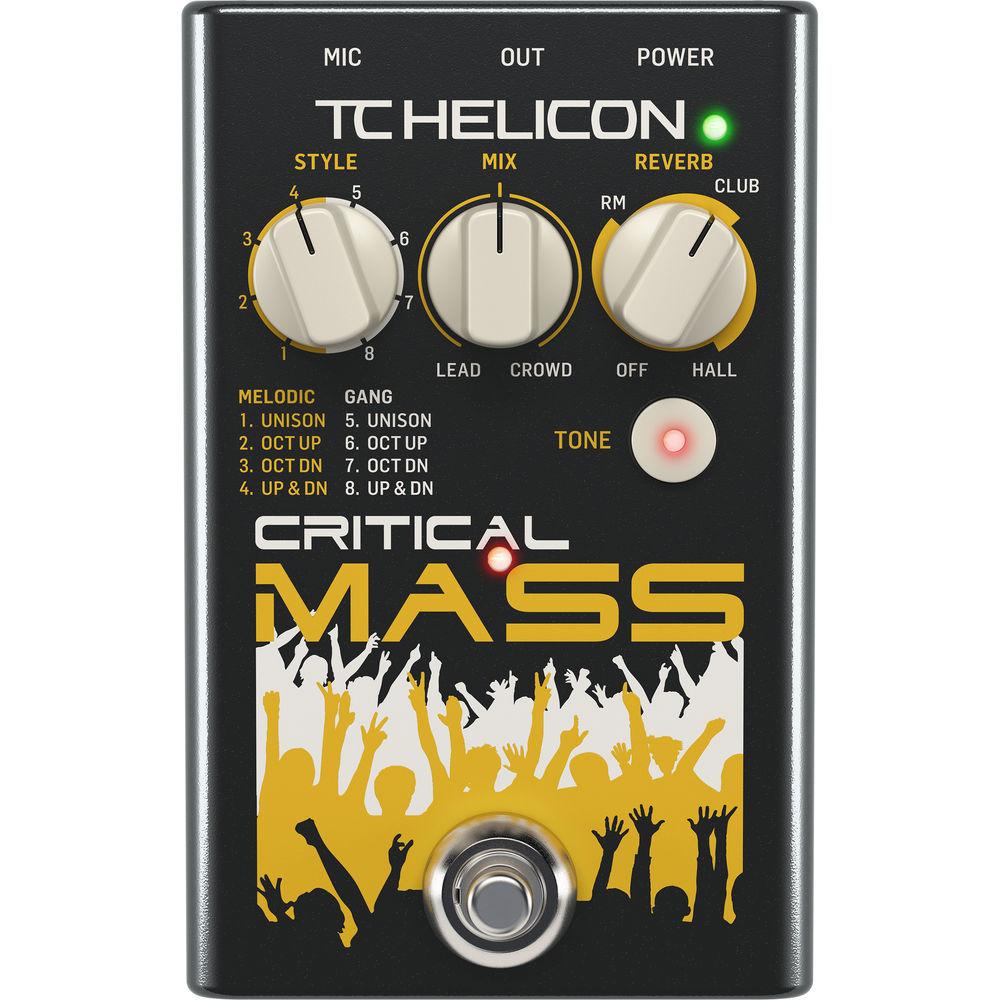

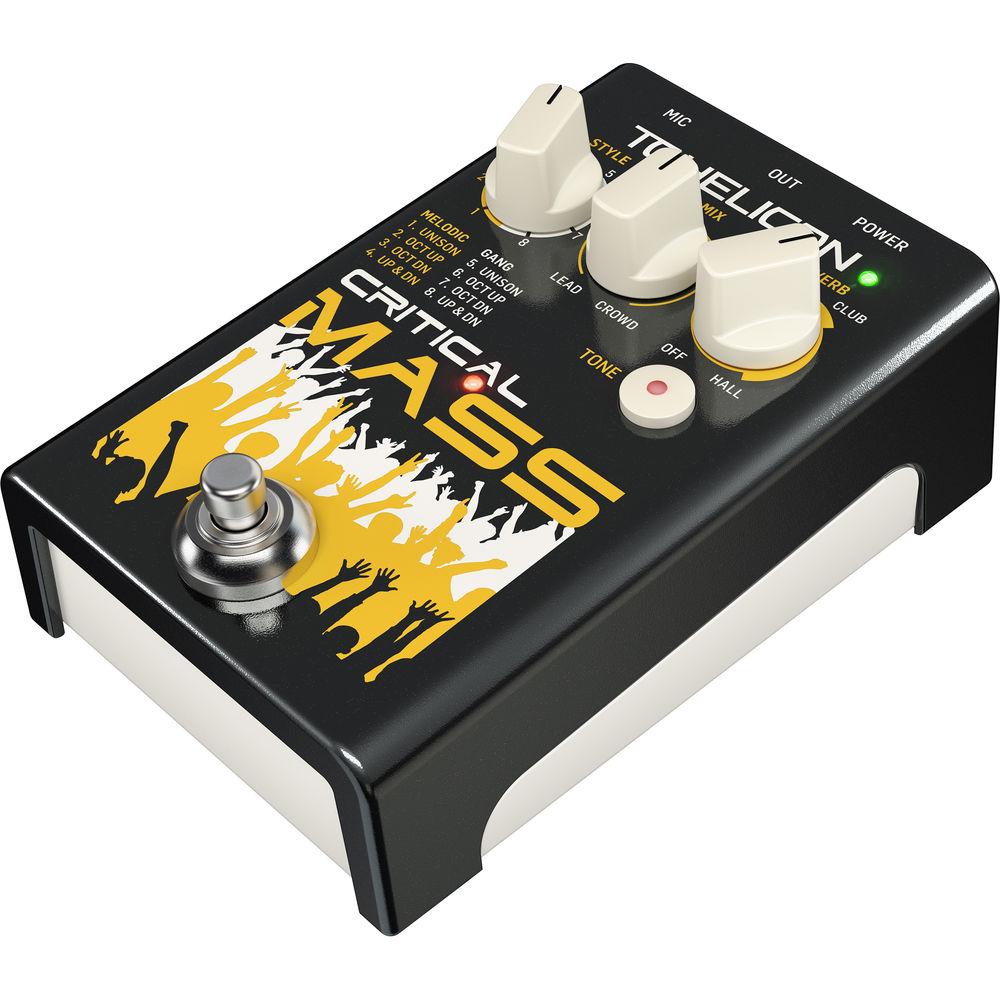

Critical Mass, from TC Helicon, accomplishes a very specific function simply and effectively. This pedal, designed for vocalists on stage, creates the sound of gang vocals—that rare moment in the club in which you actually get everyone to sing along with your song. If that vocal sound is integral to an arrangement, you don’t have to rely on apathetic audiences anymore to make it happen for you. This pedal can do it all by itself.With the Style knob, you can choose among four different kinds of audience-approximating vocals: unison, octave up, octave down, and a combination of the two—octave up and down. However, this pedal isn’t only for so-called gang vocals. Four melodic settings are also offered, proffered in the same intervallic relationships. Whereas gang vocals is a decidedly scrappier, sometimes off-key sound, melodic tracks pitch with you, without necessitating a key or scale input. Some TC Helicon pedals require you to plug your instrument into their trigger input to dictate the harmonic content of the choral accompaniment, but the Critical Mass only seeks to give you unison/octave vocals; it does not require any such external influence.In addition to the choral processing, this pedal provides three studio-grade reverbs, as well as TC Helicon’s adaptive tone button, which automatically adjusts EQ, compression, de-essing, and gating for a consistent vocal sound. The Critical Mass pedal can be powered with four AA batteries or by a separately available power supply. It can provide phantom power to your microphone, should it be needed.
    Features at a Glance
    • Melodic choir styles
    • 4 gang vocal styles
    • 3 reverb styles (room, club, hall)
    • Adaptive tone button
    • Optional AA-battery power
    • Simple connection between standard mic and mixer
    • Phantom power always available
    • Low-noise microphone preamp
    • Automatic input gain – no more setting and adjusting input gain
    • Rugged all-metal construction
    • Mic control for remote on/off switching with optional TC-Helicon MP-75, MP-76 (main button only) and Sennheiser e835 FX mics
    • Individual style select and mix controls for gang vocals
    • USB connection to VoiceSupport application offering updates, product-specific news and more
    • 9V operation (vs 12V) to accommodate common pedalboard power supplies
In the Box TC-Helicon Critical Mass Pedal for Gang Vocals, Melodic Vocals & Reverb
  • Limited 10-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the TC-Helicon Critical Mass Pedal for Gang Vocals, Melodic Vocals & Reverb in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    TC-Helicon Critical Mass Specs

    Controls Style knob
    Mix knob
    Reverb knob
    Tone button
    Bypass/Engage Footswitch
    Construction 2-part die-cast metal, rubber adhesive feet

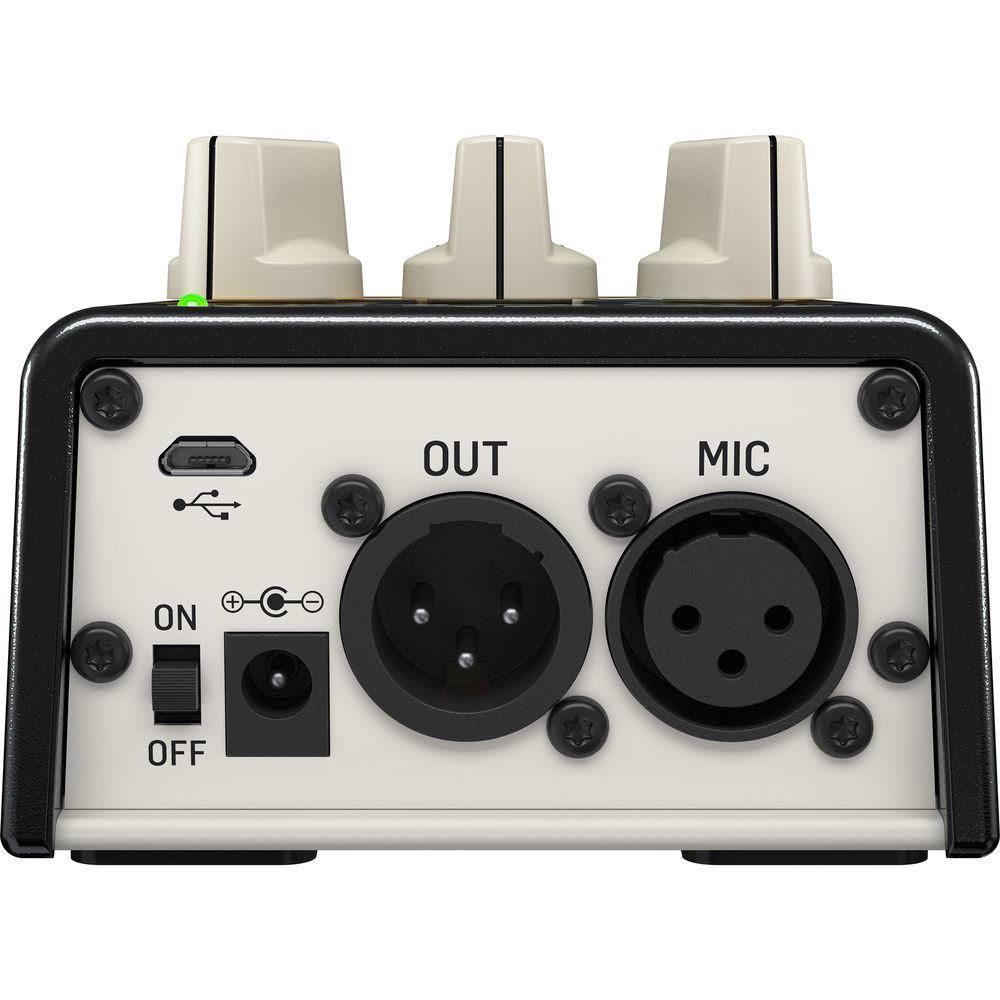

    I/O 1 x XLR input
    1 x XLR output, impedance balanced
    Impedance Input: 3.1 kOhms
    Input (guitar) 1 MOhm
    Output: 200 Ohms
    Input Clip Sensitivity -1 dBu
    Output Level (Full Scale) +7.5 dBu
    Signal to Noise Ratio >114 dB (A-weighted)
    Frequency Response 20 Hz to 20 kHz, input to output, +0 / -0.3 dB
    Power Consumption 6 W
    Phantom Power 24 V, always on
    Power Supply 9 V, 300 mA (available separately)
    EMC Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B
    Safety Certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500, and CSA
    Operating Temperature 32 to 122°F / 0 to 50°C
    Storage Temperature -22 to 167°F / -30 to 70°C
    Humidity (Non-Condensing) Max 90%
    Dimensions (H x W x D) 5.4 x 3.5 x 2.3" / 140 x 90 x 60 mm
    Weight 0.9 lb / 0.4 kg
