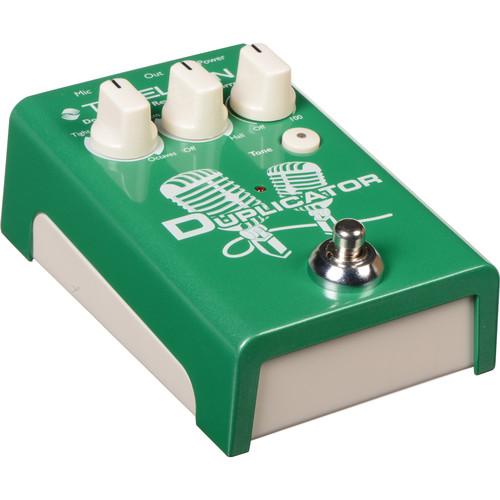

TC-Helicon Duplicator Vocal Effects Pedal

Search your instruction manual in PDF to download

User Manual for TC-Helicon Duplicator Vocal Effects Pedal

Click to enlarge the picture
TC-Helicon Duplicator Vocal Effects Pedal Contents of the user manual for the TC-Helicon Duplicator Vocal Effects Pedal
  • Product category: Effects Pedals TC-Helicon
  • Brand: TC-Helicon
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for TC-Helicon Effects Pedals

User manual for the TC-Helicon Duplicator Vocal Effects Pedal contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any TC-Helicon product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official TC-Helicon user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a TC-Helicon product will considerably shorten its lifespan!



Product description

Designed for vocalists, the Duplicator from TC Helicon is a vocal effects pedal in a stompbox enclosure. It provides real-time vocal doubling, allowing you to choose between eight different presets to give the allusion of double-tracked vocals in three overall categories: Tight, Loose, and Octave.

The pedal also sports an ambiance section, giving you the choice between room, club, and hall reverbs. Also included is onboard pitch correction to keep your vocals as in-tune as you see fit—you can dial in exactly the amount of pitch correction you require via the knob. A one-touch Tone button handles EQ, compression, de-essing, and gating, doing so in an automatic and adaptive fashion, and reinforcing a most musical timbre to your voice.

The pedal automatically sets your microphone's gain, so that you never need to adjust the levels. Its on/off switch can be controlled remotely via the Sennheiser e 835 FX or TC-Helicon MP-75 microphones. Additionally, this pedal can be powered with four AA batteries or with the optional power adapter.
    Key Features at a Glance
    • Choice of 3 Doubling styles, including Tight, Loose, and Octaves
    • Room, Club, and Hall reverb choices
    • Transparent auto-chromatic pitch correction
    • Battery operation (batteries optional)
    • Clean, clear, low-noise mic preamp with phantom power
    • Reverb and Tone can remain on whether Doubling is on or off
    • Mic Control access allows you to turn the Harmony on or off remotely using the switch on the Sennheiser e 835 FX, or the TC-Helicon MP-75 mic
    • Rugged all-metal construction
    • USB connection to free VoiceSupport application for firmware updates
    • 9V operation (versus 12V) to accommodate common pedalboard power supplies
    • Automatic input gain; no need to set or adjust input gain
In the Box TC-Helicon Duplicator Vocal Effects Pedal
  • USB Cable
  • Limited 10-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the TC-Helicon Duplicator Vocal Effects Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Download User Manual

    The user manual for the TC-Helicon Duplicator Vocal Effects Pedal can be downloaded in PDF format at the link stated below.
    Download PDF user manual - TC-Helicon Duplicator Vocal Effects PedalDownload PDF User Manual - https://www.search-manual.com/ upload/ tc-helicon-duplicator-vocal-effects-pedal-252351-user-manual.pdf
    (PDF file, 2.2 MB)


    Technical parameters

    TC-Helicon 996372001 Specs

    Included Effects Doubling
    Reverb
    Tone
    Pitch Correction
    Controls Doubling knob
    Reverb knob
    Pitch Correction knob
    Adaptive Tone button
    Footswitch on/off
    Input Connection Type 1 x XLR female, balanced
    Input Impedance 3.4 / 1.7 kOhms
    Input Clip Sensitivity -1 dBu
    Signal to Noise Ratio >109 dB, A-weighted
    Phantom Power 24 V (always on)
    Output Connector 1 x XLR male, impedance balanced, pin 2 hot
    Output Impedance 200 / 100 Ohms
    Output Level (Full Scale) +7.5 dBu
    Frequency Response ± 3dB 20 Hz to 20 kHz
    Power Supply 12 V, 0.4 A (optional)
    4 x AA batteries (optional)
    Power Consumption 5.6 W
    Safety EMC: Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B
    Safety-certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA
    Operating Temperature 32 to 122°F / 0 to 50°C
    Storage Temperature -22 to 167°F / -30 to 70°C
    Humidity (Non-Condensing) Max. 90%
    Construction Two-part die-cast metal
    Rubberized base
    Dimensions (H x W x D) 5.5 x 3.5 x 2.4" / 140.0 x 90.0 x 60.0 mm
    Weight 0.9 lb / 0.4 kg
    Package Weight 1.2 lb
    Box Dimensions (LxWxH) 6.4 x 5.1 x 2.8"
