User Manual for TC-Helicon GO XLR - Online Broadcaster Platform with Mixer and Effects

Click to enlarge the picture
TC-Helicon GO XLR - Online Broadcaster Platform with Mixer and Effects Contents of the user manual for the TC-Helicon GO XLR - Online Broadcaster
  • Product category: Podcasting Solutions TC-Helicon
  • Brand: TC-Helicon
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for TC-Helicon Podcasting Solutions

TC-Helicon GO XLR - Online Broadcaster Platform with Mixer and Effects TC-Helicon GO XLR - Online Broadcaster Platform with Mixer and Effects TC-Helicon GO XLR - Online Broadcaster Platform with Mixer and Effects TC-Helicon GO XLR - Online Broadcaster Platform with Mixer and Effects
User manual for the TC-Helicon GO XLR - Online Broadcaster contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any TC-Helicon product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official TC-Helicon user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a TC-Helicon product will considerably shorten its lifespan!



Product description

By combining what would take several pieces of hardware and software into a single sleek and intuitive device, the TC Helicon GO XLR offers an all-in-one desktop recording/processing solution for broadcasters and gamers. The GO XLR provides four channels of audio mixing, allowing the user to control the sound levels of their connected sources and includes a comprehensive set of tools for vocal enhancement and special FX.

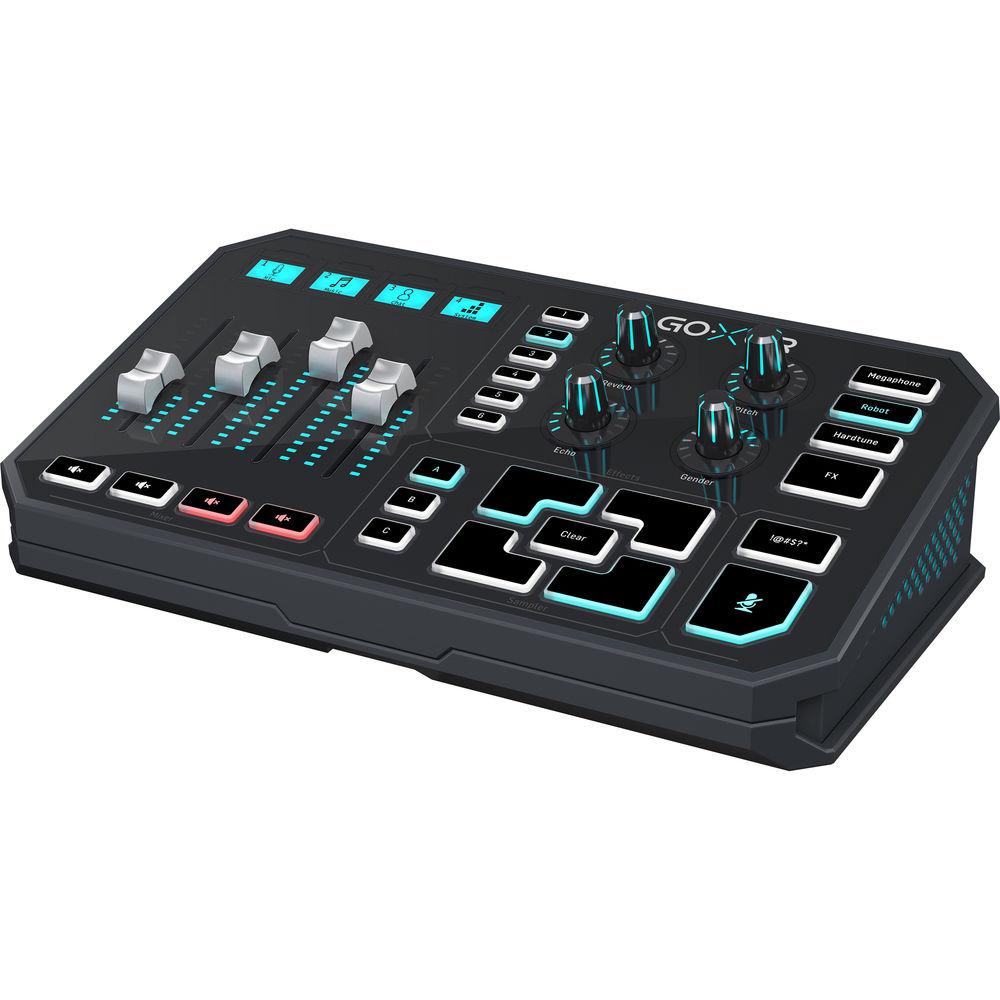

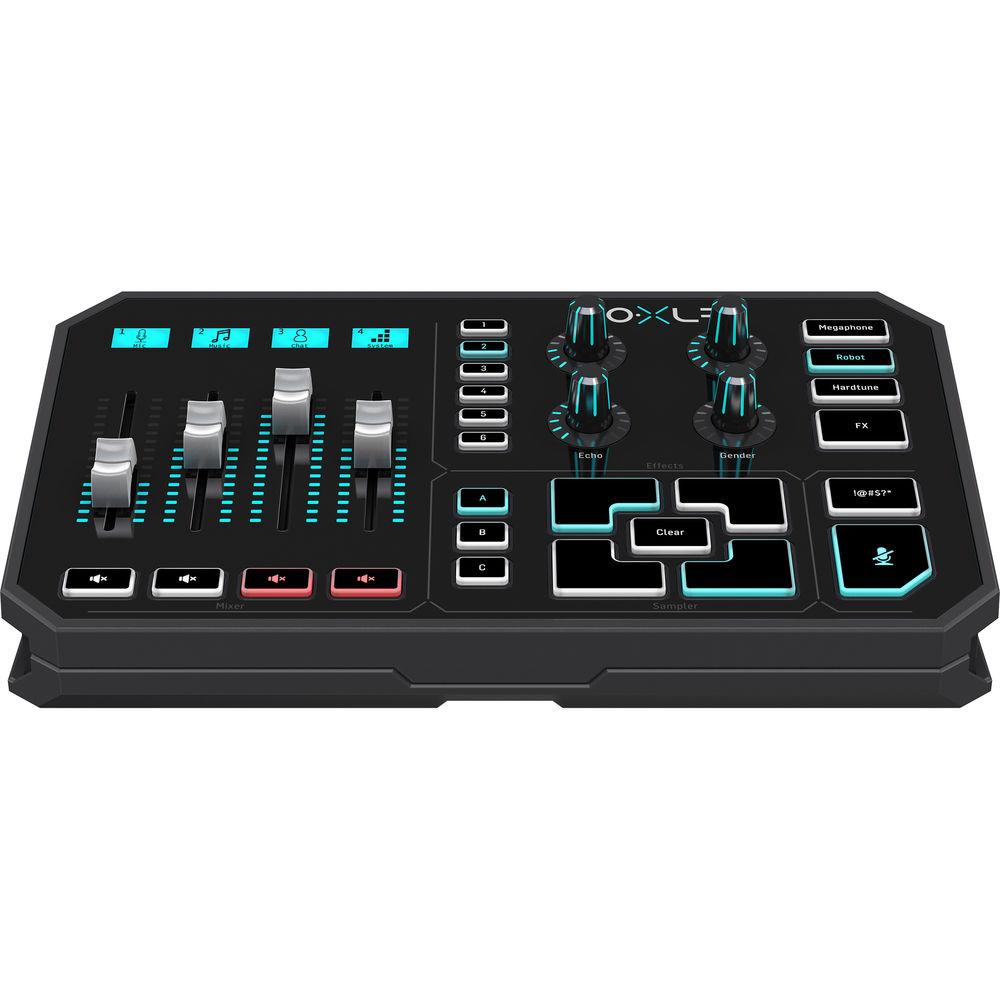

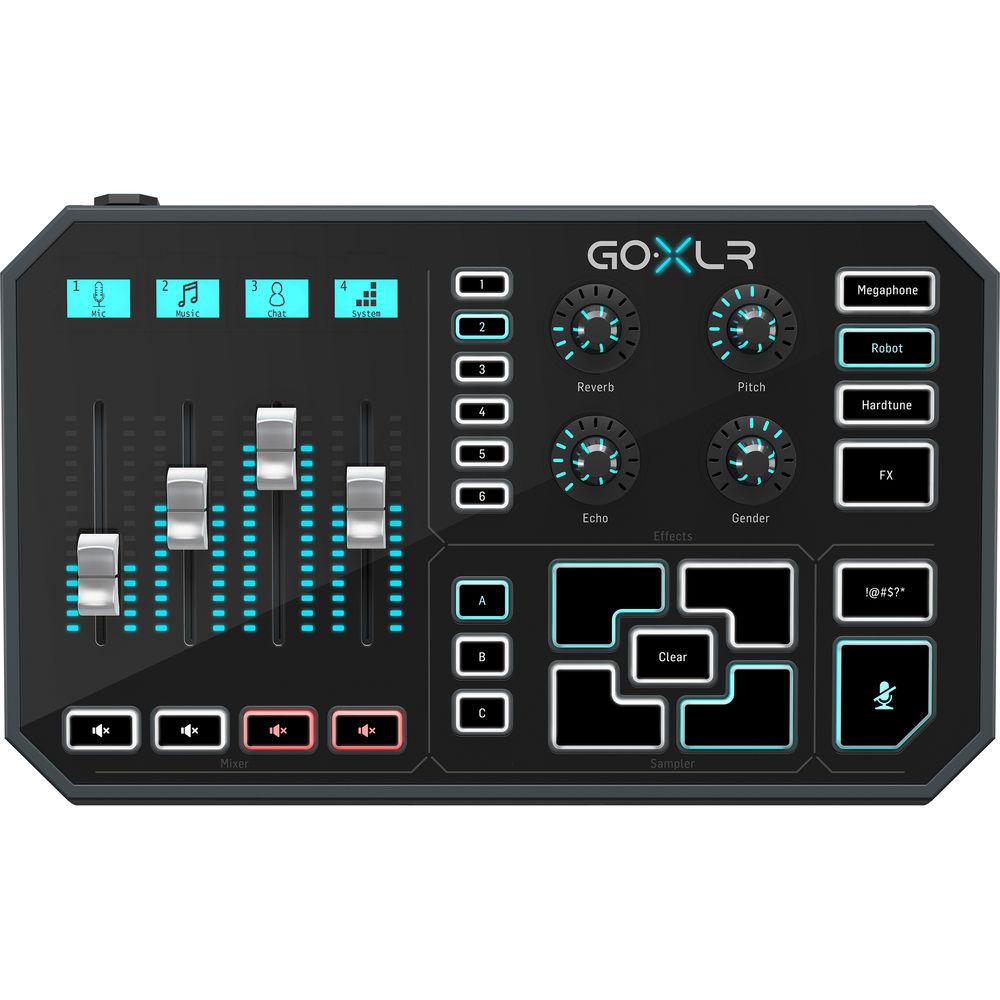

The front panel features four motorized faders, four customizable scribble scripts, four channel mute buttons, and dedicated vocal effect buttons for Megaphone, Robot, Hardtune, as well as six voice FX preset buttons for storing your own custom vocal FX. Additionally, there are four parameter knobs for the real-time adjustment of FX from the desktop. Also, included are three banks of four sample pads designed for sound effects, stingers, bumpers, and more. You can utilize the GO XLR app to load samples, or record and/or clear them direct from the unit for on the fly operation. There is also a dedicated !@#$* button for bleeping expletives and a Cough button for momentary muting of your microphone.

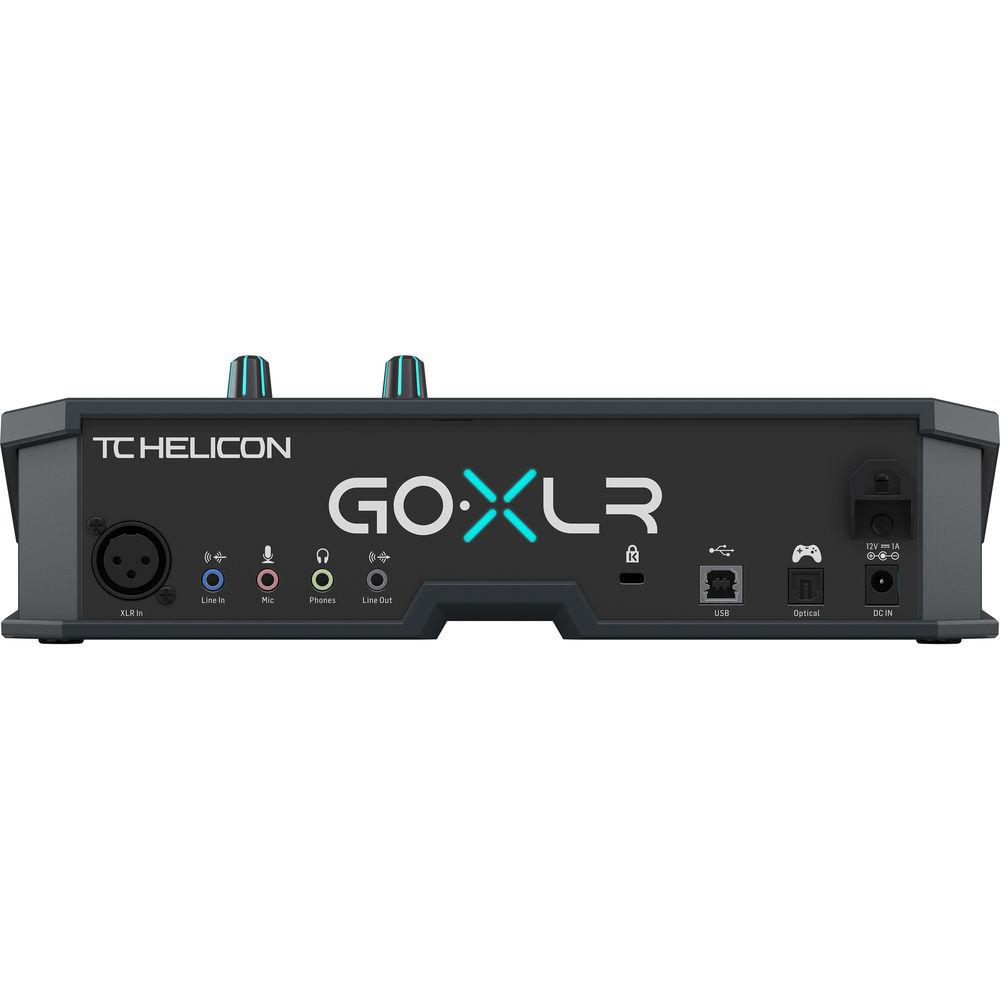

The rear panel sports an XLR input with a premium, low-noise Midas mic preamp, as well as 3.5mm inputs for line in, headset mic, headphone out, and a dedicated line out, which contains a copy of the broadcast stream audio for use with a dedicated streaming computer. Additionally, the unit offers a USB input for connecting to a computer and an optical input for connecting to Sony PlayStation or Microsoft Xbox consoles. The TC Electronics GO XLR is powered by an included 12 VDC power adapter. Note: The Windows-based GO XLR app is REQUIRED to operate the GO XLR.
    • All-in-one desktop rig for online broadcasters
    • Four-channel mixer for fast USB audio mixing for all your audio sources
    • Customizable motorized faders with LCD scribble strips offers great control
    • Sound board and recorder to cue bumpers and riff on-the-fly samples
    • Studio-quality vocal effects used by pro musicians
    • EQ, compression, de-essing, and gating controls for professional sounding results
    • Premium, low-noise Midas mic preamp for professional broadcast quality
    • Full RGB lighting control to fit with your customized gaming rig
    • Cough button to instantly mute yourself
    • Simple, easy-to-use controls get you up and running quickly
    • Windows app lets you control and recall all your settings
UPC: 653341329134 In the Box TC-Helicon GO XLR - Online Broadcaster Platform with Mixer and Effects
  • Power Adapter
  • Limited 90-Day Warranty, Extended to 3 Years with Registration
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the TC-Helicon GO XLR - Online Broadcaster Platform with Mixer and Effects in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    TC-Helicon GO XLR Specs

    Software Requirements GO XLR Application is Required to Operate GO XLR
    Minimum Hardware Requirements Core 2 Duo CPU
    Ethernet port
    RAM: 1 GB
    Operating System Windows 7, 32- or 64-Bit
    Windows 8, 32- or 64-Bit
    Windows 10, 32- or 64-Bit
    Analog Inputs and Outputs XLR In: 1 x XLR, Balanced
    Phantom Power: +48 V, Switchable via Control App
    Line In: 1 x 1/8" / 3.5 mm TRS, Stereo
    Mic: 1 x 1/8" / 3.5 mm TRS, Biased for Computer Microphone Input
    Phones: 1 x 1/8" / 3.5 mm TRS, Stereo
    Line Out: 1 x 1/8" / 3.5 mm TRS, Stereo
    Digital Connections USB: 1 x USB 2.0, Type-B
    Optical: 1 x TOSLINK
    Controls Motorized Faders: 4
    Backlit LCD Scribble Strips: 4
    Rotational Encoders: 4
    Lighting: RGB
    Buttons: 24
    System Processor A/D – D/A Conversion: 24-Bit at 48 kHz
    Effects: Reverb, Echo, Pitch Shifting, Gender (Formant Shifting), Megaphone, Robot, Hardtune, Sampler
    Frequency Response: 10 Hz to 20 kHz, +0/-2 dB
    Dynamic Range: >110 dB
    S/N Ratio: >101 dB
    Power Power Input: Standard 12 VDC, <1 A (Center Negative)
    Adapter: 12 VDC, 1 A
    Power Consumption: 10 W
    Dimensions (H x W x D) 3.2 x 11.2 x 6.9" / 82.0 x 285.0 x 174.0 mm
    Weight 3.41 lb / 1.5 kg
    Package Weight 4.405 lb
    Box Dimensions (LxWxH) 15.3 x 8.8 x 4.6"
