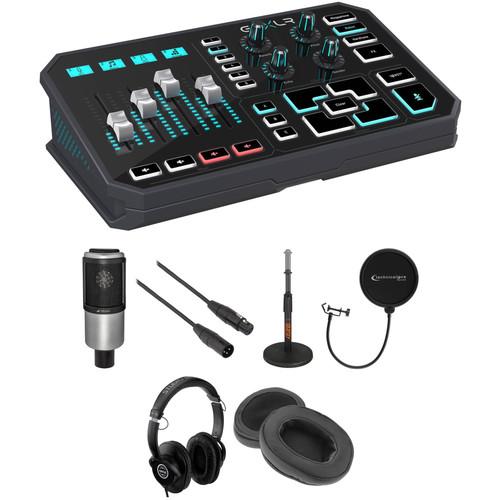

User Manual for TC-Helicon GoXLR Kit with Microphone, Desktop Stand, Cables & Headphones Click to enlarge the picture
Contents of the user manual for the TC-Helicon GoXLR Kit with Microphone, Desktop
- Product category: Podcasting Solutions TC-Helicon
- Brand: TC-Helicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC-Helicon Podcasting Solutions
|
User manual for the TC-Helicon GoXLR Kit with Microphone, Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC-Helicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC-Helicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC-Helicon product will considerably shorten its lifespan!
|
Product description Bundled together by B&H for your convenience, the TC Helicon GoXLR Kit offers many tools that when used together are well-suited to internet broadcasting. The GoXLR is a four-channel mixer that can control the levels of your mic and other programming accoutrements. It sports a soundboard for samples, built-in effects, and uses a Midas premium low-noise preamp.
However, you need other things beside this mixer to get you off the ground when it comes to internet broadcasting, and that's where this kit comes in. It provides the aforementioned TC Helicon GoXLR , as well as a cardioid condenser microphone, a mic cable, a desktop mic stand, a windscreen for the microphone, a pair of headphones, and extra-deep ear cushions for long-lasting comfort. - TC-Helicon GO XLR - Online Broadcaster Platform with Mixer and Effects By combining what would take several pieces of hardware and software into a single sleek and intuitive device, the TC Helicon GO XLR offers an all-in-one desktop recording/processing solution for broadcasters and gamers. The GO XLR provides four channels of audio mixing, allowing the user to control the sound levels of their connected sources and includes a comprehensive set of tools for vocal enhancement and special FX.
The front panel features four motorized faders, four customizable scribble scripts, four channel mute buttons, and dedicated vocal effect buttons for Megaphone, Robot, Hardtune, as well as six voice FX preset buttons for storing your own custom vocal FX. Additionally, there are four parameter knobs for the real-time adjustment of FX from the desktop. Also, included are three banks of four sample pads designed for sound effects, stingers, bumpers, and more. You can utilize the GO XLR app to load samples, or record and/or clear them direct from the unit for on the fly operation. There is also a dedicated !@#$* button for bleeping expletives and a Cough button for momentary muting of your microphone.
The rear panel sports an XLR input with a premium, low-noise Midas mic preamp, as well as 3.5mm inputs for line in, headset mic, headphone out, and a dedicated line out, which contains a copy of the broadcast stream audio for use with a dedicated streaming computer. Additionally, the unit offers a USB input for connecting to a computer and an optical input for connecting to Sony PlayStation or Microsoft Xbox consoles. The TC Electronics GO XLR is powered by an included 12 VDC power adapter. Note: The Windows-based GO XLR app is REQUIRED to operate the GO XLR. -
- All-in-one desktop rig for online broadcasters
- Four-channel mixer for fast USB audio mixing for all your audio sources
- Customizable motorized faders with LCD scribble strips offers great control
- Sound board and recorder to cue bumpers and riff on-the-fly samples
- Studio-quality vocal effects used by pro musicians
- EQ, compression, de-essing, and gating controls for professional sounding results
- Premium, low-noise Midas mic preamp for professional broadcast quality
- Full RGB lighting control to fit with your customized gaming rig
- Cough button to instantly mute yourself
- Simple, easy-to-use controls get you up and running quickly
- Windows app lets you control and recall all your settings
UPC: 653341329134 - Polsen PCR-65 Cardioid Condenser Microphone The PCR-65 from Polsen is a cardioid condenser microphone designed for full-range reproduction of vocals and instruments in podcasts, recording studios, and broadcast environments. Its side-address, pressure-gradient design utilizes a large 1" diaphragm with a cardioid polar pattern, which minimizes the pickup of off-axis sounds and impedes feedback. The microphone boasts a 20 Hz to 20 kHz frequency response, allowing it to accurately transduce the frequencies of a variety of sounds. Its high sensitivity and 125 dB maximum SPL ensure that you can use it on quiet or loud sources, from whispered vocals to pounding drums.The PCR-65 has a sturdy, metal housing with an alloy finish. The supplied custom shockmount decouples the mic from vibrations and rumble that would otherwise transfer from the floor to the mic. Use the desktop tripod stand for convenient tabletop placement during interviews and podcasts. Phantom power (12 to 52 VDC) is required.
- Cardioid Capsule
- The 1" capsule's cardioid polar pattern is least sensitive to sound behind the microphone, allowing better rejection of room reflections, which is ideal for capturing vocals and close-miked instruments with greater clarity
- Full-Range Frequency Response
- The 20 Hz to 20 kHz frequency response is sufficiently wide to deliver a warm, natural sound for a variety of sources, from the low drone of a double bass to the high shimmer of cymbals to the powerful presence of a vocal
- High Sensitivity and Maximum SPL
- The microphone's high sensitivity allows it to be used on quiet sources such as a soft voice, without extreme gain, and its high maximum SPL of 125 dB ensures that it can handle loud sounds such as a drum, without distortion
- Sturdy and Durable
- Metal construction with an alloy finish enables the mic to hold up to the demands of studio and stage environments
- Versatile
- The supplied shockmount, which decreases pickup of rumble and vibrations, can be mounted on a standard mic stand or the included desktop tripod
UPC: 847628598775 - Kopul Performance 2000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black The Kopul Performance 2000 Series XLR M to XLR F Microphone Cable (10') is engineered for exceptional value and superb protection against EMI, RFI and static noise. Quiet and flexible, the cable is suitable for most live sound and performance applications.
Performance 2000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 92% dual-spiral shielding makes the cable resistant to EMI and RFI noise and Rean silver plated connectors provide a high level of connectivity. - 92% dual-spiral shielding offers protection from EMI and RFI noise.
- Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
- 24 AWG oxygen-free stranded copper inner core.
- Cotton yarn reduces electrostatic and microphonic noise.
- Rean silver plated connectors offer high conductivity.
- Cast zinc shell and chuck style strain relief.
UPC: 847628558113 - Auray TT-6220 Telescoping Tabletop Microphone Stand (Black) The black TT-6220 Telescoping Tabletop Microphone Stand from Auray meets the needs of any desktop audio applications that require the use of a microphone by providing a solid, weighted round base with three nonslip rubber feet for additional stability. The telescoping shaft delivers flexibility when it comes to positioning the height of the microphone and includes a microphone cable guide. Durable steel construction ensures longevity.
- Telescoping shaft for adjustable height
- Three nonslip rubber feet
- Durable steel construction
UPC: 847628578234 - Technical Pro MKPF2 6" Clamp On Microphone Pop Filter With 10" Arm The MKPF2 from Technical Pro is a 6" clamp-on pop filter that is essential for recording vocals and is necessary to ensure a professional vocal recording. It can be used to tame the sibilance and pops that are produced by the human voice when it is recorded directly into a microphone without a pop filter. The pop filter includes a universal mounting clamp which is compatible with any existing microphone or boom stand. It has a flexible 10" gooseneck which allows it to work with any microphone, and as an added bonus, the pop filter's mesh screen helps to keep the microphone clean and sanitary. UPC: 817802012724
- Senal SMH-500 Professional Studio Headphones The SMH-500 Professional Studio Headphones from Senal feature accurate sound, superior comfort, and durable materials. They are designed for studio and light field applications. The over-ear, closed-back design provides ample isolation to block out ambient noise on location, and prevent headphone leakage when recording in the studio. Their soft, replaceable ear cushions, lightweight design and refined sound ensure a comfortable listening experience, even during extended sessions.
Equipped with 40mm neodymium drivers at 58 ohm impedance, the SMH-500 headphones are designed to be loud enough when attached to low-powered devices such as mobile phones and mp3 players, yet robust enough to handle studio headphone amps without distortion.
The headphones are designed with an EQ curve that's been tailored for an enhanced low end that allows engineers to detect rumble and monitor bass frequencies effectively. The excellent high-frequency response has been enhanced to accurately and clearly reproduce spatial detail. There is also a slight bump in the midrange to maintain focus on vocal and dialogue intelligibility.
In addition to great sound, the SMH-500 headphones offer superior comfort with a soft padded headband. The 10' single-sided coiled cable allows freedom of movement for musicians, editors, and engineers.
Whether monitoring in the field, studio or on a portable device, the SMH-500 headphones provide an accurate and comfortable listening experience. UPC: 847628569447 - Auray Extra Deep Earpads (Pair) This pair of Auray Extra Deep Earpads is designed to be used with Senal SMH-1000, Senal SMH-500, and Sony MDR-7506 and MDR-V6 headphones. They feature soft padded cushions that provide comfort during long listening sessions. In addition, the extra depth of the pad ensures that your entire ear is covered, thus improving sound isolation. UPC: 847628574663
In the Box - GO XLR - Online Broadcaster Platform with Mixer and Effects extarzzftutrudtybwsxcdwbutvwsfeu
- Power Adapter
- Limited 90-Day Warranty, Extended to 3 Years with Registration
- Polsen - PCR-65 Cardioid Condenser Microphone
- Kopul - Performance 2000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black
- Auray - TT-6220 Telescoping Tabletop Microphone Stand (Black) extarzzftutrudtybwsxcdwbutvwsfeu
- Technical Pro - MKPF2 6" Clamp On Microphone Pop Filter With 10" Arm
- Senal - SMH-500 Professional Studio Headphones
- Auray - Extra Deep Earpads (Pair)
Table of Contents
|
Upload User Manual
Have you got an user manual for the TC-Helicon GoXLR Kit with Microphone, Desktop Stand, Cables & Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - TC-Helicon GO XLR - Online Broadcaster Platform with Mixer and Effects
| | | Software Requirements | GO XLR Application is Required to Operate GO XLR | | Minimum Hardware Requirements | Core 2 Duo CPU
Ethernet port
RAM: 1 GB | | Operating System | Windows 7, 32- or 64-Bit
Windows 8, 32- or 64-Bit
Windows 10, 32- or 64-Bit | | | | Analog Inputs and Outputs | XLR In: 1 x XLR, Balanced
Phantom Power: +48 V, Switchable via Control App
Line In: 1 x 1/8" / 3.5 mm TRS, Stereo
Mic: 1 x 1/8" / 3.5 mm TRS, Biased for Computer Microphone Input
Phones: 1 x 1/8" / 3.5 mm TRS, Stereo
Line Out: 1 x 1/8" / 3.5 mm TRS, Stereo | | Digital Connections | USB: 1 x USB 2.0, Type-B
Optical: 1 x TOSLINK | | Controls | Motorized Faders: 4
Backlit LCD Scribble Strips: 4
Rotational Encoders: 4
Lighting: RGB
Buttons: 24 | | System Processor | A/D – D/A Conversion: 24-Bit at 48 kHz
Effects: Reverb, Echo, Pitch Shifting, Gender (Formant Shifting), Megaphone, Robot, Hardtune, Sampler
Frequency Response: 10 Hz to 20 kHz, +0/-2 dB
Dynamic Range: >110 dB
S/N Ratio: >101 dB | | Power | Power Input: Standard 12 VDC, <1 A (Center Negative)
Adapter: 12 VDC, 1 A
Power Consumption: 10 W | | Dimensions (H x W x D) | 3.2 x 11.2 x 6.9" / 82.0 x 285.0 x 174.0 mm | | Weight | 3.41 lb / 1.5 kg | | | | Box Dimensions (LxWxH) | 15.3 x 8.8 x 4.6" | - Polsen PCR-65 Cardioid Condenser Microphone
| | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Electret Condenser | | Diaphragm | 1" / 25.40 mm | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | Cardioid: 20 dB A-Weighted | | Maximum SPL | Cardioid: 125 dB SPL | | Pad | None | | Impedance | Cardioid: 200 Ohms | | Sensitivity | Cardioid: -32 dB at 1 kHz ±3 dB | | Low-Cut Filter | None | | | | Output Connectors | 1 x 3-Pin XLR | | Headphone Connector | None | | Operating Voltage | 12 to 52 V | | Length | 5.7" / 144.78 mm | | Diameter | 2" / 50.80 mm | | Weight | 12.5 oz / 354 g | | | | Box Dimensions (LxWxH) | 10.8 x 7.3 x 3.4" | - Kopul Performance 2000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 10' / 3 m | | Shielding | 92% Copper Dual Spiral | | Conductor Material | Oxygen-Free Copper (OFC) | | Number of Conductors | 2 | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | Jacket Type | Polyvinyl Chloride (PVC) | | Insulation Type | Polyethylene | | | | Box Dimensions (LxWxH) | 3.7 x 3.5 x 0.7" | - Auray TT-6220 Telescoping Tabletop Microphone Stand (Black)
| | | Height | 8.3 to 13.5" / 21 to 34.3 cm | | Base Type | Round | | Base Dimensions | 6.2 x 6.2" / 15.7 x 15.7 cm | | | | Mounting Thread | 5/8"-27 | | Weight | 2.4 lb / 1.1 kg | | | | Box Dimensions (LxWxH) | 7.05 x 7.05 x 1.9" | - Technical Pro MKPF2 6" Clamp On Microphone Pop Filter With 10" Arm
| Pop Filter | Diameter: 6" / 15 cm | | Gooseneck Length | 10" / 25 cm | | Dimensions | Not specified by manufacturer | | Weight | 1.3 lb / 590 g | | | | Box Dimensions (LxWxH) | 12.05 x 6.3 x 1.15" | - Senal SMH-500 Professional Studio Headphones
| | | Driver Size | 1.6" / 40 mm | | Magnet Type | Neodymium | | Design | Over-Ear (Circumaural) | | Earcup Style | Closed-Back | | | | Sensitivity | 101 dB at 1 kHz / 1 mW | | Impedance | 58 Ohms | | Maximum Power Handling | 1000 mW | | Total Harmonic Distortion (THD) | 5% | | | | Audio Connector | 1/8" (3.5 mm) | | Adapter (Included) | 1/4" (6.3 mm) | | | | Box Dimensions (LxWxH) | 10.9 x 7.0 x 4.5" | - Auray Extra Deep Earpads (Pair)
| Compatibility | Senal SMH-1000 and SMH-500 headphones
Sony MDR-7506 and MDR-V6 headphones | | | | Box Dimensions (LxWxH) | 6.3 x 4.0 x 0.079" |
