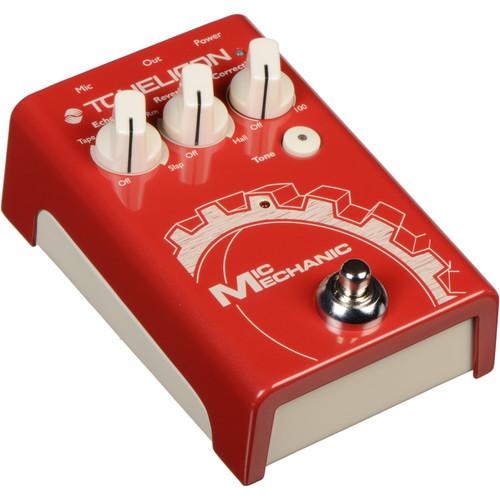

User Manual for TC-Helicon Mic Mechanic 2 Vocal Toolbox Pedal Click to enlarge the picture
Contents of the user manual for the TC-Helicon Mic Mechanic 2 Vocal Toolbox
- Product category: Effects Pedals TC-Helicon
- Brand: TC-Helicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC-Helicon Effects Pedals
|
User manual for the TC-Helicon Mic Mechanic 2 Vocal Toolbox contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC-Helicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC-Helicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC-Helicon product will considerably shorten its lifespan!
|
Product description Now updated to accept AA batteries, the Mic Mechanic 2 from TC-Helicon is a complete vocal toolbox housed in compact, stompbox enclosure. The combinations of the reverbs and delays taken from the company's VoiceLive series are designed to enhance and complement the natural timbre of the voice. Lush reverbs can surround a voice with a great sense of space, be it small or large. From short slap back echoes to long repeating phrases, delays add that special "something" to vocals. The Tap Tempo feature sets the delay times to match the music perfectly.
The pedal can also automatically adjust EQ, compression, de-essing, and gating for a consistent vocal sound. Auto chromatic pitch correction gently guides the performer towards the "true" note — just a bit flat or sharp, and the correction steps in and provides a little or a large nudge in the right direction. Correction can be transparent or used as an effect. When it's time to talk to the audience, the reverb and delay can be switched off while the other vocal processors remain in place. This action can also be performed using specific microphones that comply with the Mic Control protocol. For the purposes of increased portability, this iteration of the Mic Mechanic accepts four AA batteries. - TC-Helicon reverbs, delays, and pitch correction
- Adaptive Tone "sweetens" overall vocal quality
- Eight reverb and echo presets
- Separate reverb (room, studio, hall) and delay (tap and slap), with combinations of both
- Footswitch tapping for matching echoes to song tempo
- Tone button for adaptive EQ, compression, de-essing and gating
- Auto chromatic pitch correction
- Easy connection between standard microphone and mixer
- Low noise microphone pre-amp with phantom power always available
- Mic Control allows remote harmony on/off using switches on the optional Sennheiser e 835 fx or TC-Helicon MP-75 microphones
- Rugged all-metal construction
- Accepts four AA batteries for greater portability
- USB connection to free VoiceSupport application for easy firmware updates, product-specific news, and more
In the Box TC-Helicon Mic Mechanic 2 Vocal Toolbox Pedal USB Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC-Helicon Mic Mechanic 2 Vocal Toolbox Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC-Helicon 996014001 Specs | Controls | 8 Reverb and Echo presets
Dry/wet mix
Correction amount
Adaptive Tone on/off
Mic Control on/off
Microphone input gain level
Footswitch on/off | | Analog Input | 1 x XLR Microphone, balanced
Input Impedance: 3.4 / 1.7 kOhms
Microphone Input Clip Sensitivity: -1 dBu
Phantom Power: 24 V (always on) | | Analog Output | 1 x XLR
Output Impedance (balanced/unbalanced): 200/100 Ohms
Output Full Scale: +7.5 dBu
Frequency Response: 20 Hz to 20 kHz, +0/-0.3 dB | | Construction | Two-part die-cast metal
Rubberized base | | Environmental | Operating Temperature: 32 to 122°F / 0 to 50°C
Storage Temperature: -22 to 167°F / -30 to 70°C
Humidity: Maximum 90% non-condensing | | Safety | EMC: Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B
Safety: Certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA | | Power Supply | 12 VDC
5.6 W power consumption | | Battery | 4 x AA batteries | | Dimensions (WxDxH) | 3.5 x 5.4 x 2.3" / 90 x 140 x 60 mm | | Weight | 0.9 lb / 0.4 kg | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 6.4 x 5.0 x 2.9" |
