User Manual for TC-Helicon Perform-VG - Vocal Processor for Acoustic Guitar Players Click to enlarge the picture
Contents of the user manual for the TC-Helicon Perform-VG - Vocal Processor for
- Product category: Vocal Processors TC-Helicon
- Brand: TC-Helicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC-Helicon Vocal Processors
 |
User manual for the TC-Helicon Perform-VG - Vocal Processor for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC-Helicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC-Helicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC-Helicon product will considerably shorten its lifespan!
|

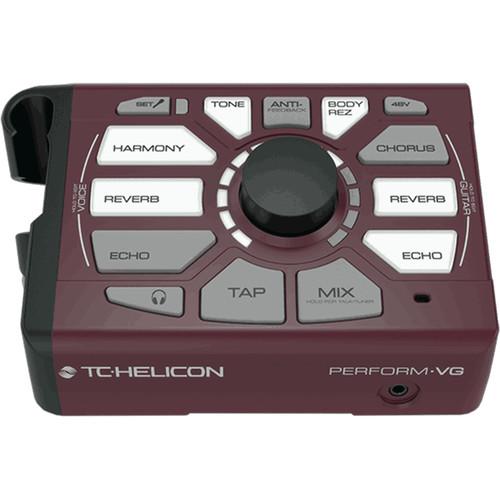

Product description The TC-Helicon Perform-VG is a compact vocal processor designed to provide multiple harmonies and versatile tone enhancement for singers who either play acoustic guitar or perform with an acoustic guitarist. It features real-time pitch correction and can create up to two harmony voices by tracking the chords played on your guitar. It offers XLR and 1/4" inputs and outputs, a low-noise microphone preamp, and selectable phantom power.Multiple vocal and guitar effects include reverb, echo, chorus, and more. The Adaptive Tone function applies compression, de-essing, and gating to your sound for simple and effective dynamics processing. Activate the Anti-Feedback option to prevent vibe-killing screeches of feedback. Adjust your levels and effects at any time via the large, easy-to-see, front-panel controls, or use optional footswitches and microphones to access effects.The Perform-VG can be positioned on the floor or mounted on a mic stand for improved convenience. - NaturalPlay technology tracks the chords you play on guitar and allows creation of up to two harmony voices
- Integrated auto-chromatic pitch correction
- Built-in reverb, echo, chorus, and more
- BodyRez algorithm delivers a fuller tone when using a pickup
- Anti-Feedback function protects you from unwanted mic squeals
- Adaptive Tone feature automatically adjusts compression, de-essing, and gating to suit your sound
- Low-noise mic preamp with selectable phantom power
- Hands-free control capabilities via footswitches and microphones (both available separately)
In the Box TC-Helicon Perform-VG - Vocal Processor for Acoustic Guitar Players Power Supply USB Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC-Helicon Perform-VG - Vocal Processor for Acoustic Guitar Players in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC-Helicon 996369005 Specs | Effects | Vocal Sounds: Tone, Harmony, Reverb, Echo, and Pitch Correction
Guitar Sounds: BodyRez, Chorus, Reverb, and Echo | | Controls | Central encoder knob with 4-color light ring
Mic input-gain setup
Adaptive tone on/off
Anti-feedback on/off
Pitch correction on/off switch and amount
48 V phantom power
Headphone output level
All effects on/off via Talk
Tap tempo
Mic Control via MP-75 or MP-76 (available separately)

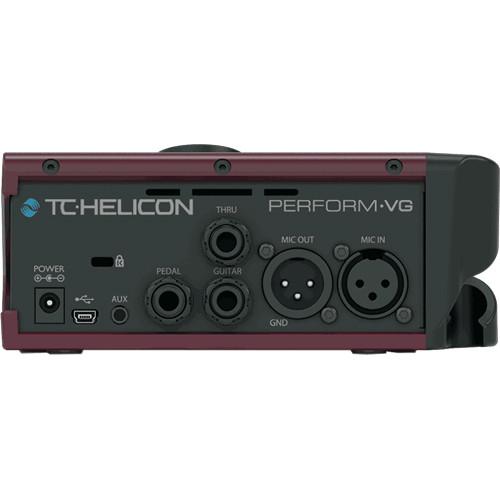

Footswitch control via Switch-3 and Switch-6 (available separately) | | Inputs | 1 x XLR 3-pin
1 x 1/4" TS
1 x 1/8" (3.5 mm) aux input | | Outputs | 1 x XLR 3-pin
1 x 1/4" TS
1 x 1/8" (3.5 mm) stereo mini-jack | | Impedance | XLR Input: 2.8 kOhms balanced, 1.4 kOhms unbalanced
1/4" Input: 20 kOhms
Outputs: 66 Ohms balanced, 33 Ohms unbalanced | | Maximum Input Levels | XLR: -28 to +2.8 dBu
1/4": +2.5 dBu | | Output Level | -1.5 dBu (0 dBFS) | | Equivalent Input Noise | -128 dBu A-weighted (maximum gain, 150 Ohms source) | | Dynamic Range | >109 dB (20 Hz to 20 kHz) | | Frequency Response | 20 Hz to 20 kHz (+0.5 dB) | | Signal to Noise Ratio | XLR Input: 115 dB A-weighted
1/4" Input: 102 dB A-weighted
Outputs: 115 dB A-weighted | | A/D and D/A Conversion | 24-bit
128x oversampling | | Other Connections | USB Type-B (preset management and firmware updates)
1/4″ TRS pedal input
Mic Control using optional TC-Helicon MP-75 and MP-76 microphones or optional Sennheiser e 835 FX mic | | Power Requirement | External Power Supply: 12 VDC, 1 A maximum output
Voltage Input: 100 to 240 VAC, 50/60 Hz (auto-select) | | Power Consumption | <14 W | | Construction | ABS plastic body
Soft-touch elastomer backlit buttons
Punch-cut metal connection panel
Rubberized footings
Built-in, mic-stand grip | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -22 to 167°F / -30 to 70°C | | Humidity (Non-Condensing) | Max. 90% | | Certification and Compliance | EMC: Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class-B, CISPR 22, Class-B
Safety: Certified to IEC 65, EN 60065, UL6500, and CSA IEC 65, EN 60065, UL6500, and CSA | | Dimensions (H x W x D) | 3.6 x 6.6 x 6.7" / 92 x 167 x 170 mm | | Weight | 0.93 lb / 0.48 kg | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 7.0 x 6.9 x 3.7" |
