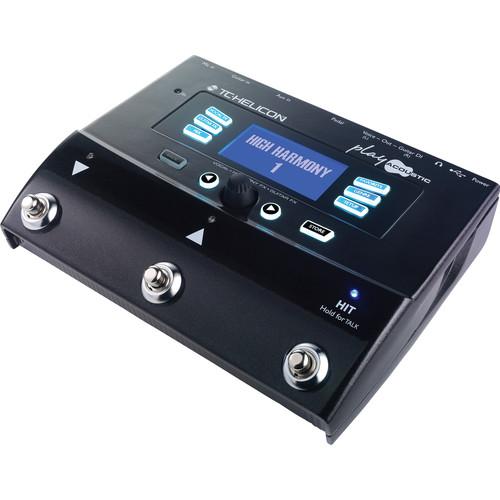

Product description The Play Acoustic from TC-Helicon is a vocal and acoustic guitar effect processor pedal that features dedicated presets geared towards the modern singer-songwriter. The pedal allows you to connect your mic and your guitar at once, and is designed to offer a useful combination of tools for live acoustic performance such as multi-FX, pitch correction, and feedback control.
The Play Acoustic offers high-quality vocal effects that can be used in a live or practice setting. These effects include tone controls, vocal harmony, HardTune, reverb, double, delay, μMod, and more. On the guitar side, the unit comes with effect styles from TC Electronic's popular Reverb and Corona Chorus pedals. It features BodyRez EQ and compression styles optimized for under-saddle piezo pickup acoustic guitars, and also has a narrow notch filter that can be kicked in to tame acoustic guitar feedback. - Features:
-
- Complete vocal path including Tone, Harmony, HardTune, Reverb, Double, Delay, μMod (chorus/flange, etc.), and Transducer (megaphone/distortion FX)
- Global Adaptive EQ, Compression, De-ess, Gate & Pitch Correction
- Note-perfect Vocal Harmonies using Auto Chord Detection from guitar input
- 2 Voices of NaturalPlay Harmony, plus 2 voices of humanized Doubling
- TC Electronic guitar FX with styles from Hall of Fame Reverb and Corona Chorus

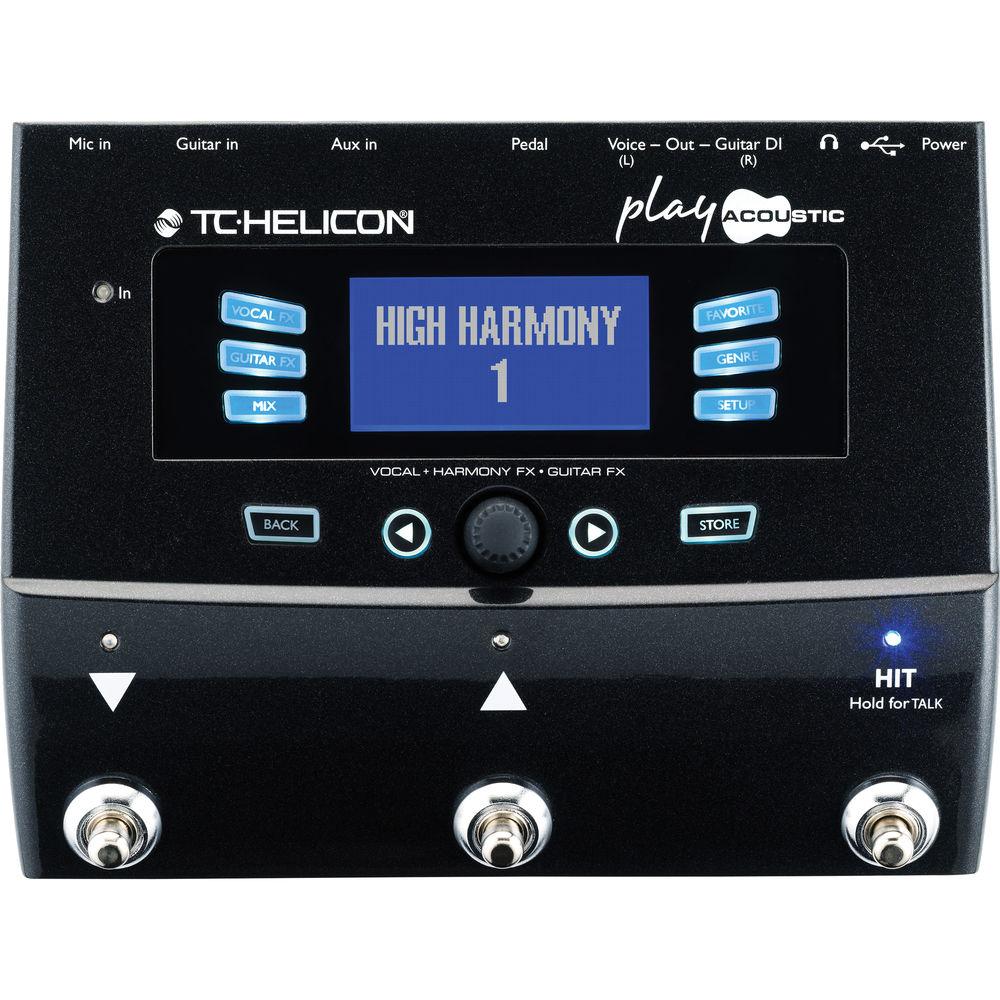

- Dedicated Guitar and Vocal FX access/edit buttons
- BodyRez EQ, compression styles optimized for under-saddle piezo pickup acoustic guitars
- Narrow notch filter to tame acoustic guitar feedback
- Low and high shelving plus fully parametric guitar EQ controls
- Separate vocal and pro-quality guitar DI outputs or stereo mix

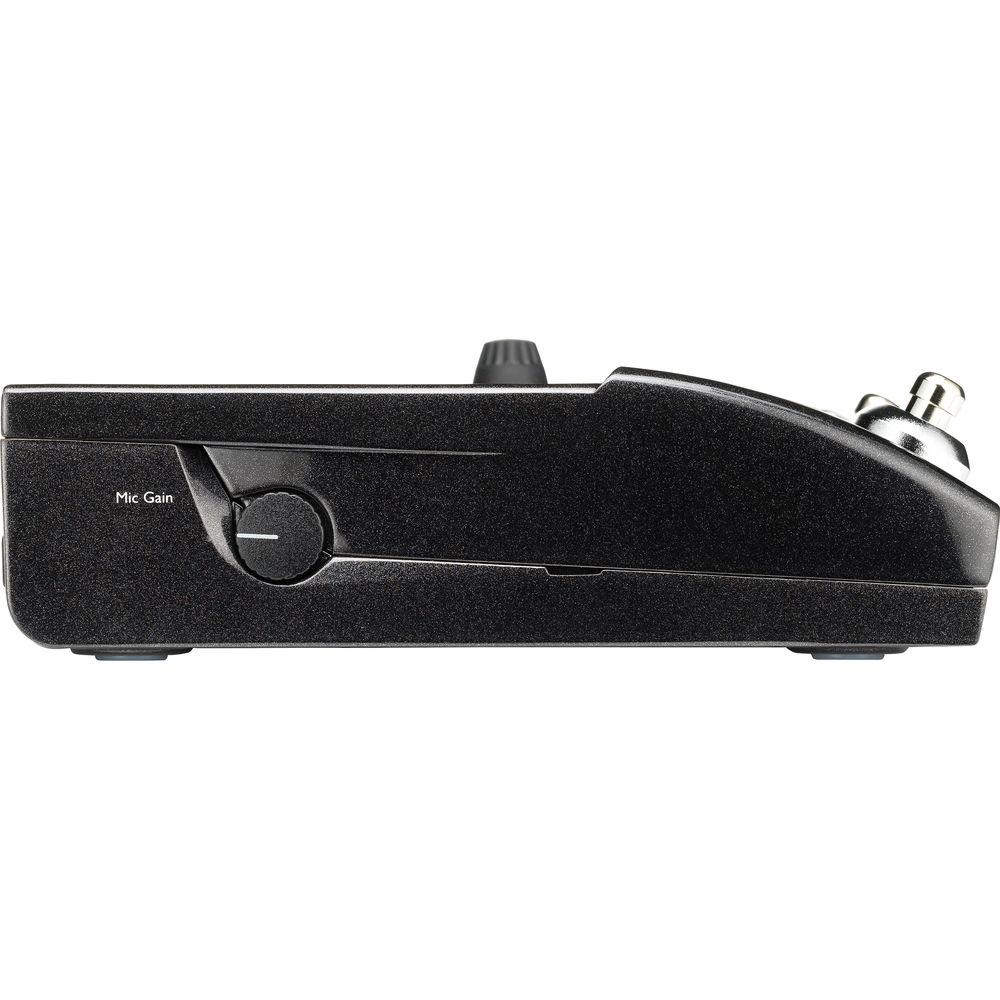

- Low-noise Mic preamp
- VLOOP performance looper for vocal and/or guitar with undo and redo
- Loop time: Stereo: 15 seconds with Undo (30 seconds without), Mono: 30 seconds with Undo (60 seconds without)
- Simple effects customization with styles and icons
- RoomSense microphones for monitoring and practicing
- Key/Scale harmony mode for setting specific song keys via the footswitches
- Plug in and practice with your mobile device via AUX or stream tracks and record over USB including a Vocal Cancel function
- Navigate factory presets by Genre and mark Favorites
- USB for audio streaming and connection to VoiceSupport, our free app for firmware updates, preset management, and tips & tricks
- Compatible with the MP-75 Modern Performance Vocal Microphone and Sennheiser e 835 fx microphone with Mic Control
- Optional Switch-3 for additional performance control
- Headphone output
In the Box TC-Helicon Play Acoustic - Vocal and Acoustic Guitar Effect Processor Pedal Region Specific Power Supply USB Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC-Helicon Play Acoustic - Vocal and Acoustic Guitar Effect Processor Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

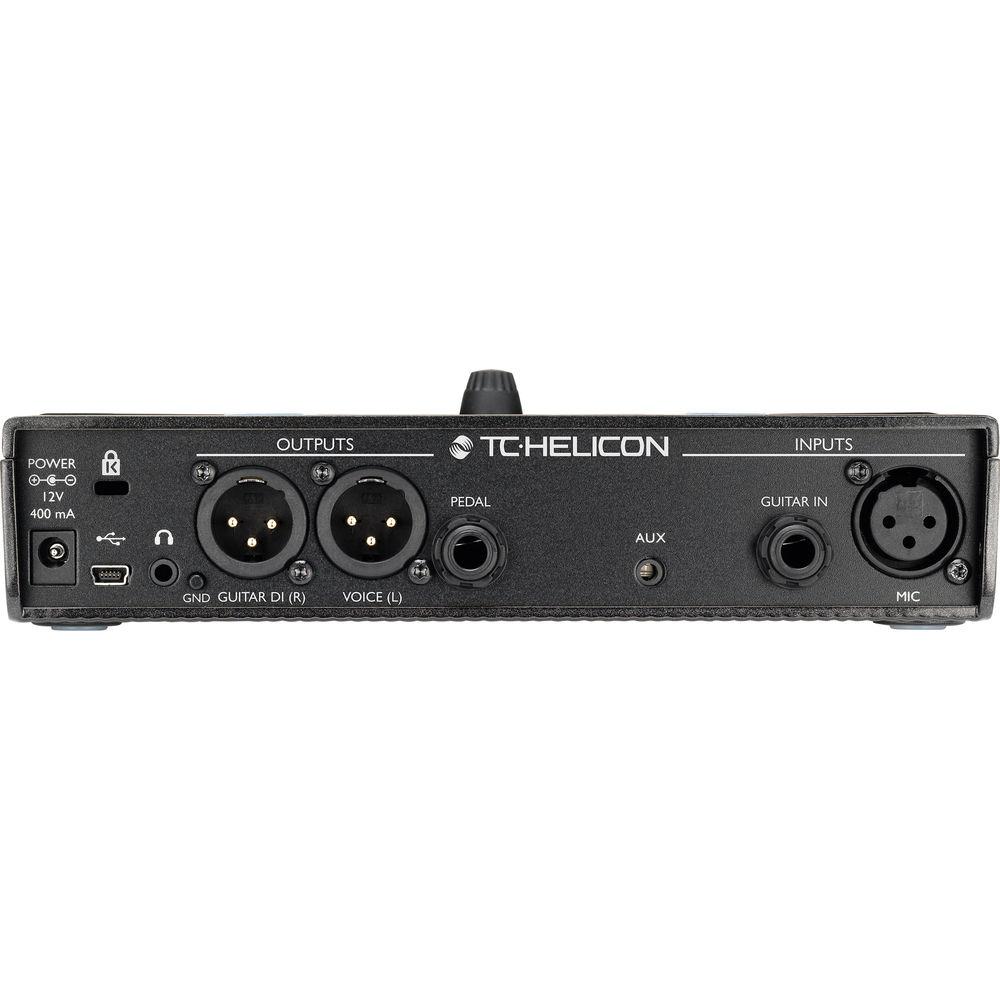

Technical parametersTC-Helicon 996364005 Specs | | | Connectors | Balanced: XLR
Guitar: 1/4" TS
Aux: 1/8" stereo mini jack | | Impedance | 2.14/1.07 kOhm, balanced/unbalanced
1 MOhm, guitar | | Input Level | -42 to +13 dBu @ 0 dBFS, mic
12 dBu @ 0 dBFS, guitar | | EIN | Rg = 150 Ohm: -127 dBu | | SNR | > 104 dB, mic
115 dB, guitar | | Phantom Power | +48 V (on/off via Setup menu) | | Aux Input Level | +2 dBu @ 0 dBFS | | AD Conversion | 24-bit, 128 x oversampling bitstream, 110 dB SNR A-weighted | | | | DA Conversion | 24-bit, 128 x oversampling bitstream, 115 dB SNR A-weighted | | Connectors | Balanced: XLR | | Output Impedance | 80/40 Ohm, balanced/unbalanced | | Output Level | +2 dBu @ 0 dBFS, XLR | | Dynamic Range | > 109 dB, 20 Hz to 20 kHz | | Frequency Response | +0.30/-0 dB, 20 Hz to 20 kHz | | | | USB | USB-B (preset management, firmware updates, MIDI and audio I/O) | | Pedals | 1/4" TRS phone jack | | Other | Mic Control using TC-Helicon MP-75 Microphone or Sennheiser e 835 fx mic | | | | External Power Supply | 100 to 240 VAC, 50 to 60 Hz (auto-select), mains voltage input | | Max Output | 12 V DC 0.4 A | | Power Consumption | < 14 W | | | | EMC | Complies with: EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B | | Safety Compliance | IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA | | | | Operating Temperature | 32 to 122°F (0; to 50°C) | | Storage Temperature | -22 to 167°F (-30 to 70°C) | | Humidity | Max 90% non-condensing | | | | Size | 1.8 x 7.9 x 6.1" (45 x 200 x 156 mm) | | Weight | 2.2 lb (1 kg) | | | | Package Weight | 2.925 lb | | Box Dimensions (LxWxH) | 10.9 x 7.7 x 3.45" |
