TC-Helicon Talkbox Synth Pedal for Singers

Search your instruction manual in PDF to download

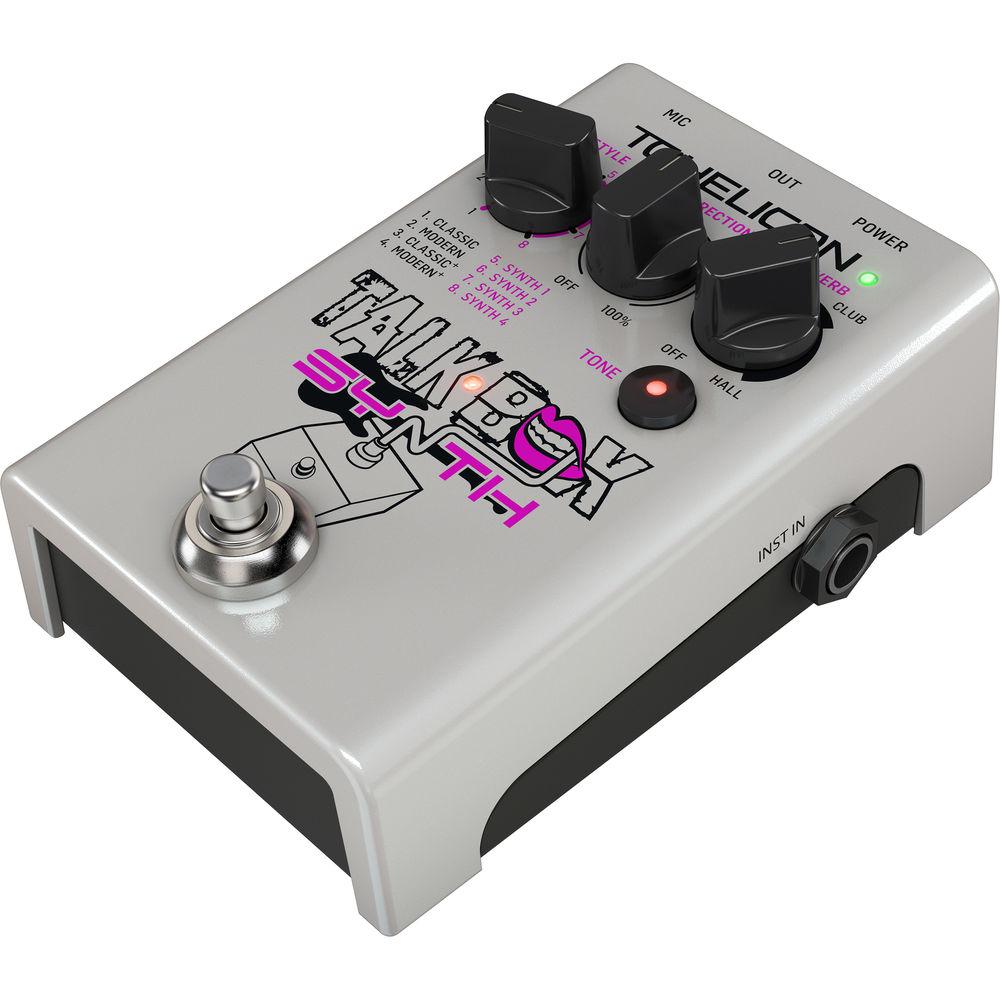

User Manual for TC-Helicon Talkbox Synth Pedal for Singers Electric Guitarists

Click to enlarge the picture
TC-Helicon Talkbox Synth Pedal for Singers Electric Guitarists Contents of the user manual for the TC-Helicon Talkbox Synth Pedal for Singers
  • Product category: Effects Pedals TC-Helicon
  • Brand: TC-Helicon
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for TC-Helicon Effects Pedals

TC-Helicon Talkbox Synth Pedal for Singers Electric Guitarists TC-Helicon Talkbox Synth Pedal for Singers Electric Guitarists TC-Helicon Talkbox Synth Pedal for Singers Electric Guitarists
User manual for the TC-Helicon Talkbox Synth Pedal for Singers contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any TC-Helicon product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official TC-Helicon user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a TC-Helicon product will considerably shorten its lifespan!



Product description

The Talkbox Synth from TC Helicon gives you the sound of a traditional talkbox in a convenient pedal format without the hassle of other talkbox methods. It also provides other effects, which will be discussed shortly. First, a word on its I/O. Simply plug your microphone into the pedal and route the output to the house mixer. Then, hook your guitar into the output and follow the rest of your pedalboard setup as you would normally. The pedal’s 1/4" instrument output is essentially a thru-put. When you instantiate the talkbox with the footswitch or sing or talk into the mic in whatever manner you’d like, the tones of the Talkbox Synth will sound throughout the PA.A Style knob offers you a selection of sounds, including your classic tube-in-the-mouth talkbox, a vocoder emulation, and four distinct waveforms for creating exciting and versatile synth tones. In all modes, you trigger tone from your guitar, and dictate the syllables with your microphone, as you would with a classic talkbox. This one just happens to be tube-free, which—if you’ve ever used a traditional talkbox—is definitely a plus.In addition to talkbox topography, the pedal provides vocal amenities featured in other TC Helicon stompboxes, such as an adaptive tone button, which automatically adjust EQ, compression, de-essing, and gating for a consistent vocal sound, as well as three reverb settings (room, hall, and club). Automatic pitch correction is on hand to nudge errant notes up or down to the nearest semi-tone, doing it in a natural way. The Critical Mass pedal can be powered with four AA batteries, or by a separately available power supply. It provides 24V of phantom power to your microphone, should such power be needed.
    Key Features at a Glance
    • Modern and classic talk box styles
    • 4 synth styles
    • Talk box effects with or without guitar thru
    • Reverb (room, club, hall)
    • Tone button for adaptive EQ, compression, de-essing and gating
    • Battery operation (batteries optional)
    • Auto-chromatic pitch correction
    • Easy connection between standard mic and mixer
    • Phantom power always available
    • Low-noise microphone preamp
    • Automatic input gain: no more setting and adjusting input gain
    • Mic Control for remote on/off switching with optional TC-Helicon MP-75, MP-76 (main button only) and Sennheiser e835 FX mics
    • Rugged all-metal construction
    • USB connection to VoiceSupport application offering updates, product-specific news, and more
    • 9V operation to accommodate common pedalboard power supplies
In the Box TC-Helicon Talkbox Synth Pedal for Singers / Electric Guitarists
  • Limited 10-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the TC-Helicon Talkbox Synth Pedal for Singers Electric Guitarists in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    TC-Helicon Talkbox Synth Specs

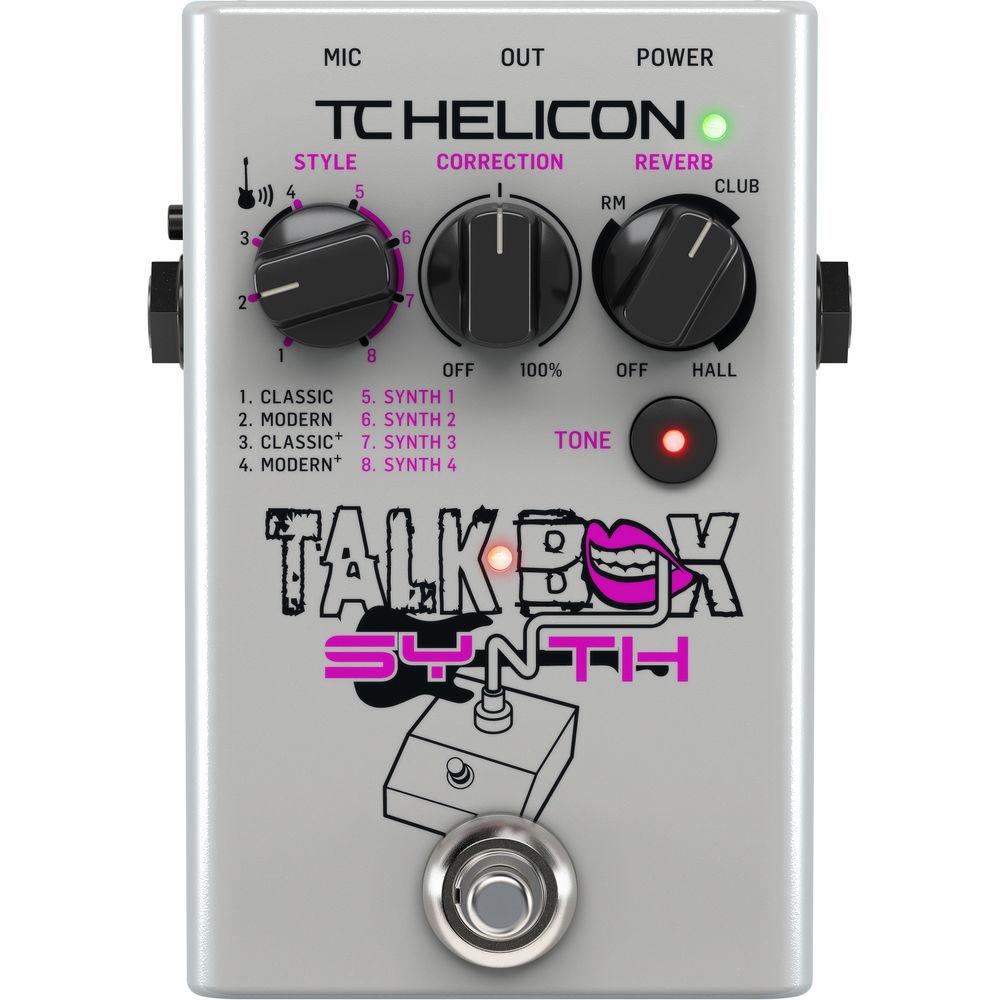

    Controls Style knob
    Mix knob
    Reverb knob
    Tone button
    Bypass/Engage Footswitch
    Construction 2-part die-cast metal, rubber adhesive feet

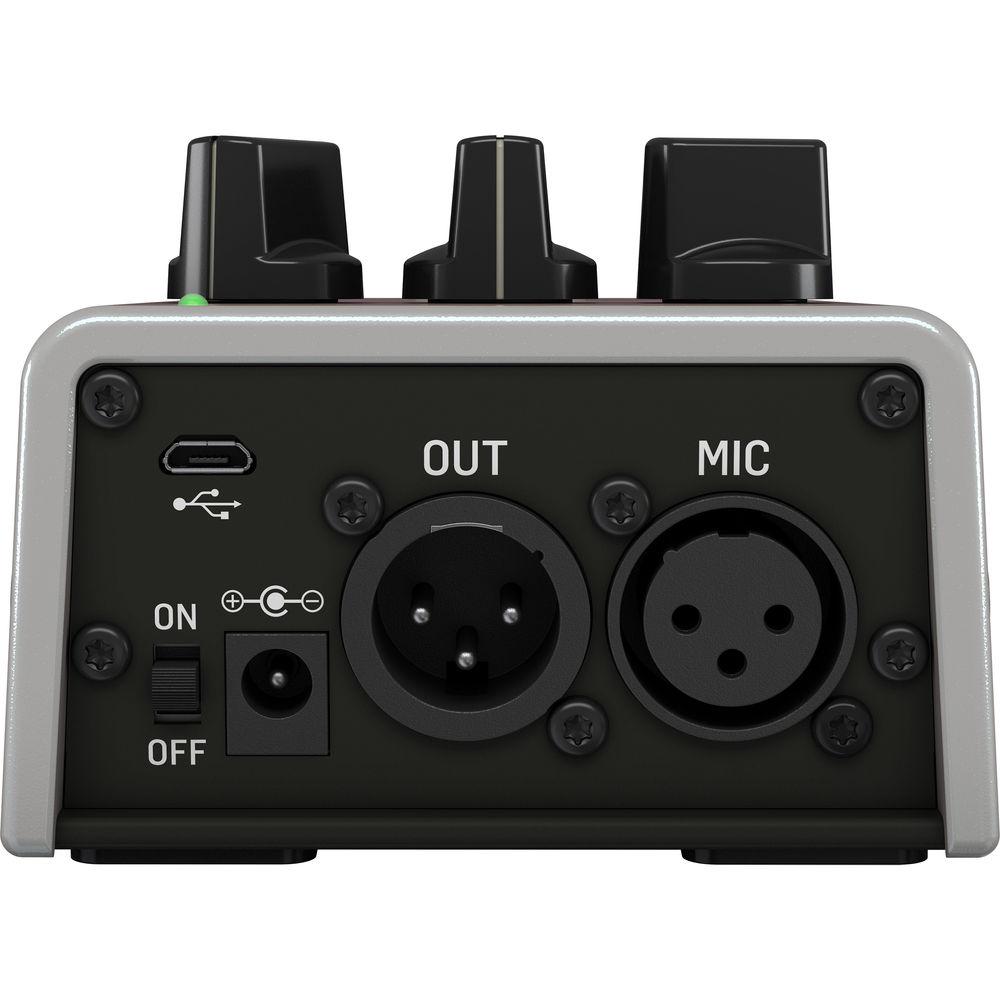

    I/O 1 x XLR input
    1 x 1/4" instrument input, phone type
    1 x XLR output, impedance balanced
    1 x 1/4" output, phone type
    Impedance Input: 3.1 kOhms
    Output: 200 Ohms
    Input Clip Sensitivity -1 dBu
    Input Level Guitar Input at 0 dBFS: -7 dBu to 17 dBu
    Dynamic Range Dynamic Range: >117 dB, 20 Hz to 20 kHz
    Output Level (Full Scale) +7.5 dBu
    Signal to Noise Ratio >114 dB (A-weighted)
    Frequency Response 20 Hz to 20 kHz, input to output, +0 / -0.3 dB
    Power Consumption 6 W
    Power Supply 9 V, 300 mA (available separately)
    EMC Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B
    Safety Certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA
    Operating Temperature 32 to 122°F / 0 to 50°C
    Storage Temperature -22 to 167°F / -30 to 70°C
    Humidity (Non-Condensing) Max 90%
    Dimensions (H x W x D) 5.4 x 3.5 x 2.3" / 140 x 90 x 60 mm
    Weight 0.9 lb / 0.4 kg
