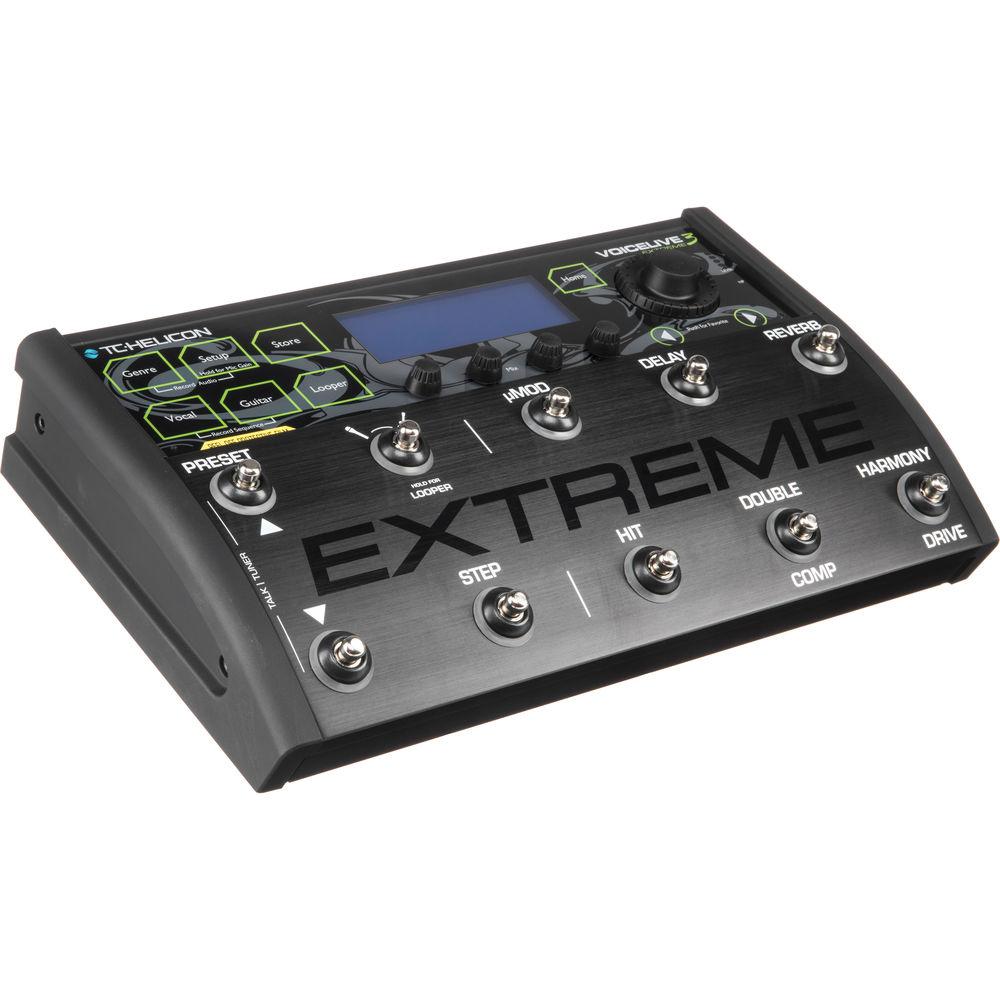

User Manual for TC-Helicon VoiceLive 3 Extreme Guitar Vocal Effects Processor and Looper with FX Automation Click to enlarge the picture
Contents of the user manual for the TC-Helicon VoiceLive 3 Extreme Guitar Vocal
- Product category: Vocal Processors TC-Helicon
- Brand: TC-Helicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC-Helicon Vocal Processors
 |
User manual for the TC-Helicon VoiceLive 3 Extreme Guitar Vocal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC-Helicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC-Helicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC-Helicon product will considerably shorten its lifespan!
|
Product description The TC-Helicon VoiceLive Extreme 3 Guitar/Vocal Effects Processor and Looper is designed for live performance and recording applications, providing extensive vocal effects, guitar stompbox effects, and over 180 minutes of phrase looping in a durable extruded-aluminum footpedal chassis. The unit offers 11 independent effect blocks, over 180 different styles, and over 250 factory presets. It also provides storage for up to 500 presets and the option to download additional presets online for free. Once you've tooled around with it, you'll find it a very powerful resource—more than enough to enliven a set of solo singer/songwriter material; and that's just one of its many uses. On the vocal side, the pedal can be used to correct pitch, adjust tone, gate, compress, EQ, add reverb, and add harmonies. Three different harmony modes allow you to control the specifics of harmonization. Moreover, harmonies can be generated based on a variety input signals, such as built-in room microphones, a 1/4" input jack, a stereo 3.5mm input jack, a 5-pin DIN MIDI connection, and more. This allows you to create realistic three-part harmonies as determined by the chords you're playing on a guitar, a piano, backup track, or a MIDI instrument; it also allows for a degree of improvisation and exploratory meandering in musical motifs.
For guitar, the unit includes extensive stompbox effects including delay, reverb, chorus, talk box, chopper, bass wah, and drive effects. The unit also includes a wide range of amplifier emulations, from vintage British to classic American amps. These amplifier simulations can be tweaked in depth via the UI.The pedal can also be used to loop both guitar and vocal phrases with quantization to a metronome, infinite overdubs, recallable presets, and up to 45 minutes of non-volatile memory. It offers three-phrase looping, allowing you to build different sections of a song as you go along—particularly useful if you'd like to alternate between verses, choruses, and bridges in your live music. With the three-phrase looper, you can play such songs while building up the arrangement as the song progresses.You'll also find the VoiceLive 3 Extreme's backing-track import quite useful, as it will let you automate effects ahead of time for over 100 pre-programmed tracks. With this feature, you won't need to tap dance about the stage to stomp on your distortion/phaser/reverb pedals at the same time—the pedal will transition to the proper effect automatically, for both guitar and vocals. The pedal features dedicated stereo vocal and separate stereo guitar amplifier outputs for connecting to a PA and guitar amplifier respectively. A specially designed guitar and headphone cable allows for connection to an in-ear monitoring system and enables practice without the need for an external amplifier. Features of the Extreme - Preprogrammed FX Automation
- Have you ever stumbled over the three different pedals you need to press simultaneously to get the desired effect for the chorus? That won't happen with this feature, which allows you to prepare every FX change, harmonic shift, and loop ahead of time, thus allowing you to connect with your audience more. This feature is available for more than 100 songs.
- Record to USB
- An on-board audio recorder allows you to your performances in 24-bit quality. Record every live performance and every practicing session straight to a USB stick.
- 180 Minutes of Looping
- Whereas the VoiceLive 3 gives you 45 minutes, the Extreme version gives you over 180 minutes of looping. That's 4x the looping (the "x" is for "extreme").
Vocal Effects & Three Harmony Modes - Fixed-Harmony Mode
- Sings the desired note regardless of the chord
- Pedal-Harmony Mode
- Sings an interval from each chord
- Mixed-Harmony Mode
- Blends fixed, pedal, natural-play, scale, and shift harmonies
- Improved Harmony Hold
- Holds harmonies with greater accuracy
- Improved Portamento
- Humanizes voices to make harmony sound more realistic
- Improved Shifter Range
- Allows ±3 octave shifts
- Various Vocal Effects
- Includes µMod, echo & delay, reverb, harmony, double, transducer, rhythmic, hardtune & correction, choir, stutter, vocoder, and adaptive tone
Guitar, Synthesis, More - Guitar Effects
- Includes amp modeling, drive, delay, reverb, compression, resonant filter, µMod (flange, chorus, de-tune), shifter, rhythmic/tremolo, talkbox (part of vocoder)
- 3iC Power Platform
- Utilizes three independent cores to doubles the processing power of the previous model, the VoiceLive 2
- Polyphonic Vocal Synth and Vocoder
- Enables voice-controlled synthesizer with on-board waveforms and vocoder sounds such as robot and guitar talkbox
- RoomSense Microphones
- Control harmony from room sound such as a live band and add ambience to monitor mix
- Improved Hard-Tune Functionality
- Enables more or less noticeable degrees of tune correction and features separate buttons for control over hard-tune and transducer transitions
- Improved Doubling
- Provides more accurate and better sound quality when doubling
- Half-Note Delay Divisions
- Allows choice of delay divisions
- Hit Button
- Turns on/off multiple vocal and guitar effects
- EQ
- Expands EQ range and precision for voice and instrument
- Multiple Guitar-Output Paths
- Allows the user to specify the output sends for guitar/instrument signal
Looping & Loop Storage - 3-Phrase Loops
- Allows song-building through looping with three independent phrases
- LoopAssist
- Helps user timing when pressing loop button for seamless looping
- Loop Storage
- Saves loops in up to 10 independent loop sessions with all performances settings and up to three loop tracks per session for a total of 30 total loop tracks and over 180 minutes of non-volatile loop storage
- Separate Output for Voice and Guitar Looping
- Sends vocal loops to stereo/mono XLR outputs and guitar to stereo/mono TRS with loop level controls
- Additional Metronome Sounds
- Provides kick drum, stick, shaker, tambourine, and cowbell samples for metronome
More - Remappable Buttons
- Allows for customization of the 6 footswitch functions
- Backup to USB
- Enables saving presets to USB memory stick for future recall
- All Mute
- Silences vocals and guitar for breaks
- 4-Channel Stereo Out (Guitar + Vocal)
- Enables recording stereo vocals and guitar separately
- Automatic Gain Control
- Automatically adjusts gain level when user sings at loudest level
- Remote Microphone Control
- Enables control of vocal effects using the TC-Helicon MP-76 or Sennheiser e835 fx microphones
- Input Sensing (Aux/Mon)
- Automatically sets the correct level based on the source plugged into the input
- Output Sensing (Guitar)
- Automatically removes guitar signal from XLR outputs when plugging in guitar out
- Programmable Hit Button
- Turns on multiple effects at the same time, layers effects, and creates quick A/B scenes for each preset
- Presets with FX Chains
- Creates CHAINS of up to 10 effect changes for each preset
- Independent Headphone Mix
- Provides input for a headphone monitor mix and pass-through to other monitors
- Included Guitar and Headphone Cable for IEM's
- Combines guitar and headphone cables into one cable for easy setup
- Capacitive-Touch Buttons
- Provides easy touch interface for main menu buttons
- Multi-Color Footswitch LEDs
- Provides visual feedback of what effect or control is being accessed
- Power-Cable Strain Relief
- Prevents power cable from being pulled out during a show
- Kensington Lock
- Allows unit to be securely locked
In the Box TC-Helicon VoiceLive 3 Extreme Guitar/Vocal Effects Processor and Looper with FX Automation Power Supply USB Cable Guitar/Headphone Combo Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC-Helicon VoiceLive 3 Extreme Guitar Vocal Effects Processor and Looper with FX Automation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC-Helicon 996354105 Specs | Control | 250 factory presets
Memory for 500 presets
10 steps per preset
10 footswitches
USB;
6 preset-assignable footswitches for enabling/disabling FX blocks
Detailed editing
Genre and Styles preset categories
USB: USB Type-A, USB Mini-B
MIDI: In/Out: 5-Pin DIN
Pedal: 1/4" TRS phone jack
Mic Control using TC-Helicon MP-76 Microphone or Sennheiser e835 fx mic | | Indicator Lights | 192 x 64 Blue STN LCD, White Backlight display
Tri-colored Footswitch Light ring
Capacitive-touch edit controls with LED indicators | | Construction | Anodized extruded-aluminum and steel chassis with rubberized edit/mix knobs | | | | Connector | Vocal: combo balanced XLR/balanced TRS 1/4" (6.3 mm) phone jack
Guitar | | Input Impedance | Vocal: 3.08 kOhms
Guitar: 1 MOhm | | Mic Input Level | At 0 dBFS: -52 to +7 dBu | | Line Input Level | Voice at 0 dBFS: -40 to +19 dBu
Guitar at 0 dBFS: -2 to 14 dBu | | EIN | At max microphone gain range = 150 ohms: -127 dBu | | SNR | Vocal: > 100 dB at typical microphone input gain
Guitar: > 108 dB | | Phantom Power | +48 V (on/off via setup menu) | | A/D Conversion | Voice: 24-bit, 128 x oversampling bitstream, 110 dB SNR A-weighted
Guitar: 24-bit, 128 x oversampling bitstream, 110 dB SNR A-weighted | | | | Connector | Balanced XLR | | Input Impedance | 25 kOhms | | Input Level | At 0 dBFS: +16 dBu | | | | Connector | 1/8" (3.5 mm) stereo mini jack | | Input Level | At 0 dBFs: +2 dBu | | | | Connectors | Voice: balanced XLR
Guitar: 1/4" (6.3 mm) TRS phone jack
Guitar thru: 1/4" TRS (6.3 mm) phone connector
Headphone: 1/8" (3.5 mm) mini stereo jack
Monitor thru: balanced XLR | | Output Impedances | Voice balanced/unbalanced: 300/150 ohms
Guitar balanced/unbalanced: 442/221 ohms
Guitar thru: 1/4" (6.3 mm) TRS phone connector
Headphone: 50 Ohms | | Output Range | Voice 0 dBFS Line Level: +14 dBu
Mic level: -2 dBu
Guitar 0 dBFS line level: +14 dBu
Headphone: +14 dBu max | | Dynamic Range | Voice 20 Hz to 20 kHz: >109 dB
Guitar 20 Hz to 20 kHz: >101 dB | | D/A Conversion | Voice: 24-bit 128 x oversampling bitstream, 115 dB SNR A-weighted
Guitar: 24-bit 128 x oversampling bitstream, 106dB SNR A-weighted | | | | Power Requirements | 100 to 240 VAC, 50 to 60 Hz (auto-select) | | Power Consumption | < 14 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -22 to 167°F (-30 to 70°C) | | Humidity | Maximum 90% non-condensing | | Safety | EMC-complies with: EN 55103-1: 2009, EN 55103-2:2009, FCC CFR 47 Part 15B and ICES-003:2004 4th Ed
Safety-certified to: IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA | | Dimensions (H x W x D) | 3 x 13.8 x 8.5 (76 x 350 x 261 mm) | | Weight | 5.0 lb (2.3 kg) | | | | Package Weight | 8.1 lb | | Box Dimensions (LxWxH) | 20.3 x 10.8 x 5.9" |
