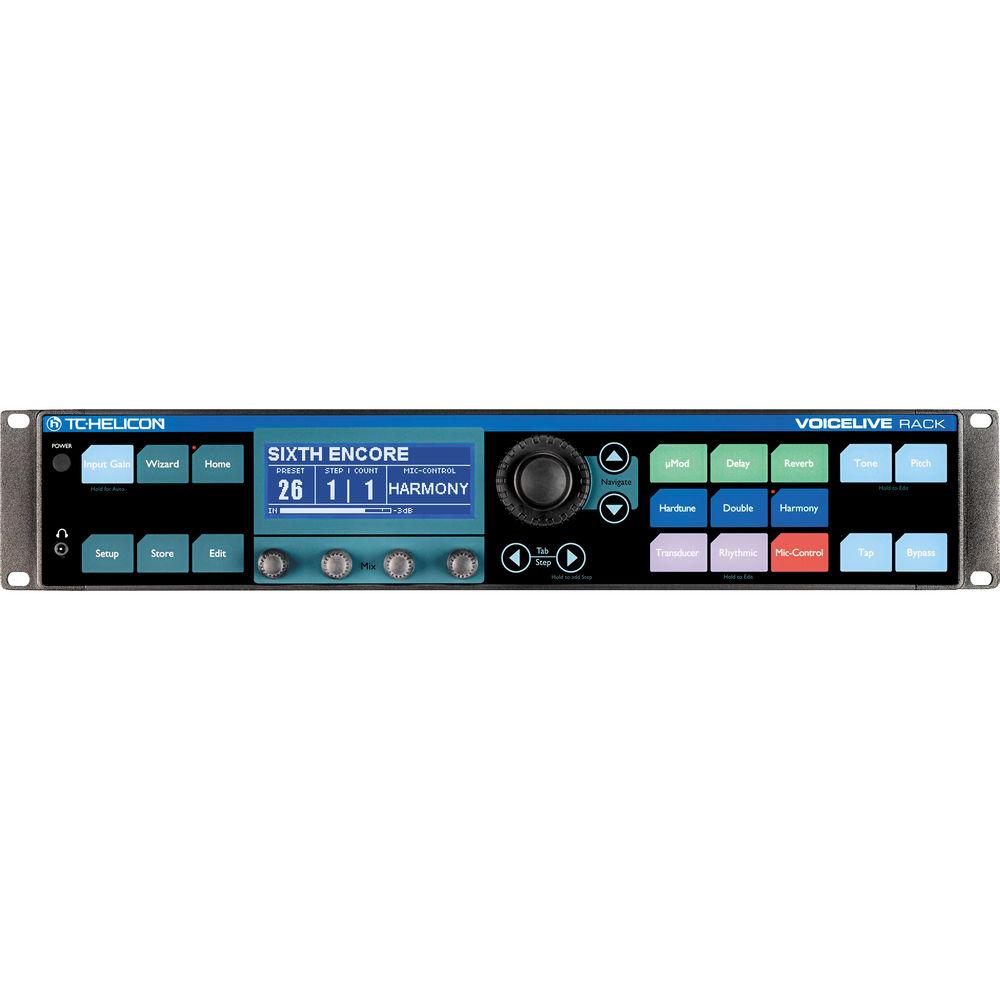

Product description The TC-Helicon VoiceLive Rack Processor is a 2RU rackmountable professional voice effects processor designed for both studio and live applications. The unit features effects such as μMod (chorus; flange & detune), tap delay, reverb, harmony, doubling, and transducer (distortion and radio voices). It also comes with a dynamic microphone designed specifically for live vocalists, the MP-75. The effects processing system can produce a wide range of vocal sounds from many different styles of music throughout recording history.

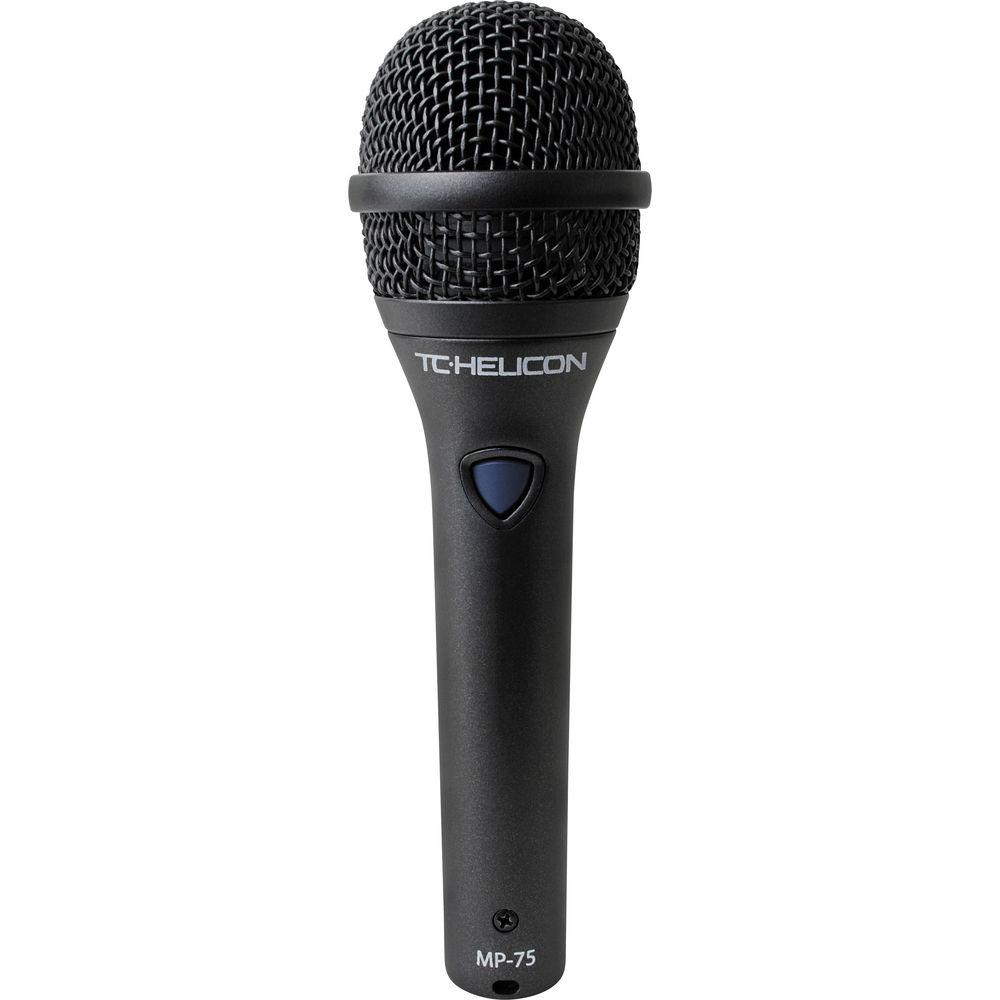

The voice processing signal chain starts with the included MP-75 dynamic microphone which features a neodymium magnet and significant off-axis rejection for close proximity feedback reduction and maximization of available levels on stage. The signal processor can adjust tone, pitch correction, equalization, compression, gating, and de-ess level to maintain dynamics under varying live conditions and help prevent the signal from becoming overly muddy in the bass. These adaptive processes can also be manually overridden by the user for customized control.
The effect rack can harmonize the key and scale of the vocal signal with an input signal from a 1/4" guitar input, an 1/8" auxiliary input from a mixing console, a mobile device playing a .WAV or MP3 file, a preset key/scale, or input from a MIDI keyboard. The MIDI keyboard control can handle up to eight voices or four doubled harmony intervals. The microphone also features a built-in thumb button that can be used to trigger the vocal processor's digital effects. Effect combinations can be saved to the unit's 400 user preset slots. Alternatively you can select from the unit's 200 factory presets. - Full Microphone Channel with Mic-Pre and Effects Processor
- Features digitally controlled mic-pre +48V phantom, 9 studio quality effects, and a host of core sound effects in real time. The effects include hardtune, uMod (chorus, flange, detune), tap delay, reverb, harmony, doubling, and transducer (distortion and radio voices). The core sound effects include EQ, compression, and gate
- Global Tone Produces Your Core Sound
- Utilizes adaptive gate to fight stage leakage between vocal phrases and a combination of EQ, compression, and de-essing to improve tone and minimize sound check time
- Hundreds of Factory and User Presets
- Ships with over 200 factory presets and includes 400 user preset slots
- NaturalPlay Auto-Sensing Harmony Sources
- Automatically detects and sets harmony according to input sources
- MP-75 Vocal Microphone
- Features off axis noise rejection, Lismer capsule design, feedback suppression, and dual shock mounts
- Up to 8 Voices or 4 Doubled Voices in Harmony
- Processes up to 8 voices in harmony or 4 doubled voices in harmony via MIDI keyboard, guitar, 1/8" auxiliary , 1/4" line, or 1/4" guitar level inputs
- Wizard for Choosing Presets
- Helps streamline the process of selecting presets according to defined criteria
- Touch Screen and Backlit LCD
- Uses front panel touch-button screen to control settings with 192 x 64 Blue LCD display which is easy to view in any lighting condition
- Editing and Performer Control With Mic Control and Footswitch
- Utilizes MP-75's mic control feature or a MIDI footswitch to control preset parameters, trigger an effect, or cycle through your presets all without taking your attention away from your audience
In the Box TC-Helicon VoiceLive Rack Processor (New) MP-75 Dynamic Performance Microphone Region Specific Power Supply USB Cable Voice Support Application CD Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC-Helicon VoiceLive Rack Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

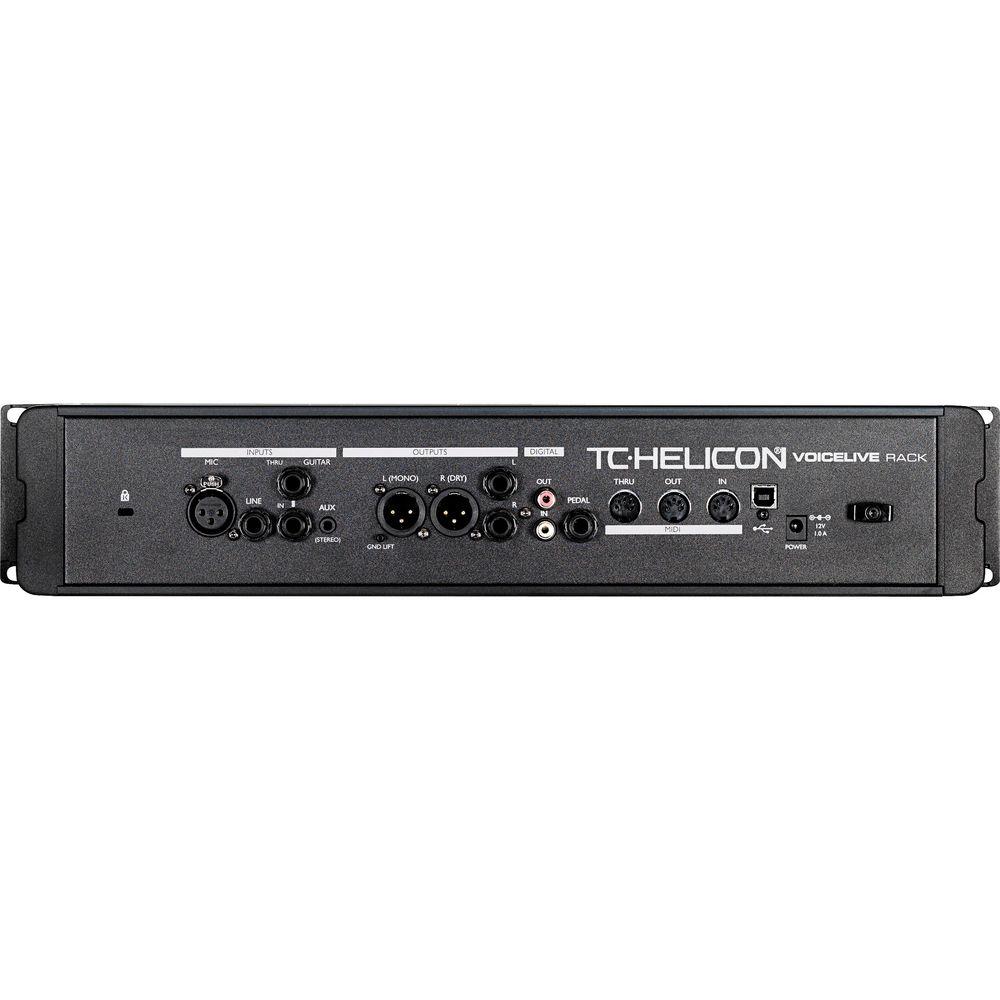

Technical parametersTC-Helicon VoiceLive Specs | Presets | 238 Factory Presets / 400 User Presets | | Interface | Touch Button Interface with 192 x 64 Backlit LCD | | Construction | Die-Cast metal and steel chassis with rubberized end caps and knobs | | Inputs (Analog) | Balanced Connectors: XLR Mic, 1/4" Line, 1/4" Guitar, 1/8" Aux
Impedance: Mic - 2.14/1.07 kOhm, Line - 13/6.5 kΩ
Mic Input Level at 0 dBFS: -49 to +10dBu
Line Input Level at -37 to +22 dBu: -37 dBu to +22 dBu
EIN at Max Mic Gain Rg = 150 Ω: -126 dBu
Mic/Line Input SNR: >107 dB
Guitar Input Impedance: 1 MΩ
Guitar Input Level @ 0 dBFS: 14 to -4 dBu
Guitar Input SNR: >104dB
Aux Input Level @ 0dBu: +2dBu
A to D Conversion: 24 bit, 128 x oversampling bitstream, 110 dB SNR A-weighted | | Outputs (Analog) | D to A Conversion: 24 bit, 128 x oversampling bitstream, 115 dB SNR A-weighted
Connectors, balanced: XLR and 1/4" phone jack
Output Impedance Balanced/ Unbalanced: 100/50 Ω
Output Range (Line/Mic Level): 16 dBu / 0dBu
Dynamic Range: > 109 dB, 20 Hz to 20 kHz
Frequency Response: +0/-0.3 dB, 20 Hz to 20 kHz
Headphone Out: 1/8" Mini stereo jack, 32 Ω, +16dBu max (180mW max) | | Digital Audio Connectors | Connectors: RCA Phono (SPDIF) and USB audio
Formats: SPDIF (24 bit), EIAJ CP-340, IEC 958, USB Audio
Sample Rates: 44.1, 48, 88.2, 96 kHz | | Controls | USB: USB-B
MIDI: In/Out/Thru: 5 Pin DIN
Pedal: 1/4" TRS phone jack for Switch-3 | | Power Supply | External Power Supply Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)
Power Consumption: < 14 W | | Safety | EMC - Complies with: EN 55103-1 and EN 55103-2, FCC part 15, Class B, CISPR 22, Class B
Safety - Certified to: IEC 65, EN 60065, UL6500 and CSA, IEC 65, EN 60065, UL6500 and CSA | | Operating Requirements | Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -22 to 167°F (-30 to 70°C)
Humidity: Max. 90 % non-condensing | | Dimensions (HxWxD) | Height: 3.5" (89 mm)
Width: 19" (483 mm)
Depth: 5.5" (140 mm) 3.50 x 19.0 x 5.50" (89.0 x 483 x 140 mm) | | Weight | 5.0 lb (2.3 kg) | | | | Package Weight | 8.2 lb | | Box Dimensions (LxWxH) | 24.6 x 8.1 x 6.2" |
