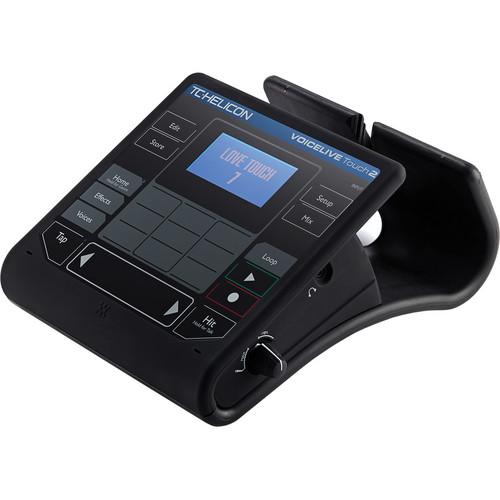

Product description The VoiceLive Touch 2 from TC-Helicon is a mic-stand mountable vocal effect processor pad that features a plethora of vocal effects, harmony and pitch correction and a 6-track looper. It is equipped with a touch pad matrix and a touch slider, allowing for control and modulation of effect parameters in real-time.
The VoiceLive Touch 2 offers studio-like vocal effects that can be used in a live or practice setting. These effects include compression, EQ, de-essing, stutter and chop effects, harmony, natural pitch correction, hard vocal tuning effects, reverbs, delays, doubling, and more.
The unit's phrase looper allows you to create 6-track compositions and apply effects to your loops including reverse, filter, slow speed, and more. The LoopAssist feature offers metronome and quantize to help ensure your loops are each locked in with the tempo. - Features:
-

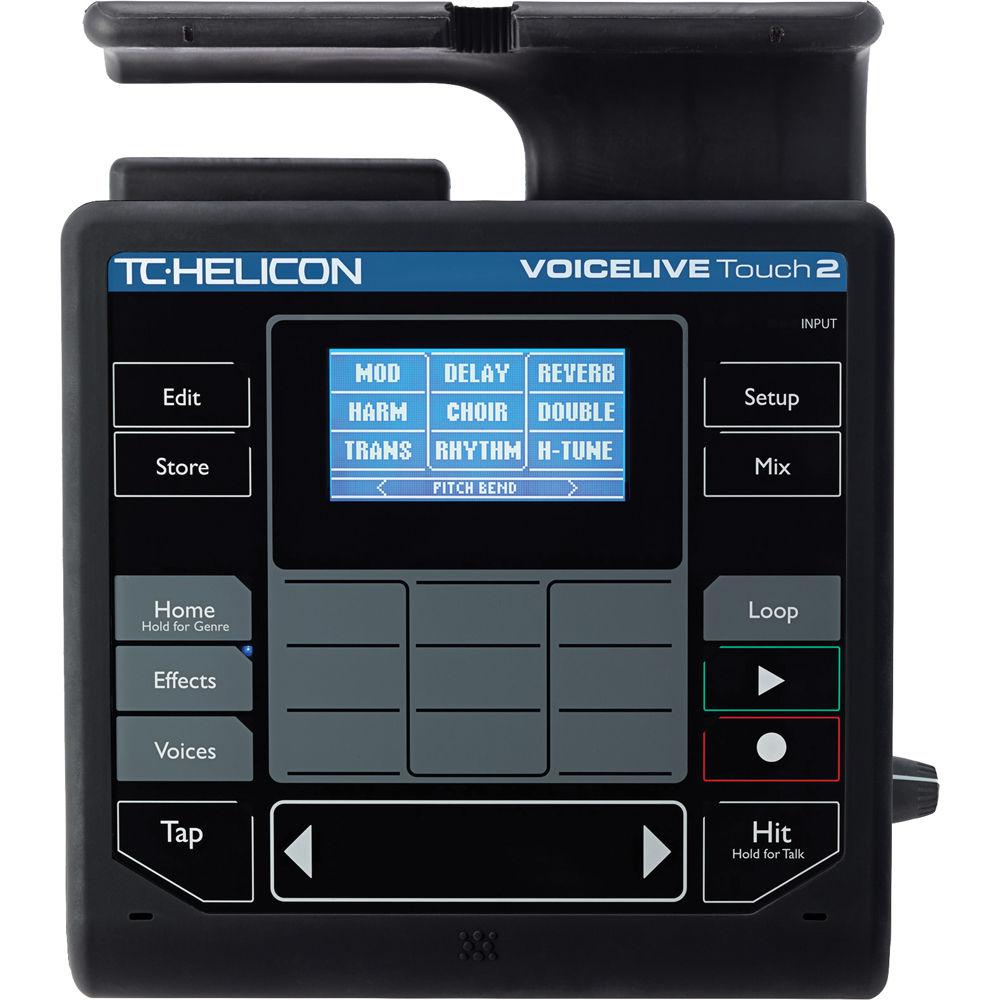

- 9-button Touch Matrix for hands-on editing and control
- Ultra-responsive Slider FX for hands-on experimentation
- Hit button switches multiple effects
- Dedicated tap tempo button matches Delay and Rhythmic effects timing to live beats
- Tone feature includes Adaptive EQ, Compression, Gating and De-essing
- Harmonies and pitch correction via Auto Key Detection
- Simple effects customization with styles and icons
- Library of song and artist presets
- Optional 3-button footswitch allows hands-free control
- Reverb, modulation effects and tuner for guitar input

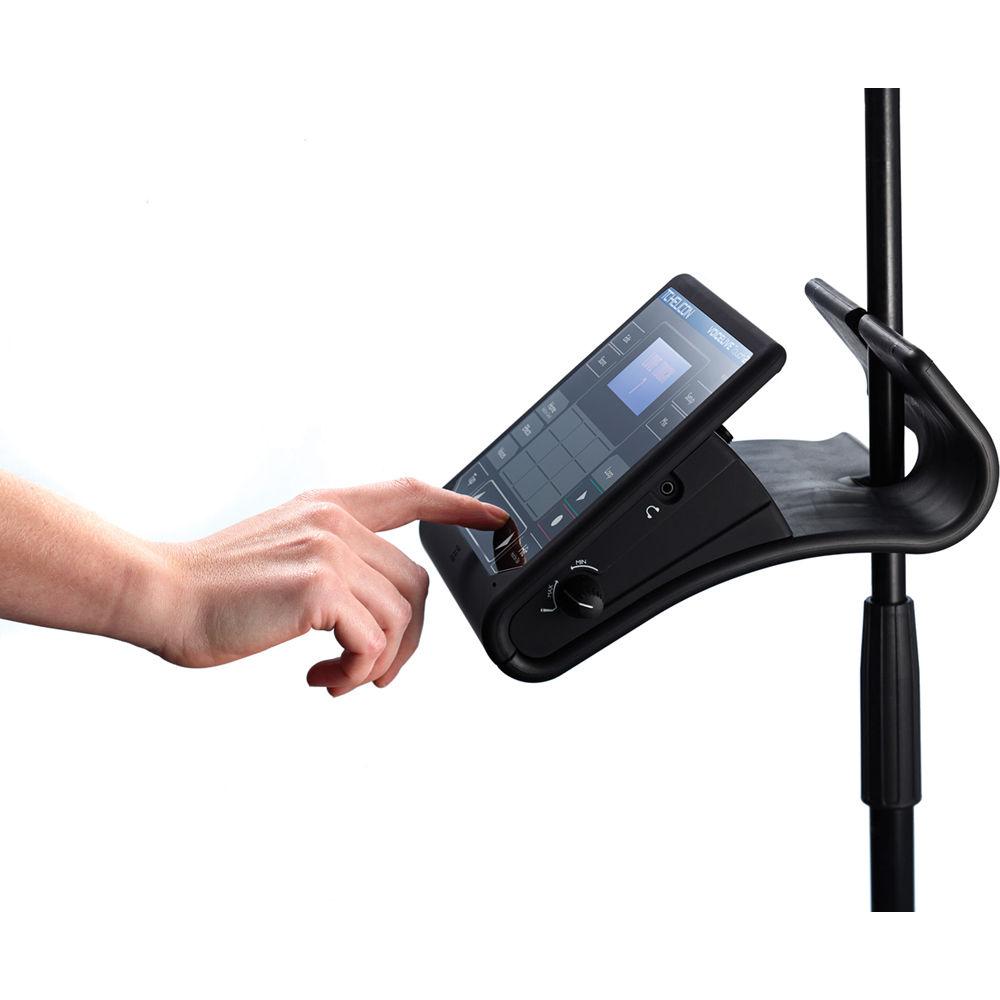

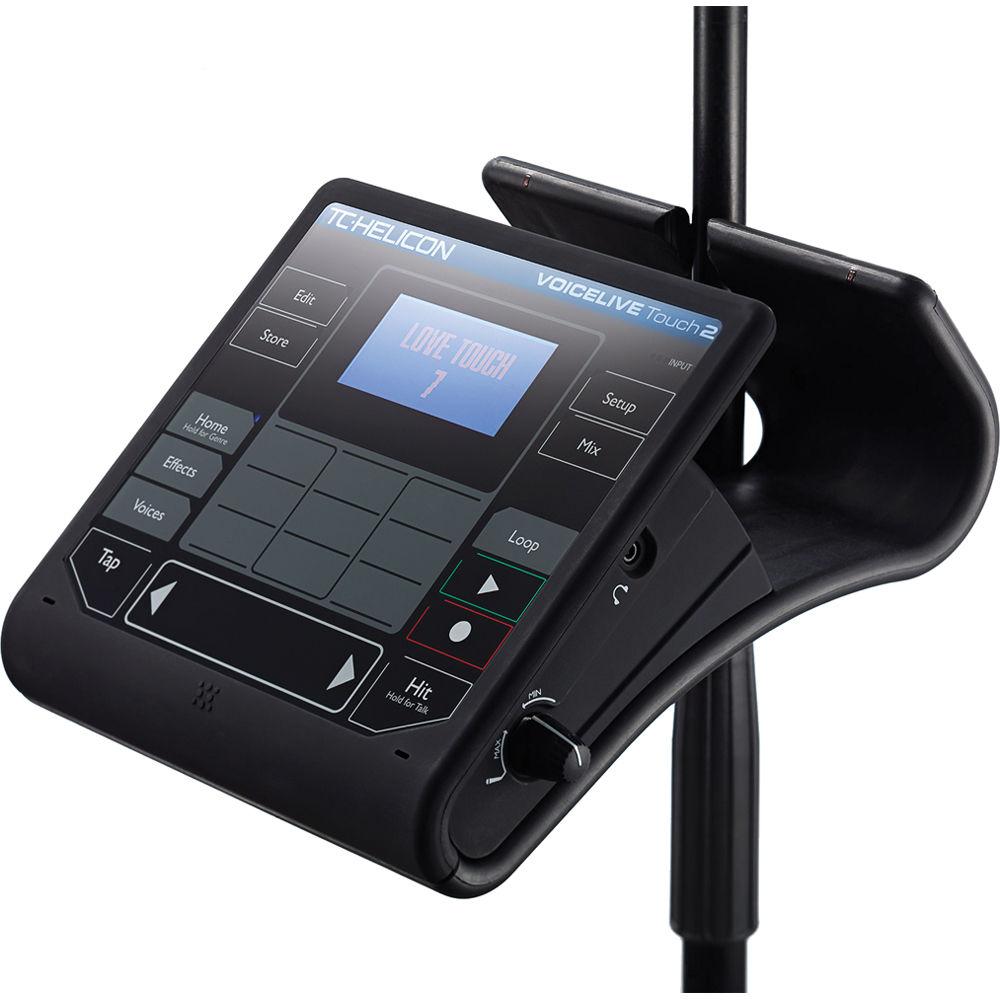

- Innovative mic stand-to-desktop non-skid chassis
- High-quality mic pre-amp
- USB for audio recording and playback, preset backup and more
- TC-Helicon Mic Control compatible
- Construction:
-
- Rubber-coated bent aluminum and die-cast metal
- Acrylic touch panel
- Inner bent metal chassis
- Soft-touch end caps and level knobs
- Blue LCD graphic display
- Control:
-
- 300 customizable presets; 200 pre-programmed factory presets, 100 blank
- 9 instant-access Favorite presets
- 22 touch buttons
- Touch slider
- Simple, style based, essentials-only editing with graphics
- Genre feature to assist preset browsing
- Mic input level
In the Box TC-Helicon VoiceLive Touch 2 - Vocal Effects with Touch Interface Region Specific Power Supply Hook-and-Loop Fastener Cable Wrap USB Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC-Helicon VoiceLive Touch 2 - Vocal Effects with Touch Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

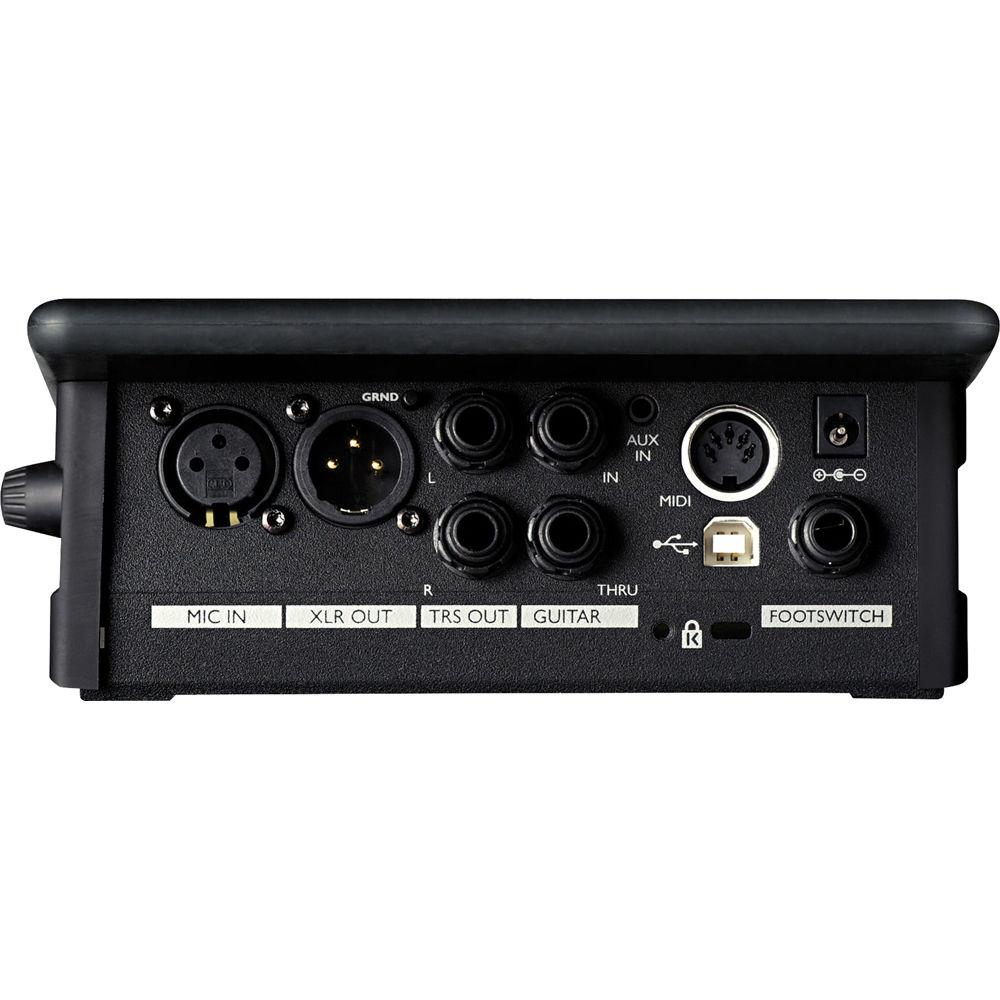

Technical parametersTC-Helicon TOUCH 2 Specs | | | Connectors | Mic: XLR
Guitar: 1/4″ phone jack
Aux: 1/8″ stereo mini jack | | Impedance | Mic: 2.14/1.07 kOhm, balanced/unbalanced
Guitar input: 1 MOhm | | Input Level | Mic: -42 to +1 dBu @ 0 dBFS
Guitar: -7 to 17 dBu @ 0 dBFS
Aux: +2 dBu @ 0 dBFS | | EIN | Max mic gain Rg = 150 ohm: -127 dBu | | SNR | > 101 dB, mic
> 115 dB, guitar | | Phantom Power | +48 V (on/off via Setup menu) | | AD Conversion | 24-bit, 128 x oversampling bitstream, 110 dB SNR A-weighted | | | | DA Conversion | 24-bit, 128 x oversampling bitstream, 115 dB SNR A-weighted | | Connectors | XLR, mono out
1/4" phone jack | | Output Impedance | 80/40 ohm, XLR balanced/unbalanced | | Output Range | Line: 14.5 dBu | | Dynamic Range | > 109 dB, 20 Hz to 20 kHz | | Frequency Response | +0/-0.3 dB, 20 Hz to 20 kHz | | Headphone Output | 1/8" mini stereo jack, 32 ohm, +17 dBu max (180 mW max) | | | | USB | USB-B (preset management, firmware updates, audio I/O) | | MIDI | In 5-pin DIN | | Pedals | 1/4" TRS phone jack | | | | External Power Supply | 100 to 240 VAC, 50 to 60 Hz (auto-select), mains voltage input | | Power Consumption | < 14 W | | | | EMC | Complies with: EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B | | Safety Compliance | IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA | | | | Operating Temperature | 32° to 122° F (0° to 50° C) | | Storage Temperature | -22° to 167° F (-30° to 70° C) | | Humidity | Max 90% non-condensing | | | | Size | 9 x 7 x 4" (230 x 180 x 100 mm)

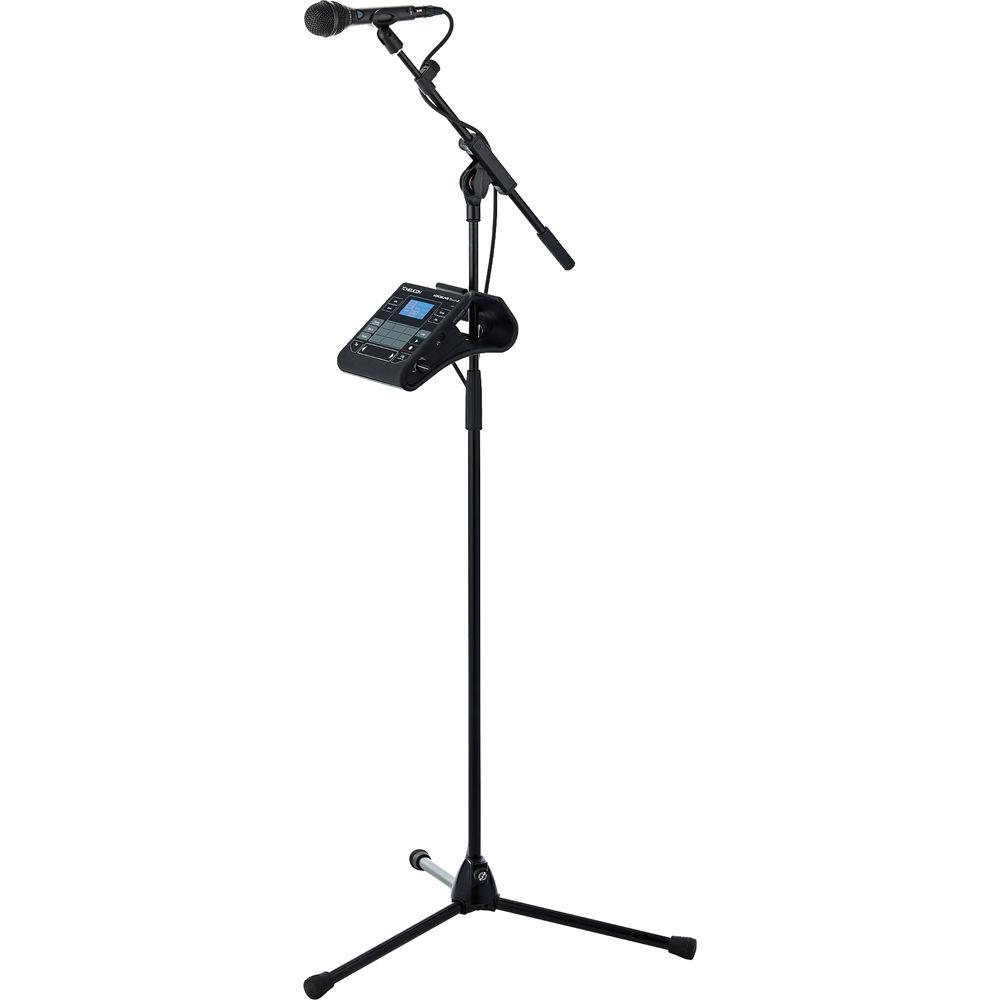

Mic stand mount fits stands with 0.6 - 0.65" (15.4 - 16.4 mm) diameter | | Weight | 3.5 lb (1.6 kg) | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 10.7 x 10.5 x 4.3" |
