User Manual for TC-Helicon Voicesolo FX150 Personal PA and Vocal Processor Click to enlarge the picture
Contents of the user manual for the TC-Helicon Voicesolo FX150 Personal PA and
- Product category: Portable PA Systems TC-Helicon
- Brand: TC-Helicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC-Helicon Portable PA Systems
 |
User manual for the TC-Helicon Voicesolo FX150 Personal PA and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC-Helicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC-Helicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC-Helicon product will considerably shorten its lifespan!
|

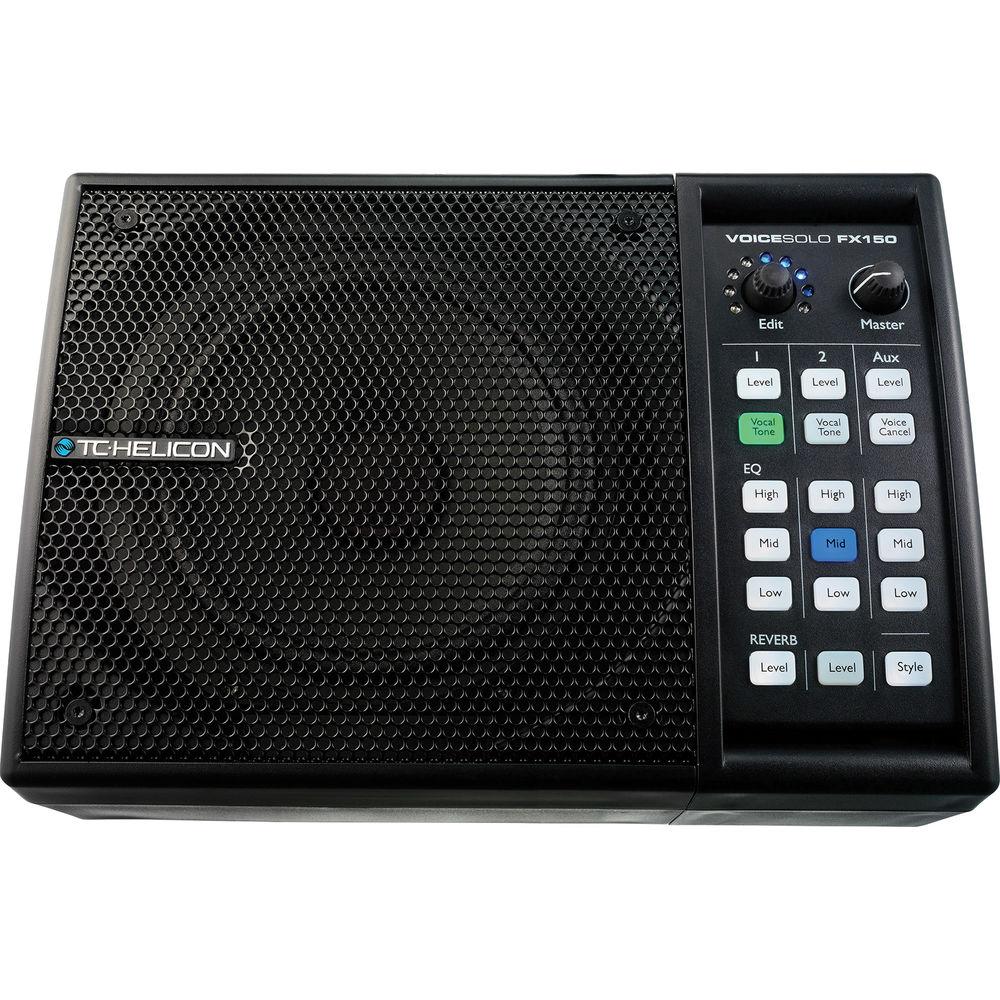

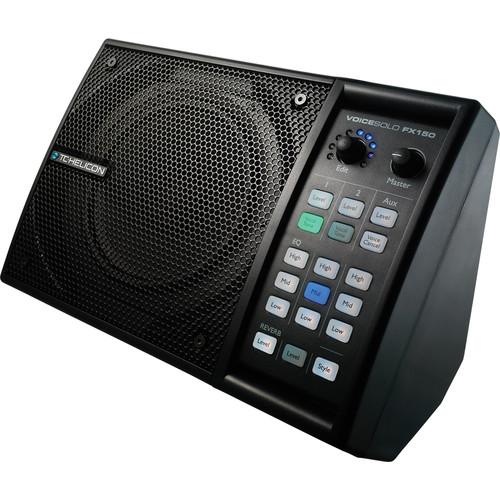

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Voicesolo FX150 from TC-Helicon is a compact personal PA and vocal processor that offers personal monitoring and built-in effects including EQ, compression, doubling, harmony, echo, vocal tuning, flanger, choir, and more. It can be used for a variety of applications such as vocal FX, stage monitoring for vocals, instrument amplification, or it can be used as a small PA speaker.

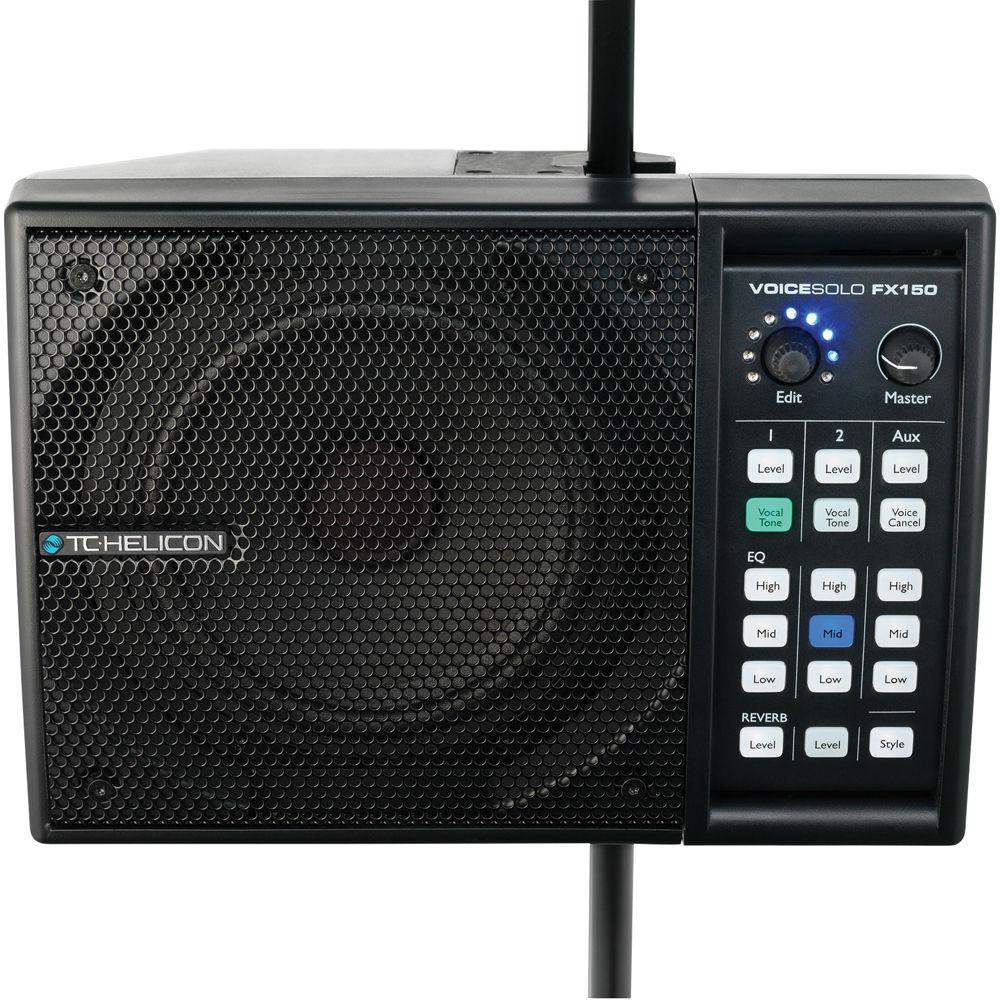

The unit also features dual XLR/TRS combo inputs with switchable 48V phantom power, and 1/8" aux input and a 3-channel digital mixer. The FX150 can also be mounted to a mic stand using its "one-click" mounting system, which allows you to secure it to a stand without any additional hardware pieces. - Features:
-
- 150W Class-D amplifier
- Full range 6.5″ Tannoy 2-way coaxial driver
- 3-channel digital mixer
- 3-band EQ with individual channel control
- High-quality mic preamps
- XLR/TRS combo inputs with automatic mic/line switching
- Integrated TC-Helicon vocal processing / DSP processing: EQ, compression, de-essing, gating
- 9 popular vocal reverb styles from VoiceLive 3
- Voice cancel on aux channel allows you to sing along with your favorite tracks
- Hi-Z instrument switch on CHANNEL 1
- Selectable Output – Choose between CHANNEL 1 (typically vocals) or FULL MIX
- True stage monitor pass thru
- 48V switchable phantom power
- 1/8” aux input for connecting music player

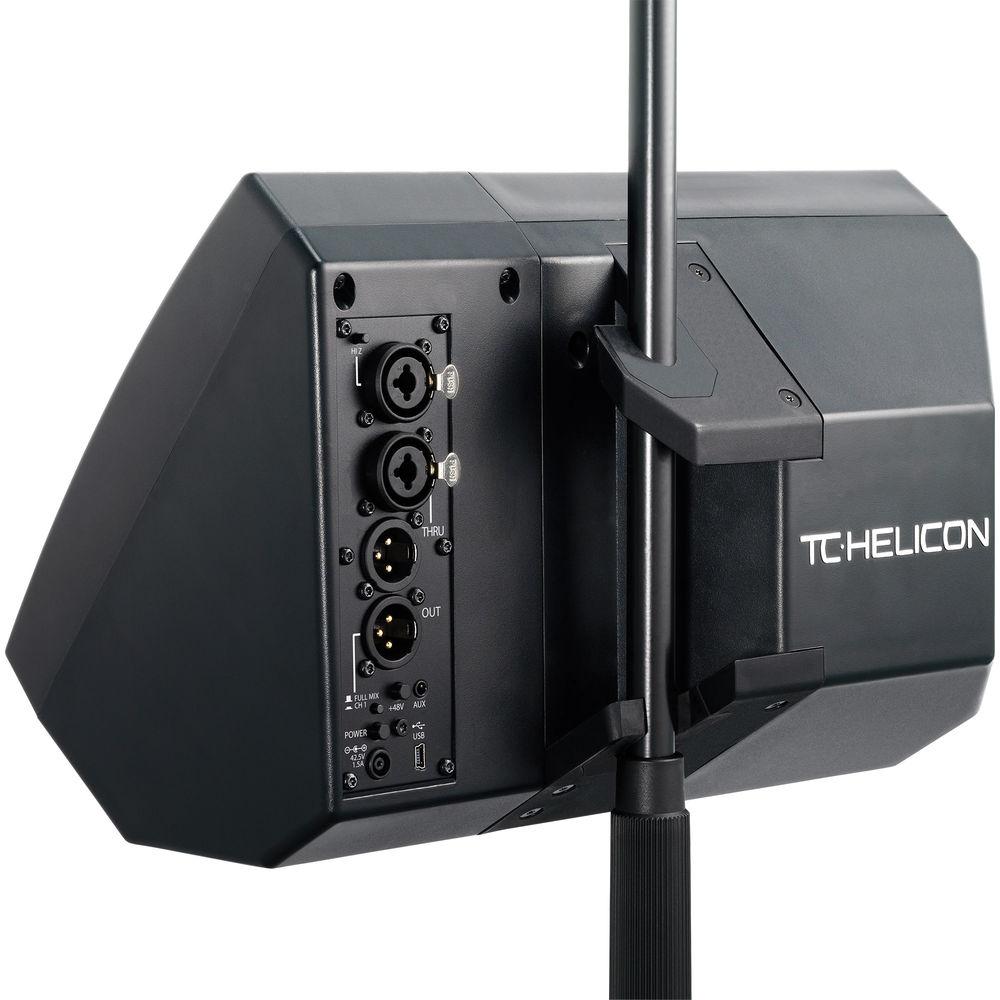

- One-click Easy Grip mic-stand mounting system
- Rigid, low resonance high impact polystyrene enclosure
- Mic Control FX control feature using TC-Helicon MP-75 Microphone or Sennheiser e 835 fx mic
In the Box TC-Helicon Voicesolo FX150 Personal PA and Vocal Processor Power Supply Adaptor for Stand-Alone Position Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC-Helicon Voicesolo FX150 Personal PA and Vocal Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

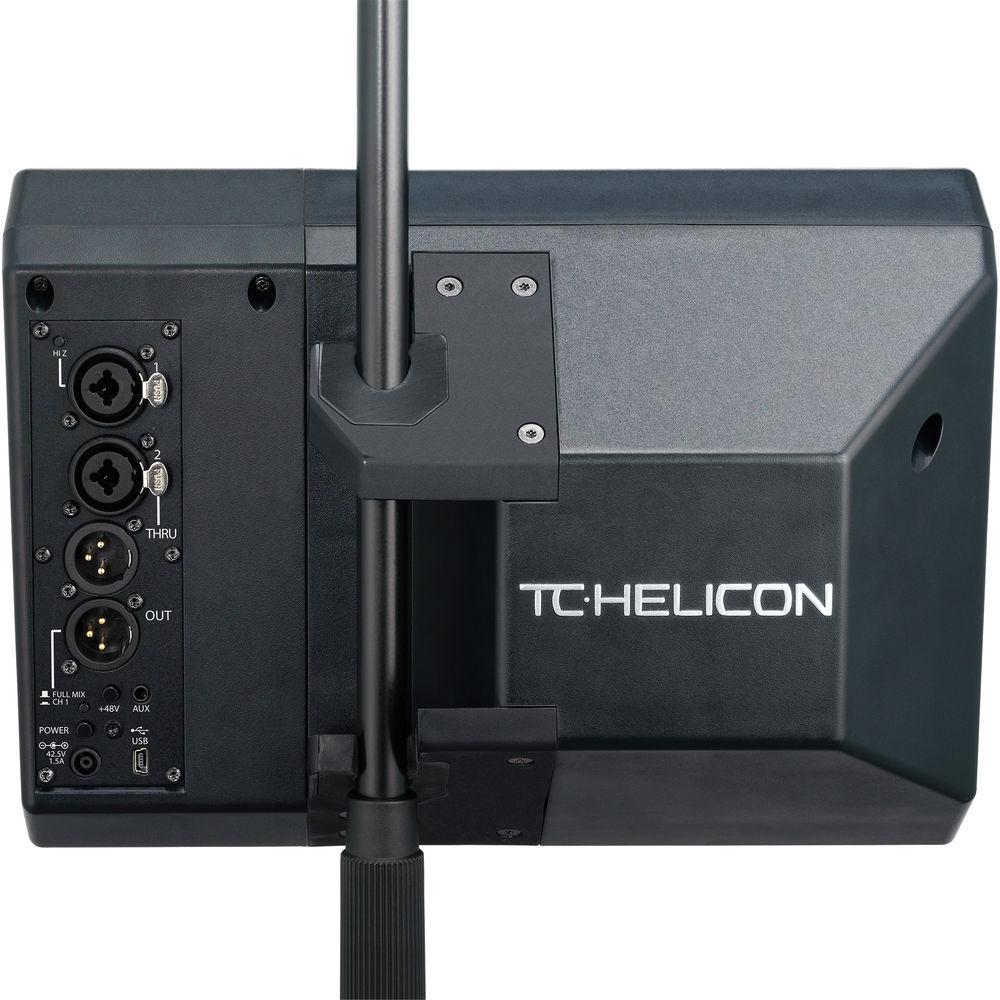

Technical parametersTC-Helicon FX150 Specs | Analog Inputs | XLR/TRS combo jacks (channel 1 and 2)
1/8" stereo (aux input) | | Analog Outputs | XLR true stage monitor pass thru (channel 2)
XLR processed mix output | | USB | USB for software updates | | Loudspeaker | Full range 6.5" Tannoy 2-way coaxial ICT driver | | Amplifier | 150W class-D
Smart power compensation and protection | | Power | Power supply (supplied) 42.5 V, 1.5 A | | Safety | EMC - complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B
Safety - certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA | | Operating Requirements | Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -22 to 167°F (-30 to 70°C)
Humidity: Max. 90 % non-condensing | | Dimensions | 8.25 x 11.25 x 7.25" (210 x 286 x 184 mm) | | Weight | 6.75 lb (3 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 17.48 x 10.551 x 10.158" |
