Product description Designed for vocalists and singer/songwriters, the TC Helicon VOICETONE C1 is a stompbox offering seamless pitch correction for your voice during live shows. Use it to stay in tune during a gig or whenever you need a pitch.
The pedal allows you to connect your XLR microphone, correct any out-of-tune notes, and feed the mixer or a house PA system, all in real time. Furthermore, the VOICETONE C1 sports a signal path for guitars, letting you tune your vocals to the chords you're playing.

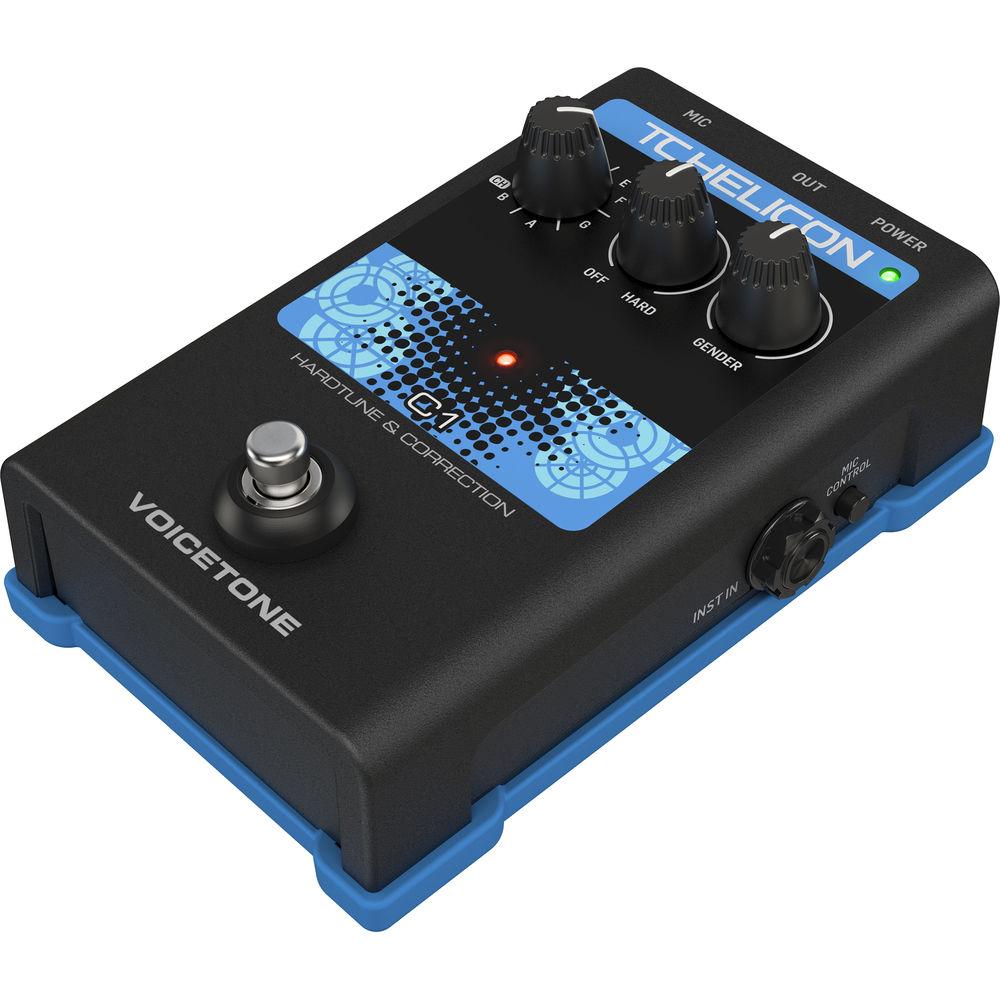

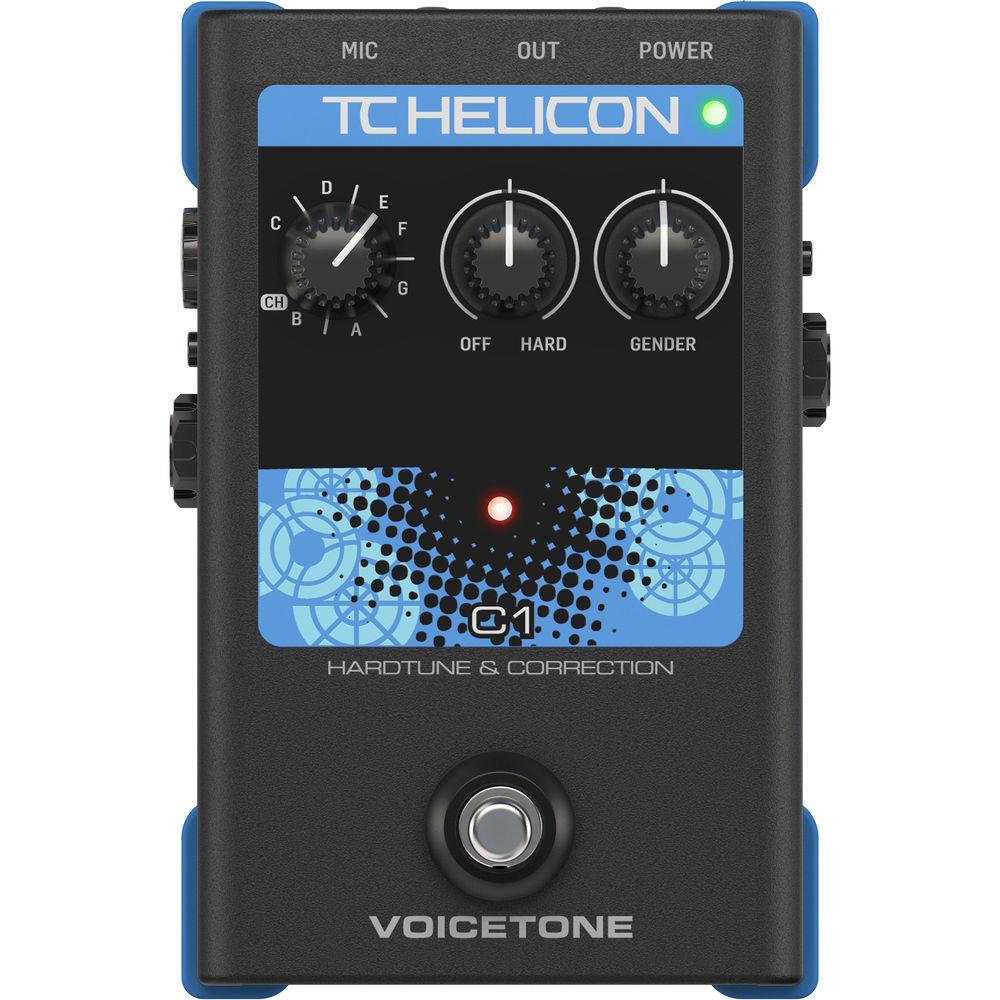

The pedal offers a relatively simple control set. Its Key Selector knob dictates the major key for pitch correction. You'll note CH printed on the knob's legend; turn to this setting if you'd prefer to use chromatic tuning, or if you'd like to tune in real-time to the chords you play on your guitar. The mode will change its operation depending on whether you've plugged a guitar into the 1/4" input.The Off/Hard knob adjusts the intensity of the pitch correction effect. At low values, it provides subtle correction; but you can crank it all the way for a robotic effect. The third knob on the pedal is designed to tune its processing to the formant of your voice. A bypass/engage footswitch turns the effect on and off. A mic input level controller and a ground lift, both located on the side of the VOICETONE C1, round out the controls.

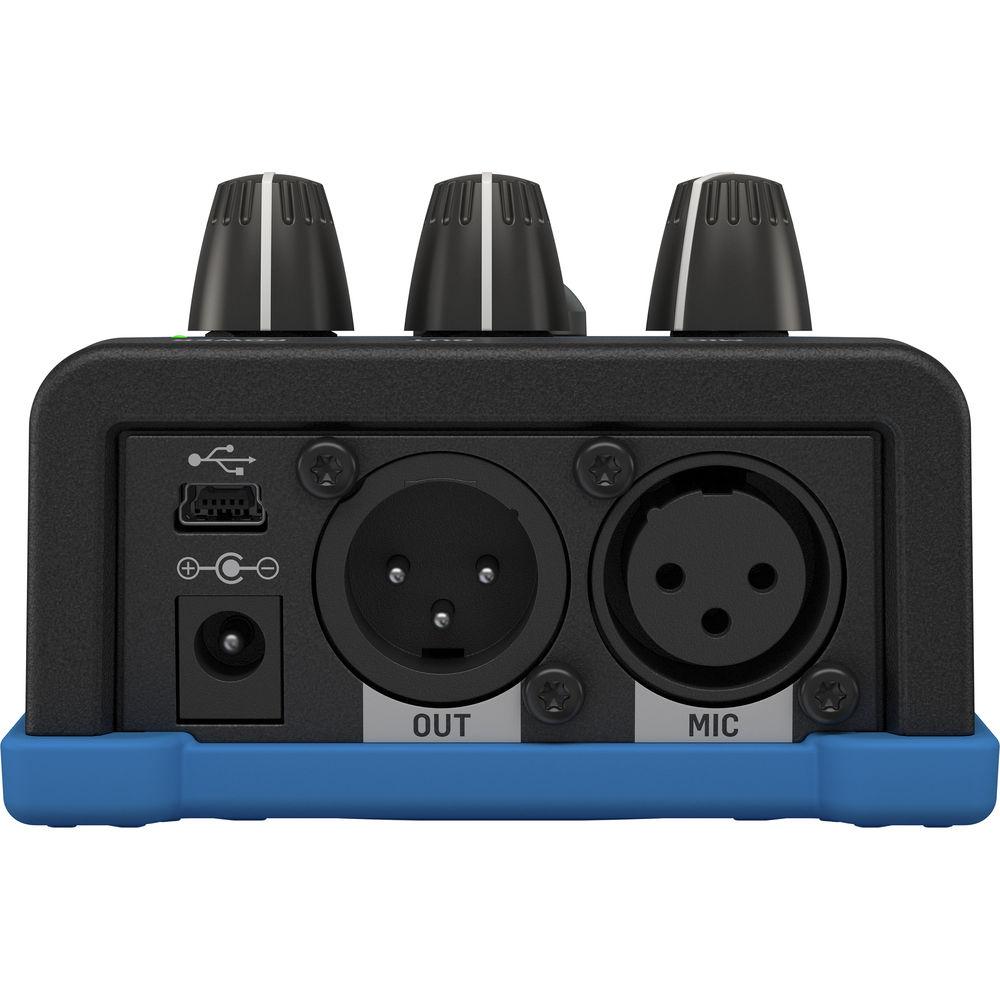

The pedal has an XLR input and an XLR output for the mic signal, and a 1/4" I/O for the instrument signal path. It's powered by means of the included adapter. The VOICETONE C1 offers a durable construction to withstand the rigors of the road. - Key Features at a Glance
-
- Simple, single-button stompbox gives you flexible pitch correction choices to control your sound
- Gentle or aggressive tuning puts your voice right on pitch
- Manual or guitar-controlled key/scale selection
- Wide range of pitch correction capability, from natural to robotic
- Simple 3-knob control gets you up and running in seconds
- High-quality, low-noise mic preamp for pristine vocals
- On/off footswitch for quick performance control
- Allows chaining to other VOICETONE SINGLES vocal processors or the DITTO MIC LOOPER to expand creative possibilities
- Compatible with remote Mic Control using the TC Helicon MP-75 microphone
- Rugged construction for years of dependable use
- Power supply included
In the Box TC-Helicon VOICETONE C1 Stompbox Onstage Vocal Pitch Correction Power Supply Limited 1-Year Warranty (Extendable to 3 Years upon Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the TC-Helicon VOICETONE C1 Stompbox Onstage Vocal Pitch Correction in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC-Helicon VOICETONEC1 Specs | | | Impedance | Mic Input: 2.68 kOhms, Balanced
Guitar Input: 1 MOhm | | Input Level | Mic Input: -42 to +1 dBu (at 0 dBFS)
Guitar Input: -7 to 17 dBu (at 0 dBFS) | | Signal to Noise Ratio | Mic Input: >104 dB
Guitar Input: >115 dB | | EIN | -126 dBu (at Max Mic Gain Range = 150 Ohms) | | | | Impedance | Balanced: 200 Ohms
Unbalanced: 100 Ohms | | Output Level | +1 dBu (Full Scale) | | Dynamic Range | >104 dB, 20 Hz to 20 kHz | | Frequency Response | 20 Hz to 20 kHz (±0.3) | | | | Power Supply | 12 V, 0.4 A, Power Supply Included | | Power Consumption | 5.6 W | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -22 to 167°F / -30 to 70°C | | Humidity (Non-Condensing) | 90% Maximum | | Dimensions | 5.4 x 3.5 x 2.3" / 140 x 90 x 60 mm | | Weight | 0.9 lb / 420 g |
