User Manual for TC-Helicon VOICETONE H1 Stompbox for Guitar-Controlled Vocal Harmonies on Stage Click to enlarge the picture
Contents of the user manual for the TC-Helicon VOICETONE H1 Stompbox for Guitar-Controlled
- Product category: Effects Pedals TC-Helicon
- Brand: TC-Helicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC-Helicon Effects Pedals
 |
User manual for the TC-Helicon VOICETONE H1 Stompbox for Guitar-Controlled contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC-Helicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC-Helicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC-Helicon product will considerably shorten its lifespan!
|

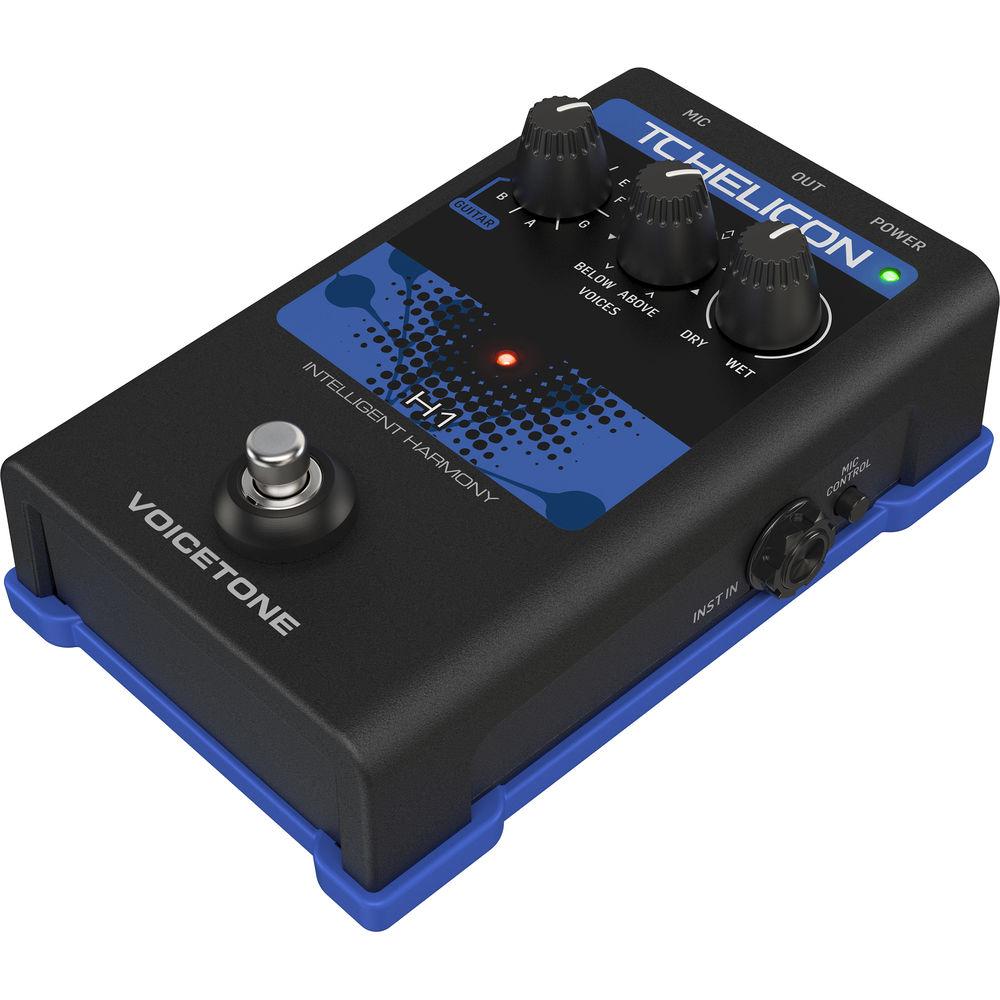

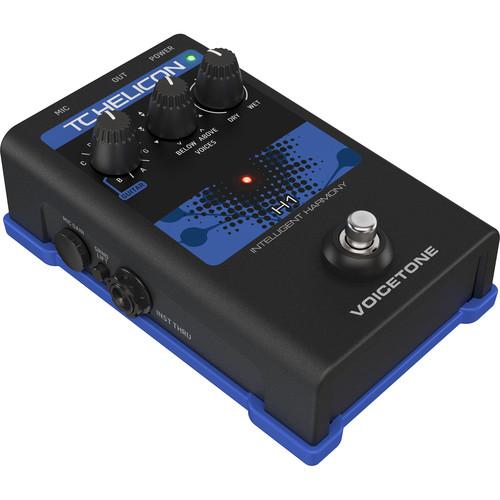

Product description The TC Helicon VoiceTone H1 is a stompbox-style pedal allowing you to generate vocal harmonies on stage. The harmonies can either be controlled manually, or controlled by your guitar. Designed for stage use, the pedal boasts a single footswitch and three knobs, making the VoiceTone H1 relatively easy to use.

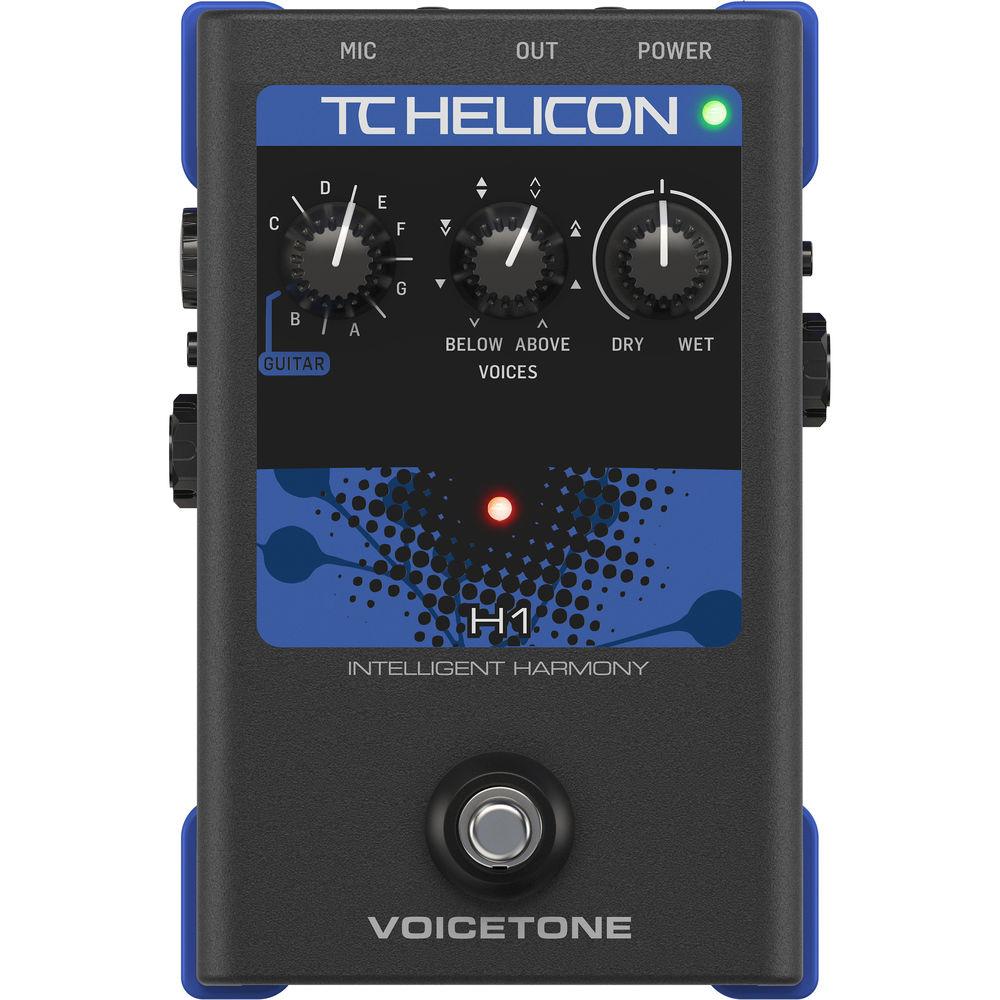

The Key Selector knob does just that—it selects among twelve keys for your vocal. You can also set it to Guitar, wherein the harmony engine takes its cue from your guitar playing. With the Voice Arrangement Selector knob, you can choose among harmonies pitched below your vocal, harmonies pitched above, close harmonies, or harmonies spread out across wider intervals. Finally, the Dry/Wet knob allows you to blend the exact amount of effected signal into the output, so you can set the harmony's level exactly as you'd like.

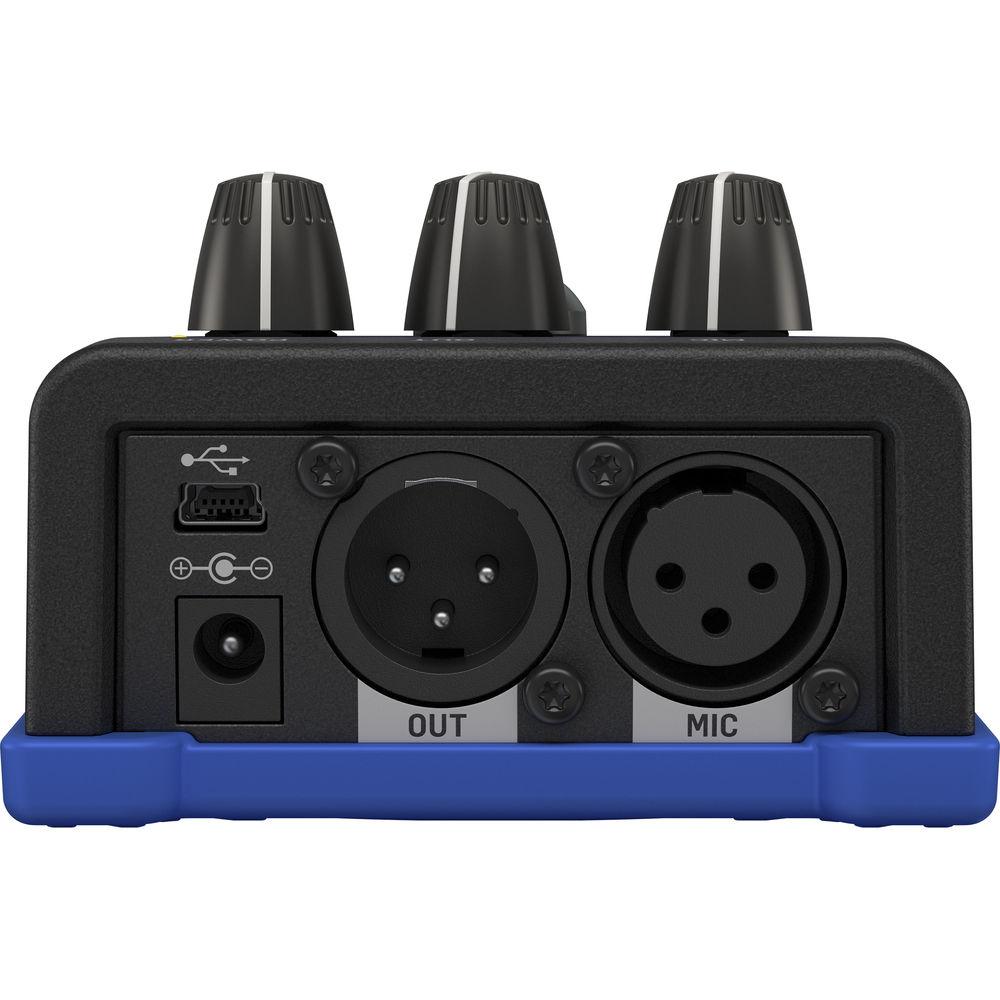

Your mic is routed through the pedal via the XLR input and output. For your guitar, a 1/4" signal path is provided. Route your guitar into the pedal, set the Key Selector appropriately, and the VoiceTone H1 will draw its harmonic information from your guitar playing. So, if you're playing an altered-dominant rather than a conventional 7th chord, you can expect some weird harmonies to follow your voice, which might be just what you'd like.
The pedal sports a clean, low-noise mic preamp that ensures a good sound onstage. Its metal chassis is built to be durable, and its USB port allows for firmware updates. A power supply is included. - Key Features at a Glance
-
- Single-button stompbox for guitar-controlled harmony
- Adds one or two voices of realistic vocal harmony set manually or guided by your guitar
- Simple 3-knob control for easy operation
- Low-noise mic preamp for pristine vocals onstage
- Allows chaining to other VOICETONE vocal processors or DITTO MIC LOOPER to expand creative possibilities
- Compatible with remote Mic Control using the TC Helicon MP-75 microphone
- Rugged, roadworthy construction
- Power supply included
In the Box TC-Helicon VOICETONE H1 Stompbox for Guitar-Controlled Vocal Harmonies on Stage Power Supply USB Cable Limited 1-Year Warranty (Extendable to 3 Years upon Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the TC-Helicon VOICETONE H1 Stompbox for Guitar-Controlled Vocal Harmonies on Stage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC-Helicon VOICETONEH1 Specs | | | Impedance | Mic Input: 2.68 kOhms, Balanced
Guitar Input: 1 MOhm | | Input Level | Mic Input: -42 to +1 dBu (at 0 dBFS)
Guitar Input: -7 to 17 dBu (at 0 dBFS) | | Signal to Noise Ratio | Mic Input: >104 dB
Guitar Input: >115 dB | | EIN | -126 dBu (at Max Mic Gain Range = 150 Ohms) | | | | Impedance | Balanced: 200 Ohms
Unbalanced: 100 Ohms | | Output Level | +1 dBu (Full Scale) | | Dynamic Range | >104 dB, 20 Hz to 20 kHz | | Frequency Response | 20 Hz to 20 kHz (±0.3) | | | | Power Supply | 12 V, 0.4 A, Power Supply Included | | Power Consumption | 5.6 W | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -22 to 167°F / -30 to 70°C | | Humidity (Non-Condensing) | 90% Maximum | | Dimensions | 5.4 x 3.5 x 2.3" / 140 x 90 x 60 mm | | Weight | 0.92 lb / 420 g |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to TC-Helicon VOICETONE H1 Stompbox for Guitar-Controlled Vocal Harmonies on Stage
| Subject: TC Helicon 996012005 VoiceTone H1 | | Date: 12.10.2021 19:18:49 | Name: Mike | Hello ... I just want to use this with a small amp to play bars and such ...
How would I be able to plug the microphone from the Helicon into a simple guitar amp (seeing that the three prong cable won't be possible)
Can I create a cable that has 3 prong female end (not sure what you call that) to a 1/4" jack ... so I can plug into my amp??
Does that make sense ??
Thanks for the time ...
Mike | | Post reply |
| Subject: Amp draw | | Date: 13.08.2021 23:08:50 | Name: Chuck Walls | The power supply adapter puts out 12V and .5 amps.
How many amps does the VoiceTone H1 actually draw ?? | | Post reply |
