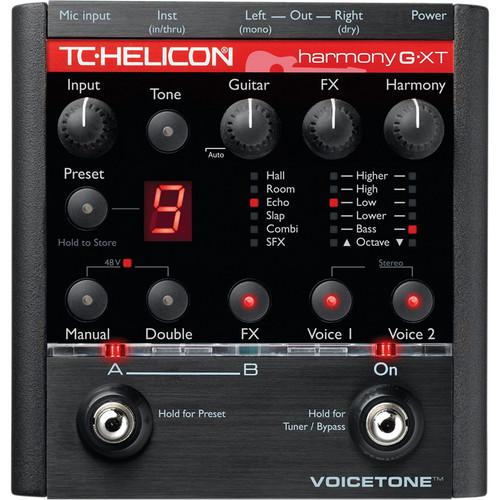

User Manual for TC-Helicon VoiceTone Harmony-G XT Guitar & Vocal Harmony Pedal Click to enlarge the picture
Contents of the user manual for the TC-Helicon VoiceTone Harmony-G XT Guitar &
- Product category: Effects Pedals TC-Helicon
- Brand: TC-Helicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC-Helicon Effects Pedals
|
User manual for the TC-Helicon VoiceTone Harmony-G XT Guitar & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC-Helicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC-Helicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC-Helicon product will considerably shorten its lifespan!
|
Product description The VoiceTone Harmony-G XT from TC-Helicon is a vocal and guitar effect processor pedal that features pitch detection, pitch correction, harmony and built-in FX. Featuring presets in a wide variety of musical styles, VoiceTone Harmony-G XT gives singing guitarists a plethora of sonic possibilities.
VoiceTone Harmony-G XT features auto chromatic pitch correction that shifts your voice closer on pitch, making you sound more in tune with the music. The unit detects the key of what you are playing on your guitar and adjusts the pitch of your voice accordingly.
In addition, VoiceTone Harmony-G XT also listens to your performance and automatically decides what harmony notes would sound best with your song. Connect your guitar and a mic, choose one of the presets, play guitar and sing. No special guitar pickups, pre-programming, or extensive musical knowledge are required in order to use Harmony-G XT. - Features:
-
- NaturalPlay guitar-controlled harmony algorithm
- Front-of-house type reverb algorithm and selection of styles from VoiceLive 2
- Selection of four overdub-style doubling effects with two more doubling voices available
- FX presets offer utility across music styles
- USB connection for easy software updates, tips, and preset backup using the included VoiceSupport applet
- Adaptive harmony gate added to Tone for a cleaner mix
- Easy manual selection of Scale & Key for singers without an instrument or horn players
- Listens to guitar and voice to create correct harmony parts automatically
- Tone switch smoothes vocals with adaptive Live Engineer Effects
- 18 combinations of reverb, delay and µmod shared by vocal and guitar input
- 10 presets available, each with A/B options
- Harmony interval selection includes 3rds and 5ths above and below, octave up and down, and the unique Bass interval
- Stereo or mono configurable output
- Clean, studio quality mic preamp with phantom power and XLR input
- Guitar signal can be mixed in and share reverb or passed through to separate amplifier
- Guitar tuner designed for speed and accuracy
- Construction:
-
- Die-cast steel and anodized extruded aluminum
- Ultra bright LEDs
- Control:
-
- 20 presets (10 presets each with part A and B)
- Multiple effect and double style
- Dedicate voicing buttons
- Harmony, Effect and Guitar level
- Mic input level
In the Box TC-Helicon VoiceTone Harmony-G XT Guitar & Vocal Harmony Pedal Region Specific Power Supply USB Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TC-Helicon VoiceTone Harmony-G XT Guitar & Vocal Harmony Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC-Helicon 996000905 Specs | | | Mic Input | Balanced XLR, input impedance 1 kOhm | | Input Sensitivity | @ 0 dBFS: -44 to +2 dBu, mic
@ 12 dB: headroom -56 to -10 dBu, mic
@ 0 dBFS: +15 dBu, instrument | | Phantom Power | +48 V (switchable) | | Instrument Input | Unbalanced 1/4", input impedance 1 MOhm | | EIN | -126 dBu @ max mic amp gain, Rg = 150 Ohm | | Power Input | 12 VDC 300 mA, tip negative | | | | Main Output | Balanced XLR | | Output Impedance | 40 Ohm, main 270 Ohm, instrument thru | | Output Level | +2 dBu @ 0 dBFS | | Thru | Unbalanced 1/4" phone jack | | Dynamic Range | Mic @ Min gain > 108 dB: 20 Hz - 20 kHz, A-weighted
Mic @ -18 dBu sensitivity > 104 dB: 20 Hz - 20 kHz
Instrument In to Thru : > 119 dB | | THD & Noise | Mic @ Min gain: <- 90 dB | | Frequency Response | Max gain -1.5 dB @ 40 Hz, +0 / -0.3 dB: (200 Hz to 20 kHz) | | Mute Attenuation | > 100 dB, tuning | | | | Sample Rate | 48 kHz | | Converter | AKM AK4620B | | AD/DA Conversion | 24 bit, 128x oversampling bitstream | | | | External Power Requirement | 100 to 240 VAC, 50 to 60 Hz (auto-select) | | | | EMC | Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B | | Safety | Certified to: IEC 65, EN 60065, UL6500 and CSA E60065 CSA FILE #LR108093 | | | | Operating Temperature | 32° to 122° F (0° to 50° C) | | Storage Temperature | -22° to 167° F (-30° to 70° C) | | Humidity | Max. 90% non-condensing | | | | Size | 5.25 x 5 x 1.5" (132 x 130 x 41 mm) | | Weight | 1.5 lb (0.72 kg) | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 8.0 x 6.6 x 3.1" |
