TC-Helicon VOICETONE R1 Stompbox for Vocal

Search your instruction manual in PDF to download

User Manual for TC-Helicon VOICETONE R1 Stompbox for Vocal Reverb on Stage

Click to enlarge the picture
TC-Helicon VOICETONE R1 Stompbox for Vocal Reverb on Stage Contents of the user manual for the TC-Helicon VOICETONE R1 Stompbox for Vocal
  • Product category: Effects Pedals TC-Helicon
  • Brand: TC-Helicon
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for TC-Helicon Effects Pedals

TC-Helicon VOICETONE R1 Stompbox for Vocal Reverb on Stage TC-Helicon VOICETONE R1 Stompbox for Vocal Reverb on Stage TC-Helicon VOICETONE R1 Stompbox for Vocal Reverb on Stage
User manual for the TC-Helicon VOICETONE R1 Stompbox for Vocal contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any TC-Helicon product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official TC-Helicon user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a TC-Helicon product will considerably shorten its lifespan!



Product description

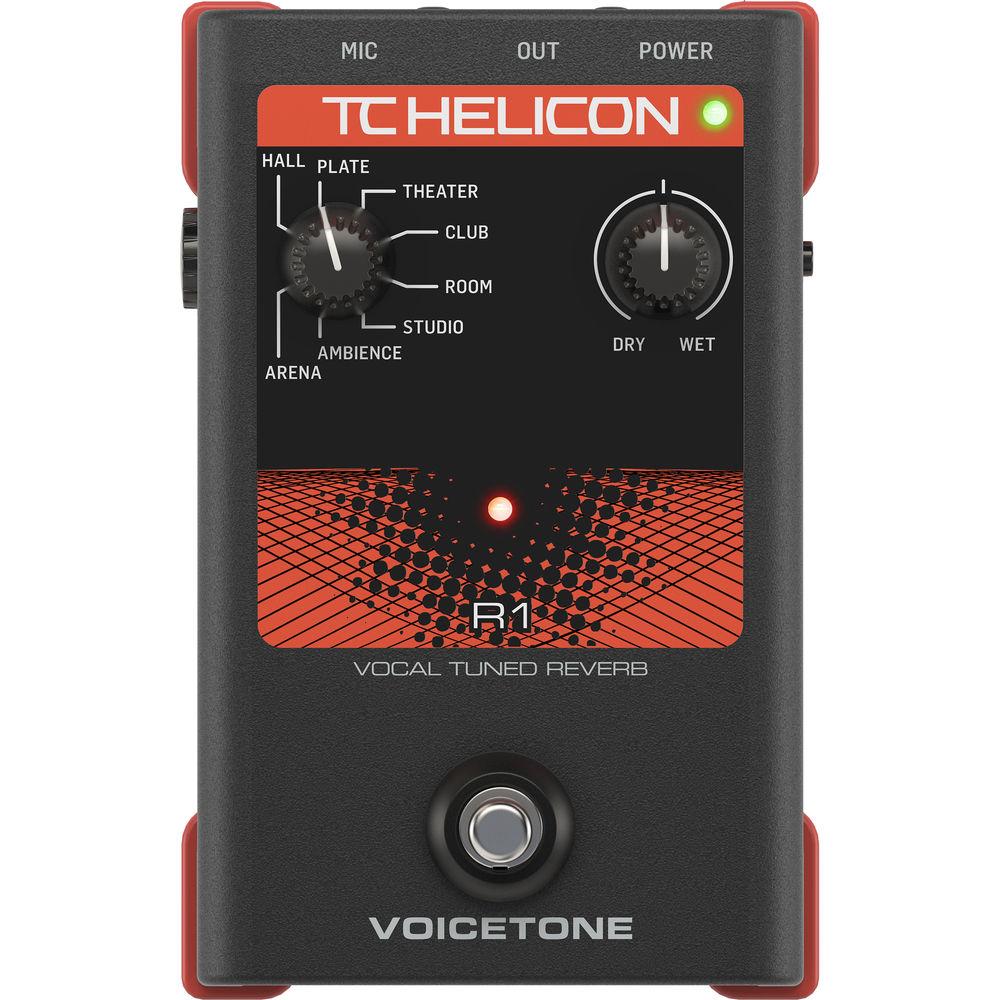

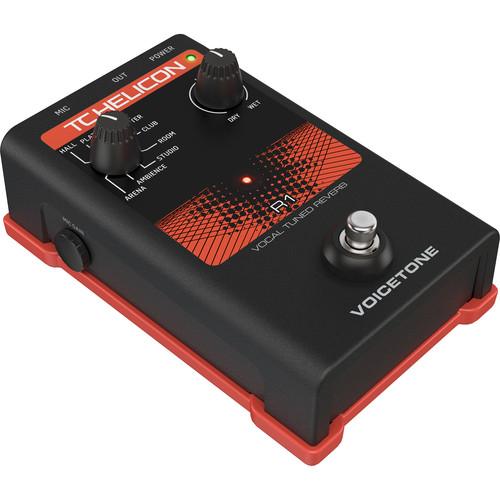

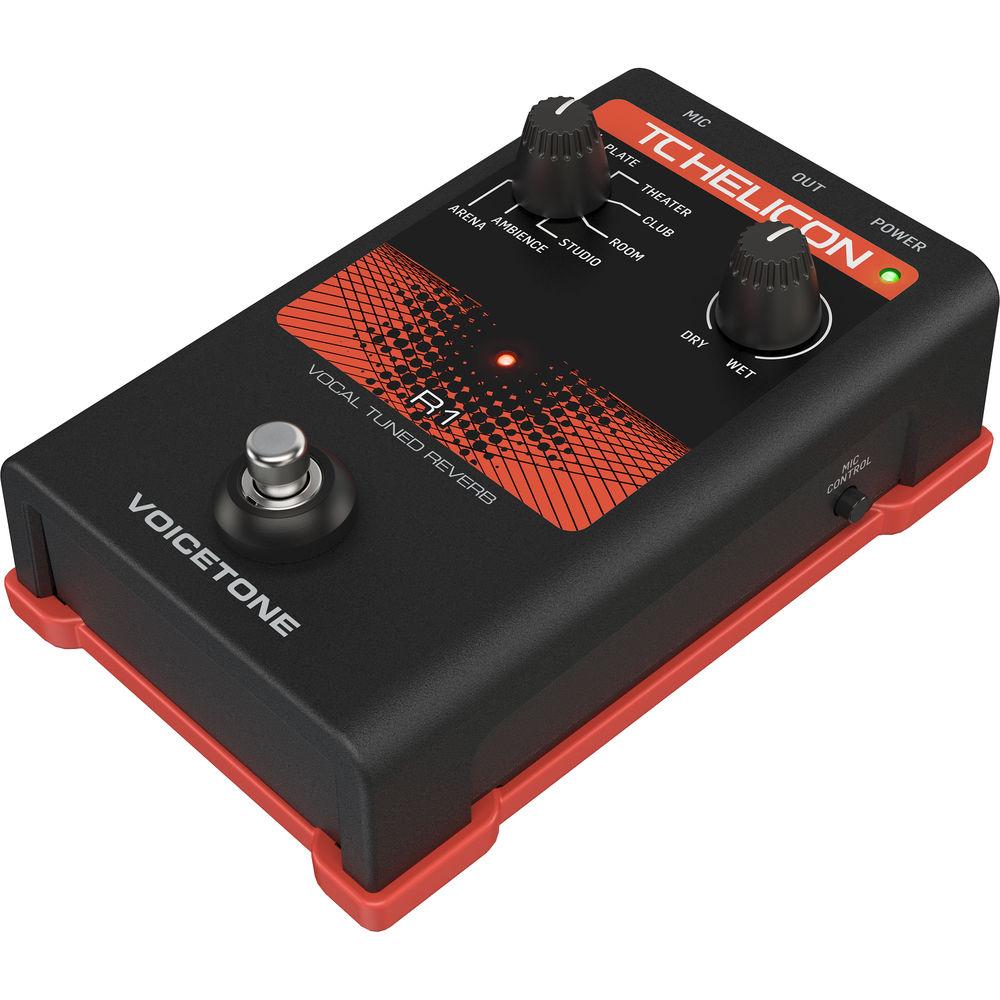

The TC Helicon VOICETONE R1 is a pedal intended to give vocalists control of their own reverb onstage. It sports two knobs and one footswitch, making controlling the stompbox relatively easy.

A reverb selector knob lets you choose among eight different reverb types, including Hall, Plate, Theater, and Club. The Wet/Dry knob lets you balance the reverberated signal with clean, dry vocals, so you can get the optimal mix for your application. Turn the VOICETONE R1 effect on and off with the footswitch.

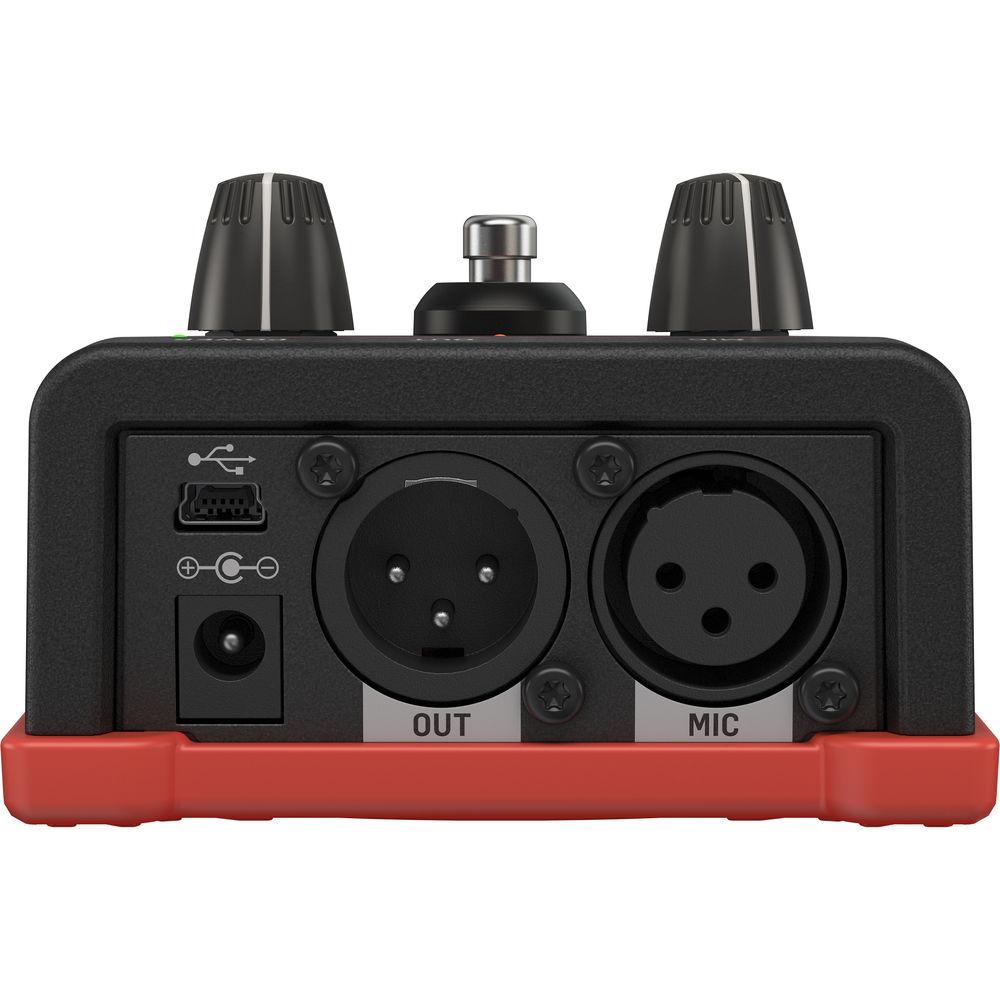

The pedal sports a clean, low-noise mic preamp that ensures a clear sound onstage. Use the XLR input and output to pass signal through the pedal. A USB port allows for firmware updates. A power supply is included.
    Key Features at a Glance
    • Studio-quality stompbox for live vocal reverb effects
    • 8 useful reverb style choices
    • Wet/dry mix level control to blend reverb with dry signal
    • Simple 2-knob control for easy to use
    • Low-noise mic preamp for pristine vocals on stage
    • On/off foot switch for quick performance control
    • Allows chaining to other VOICETONE signal vocal processors or DITTO MIC LOOPER to expand creative possibilities
    • Compatible with remote Mic Control using the TC Helicon MP-75 microphone
    • Rugged, roadworthy construction
    • Power supply included
In the Box TC-Helicon VOICETONE R1 Stompbox for Vocal Reverb on Stage
  • Power Supply
  • Limited 1-Year Warranty (Extendable to 3 Years upon Registration)
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the TC-Helicon VOICETONE R1 Stompbox for Vocal Reverb on Stage in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for TC-Helicon VOICETONE R1 Stompbox for Vocal Reverb on Stage can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for TC-Helicon VOICETONE R1 Stompbox for Vocal Reverb on Stage can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the TC-Helicon VOICETONE R1 Stompbox for Vocal Reverb on Stage can be downloaded in PDF format at the link stated below.
    Download PDF user manual - TC-Helicon VOICETONE R1 Stompbox for Vocal Reverb on StageDownload PDF User Manual - https://www.search-manual.com/ upload/ tc-helicon-voicetone-r1-stompbox-for-vocal-reverb-on-stage-293552-user-manual.pdf
    (PDF file, 1.15 MB)


    Technical parameters

    TC-Helicon VOICETONER1 Specs

    Input Impedance 2.68 kOhms, Balanced
    Input Level -42 to +1 dBu (at 0 dBFS)
    Signal to Noise Ratio >104 dB
    EIN -126 dBu (at Max Mic Gain Range = 150 Ohms)
    Output Impedance Balanced: 200 Ohms
    Unbalanced: 100 Ohms
    Output Level +1 dBu (Full Scale)
    Dynamic Range >104 dB, 20 Hz to 20 kHz
    Frequency Response 20 Hz to 20 kHz (±0.3)
    Power Supply 12 V, 0.4 A, Power Supply Included
    Power Consumption 5.6 W
    Operating Temperature 32 to 122°F / 0 to 50°C
    Storage Temperature -22 to 167°F / -30 to 70°C
    Humidity (Non-Condensing) 90% Maximum
    Dimensions 5.4 x 3.5 x 2.3" / 140 x 90 x 60 mm
    Weight 0.92 lb / 420 g
