User Manual for TC-Helicon VOICETONE X1 Megaphone and Distortion Pedal for Vocalists on Stage Click to enlarge the picture
Contents of the user manual for the TC-Helicon VOICETONE X1 Megaphone and Distortion
- Product category: Effects Pedals TC-Helicon
- Brand: TC-Helicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TC-Helicon Effects Pedals
 |
User manual for the TC-Helicon VOICETONE X1 Megaphone and Distortion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TC-Helicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TC-Helicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TC-Helicon product will considerably shorten its lifespan!
|

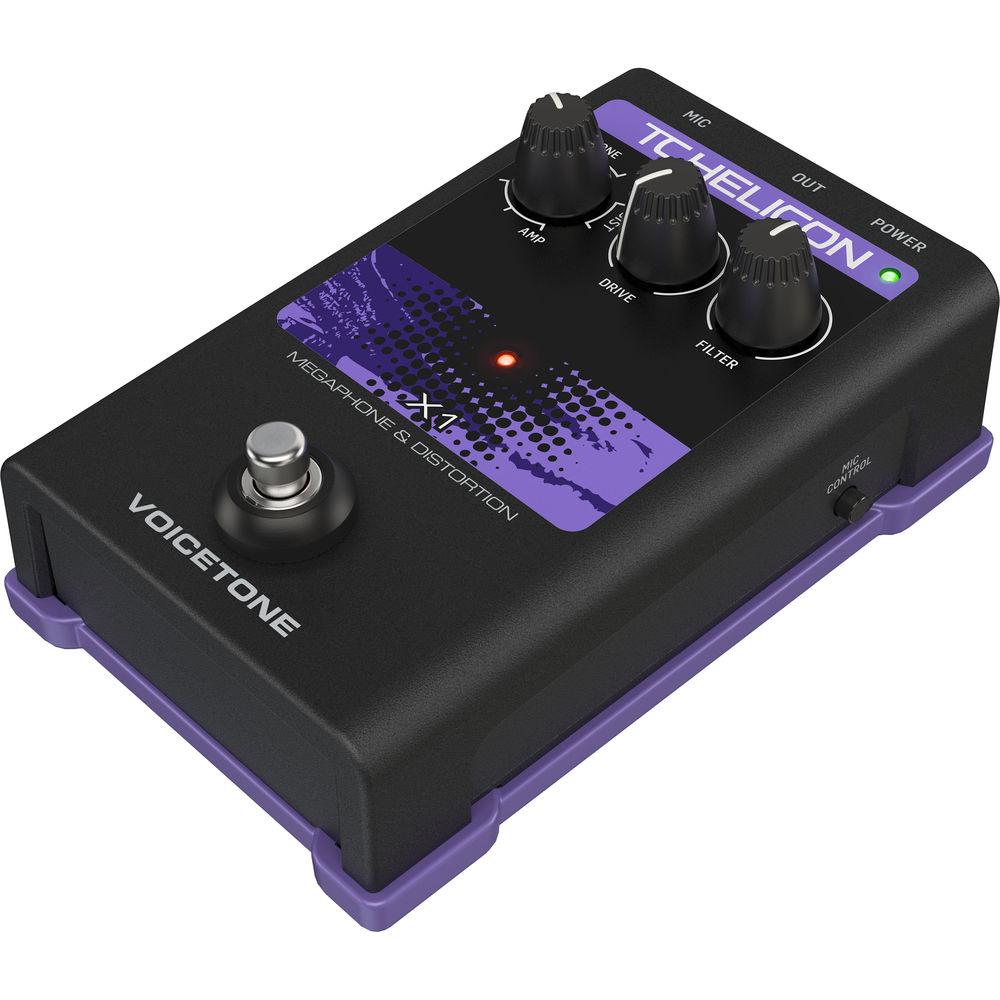

Product description The TC Helicon VOICETONE X1 is a distortion effects pedal for vocalists to use on stage. Megaphone, phone, and amplifier-emulated distortion are the main flavors you can achieve with a VOICETONE X1. These can be driven and filtered to your exact predilections thanks to the simple controls offered.

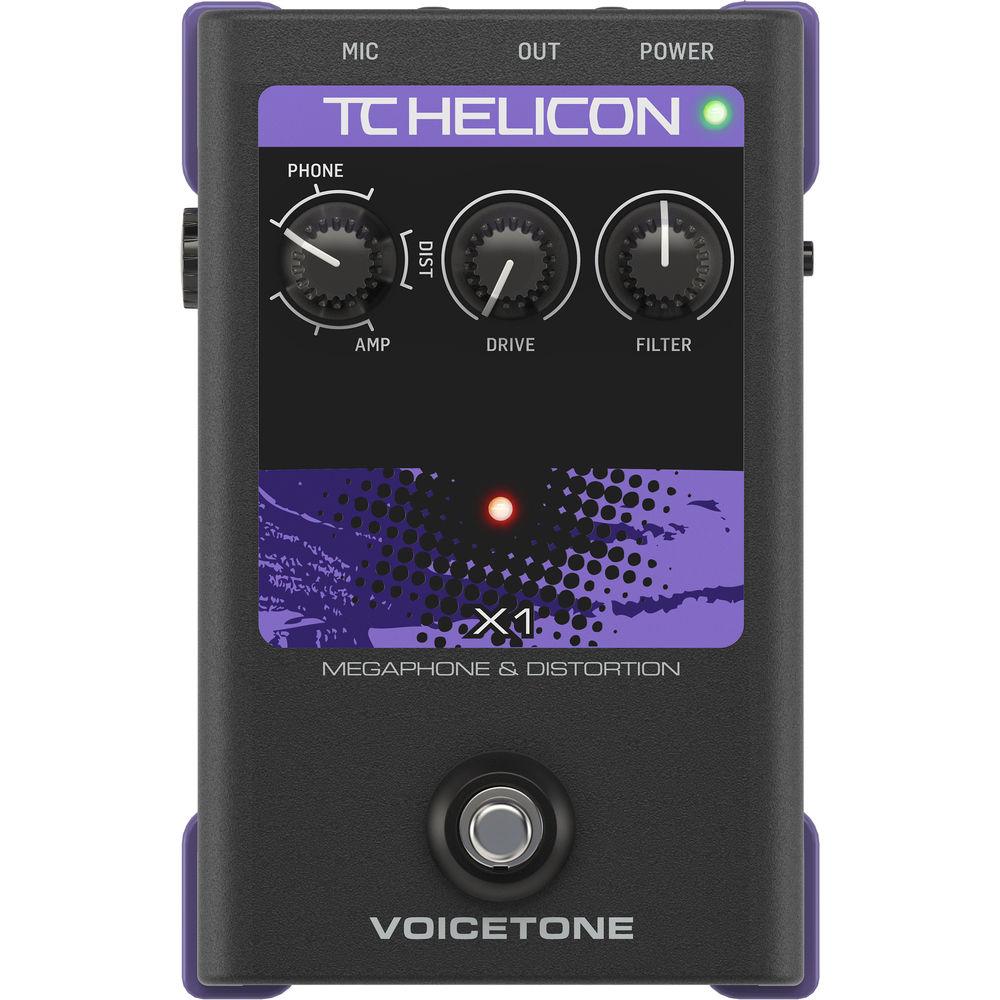

The Phone/Distortion/Amp knob lets you choose among eight different effects. The Drive knob lets you dictate the amount of distortion present at the output, and the Filter knob adjusts the frequency band of the distorted effect. Tap the footswitch to add distortion to a phrase, a verse, or a whole song.

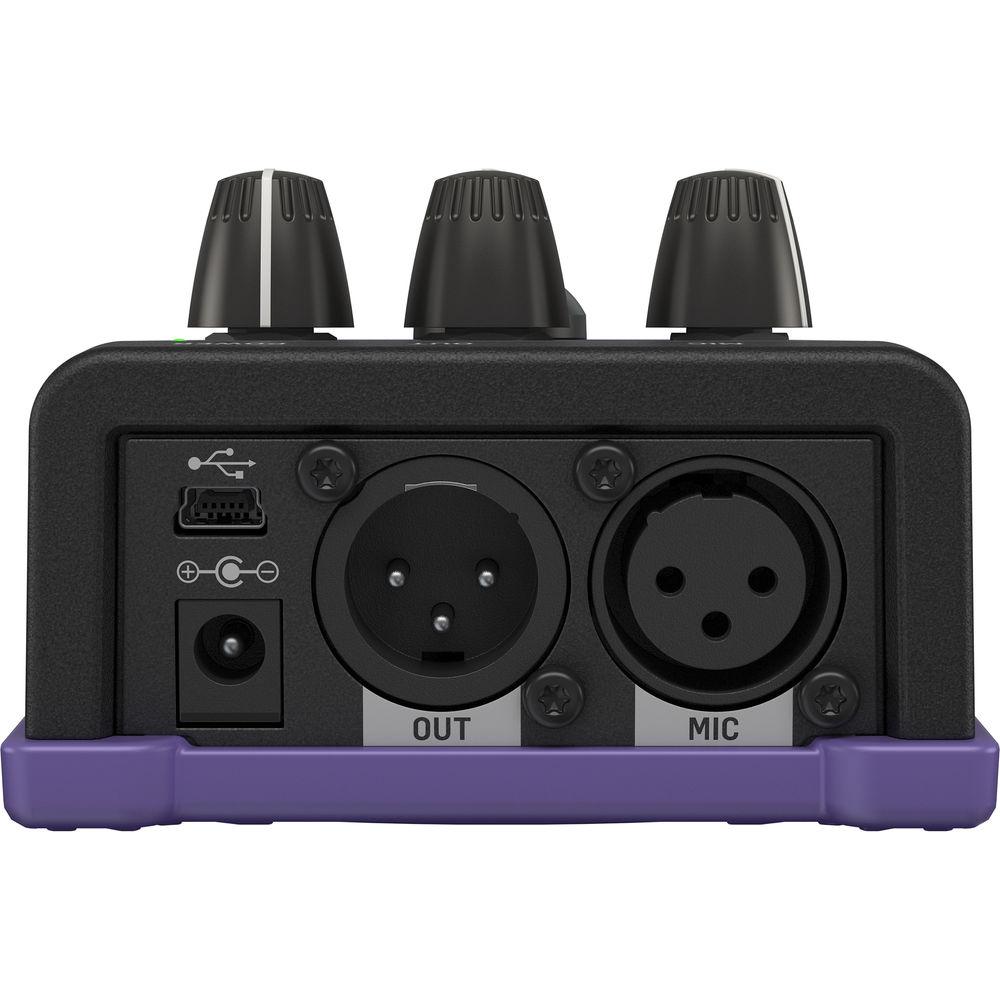

The pedal sports a clean, low-noise mic preamp that ensures a clear sound on stage. Use the XLR input and output to pass signal through the pedal. A USB port allows for firmware updates. A power supply is included. - Key Features at a Glance
-
- Stompbox with megaphone and distortion filter effects for vocalists on stage
- 8 types of styles including phone, distortion, and amp preset categories
- Filter and drive controls let you customize the sound to suit your performance
- 3-knob control offers easy operation
- Low-noise mic preamp for pristine vocals
- On/off footswitch for quick performance control
- Allows chaining to other VOICETONE single vocal processors or DITTO MIC LOOPER to expand creative possibilities
- Compatible with remote Mic Control using the TC Helicon MP-75 microphone
- Rugged, roadworthy construction
- Power supply included
In the Box TC-Helicon VOICETONE X1 Megaphone and Distortion Pedal for Vocalists on Stage Power Supply USB Cable Limited 1-Year Warranty (Extendable to 3 Years upon Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the TC-Helicon VOICETONE X1 Megaphone and Distortion Pedal for Vocalists on Stage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTC-Helicon VOICETONEX1 Specs | Input Impedance | 2.68 kOhms, Balanced | | Input Level | -42 to +1 dBu (at 0 dBFS) | | Signal to Noise Ratio | >104 dB | | EIN | -126 dBu (at Max Mic Gain Range = 150 Ohms) | | Output Impedance | Balanced: 200 Ohms
Unbalanced: 100 Ohms | | Output Level | +1 dBu (Full Scale) | | Dynamic Range | >104 dB, 20 Hz to 20 kHz | | Frequency Response | 20 Hz to 20 kHz (±0.3) | | Power Supply | 12 V, 0.4 A, Power Supply Included | | Power Consumption | 5.6 W | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -22 to 167°F / -30 to 70°C | | Humidity (Non-Condensing) | 90% Maximum | | Dimensions | 5.4 x 3.5 x 2.3" / 140 x 90 x 60 mm | | Weight | 0.92 lb / 420 g |
