Teac AI-301DA-B Pre-Main Amplifier with Bluetooth,

Search your instruction manual in PDF to download

User Manual for Teac AI-301DA-B Pre-Main Amplifier with Bluetooth, USB, and Digital-to-Analog Converter

Click to enlarge the picture
Teac AI-301DA-B Pre-Main Amplifier with Bluetooth, USB, and Digital-to-Analog Converter Contents of the user manual for the Teac AI-301DA-B Pre-Main Amplifier with Bluetooth,
  • Product category: Amplifiers Teac
  • Brand: Teac
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Teac Amplifiers

Teac AI-301DA-B Pre-Main Amplifier with Bluetooth, USB, and Digital-to-Analog Converter Teac AI-301DA-B Pre-Main Amplifier with Bluetooth, USB, and Digital-to-Analog Converter
User manual for the Teac AI-301DA-B Pre-Main Amplifier with Bluetooth, contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Teac product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Teac user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Teac product will considerably shorten its lifespan!



Product description

The black AI-301DA-B Pre-Main Amplifier with Bluetooth, USB, and Digital-to-Analog Converter from Teac is capable of DSD native playback by converting 5.6 MHz DSD files received via its USB input directly into analog signals, without the need for converting them to PCM first. It supports both the ASIO2.1 and DoP (DSD over PCM) conversion methods. When receiving digital audio signals from a computer via USB cable, the unit can operate in asynchronous mode, controlling the timing of the input signal using an internal clock. With asynchronous transmission over USB, signal compromising jitter is effectively eliminated. Besides its USB audio input, the amplifier also comes with S/PDIF inputs for versatile compatibility. The amplifier features the aptX codec, which offers wireless playback capability via Bluetooth hardware. This codec offers low latency and error recovery. The AI-301DA can remember up to eight Bluetooth device pairings. The device also features one coaxial and two RCA stereo line inputs along with a headphone jack (standard stereo) and a subwoofer output (RCA). The system features an 8.5" wide casework, which allows greater freedom in positioning the amplifier. The solid metal chassis minimizes the effects vibration has on sound quality.

Capable of 5.6 MHz DSD Native Playback

    • USB input port allows DSD native playback, which converts 5.6 MHz DSD files directly into analog signals without the requirement of first converting it to PCM
    • Supports both the ASIO2.1 and DoP (DSD over PCM) conversion methods
    • Using the AI-301DA in conjunction with the Teac HR Audio Player high-resolution playback software (available for free download on the Teac website), you can explore the world of high-resolution digital audio, including 5.6 MHz DSD or 32-bit/192 kHz PCM files, without struggling to have to understand complex settings

Asynchronous-Mode-Capable USB Input

    • When receiving digital audio signals from a computer via USB cable, the unit can operate in asynchronous mode, controlling the timing of the input signal using the UD-301's internal clock
    • With asynchronous transmission over USB, signal compromising jitter is effectively eliminated, allowing digital audio signals to be transmitted in a pure, unadulterated state

Coaxial and Optical Digital Inputs Offer Versatility

    • Besides its USB audio input, the AI-301DA comes with S/PDIF inputs for versatile compatibility
    • The coaxial digital input supports up to 24-bit/192 kHz while the optical digital input supports up to 24-bit/96 kHz digital audio

Wireless Playback at High Sound Quality via Bluetooth Using the aptX Codec

    • Supports the aptX codec, which offers wireless playback capability via Bluetooth hardware
    • The codec also offers low latency and an error recovery function, both crucial features for achieving high-quality audio performance
    • Memory capacity for up to a maximum of eight Bluetooth device pairings

Burr-Brown PCM1795 DAC

    • Burr-Brown PCM 1795 D/A converts 5.6 MHz DSD or 32-bit/192 kHz PCM digital data into analog form
    • The analog signal, which is derived from huge digital audio data files, delivers a finely etched sound

ICEpower Class-D Amplifier Circuit

    • Based on the class-D amplifier manufactured by ICEpower
    • Converts a high-resolution sound source into high-definition speaker signals using a feedback loop between a hybrid feedback controlled oscillating modulator (HCOM), which faithfully amplifies the signal, and a multivariable enhanced cascade control (MECC)
    • 60W + 60W (4Ω) amplifier creates very little heat, eliminating any need for a cooling fan, thus affording a quiet environment that's optimal for music appreciation

CCLC Circuits with Headphone Amplifier

    • 100mW + 100mW output (at 32Ω load) headphone amplifier uses CCLC (Coupling Capacitor Less Circuit) technology
    • Eliminates the negative impact of capacitors on sound quality, providing full low-frequency sound and a responsive headphone listening environment

Well-Engineered Aluminum Enclosure, Compact Proportions

    • Features 8.5" wide casework which allows greater freedom in positioning the amplifier
    • External highlights include aluminum panels and a motor-driven volume knob with smooth tactile feel
    • The solid enclosure, underpinned by the metal chassis, is impressively inert, minimizing the effects of vibration on the unit's sound quality

Simple Operation with Auto Power On

    • Auto Power On function automatically switches on the unit's power when it senses a digital signal input
    • When the amplifier is connected to optical digital audio output from a television set, just switching on the television turns on the power of the AI-301DA, enabling instant output of high-quality sound without having to adjust any other settings

Combine with the Separately Available LS-301 Speakers to Create a Simple High-Resolution System

    • The AI301-DA Amplifier can be combined with LS-301 coaxial speaker (available separately), which is specifically developed to match it to create a high-resolution sound system
    • AI301-DA also features a subwoofer pre-out plug so that the equally compact 2.1-channel LS-WH01 satellite/subwoofer system (available separately) can be used along with the amplifier

Other Features

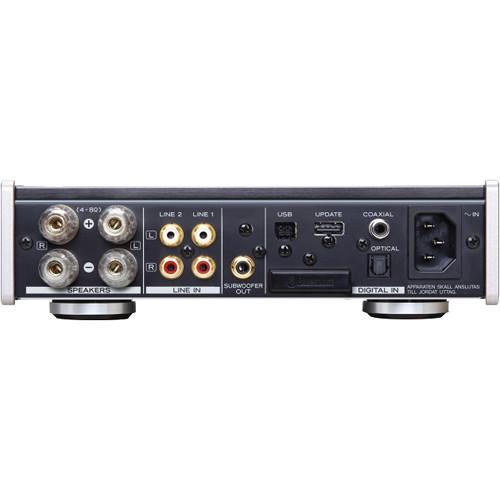

    • Screw-type speaker terminals (banana plugs, 8 AWG gauge cable compatible)
    • Three-pin IEC AC socket for power
    • Customized remote control included
    • Auto Power Save function
In the Box Teac AI-301DA-B Pre-Main Amplifier with Bluetooth, USB, and Digital-to-Analog Converter (Black)

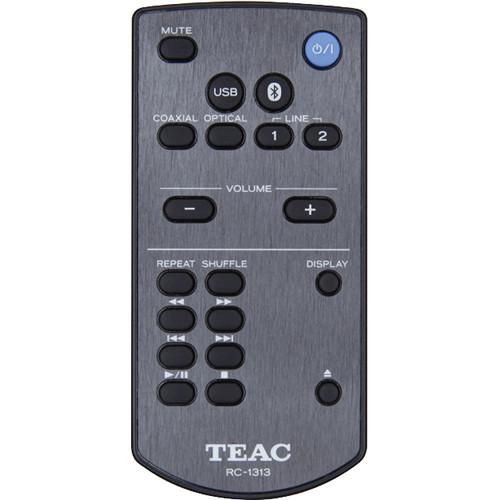

  • RC-1313 Remote Control
  • Power Cord
  • 2 x AAA Battery
  • Limited 1-Year Warranty
  • Guides & Manuals Table of Contents




    Upload User Manual

    Have you got an user manual for the Teac AI-301DA-B Pre-Main Amplifier with Bluetooth, USB, and Digital-to-Analog Converter in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Teac AI-301DA-B Pre-Main Amplifier with Bluetooth, USB, and Digital-to-Analog Converter can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Teac AI-301DA-B Pre-Main Amplifier with Bluetooth, USB, and Digital-to-Analog Converter can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Teac AI-301DA-B Pre-Main Amplifier with Bluetooth, USB, and Digital-to-Analog Converter can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Teac AI-301DA-B Pre-Main Amplifier with Bluetooth, USB, and Digital-to-Analog ConverterDownload PDF User Manual - Teac AI-301DA-B Pre-Main Amplifier with Bluetooth, USB, and Digital-to-Analog Converter
    (PDF file, 2.21 MB)


    Technical parameters

    Teac AI-301DA Specs

    DAC Burr-Brown PCM1795
    Bluetooth Version: 2.1 + EDR
    Output: Class 2
    Compatible Profiles: aptX, A2DP, AVRCP
    Connector Screw-type (banana terminal plugs, 8 AWG gauge loudspeaker cable compatible)
    Maximum Output 60 W + 60 W (4 Ω, 20 Hz to 20 kHz, JEITA)
    30 W + 30 W (8 Ω, 20 Hz to 20 kHz, JEITA)
    Rated Output 43 W + 43 W (4 Ω, 20 Hz to 20 kHz, THD 0.1%, JEITA)
    22 W + 22 W (8 Ω, 20 Hz to 20 kHz, THD 0.1%, JEITA)
    Impedance Supported:4 to 8 Ω
    Connector RCA jack
    USB Connector: USB type-B (USB 2.0)
    Transmission Mode: Asynchronous
    DSD Data Sampling Frequency: 2.8/5.6 MHz
    PCM Data Sampling Frequency: 32/44.1/48/88.2/96/176.4/192 kHz
    Bit Rates: 16/32-bit
    Coaxial Connector: RCA jack
    PCM Data Sampling Frequency: 32/44.1/48/88.2/96/176.4/192 kHz
    Bit Rates: 16/24-bit
    Input Level: 0.5 Vpp
    Input Impedance: 75 Ω
    Optical Connector: Optical digital connector
    PCM Data Sampling Frequency: 32/44.1/48/88.2/96 kHz
    Bit Rates: 16/24-bit
    Input Level: -24 to -14.5 dBm peak
    Connector 6.3 mm (1/4") stereo phone jack
    Maximum Output 100 mW + 100 mW (with 32 Ω load, 1 kHz)
    Distortion 0.005%
    Frequency Response 2 Hz to 100 kHz (-5 dB)
    S/N Ratio 95 dB (Line input, IHF-A/LPF 20 kHz 1 kHz 2 V input)
    Distortion 0.01%(1 kHz, 8 Ω, 1 W)
    OS Compatibility Windows XP (32-bit) / Vista (32/64-bit) / 7 (32/64-bit) / 8 (32/64-bit) / 8.1 (32/64-bit)
    Mac OS X Snow Leopard (10.6), OS X Lion (10.7), OS X Mountain Lion (10.8), OS X Mavericks (10.9)
    Power Supply 120 VAC, 60 Hz
    Power Consumption 38 W
    Dimensions (W x H x D) 8.5 x 2.4 x 10.0" (21.5 x 6.1 x 25.4 cm) including protrusions
    Weight 4.6 lb (2.1 kg)
    Package Weight 7.05 lb
    Box Dimensions (LxWxH) 15.1 x 13.4 x 6.3"
