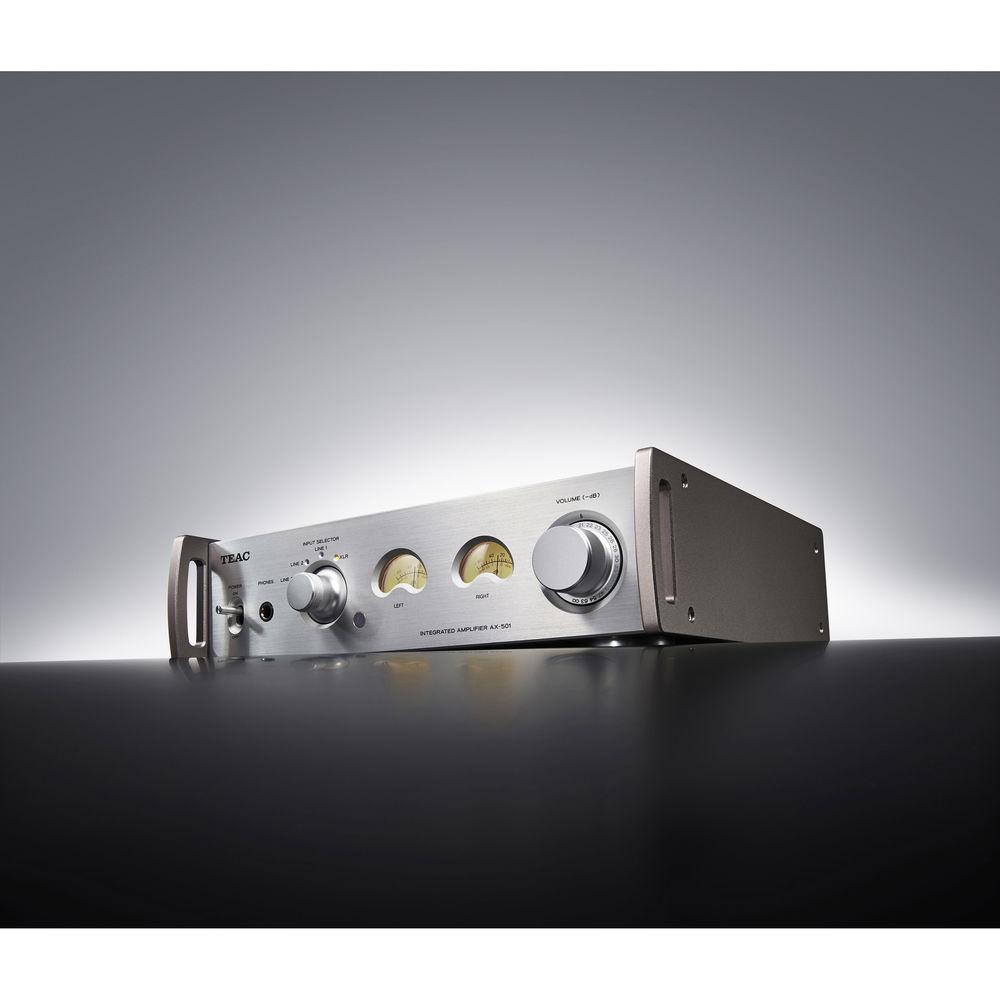

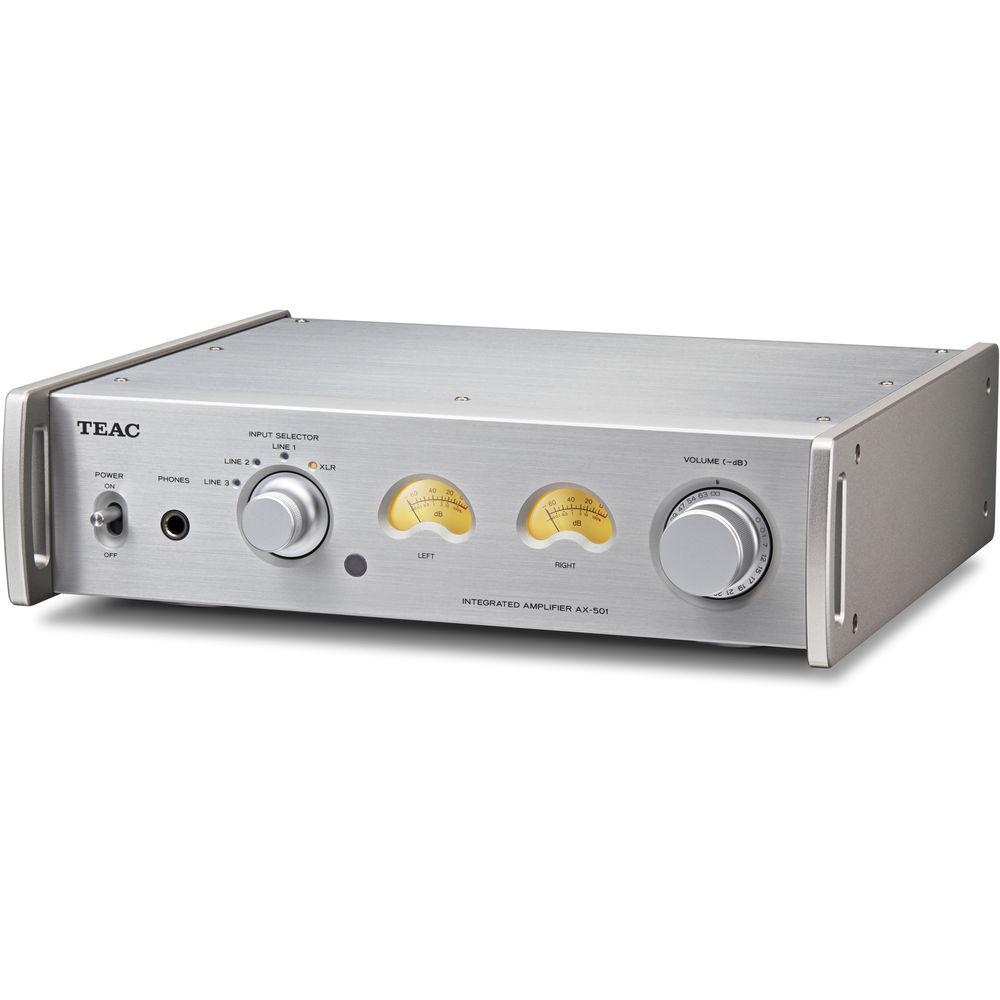

Product description The silver AX-501-S Integrated Amplifier with Balanced Analog Inputs from Teac features ABLETEC's ALC0240 class-D power amplifier, which provides a maximum power output of 120W+120W and a low power consumption of 68W (at max level). When used in power saving mode, the integrated amplifier consumes 0.5W of power. The XLR balanced input terminals allow balanced connection to high-quality USB DAC equipment which helps in cancelling out external noise. The front, side, and top panels are made of aluminum and attached to a robust steel chassis. These heavy parts eliminate vibrations, and allow all internal circuits to always perform under stable conditions. An A4-size body allows the user to place the unit in small spaces. - XLR Balanced Input Terminals for USB DAC Balanced Connection
- The AX-501 features XLR balanced input terminals that allow balanced connection to high-quality USB DAC equipment to cancel out external noise and achieve an unadulterated transmission of audio signals from the USB DAC to the power amplifier.
- Fully-Balanced Circuitry to Eliminate Unwanted Analog Circuit Noise
- In addition to support for balanced connections, a fully-balanced approach for the pre-amp analog circuits supplies constant balanced signals through the entire AX-501 work-flow until they are input to the power amplifier.
- CCLC System for High Linearity Headphone Output
- The AX-501 features a headphone output with audio quality optimized for headphone listening. The CCLC (coupling capacitor-less circuit) system keeps the coupling free of capacitors; ensuring a stronger signal reaches the headphones to achieve accurate audio reproduction.
- Large-Capacity Toroidal-Core Power Transformer
- An over-sized toroidal-core power transformer helps deliver high-quality sound without sacrificing energy-efficiency and the unit's compact dimensions. Conventional diodes produce rectification noise that negatively affects the sound. To combat this, the amplifier comes with Schottky barrier diodes to supply a cleaner internal current and hence reduce rectification noise
- Large Number of Inputs Allow Users to Integrate Full-Scale Hi-Fi Systems

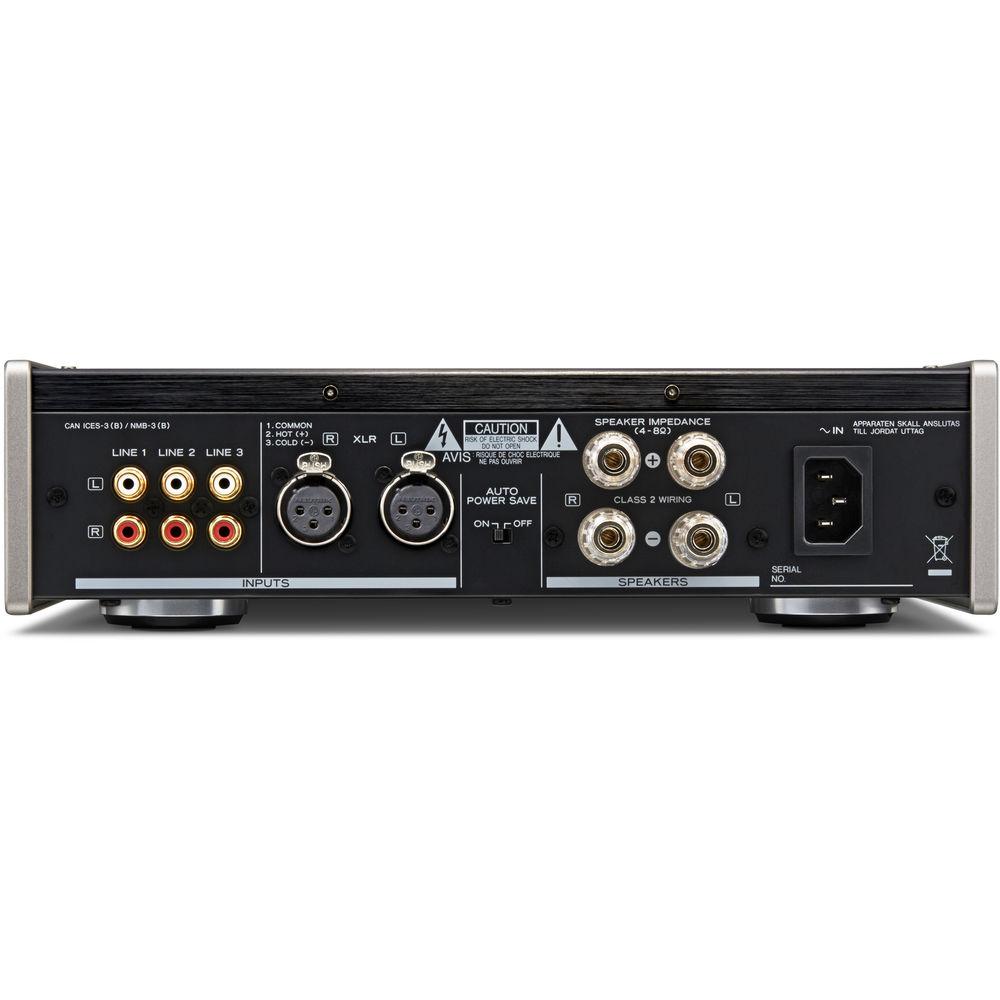

- In addition to the XLR input terminals ideally suited for USB DAC connections, the AX-501 incorporates three sets of RCA analog input terminals. The speaker terminals use large terminals compatible with both banana plugs and AWG8 speaker cables for versatile speaker connections. The AC power supply cable is detachable, with a 3-pin inlet in case users choose to upgrade to ultra-high-grade AC cables.
- User Interface

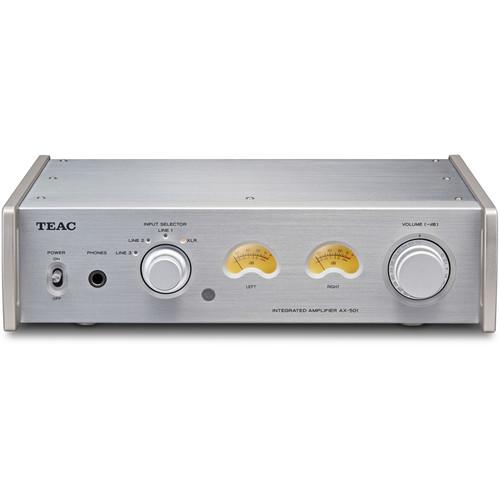

- The amplifier features a firm-torqued machined aluminum volume knob and a toggle-type main power switch. The remote control with aluminum facia gives the unit an elegant appearance and very precise volume control in paces of approximately 0.5 dB. In addition, the amplifier features 4-step dimmable backlight (normal, dark, very dark or off) and dual analog meters. The level meters can be turned off, as well.
- Quiet Operation
- Careful selection and efficient placement of potential heat-generating components during circuit and chassis combine to create a compact design that doesn't require cooling fans.
UPC: 043774030347 In the Box Teac AX-501-S Integrated Amplifier with Balanced Analog Inputs (Silver) RC-1309 Remote Control Power Cord 2 x AAA Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teac AX-501-S Integrated Amplifier with Balanced Analog Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeac AX-501 Specs | | | Maximum Output | 120 W + 120 W (4 ohms, 1 kHz, JEITA); 70 W + 70 W (8 ohms, 1 kHz, JEITA) | | Rated Output | 100 W + 100 W (4 ohms, 1 kHz, JEITA); 65 W + 65 W (8 ohms, 1 kHz, JEITA) | | Impedance | Speaker: 4 to 8 ohms | | Total Harmonic Distortion | 0.005% (8 ohms, 1 kHz, 1 W, JEITA) | | S/N Ratio | Line In: 100 dB ( IHF-A) | | Frequency Range | 10 Hz to 60 kHz(1 dB, -5 dB) | | | | Balanced Input | Connectors: 1 x XLR
Nominal Input Level: 1.2 Vrms
Maximum Input Level: 7.7 Vrms | | Unbalanced Input | Connectors: 3 x RCA jacks
Nominal Input Level: 0.3 Vrms
Maximum Input Level: 3.5 Vrms | | | | Connector | Standard 0.25" (6.3 mm) stereo jack | | Maximum Output Level | 50 mW + 50 mW (32 ohms, THD+N 0.005%) | | | | Power Supply | 120 VAC, 60 Hz | | Power Consumption | 68 W | | | | Operating Temperature | 41 to 95°F (5 to 35°C) | | Storage Temperature | -4 to 131°F (-20 to 55°C) | | | | Dimensions | 11.50 x 3.25 x 10.50" (29.0 x 8.12 x 26.4 cm) including protrusions | | Weight | 8.8 lb (4.0 kg) | | | | Package Weight | 12.1 lb | | Box Dimensions (LxWxH) | 17.2 x 13.8 x 7.4" |
